Product Type	Powered Subwoofer
Model	PMW12A
Brand	Pyle
Woofer Size	12 inches
Peak Power	400 Watts
RMS Power	200 Watts
Frequency Response	20 Hz - 200 Hz
Impedance	4 Ohms
Enclosure Type	Ported / Bass-Reflex
Input Connections	RCA Line Level, Speaker Level
Dimensions (W x H x D)	14.2 x 16.5 x 18.1 inches
Weight	28.7 lbs
Material	Polypropylene Cone, Carpet Covering
Remote Control	Included (wireless)
Protection Features	Short Circuit, Thermal Overload
Power Supply	AC 120V / 60Hz
Maintenance	Wipe with dry cloth; avoid moisture
Cleaning	Use soft, lint-free cloth; no solvents
Safety	Do not expose to rain or liquids
Spare Parts Availability	Contact Pyle customer service
Reparability	Repairs should be done by qualified technicians

Frequently Asked Questions - PMW12A Pyle

How do I connect the subwoofer to my receiver?

Use either the RCA line-level input or the speaker-level input. For RCA, connect a subwoofer cable from the receiver's subwoofer pre-out to the subwoofer's LFE input. For speaker-level, connect the receiver's front speaker outputs to the subwoofer's speaker input terminals, then from the subwoofer's speaker output to the speakers.

What is the power consumption of the Pyle PMW12A?

The subwoofer has a maximum power consumption of approximately 400 watts during peak output. Normal operation draws around 200 watts RMS.

How do I adjust the crossover frequency?

The crossover frequency is adjustable via a knob on the back panel. Rotate it to set the low-pass filter typically between 40 Hz and 200 Hz to blend with your main speakers.

Why is there no sound from the subwoofer?

Check that the power cord is plugged in and the power switch is on. Verify the input connections. Ensure the receiver's subwoofer output is enabled. Also check the subwoofer's volume and crossover settings. If using speaker-level inputs, ensure the speakers are connected properly.

Can I use this subwoofer with a soundbar?

Yes, if the soundbar has a subwoofer output (RCA or speaker-level). Some soundbars do not have a dedicated subwoofer output; in that case, you may need a line-level converter to tap into the speaker wires.

What is the recommended placement for optimal bass?

Place the subwoofer near a wall or corner for increased bass output. Avoid placing it in the center of the room. Experiment with placement to reduce standing waves. Ensure at least a few inches of clearance around the enclosure for ventilation.

Does the subwoofer come with a remote control?

Yes, the Pyle PMW12A includes a wireless remote control for adjusting volume, crossover, and phase from a distance.

How do I clean the subwoofer?

Use a soft, dry cloth to wipe the exterior. Do not use any liquid cleaners or solvents. Avoid getting moisture into the ports or electronics. For the grille, gently vacuum with a brush attachment.

What is the warranty period?

Pyle typically offers a 1-year limited warranty against defects in materials and workmanship. Retain your purchase receipt for warranty service.

Can I replace the driver (speaker) if it fails?

Yes, replacement drivers are available from Pyle parts distributors. However, replacement should be performed by a qualified technician to ensure proper fit and performance.

USER MANUAL PMW12A Pyle

PYLE PRO

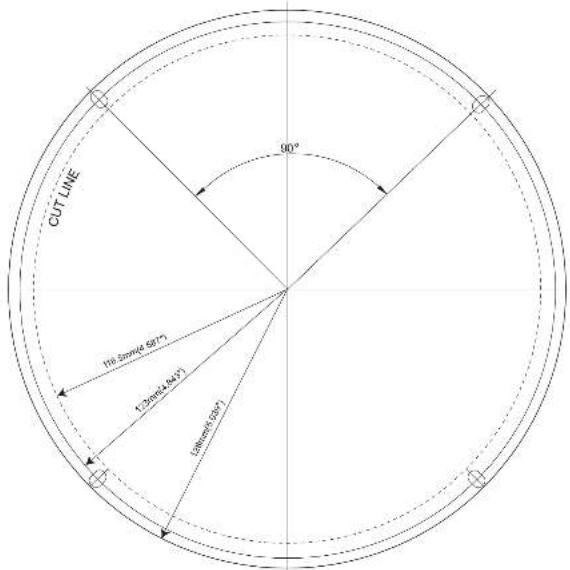

TEMPLATE FOR PMW10A

SPEAKER PARAMETER

MODEL	Fs (Hz)	Qms	Qes	Qts	Vas (CuFt)	SPL (dB)	MAX POWER (W)
PMW10A	42	5 078	0.339	0.318	2.718	98	800

www.pyleaudio.com

PYLE PRO
TEMPLATE FOR PMW12A

SPEAKER PARAMETER

MODEL	Fs (Hz)	Qms	Qes	Qts	Vas (CuFt)	SPL (dB)	MAX POWER (W)
PMW12A	32	3.759	0.239	0.225	7.335	100	1000
