Product Type	Fan-Forced Cabinet Heater
Model	KCF3-2030-1-S-TP (KCF Series)
Power Rating	3000 Watts (10.2 kBTU/h)
Voltage Options	208V, 240V, 277V, 480V (1-phase)
Amperage (at 240V)	12.5 A (1-phase)
Cabinet Size	36 inches (height)
Weight	45 lbs (20.4 kg)
Number of Fans	2
Fan Power	68 Watts
Airflow (CFM)	190 CFM
Mounting Type	Surface Mount (Suffix -S)
Thermostat	Built-in 1-pole thermostat (40°F - 90°F) (Suffix -T)
Heating Element	Long-life with aluminum plate fins
Motor Bearings	Permanently lubricated
Clearance - Front	At least 3 ft (0.9 m) from combustibles
Clearance - Sides	At least 6 inches from vertical walls
Clearance - Floor	At least 1 inch above floor
Max Installation Height	2 feet from floor
Maintenance	Seasonal cleaning with soft brush or vacuum; oil motor shaft with SAE 20 synthetic oil (KCF units)
Warranty - Heater	1 year from installation
Warranty - Heating Elements	5 years from installation
Electrical Connection	Hardwired, requires proper fuses/circuit breakers
Compliance	Must conform to local electrical codes

Frequently Asked Questions - KCF3-2030-1-S-TP KING

What voltage does my KCF3-2030-1-S-TP heater require?

The heater can operate on 208V, 240V, 277V, or 480V (1-phase). Verify your power supply matches the unit's nameplate voltage. Improper voltage may damage the heater and void warranty.

What are the minimum clearances for installation?

Keep combustibles at least 3 ft (0.9 m) from the front. Side clearance: at least 6 inches from vertical walls. Floor clearance: at least 1 inch. Do not install more than 2 ft above the floor.

How do I clean the heater?

Disconnect power. Remove the grill (4 screws). Clean heating elements and fan blades with a soft brush, compressed air, or vacuum. For KCF units, add a few drops of SAE 20 synthetic oil on the motor shaft. Replace grill.

What is the warranty coverage?

The heater is warranted for 1 year from installation. Heating elements are warranted for 5 years. Damage from misuse, improper voltage, or improper installation is not covered.

Can I use a remote thermostat?

Yes, if the unit has the -RT option (line voltage terminal block) or -RT24 option (24V control with transformer). Standard models with built-in thermostat (-T) cannot be easily replaced with a remote thermostat.

What is the difference between KCC and KCF models?

KCC models are convection heaters (no fan). KCF models have a fan-forced squirrel cage blower for quicker heat distribution. Both have similar cabinet sizes and wattage options.

How many fans does the KCF3-2030 have?

The KCF3 model has 2 fans, producing 190 CFM airflow and consuming 68 Watts.

Can the heater be recessed into the wall?

Yes, if the model has the -R suffix for recessed mounting. Your model has -S for surface mounting. Surface mounting is easier and requires no wall cutout.

What size circuit breaker do I need?

Use the amperage from the selection chart: at 240V, 1-phase, it draws 12.5 A. Typically use a 15 A or 20 A breaker, but must comply with local codes. The heater circuit must be protected with proper fuses or breakers.

How do I install the heater?

Turn off power. Remove grill. Select power supply cable, connect per wiring diagram. Secure heater to wall with #10 screws. Ground to green screw. Replace grill. Test operation. All wiring must conform to local codes.

USER MANUAL KCF3-2030-1-S-TP KING

SAVE THESE INSTRUCTIONS

for KCC & KCF SERIES CABINET HEATERS

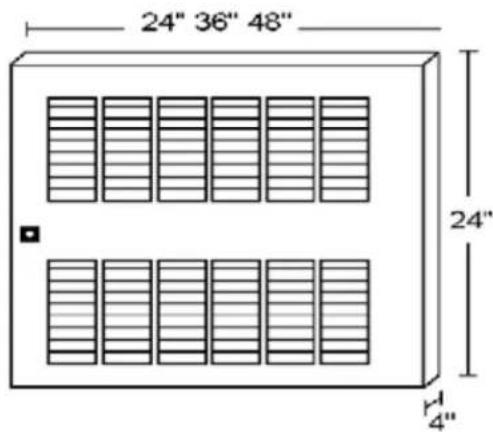

Exterior view of a metallic industrial ventilation unit with multiple slatted ventilation slots (no text or symbols visible)

WARNING

THIS UNIT IS MANUFACTURED TO OPERATE ON A SPECIFIC CONTROL VOLTAGE IN COMPLIANCE WITH YOUR ORDER. STANDARD CONTROL VOLTAGES ARE 208 / 240 / 277 FOR 208 / 240 / 277 VOLT HEATERS. 24 VOLT CONTROL IS STANDARD ON 480 VOLT HEATERS. 208 / 240 OR 277 VOLT HEATERS MAY ALSO BE ORDERED WITH AN OPTIONAL 24 VOLT CONTROL. IT IS IMPORTANT THAT YOU VERIFY YOUR POWER SUPPLY VOLTAGE WITH THE HEATER THAT YOU HAVE CHOSEN. IMPROPER INSTALLATION OR FAILURE TO FOLLOW THE PROCEDURES AS OUTLINED IN THIS MANUAL CAN RESULT IN SERIOUS ELECTRICAL SHOCK. DISCONNECT ALL POWER FROM THE HEATERTAINE MAIN SERVICE PANEL AND LOCK BEFORE ATTEMPTING TO INSTALL OR SERVICE THIS UNIT. ALL ELECTRICAL WIRING MUST CONFORM TO LOCAL ELECTRICAL CODES. HEATER CIRCUIT MUST BE PROTECTED WITH THE PROPER SIZE FUSES OR CIRCUIT BREAKERS.

Congratulations on the purchase of your new KING ELECTRICAL CABINET WALL HEATER. Your new heater has been designed and built to withstand heavy-duty commercial and institutional usage. KCF models feature a whisper-quiet squirrel cage blower, with permanently lubricated bearings. Both models feature long-life heating elements with aluminum plate fins for rapid heat transfer. A variety of factory installed options allow this heater to be tailored to your specific application.

Installation Instructions

WARNING

Before proceeding further with the installation of this heater, turn off the power and lock to the supply line for the heater at the main service box.

Clearances: CAUTION - High temperature, risk of fire, keep electrical cords, drapery, furnishings, and other combustibles at least 3 feet (0.9 m) from the front of the heater and away from the side and rear.

Unit cannot be installed greater than 2' off the floor.

Do Not Install Less Than 6" From Vertical Side Walls.

Do Not Install Less Than 1 in. Above Floor.

Remove the heater from the box and check for any damage. Verify that the factory installed options are correct for the application. Remove and set aside the grill.

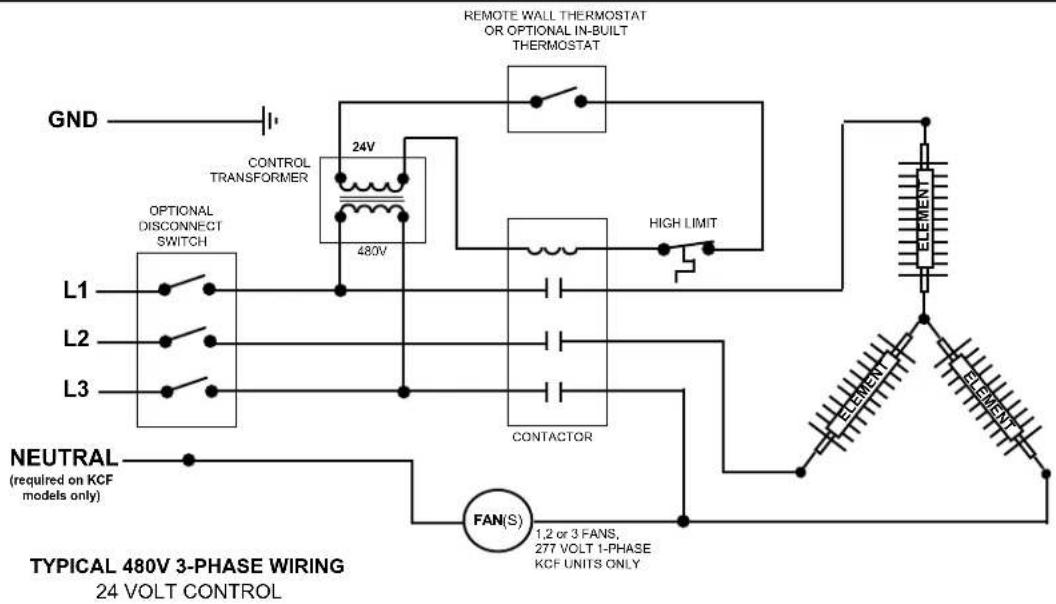

Select power supply wire type and size to comply with local and national electric codes using heater rating given in table. Connect wire to heater as shown in wiring diagram attached to cover. Remove one of the knockouts from back of unit. Secure power supply cable with clamps (or run in conduit, if required by local codes). Also run the wiring for a remote thermostat, if required. Connect grounding conductor to the green screw.

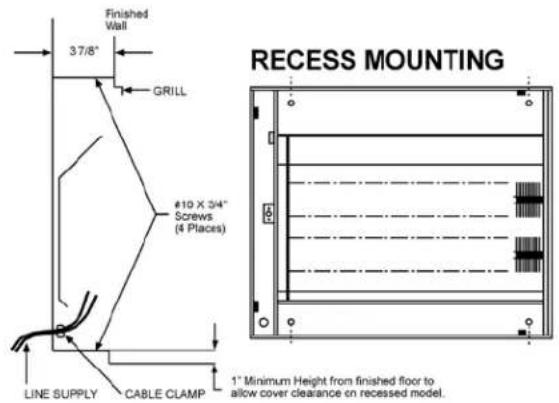

Fasten the heater to the wall with #10 screws, as shown in the mounting diagrams. On recess models, be sure to leave enough clearance to install the grill.

Replace the grill. Test the heater for proper operation.

JUNCTION BOX
(Left side wiring only)

Maintenance

WARNING - All Power must be shut off at the main service panel before inspecting or cleaning the heater.

With proper care your electric heater should last a lifetime, however seasonal cleaning is recommended to maintain the efficiency of the heater. To clean the heater remove the four screws that hold the grill in place and remove the grill. Remove dust or lint from the heating elements and the fan blades with a soft brush, compressed air, or a vacuum cleaner. KCF units require a few drops of SAE 20 synthetic oil on the motor shaft. Replace the grill and tighten the screws.

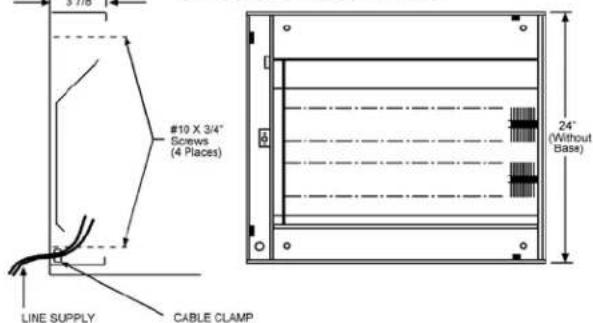

SURFACE MOUNTING

Warranty

All products covered by this instruction sheet are warranted against defects in workmanship and materials for one year from date of installation, except heating elements which are warranted against defects in workmanship and materials for five years from date of installation. This warranty does not apply to damage from accident, misuse, or alteration; nor where the connected voltage is more than 5% above the nameplate voltage; nor to equipment improperly installed, wired or maintained in violation of this instruction sheet. All claims for warranty work must be accompanied by proof of the date of installation. The customer shall be responsible for all cost incurred in the removal or reinstallation or products, including labor costs, and shipping costs incurred to return products to King Manufacturing. King Mfg. will repair or replace, at our option, at no charge to you with return freight paid by King. King Electrical Mfg. shall not be liable for consequential damages arising with respect to the product, whether based upon negligence, tort, strict liability or contract. King Manufacturing can be contacted in Seattle, Washington by phone at [phone], by fax at [phone] or by email at www.king-electric.com

KCC SELECTION CHART

(convection cabinet heater)

CATALOG # PHASE WATTS			BTUH (000)	VOLTS	AMPS		CABINET SIZE	WT. (lbs.)
					1-PH 3-PH
KCC2-2020-KCC2-2420-KCC2-2720-KCC2-4820-*	Add Suffix	2000 6.6		208	9.6	5.6	24" 30
				240	8.3	4.8
				277	7.2	N/A
				480	4.2	2.4
KCC3-2030-KCC3-2430-KCC3-2730-KCC3-4830-*	1 for Single Phase	3000 10.2		208	14.4	8.3	36" 40
				240	12.5	7.2
				277	10.3	N/A
				480	6.5	3.6
KCC4-2040-KCC4-2440-KCC4-2740-KCC4-4840-*	or 3 for Three Phase	4000 13.6		208	19.2	11.1	48" 50
				240	16.7	9.6
				277	14.4	N/A
				480	8.3	4.8
KCC4-2050-KCC4-2450-KCC4-2750-KCC4-4850-*		5000 17		208	24	13.9	48" 50
				240	20.8	12
				277	18	N/A
				480	10.4	6

* All 480V models require neutral wire for 277V fan motor

KCF SELECTION CHART

(fan-forced cabinet heater)

CATALOG # PHASE WATTS			BTUH(000)	VOLTS	AMPS		CABINETSIZE	WT.(lbs.)	# OFFANS	FANWATTS	CFM
					1-PH 3-PH
KCF2-2020-KCF2-2420-KCF2-2720-KCF2-4820-*	AddSuffix	2000 6.8		208	9.6	5.6	24" 35 1	34 95
				240	8.3	4.8
				277	7.2	N/A
				480	4.2	2.4
KCF3-2030-KCF3-2430-KCF3-2730-KCF3-4830-*	1forSinglePhase	3000 10 2		208	14.4	8.3	36" 45 2	68 190
				240	12.5	7.2
				277	10.3	N/A
				480	6.5	3.6
KCF4-2040-KCF4-2440-KCF4-2740-KCF4-4840-*	or3forThreePhase	4000 13 6		208	19.2	11.1	48" 55 3	102 285
				240	16.7	9.6
				277	14.4	N/A
				480	8.3	4.8
KCF4-2050-KCF4-2450-KCF4-2750-KCF4-4850-*		5000 17		208	24	13.9	48" 55 4	102 285
				240	20.8	12
				277	18	N/A
				480	10.4	6

* All 480V models require neutral wire for 277V fan motor

FACTORY INSTALLED OPTIONS

ADD SUFFIX	DESCRIPTION
-1 1-Phase (first extension after base model number)
-3 3-Phase (First extension after base model number)
-R Receased Mounting
-S	Surface Mounting
-SB	Sub floor base, 3" high
-T	1-Pole Built-In Thermostat (40°F - 90°F)
-T2	2-Pole Built-In Thermostat (40°F - 90°F)
-RT	Line Voltage Terminal Block(for wiring to a remote thermostat)
-CX	Power Contactor for 208. 240 & 277V modelsline voltage holding coil
-RT24	Power Contactor and Transformer for 24V control(for wiring to a remote low voltage thermostat)Standard on 480V models
-3PS	3-Position Switch (Heat / Fan / Off)
-DS1	2-Pole Disconnect Switch for 1-Phase Models
-DS3	3-Pole Disconnect Switch for 3-Phase Models
