Type	Projector Mount (Ceiling or Wall)
Compatibility	Universal (most projectors up to 15 kg)
Weight Capacity	15 kg (33 lbs)
Material	Steel and Aluminum
Color	Black
Adjustment Axis	3-axis: Tilt, Roll, Swivel
Tilt Range	±15°
Roll Range	±15°
Swivel Range	360°
Installation	Easy mount, includes hardware
Power Supply	Not applicable (passive mount)
Dimensions (W x H x D)	30 cm x 5 cm x 25 cm (approx.)
Net Weight	1.5 kg (3.3 lbs)
Compliance	RoHS, UL listed
Cleaning	Wipe with dry cloth; no solvents
Safety	Install per instructions, check ceiling strength
Spare Parts	Contact Chief support for replacement parts
Warranty	5 years

Frequently Asked Questions - SSM985 Chief

What is the weight capacity of the Chief SSM985?

The SSM985 supports projectors up to 15 kg (33 lbs).

Is the SSM985 compatible with all projectors?

It is a universal mount fitting most projectors with standard VESA patterns (up to 200x200 mm). Check your projector's VESA dimensions.

Can the mount be tilted or swiveled?

Yes, it offers tilt (±15°), roll (±15°), and swivel (360°) adjustments.

What tools do I need for installation?

A Phillips screwdriver and a socket wrench (usually 10mm or 13mm) are required. All mounting hardware is included.

Can the SSM985 be mounted on a concrete ceiling?

Yes, but you must use appropriate concrete anchors (not included). Ensure the ceiling can support the weight.

Does the mount include a security lock?

No, the SSM985 does not have a built-in lock. However, you can add a security cable through the provided slots.

How do I clean the mount?

Use a dry, soft cloth. Avoid abrasive cleaners or solvents that may damage the finish.

Is the mount compatible with a drop ceiling?

Yes, with an optional drop ceiling adapter (sold separately) it can be installed into drop ceilings.

What is the warranty period for the SSM985?

Chief offers a 5-year limited warranty against defects in materials and workmanship.

Can I wall-mount the SSM985 instead of ceiling?

Yes, the mount can be installed on a wall using the same hardware. Ensure the wall can support the weight and use appropriate anchors for the wall type.

USER MANUAL SSM985 Chief

INSTALLATION INSTRUCTIONS

SSB-985, SSM-985, SLB-985 and SLM-985 Interface Brackets

SSB-985, SSM-985, SLB-985 and SLM-985 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the specific installation instructions provided with the mount for additional installation information.

Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.

WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!

(1) Interface Bracket (3) Screw, Phillips Pan Head, Machine, M6 x 12mm
(6) 10 - 24 Thumb Nuts** (1) Screw, Phillips Pan Head, Machine, M6 x 16mm****
(1) All-Points Security Kit (4) Washer, Flat, M6

(1) .320" x .500" x .250" Nylon Spacer****

**Only used when installing SLB/SSB interface brackets. ****Used when mounting surface of projector is recessed.

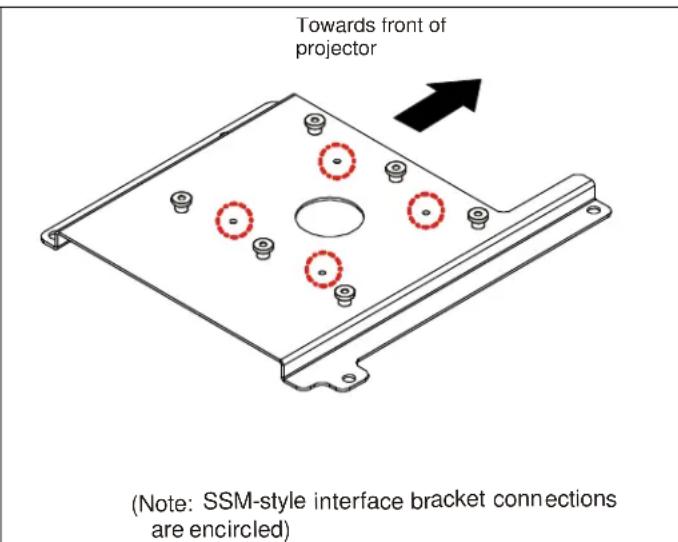

NOTE: Specific to SSB-style and SSM-style interface bracket installation, all appropriate screws come pre-installed as reflected in the encircled locations above. DO NOT attempt to substitute and USE ONLY this pre-installed hardware for SSB-style and SSM-style interface bracket installation.

Installation Instructions

WARNING: OVER TIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND DAMAGE TO EQUIPMENT! DO NOT over tighten screws when installing interface bracket.

NOTE: Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.

1. Screw thumb screws onto 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.
2. Turn projector upside down.
3. Place 1/4" spacer over threaded brass insert in bottom of projector.
4. Place interface bracket onto bottom of projector and align mounting holes in bracket with threaded inserts in projector.
5. Using M6 x 12mm screws and M6 x 16mm Phillips pan head screw with flat washers, secure interface bracket to projector and tighten all fasteners at this time.

NOTE: Security screws can be substituted when mounting interface bracket to projector by using the parts and installation instructions in the All-Points Security Kit.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.
