SC0165 - Mouse Raspberry Pi - Free user manual and instructions

Product Type	Mouse
Brand	Raspberry Pi
Model	SC0165
Connectivity	Wired USB
Interface	USB Type-A
Buttons	3 (Left, Right, Scroll Wheel)
Scroll Wheel	Yes, clickable
Sensor Type	Optical
Resolution	1000 DPI
Cable Length	1.5 m
Dimensions (L x W x H)	100 x 60 x 35 mm
Weight	80 g
Power Source	USB bus power
Compatibility	Raspberry Pi, Windows, macOS, Linux
Color	Black
Maintenance	Clean with a dry cloth
Safety	No special safety instructions
Spare Parts	Not applicable
Repairability	Not user-serviceable
Warranty	1 year

Frequently Asked Questions - SC0165 Raspberry Pi

How do I connect the SC0165 mouse to my Raspberry Pi?

Plug the mouse into any USB port on your Raspberry Pi. It should be automatically recognized without additional drivers.

Why is my mouse not working?

Check the USB connection and try a different port. Ensure your Raspberry Pi is powered on. If using a hub, verify it has enough power.

How do I clean the mouse?

Use a dry, lint-free cloth to wipe the exterior. For the optical sensor, gently clean with a cotton swab.

Is the mouse compatible with Windows?

Yes, the SC0165 works with Windows, macOS, and Linux as a standard HID device.

What is the DPI of this mouse?

The mouse has a fixed 1000 DPI resolution, suitable for everyday use.

Can I use the mouse wirelessly?

No, the SC0165 is a wired USB mouse and does not support wireless connectivity.

How long is the cable?

The cable length is approximately 1.5 meters, providing ample reach.

Does the mouse have a scroll wheel?

Yes, it includes a clickable scroll wheel for scrolling and middle-click functionality.

How do I change the batteries?

This mouse does not require batteries as it is powered via USB from the connected device.

Is there a driver needed?

No, the mouse uses standard HID drivers built into most operating systems, including Raspberry Pi OS.

USER MANUAL SC0165 Raspberry Pi

Raspberry Pi keyboard and hub Raspberry Pi mouse

Getting started

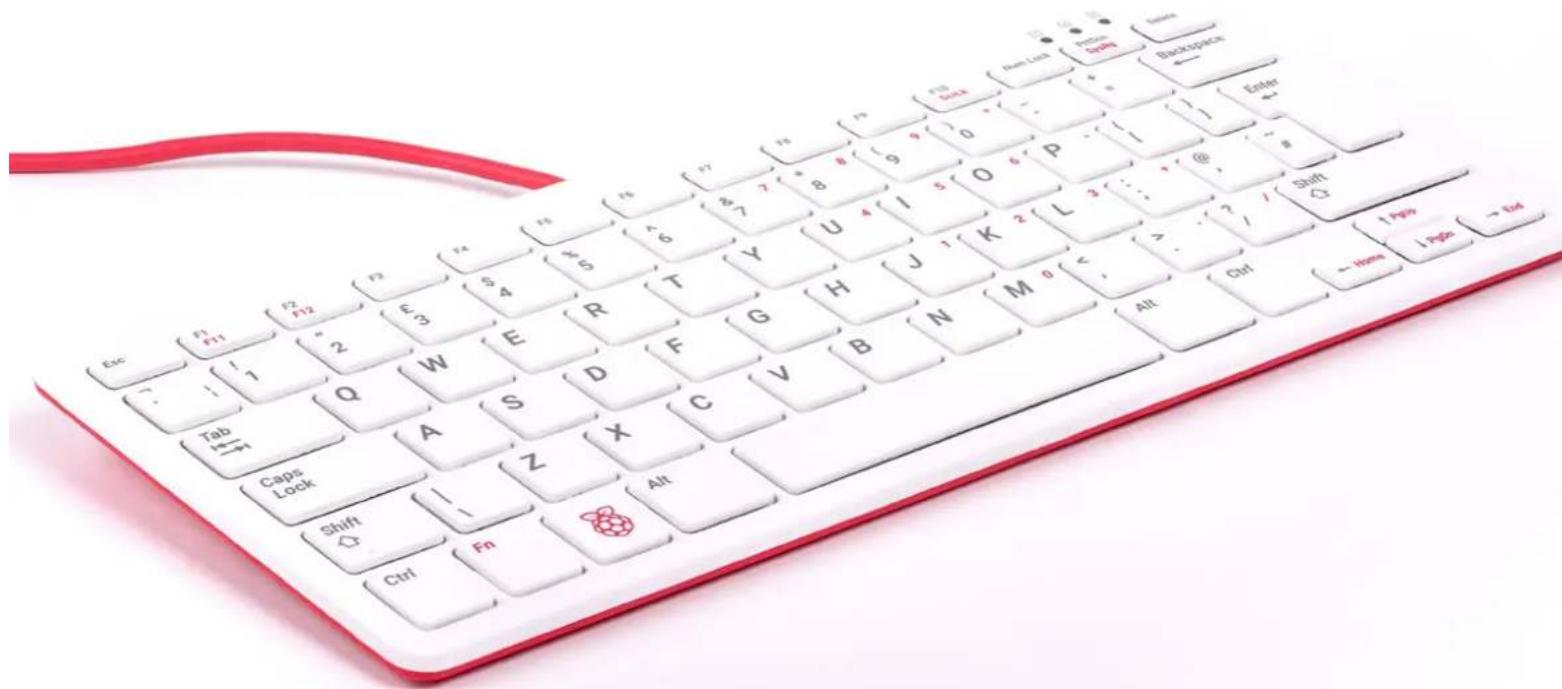

Getting started with the official Raspberry Pi keyboard and hub

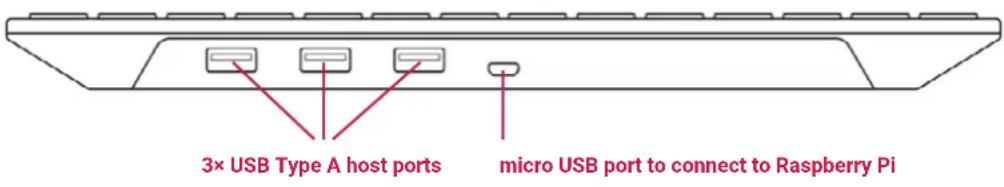

Our official keyboard includes three host USB ports for connecting external devices, such as USB mice, USB drives, and other USB-controlled devices.

The product's micro USB port is for connection to the Raspberry Pi. Via the USB hub built into the keyboard, the Raspberry Pi controls, and provides power to, the three USB Type A ports.

Keyboard features:

The Raspberry Pi keyboard has three lock keys: Num Lock, Scroll Lock, and Caps Lock. There are three LEDs in the top right-hand corner that indicate which locks are enabled.

Num Lock – Allows use of the red number keys on the letter keys, effectively creating a numeric keypad. This mode is enabled and disabled by pressing the Num Lock key.

Caps Lock – Allows typing capital letters; press the Shift key to type lower-case letters in this mode. This mode is enabled and disabled by pressing the Caps Lock key.

Scroll Lock (ScrLk) – Allows use of the cursor keys for browsing web pages and spreadsheets without the mouse. This mode is enabled and disabled by pressing the ScrLk key while holding the Fn key.

Getting started with the official Raspberry Pi mouse

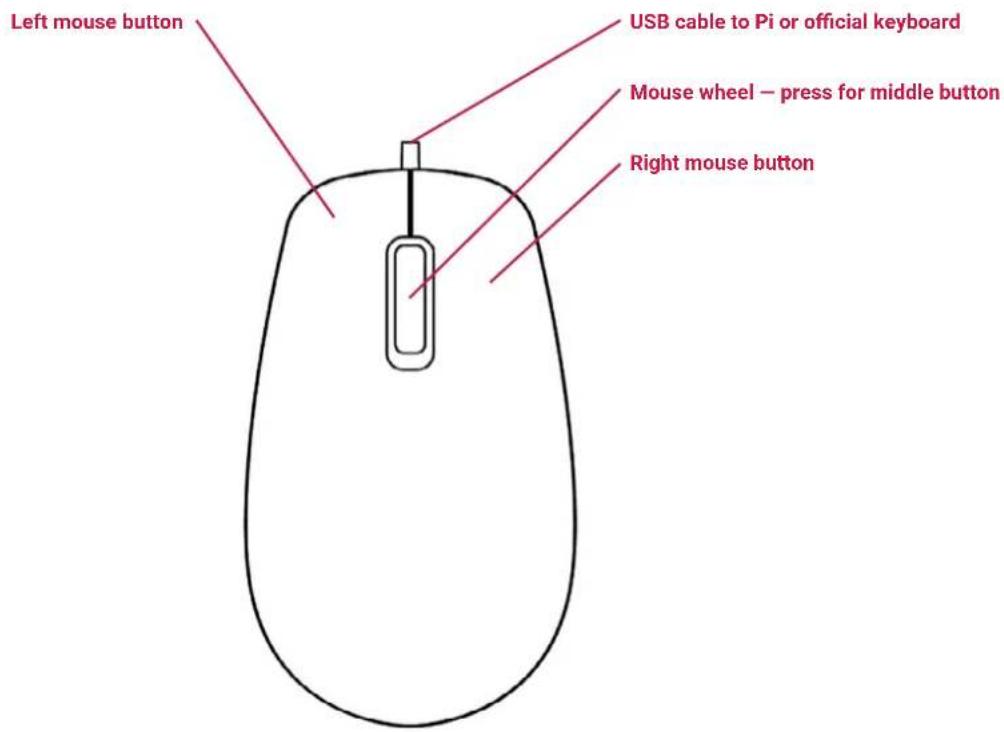

Our official mouse has three buttons, which activate high-quality micro-switches. The wheel is for quick scrolling when browsing documents and web pages.

Always place the mouse on a flat, stable surface while using it. The mouse optically detects movement on the surface on which it is placed. On featureless surfaces, e.g. PVC or acrylic table tops, the mouse cannot detect movement. When you are working on such a surface, place the mouse on a mouse mat.

Connection diagram

This is the configuration we recommend for using your Raspberry Pi, official keyboard and hub, and official mouse together. The hub on the keyboard ensures easy access to USB drives, and the mouse's cable is tidy, while being long enough to allow you to use the mouse left- or right-handed.

Note: It is important that the power supply is connected to the Raspberry Pi and the keyboard is connected to the Raspberry Pi. If the power supply were connected to the keyboard, with the Raspberry Pi powered via the keyboard, then the keyboard would not operate correctly.

Safety info

WARNINGS

• These products should only be connected to a Raspberry Pi computer or another compatible device.
- While in use, these products should be placed on a stable, flat, non-conductive surface, and they should not be contacted by conductive items.
- All peripherals used with these products should comply with relevant standards for the country of use and should be marked accordingly to ensure that safety and performance requirements are met.
- The cables and connectors of all peripherals used with these products must have adequate insulation so that relevant safety requirements are met.

SAFETY INSTRUCTIONS

To avoid malfunction or damage to these products, please observe the following instructions:

• Do not expose to water or moisture, and do not place on a conductive surface while in operation.
• Do not expose to heat from any source; these products are designed for reliable operation at normal ambient temperatures.
  • Take care while handling to avoid mechanical or electrical damage.
• Do not stare directly at the LED in the base of the mouse.
