HJX1509 - Vacuum Cleaner XD - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Brand	XD
Model	HJX1509
Dimensions (approx.)	40 x 30 x 30 cm
Weight (approx.)	5 kg
Power Consumption	1200 W
Dust Collection Method	Bagless, 2 L capacity dust container
Filter Type	HEPA filter
Cord Length	5 m
Noise Level (approx.)	75 dB
Accessories Included	Parquet brush, crevice tool, upholstery tool
Main Functions	Dry vacuuming on carpets and hard floors
Maintenance	Empty dust container after each use; clean filter monthly; check for blockages
Safety Features	Thermal overload protection; automatic shut-off
Spare Parts Availability	Replacement filters and accessories available from XD
Reparability	Modular design allows easy replacement of main components

Frequently Asked Questions - HJX1509 XD

How do I empty the dust container?

Press the release button to remove the dust container, then open the bottom lid over a trash bin. Rinse with water if needed, but ensure it is completely dry before reattaching.

How often should I clean the filter?

Clean the HEPA filter every month. Tap off loose dust or wash it gently with water. Let it air dry for at least 24 hours before reuse.

What should I do if the vacuum loses suction?

Check for blockages in the hose, wand, or floor head. Ensure the dust container is not overfilled and the filter is clean. Also verify that the hose connections are secure.

Can I use the vacuum on hardwood floors?

Yes, the included parquet brush is designed for delicate hard floors. Use it to avoid scratches.

How do I replace the filter?

Purchase a replacement filter from XD. Remove the old filter by twisting or pulling it out, insert the new one, and secure it in place. Refer to the manual for specific instructions.

The vacuum turns off unexpectedly. What should I check?

This may be due to overheating. Let the vacuum cool down for 30 minutes. Check for blockages or an overfull dust container. If the problem persists, contact support.

Can I vacuum wet spills?

No, this vacuum is designed for dry use only. Do not vacuum liquids, as it may damage the motor and void the warranty.

How do I clean the floor head?

Detach the floor head from the wand. Remove any hair or debris wrapped around the brush roll with scissors or a comb. Wash the head with mild soap if necessary.

Where can I download the manual?

The manual is available for free on notice-facile.com in PDF format. Visit the product page and click the download button.

What is the warranty period?

XD typically offers a 2-year warranty on this model. Keep your receipt and register the product online for extended coverage.

USER MANUAL HJX1509 XD

C. UTILIZZO ACCESSORI

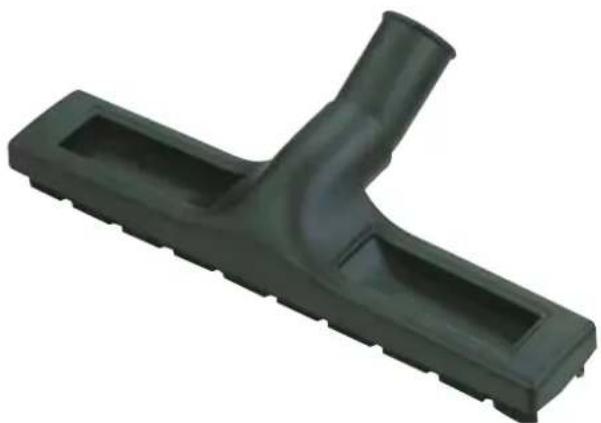

3) Spazzola Parquet

D. DOPO L'UTILIZZO

4- SOSTITUIRE IL CONTENITORE RACCOGLI POLVERE

5- MANUTEZIONE
