USER MANUAL 38467100 PHILIPS

Technical line drawing of a long mechanical component with mounting brackets and fasteners, shown with an inset image of a pencil case (no text or symbols on the diagram itself)

L(mm)	LED31S LED50S LED61S LED62S LED100S LED123S PSD/SR PSD/SR PSD/SR PSD/SR PSD/SR PSD/SR PSD/SR P(W) P(W) P(W) P(W) P(W)						LED160S PSD/SR P(W)
LL512X 1138 21 36 45								1.30
LL523X 2276 41 71 89							127	2.40
LL612X 1257 21 36 45								4.25
LL623X 2395 41 71 89								6.00
Emergency Lighting PSED / SRED Versions
	LED31S	LED50S	LED50S XT	LED61S	LED61S XT	LED62S	LED100S LED123S LED100S XT	LED160S LED123S XLT LED160S XT
Driver Type	35W	35W	Xit 100W	60W	Xit 100W	60W	Xit 100W	Xit 100W
AC Lument output [lm]	3100	5000		6100		6200	10000	12300
AC Power [W]	21	36	36	45	45	41	71	89
DC Lumen Output [lm]	465	750	750	915	915	930	1500	1845
DC Power [W]	3	5	5	7	7	6	11	13
DC Voltage Range [V]	168 ... 275
PSED / SRED FUSE	1 x 0.8A

Phase Selection
L1 / L2 / L3

* Wires to be connected by installer (available PINs: N,L1-L3, 6-11)
** Wires to be connected by installer (available PINs: 6-11)
*** Available lines in trunk (N, L1-L3, 4, 5, 6, 7)

Driver Type	LED31S		LED50S		LED50S XT	LED61S		LED61S XT	LED62S		LED100S LED123S		LED160S
	35W PSD SR		35W PSD SR		Xit 100W PSD/SR	60W PSD SR		Xit 100W PSD/SR	60W PSD SR		LED100S XT Xit 100W PSD/SR	LED123S XT Xit 100W PSD/SR	LED160S XT Xit 150W PSD/SR
Imax (A)	21		21		4.5	21		4.5	21		4.5	4.5	5.1
Tref (μs)	280		280		1000	280		1000	280		1000	1000	760
MCB Max No Of Panels
B 10A	15	13	15	13	11	15	13	11	15	13	11	11	7
B 13A	19	17	19	17	14	19	17	14	19	17	14	14	9
B 16A	24	21	24	21	18	24	21	18	24	21	18	18	12
B 20A	30	26	30	26	22	30	26	22	30	26	22	22	15
B 25A	37	32	37	32	28	37	32	28	37	32	28	28	18
C 10A	24	21	24	21	18	24	21	18	24	21	18	18	12
C 13A	32	28	32	28	24	32	28	24	32	28	24	24	16
C 16A	40	35	40	35	30	40	35	30	40	35	30	30	20
C 20A	49	43	49	43	37	49	43	37	49	43	37	37	24
C 25A	62	54	62	54	46	62	54	46	62	54	46	46	31

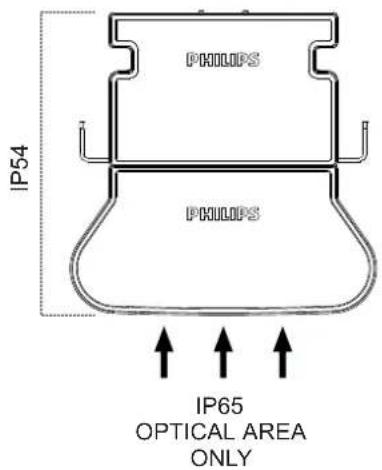

SYSTEM IP
LL500T + LL500X LL500T + LL500XPCO LL600T + LL600X

IP54 BLIND COVER POSITION

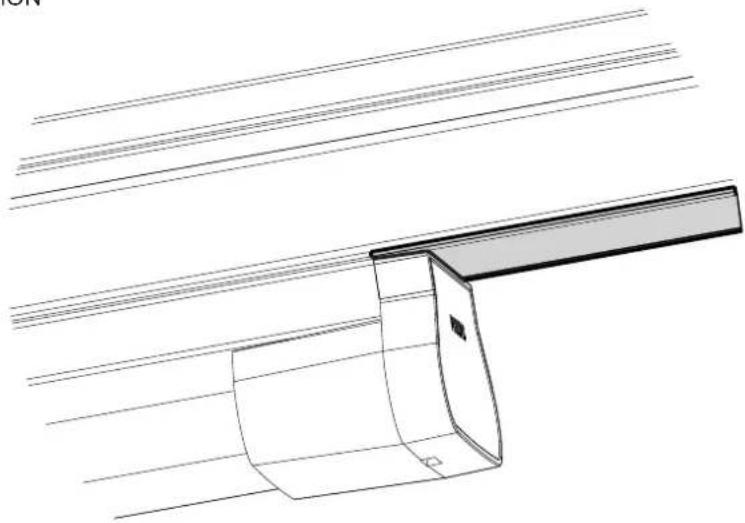

Technical line drawing of a curved mechanical component with parallel lines above, showing internal structure (no text or symbols)
