Product Type	Interface Bracket for Projector Mounts
Model	SSM6100
Brand	Chief
Compatible Mounts	Chief Series Projector Mounts (SSB, SSM, SLB, SLM)
Dimensions (approx.)	150 mm x 100 mm x 10 mm
Weight (approx.)	0.5 kg (1.1 lbs)
Material	Steel with black finish
Mounting Holes	3 holes for M4 screws
Included Hardware	3x M4x8mm screws, 3x #4 flat washers, 6x 10-24 thumb nuts, All-Points Security Kit
Installation	Attaches to projector bottom using three M4 screws
Security	Includes All-Points Security Kit for theft deterrence
Warnings	Do not overtighten screws; use only manufacturer-supplied hardware
Color	Black
Compliance	Designed for use with Chief projector mounts

Frequently Asked Questions - SSM6100 Chief

What is the Chief SSM6100 used for?

The Chief SSM6100 is an interface bracket designed to mount a projector to a compatible Chief projector mount (SSB, SSM, SLB, SLM series).

What hardware is included with the SSM6100?

The kit includes: 3x M4x8mm screws, 3x #4 flat washers, 6x 10-24 thumb nuts (only for SLB/SSB brackets), and an All-Points Security Kit.

How do I install the SSM6100 bracket on my projector?

Turn the projector upside down, place the bracket aligning the three holes, insert M4 screws with washers, and tighten securely. Do not overtighten.

Can I use the SSM6100 with any projector?

The SSM6100 is designed for projectors with three mounting inserts spaced to match the bracket. It is compatible with Chief mount series.

What is the All-Points Security Kit?

The security kit allows you to replace standard screws with security screws for theft deterrence. Use the included instructions for installation.

Are the thumb nuts required for SSM6100 installation?

No, the thumb nuts are only used when installing SLB/SSB interface brackets. For SSM6100, skip step 1 and proceed directly to mounting.

What is the weight capacity of the SSM6100?

The exact weight capacity is not specified, but as an interface bracket it supports typical projector weights. Always check the mount's capacity.

Can I substitute the screws with my own?

No, only use the hardware provided by the manufacturer. Substituting can lead to equipment falling and serious injury.

How do I clean the SSM6100 bracket?

Wipe with a dry cloth. Do not use liquids or solvents that may damage the finish.

Is the SSM6100 compatible with older Chief mounts?

The bracket is designed for Chief Series Projector Mounts (SSB, SSM, SLB, SLM). Check compatibility with your specific mount model.

USER MANUAL SSM6100 Chief

INSTALLATION INSTRUCTIONS

SSB-6100, SSM-6100, SLB-6100 and SLM-6100 Interface Brackets

SSB-6100, SSM-6100, SLB-6100 and SLM-6100 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the specific installation instructions provided with the mount for additional installation information.

Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.

WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!

(1) Interface Bracket (3) M4 x 8mm
(6) 10 - 24 Thumb Nuts** (1) All-Points Security Kit

(3) #4 Flat Washers

**Only used when installing SLB/SSB interface brackets.

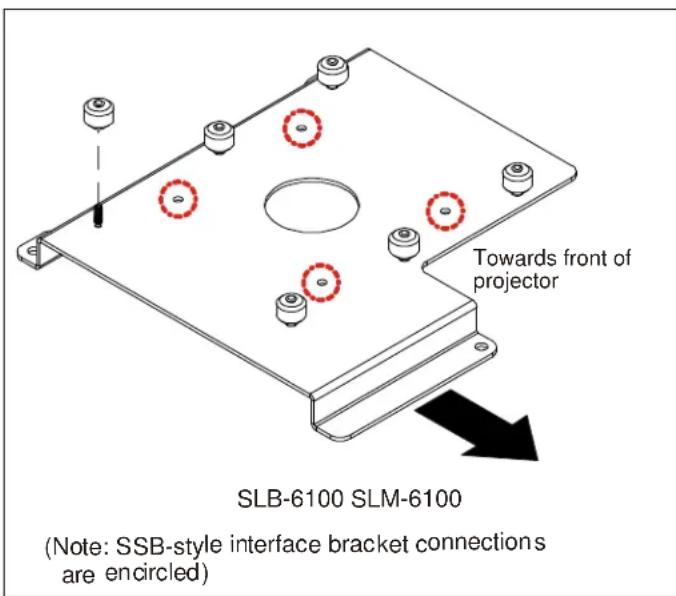

NOTE: Specific to SSB-style and SSM-style interface bracket installation, all appropriate screws come pre-installed as reflected in the encircled locations above. DO NOT attempt to substitute and USE ONLY this pre-installed hardware for SSB-style and SSM-style interface bracket installation.

Installation Instructions

WARNING: OVER TIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND DAMAGE TO EQUIPMENT! DO NOT over tighten screws when installing interface bracket.

NOTE: Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.

1. Screw thumb screws onto 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.
2. Turn projector upside down on a flat surface.
3. Place interface bracket on the projector.
4. Align the three mounting holes in the bracket with the three mounting inserts in the bottom of the projector.
5. Using the three M4 x 8mm screws with #4 washers, secure interface bracket to projector and tighten all fasteners at this time.

NOTE: Security screws can be substituted when mounting interface bracket to projector by using the parts and installation instructions in the All-Points Security Kit.
