Impressive S12 - Washing machine Fensa - Free user manual and instructions

Product Type	Washing machine
Brand	Fensa
Model	Impressive S12
Capacity (kg)	8 kg
Dimensions (H x W x D)	85 x 60 x 55 cm
Weight	65 kg
Power Supply	220-240 V, 50 Hz
Energy Class	A+++
Spin Speed (rpm)	1200
Number of Programs	12
Key Programs	Normal, Quick, Jeans, Cotton 20°C, Duvet, Hypoallergenic Rinse
Delay Start	Yes, up to 24 hours
Child Lock	Yes
Mute Function	Yes
Dispensers	Detergent, Fabric Softener, Bleach
Lint Filter	Yes
Water Inlet Filter	Yes
Self-Cleaning	No
Warranty	2 years

Frequently Asked Questions - Impressive S12 Fensa

How do I clean the lint filter?

To clean the lint filter, open the filter cover (usually at the bottom right), pull out the filter, and rinse it under running water. Remove any lint or debris. Reinsert the filter securely and close the cover. Perform this every few cycles.

How do I use the delay start feature?

Load the laundry and select your desired program. Press the Delay Start button repeatedly to set the delay time (up to 24 hours). Then press Start/Pause. The machine will begin after the delay.

What should I do if an error code appears?

Refer to the error code table in the manual. Common issues: water supply blockage, drain hose blockage, or unbalanced load. Turn off the machine, check connections, and restart. If the error persists, contact customer service.

How can I mute the sound of the washing machine?

Press and hold the Mute button (or a combination of buttons, as indicated in the manual) for 3 seconds to disable all sounds. Repeat to re-enable.

Can I wash a duvet in this machine?

Yes, use the Duvet/Blanket program. Ensure the duvet is not too bulky (max capacity for this program is about 2 kg). Use a gentle detergent to protect the fabric.

How do I clean the water inlet filter?

Turn off the water supply, disconnect the inlet hose from the tap, and remove the filter from the hose connection. Clean it with a brush under water, reassemble, and reconnect.

What is the 'Cotton 20°C' program for?

This program is designed for lightly soiled cotton items that can be washed at low temperature. It saves energy while still providing effective cleaning. Use a suitable detergent for cold water.

How do I use the bleach compartment?

The bleach compartment is marked with a symbol. Pour liquid bleach into it before starting the wash. Do not exceed the MAX line. The machine will automatically dispense it during the appropriate cycle phase.

What is the maximum spin speed?

The maximum spin speed is 1200 rpm. You can adjust it using the spin speed button. For delicate items, select a lower speed to prevent damage.

How do I remove stains using the manual guide?

Refer to the stain removal chart in the manual. Common tips: treat stains promptly, use a pre-wash or stain remover, and select the appropriate wash temperature. For example, wine stains should be treated with cold water and a stain remover.

USER MANUAL Impressive S12 Fensa

Line drawing of a washing machine with control panel and buttons (no text or symbols)

Horizontal grayscale gradient bar with a small crosshair symbol at the bottom right (no text or labels)

2

FENSA

CONTENIDO

Simple grayscale gradient bar with a small crosshair symbol at the bottom right (no text or labels)

ADVERTENCIA

3

FENSA

Pure geometric lines and symbols without any text, numbers, or labels

Horizontal gradient bar with a small crosshair symbol at the bottom right (no text or labels)

4

FENSA

CHEQUEO PREVIO

1. EMBALAJE

Pure geometric lines and shapes without any text, numbers, or symbols

Color gradient bar with a central crosshair symbol (no text or labels)

6

FENSA

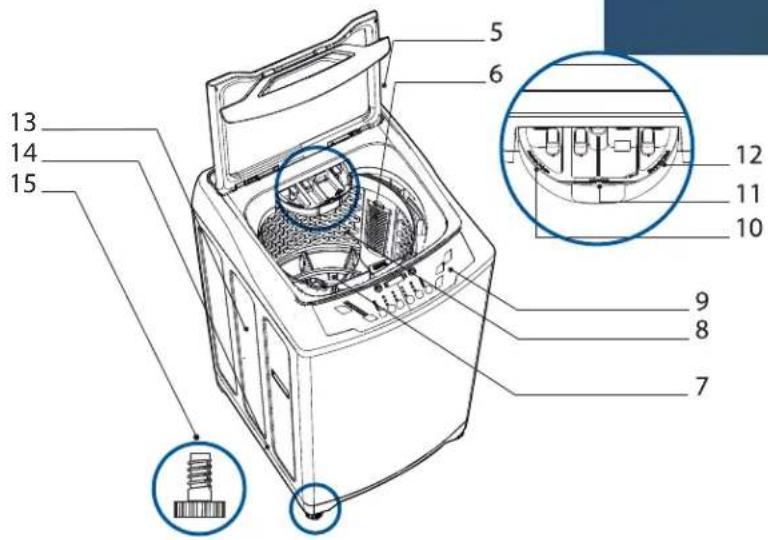

DESCRIPCION DEL PRODUCTO

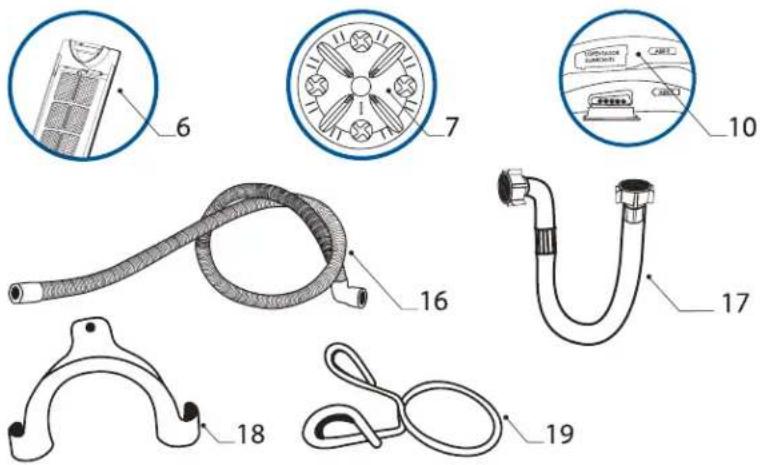

NOTA IMPORTANTE:

Color gradient bar with a small crosshair symbol at the bottom right (no text or labels)

DESCRIPCION DEL PRODUCTO

FENSA

Pure geometric lines and symbols without any text, numbers, or labels

Horizontal grayscale gradient bar with a small crosshair symbol at the bottom right (no text or labels)

FENSA

Gray gradient bar with a small crosshair symbol at the bottom right corner (no text or labels)

Horizontal grayscale gradient bar with a small crosshair symbol at the bottom right corner (no text or labels)

10

FENSA

INSTALACIÓN

Simple line drawing of a cylindrical object with a blue 'X' mark on its surface, placed on a diagonal surface (no text or symbols)

Simple grayscale gradient bar with a crosshair symbol at the bottom right (no text or labels)

CONEXIÓN DE DESAGUE

FENSA

CONEXIÓN DE DESAGÜE

Diagram showing a magnified view of a band being cut with scissors, enclosed in a circle (no text or symbols)

1

Line drawing of a flexible tube with a circular inset showing a connector (no text or symbols)

2

Diagram of a washing machine with a magnified inset showing the blade detail (no text or symbols)

3

Line drawing of a washing machine with a blue checkmark on its side panel (no text or symbols)

Technical line drawing of a portable appliance with coiled tubing and ventilation slots (no text or symbols)

Simple grayscale gradient bar with a small crosshair symbol at the bottom right (no text or labels)

12

FENSA

INSTALACIÓN

Simple grayscale gradient bar with a small crosshair symbol at the bottom right (no text or labels)

PREPARATIVOS

13

FENSA

CONEXIÓN ELECTRICA

USO DEL PROGRAMA NORMAL

Color gradient bar with a small crosshair symbol at the bottom right (no text or labels)

PROGRAMA RÁPIDO

15

FENSA

USO DEL PROGRAMA RÁPIDO

Color gradient bar with a small crosshair symbol at the bottom right (no text or labels)

16

FENSA

PROGRAMA JEANS

USO DEL PROGRAMA JEANS CON SISTEMA FUZZY

Simple grayscale gradient bar with a crosshair symbol at the bottom right (no text or labels)

PROGRAMA ALGODÓN 20°

17

FENSA

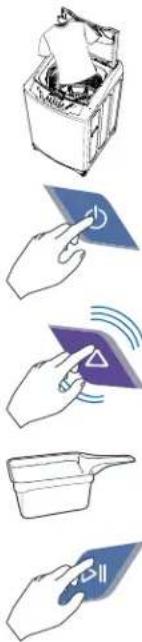

USO DEL PROGRAMA ALGODÓN 20°

Gray gradient bar with a crosshair symbol at the bottom right corner (no text or labels)

PROGRAMA EDREDÓN / FRAZADAS

19

FENSA

USO DEL PROGRAMA EDREDÓN/FRAZADAS

Simple grayscale gradient bar with a small crosshair symbol at the bottom right (no text or labels)

ENJUAGUE HIPOALERGÉNICO

21

FENSA

Color gradient bar with a central crosshair symbol (no text or labels)

REALIZAR SÓLO ENJUAGUE

23

FENSA

CÓMO REALIZAR SOLO ENJUAGUE

Simple grayscale gradient bar with a small crosshair symbol at the bottom right (no text or labels)

INICIO DIFERIDO

25

FENSA

QUÉ ES Y COMO USAR EL INICIO DIFERIDO

INDICACIONES DEL TIEMPO DE INICIO DIFERIDO

Simple grayscale gradient bar with a crosshair symbol at the bottom right corner (no text or labels)

26

FENSA

INICIO DIFERIDO

PASOS A SEGUIR PARA EFECTUAR UN PROCESO DE INICIO DIFERIDO

1. Coloca la carga de lavado dentro de la lavadora.

1. Para comenzar toca ON/OFF.

Simple grayscale gradient bar with a small crosshair symbol at the bottom right (no text or labels)

BOTÓN BLOQUEO

27

FENSA

Two gray square icons with white symbols inside, connected by a horizontal line to a small icon (no text or numbers present)

Pure geometric lines and symbols without any text, numbers, or labels

Simple grayscale gradient bar with a small crosshair symbol at the bottom right (no text or labels)

28

FENSA

INFORMACIÓN

CÓMO ELIMINAR EL SONIDO DE LA LAVADORA

Simple grayscale gradient bar with a crosshair symbol at the bottom right (no text or labels)

DISPENSADOR SUAVIZANTES

29

FENSA

CÓMO USAR EL DISPENSADOR DE SUAVIZANTES

Pure geometric lines and symbols without any text, numbers, or labels

Simple grayscale gradient bar with a crosshair symbol at the bottom right (no text or labels)

30

FENSA

FILTRO PARA PELUSAS

LIMPIEZA DEL FILTRO PARA PELUSAS

Diagram of a cylindrical object with horizontal lines and a curved arrow, placed on a grid-patterned surface (no text or symbols)

Fig 1

Diagram of a mobile phone door with an arrow indicating rotation and movement (no text or symbols)

Fig 2

Illustration of a faucet spraying water onto a multi-panel rack with a brush (no text or symbols)

Fig 3

Line drawing of a chair frame with seat and armrest, showing structural details (no text or symbols)

Fig 4

Pure geometric lines and symbols without any text, numbers, or labels

Simple grayscale gradient bar with a crosshair symbol at the bottom right (no text or labels)

TOMA DE AGUA

31

FENSA

LIMPIEZA DE LA TOMA DE AGUA

Fig 1

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Fig 2 Fig 3

Illustration of a toothbrush and its magnified circular component (no text or symbols)

Simple grayscale gradient bar with a small crosshair symbol at the bottom right (no text or labels)

USO BLANQUEADOR

33

FENSA

CÓMO USAR LA ENTRADA PARA BLANQUEADOR

Simple grayscale gradient bar with a small crosshair symbol at the bottom right (no text or labels)

34

FENSA

LIMPIEZA DE MANCHAS

Pure geometric lines and symbols without any text, numbers, or labels

Color gradient bar with a small crosshair symbol at the bottom right (no text or labels)

LIMPIEZA DE MANCHAS

35

FENSA

GUIA PARA REMOVER LAS MANCHAS

Horizontal grayscale gradient bar with a small crosshair symbol at the bottom right (no text or labels)

ERRORES

37

FENSA

Horizontal grayscale gradient bar with a small crosshair symbol at the bottom right (no text or labels)
