SSM233 - Projector Accessories Chief - Free user manual and instructions

Product Type	Projector Mount / Accessory
Compatible Brand	Chief
Model Number	SSM233
Dimensions (WxHxD)	Approx. 12 x 4 x 8 inches (305 x 102 x 203 mm)
Weight	Approx. 5.5 lbs (2.5 kg)
Load Capacity	Up to 50 lbs (22.7 kg)
Material	Steel / Aluminum
Finish	Black powder coat
Installation Type	Ceiling mount / Wall mount
Adjustability	Roll, pitch, yaw
Quick Release	Yes
Cable Management	Integrated channels
Power Supply	No power required (passive)
Usage	Indoor only
Care & Cleaning	Wipe with dry cloth. Avoid solvents.
Safety	Secure to load-bearing surface. Use safety cable.
Spare Parts Availability	Contact Chief support for replacement screws / plates
Repairability	Limited; replacement of damaged parts recommended
Warranty	Limited lifetime
Included Accessories	Mounting hardware, safety cable, installation guide

Frequently Asked Questions - SSM233 Chief

What is the maximum weight capacity of the Chief SSM233?

The Chief SSM233 can support projectors up to 50 lbs (22.7 kg).

Is the SSM233 compatible with all projectors?

It is compatible with most projectors that have a standard 100x100mm or 200x200mm VESA pattern. Check your projector's mounting hole pattern.

Does the mount include a safety cable?

Yes, a safety cable is included to secure the projector in case of accidental loosening.

Can I adjust the projector's position after installation?

Yes, the SSM233 allows roll, pitch, and yaw adjustments for fine-tuning the image alignment.

What tools do I need for installation?

You will need a drill, screwdriver, and a stud finder (for ceiling installation). All necessary hardware is included.

Is the mount suitable for outdoor use?

No, this mount is designed for indoor use only.

How do I clean the mount?

Wipe with a dry or slightly damp cloth. Do not use harsh chemicals.

What if I need replacement parts?

Contact Chief customer support for replacement screws, plates, or safety cables.

Does the SSM233 come with a warranty?

Yes, it is backed by a limited lifetime warranty.

Can I install this mount on a wall instead of ceiling?

While designed primarily for ceiling, it can be wall-mounted using appropriate hardware (not included for wall).

USER MANUAL SSM233 Chief

INSTALLATION INSTRUCTIONS

SSB-233, SSM-233, SLB-233 and SLM-233 Interface Brackets

SSB-233, SSM-233, SLB-233 and SLM-233 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the specific installation instructions provided with the mount for additional installation information.

Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.

WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!

(1) Interface Bracket (4) Washer, Flat, M5
(6) 10-24 Thumb Nuts ** (4) Screw, Phillips Pan Head, M5 x 20mm
(1) All-Points Security Kit (1) Hex Key, 5/32"

**Only used when installing SLB/SSB interface brackets.

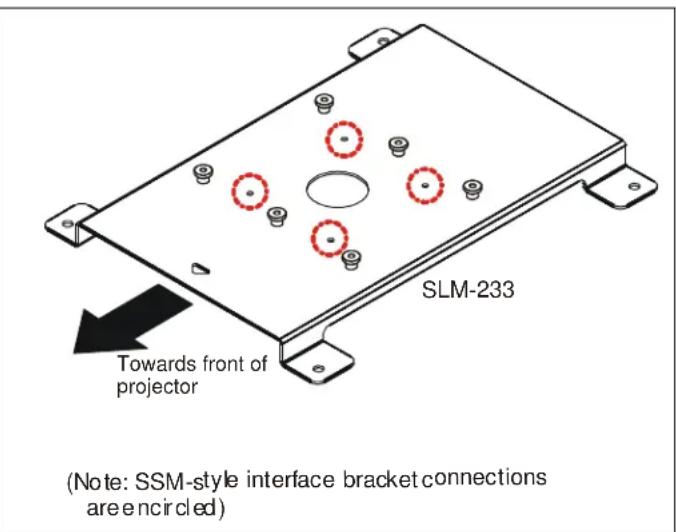

NOTE: Specific to SSB-style and SSM-style interface bracket installation, all appropriate screws come pre-installed as reflected in the encircled locations above. DO NOT attempt to substitute and USE ONLY this pre-installed hardware for SSB-style and SSM-style interface bracket installation.

Installation Instructions

WARNING: OVER TIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND DAMAGE TO EQUIPMENT! DO NOT over tighten screws when installing interface brackets.

NOTE: Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.

1. Screw thumb screws onto 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.
2. Turn projector upside down on a flat surface.
3. Place the interface bracket onto the bottom of the projector and align the holes in the bracket with the threaded inserts on the bottom of the projector.
4. Position M5 x 20mm pan head mounting screws with M5 flat washers into the mounting holes. Tighten all fasteners at this time, securing the bracket to the projector.

NOTE: Security screws can be substituted when mounting interface bracket to projector by using the parts and installation instructions in the All-Points Security Kit.
