USER MANUAL TDA7551 BOSCH

GB Instruction for Use

FR. Mode d'emploi

Line drawing of an iron iron with a handle and internal components (no text or symbols)

TDA 7 ..

BOSCH

DE

Black-and-white illustration of a mechanical device with a numbered label '12' (no readable text or symbols)

Illustration of a mechanical device with a strap and gear (no text or symbols)

Line drawing of a mechanical device with internal components and a downward arrow (no text or symbols)

DE

Sicherheitshinweise

Please fold out the page with the illustrations.

These instructions for use apply to a number of different models.

Some appliances also include the following features:

• automatic switch-off
- drip stop
- test strip for establishing how hard the water is.
The refill bottle is also available as an optional accessory.

Overall view of your iron

1 Indicator light
2 Indicator light
3 Setting the iron down
4 Adjusting the temperature setting
5 Residual heat indicator

$$ \text { orange } = \text { iron is heating up } $$

$$ \text { green } = \text { iron is ready for use } $$

$$ \begin{array}{l} \text { red = flashes to show that automatic } \ \text { switch - off has cut in } \end{array} $$

6 Specially shaped tip for precision ironing
7 Filling up with water using the refill beaker
8 Filling up with water using the refill bottle
9 Adjusting the amount of steam
10 Spraying water
11 Shot of steam

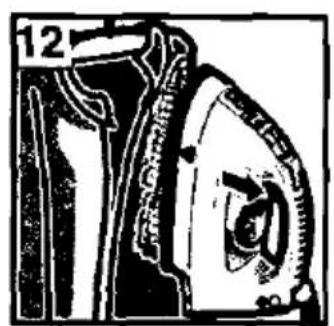

12 Steam in the vertical position

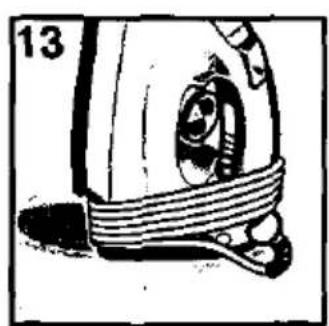

13 Rewinding the cable

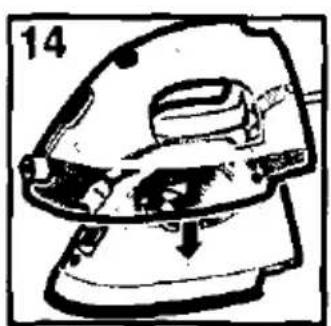

14 Attaching the refill bottle

How to iron various fabrics

Type of material / Application	Treatment	Setting
Polyester, blended fabrics containing wool	dry iron or with steam
Silk	dry iron or with steam
Wool	do not spray, iron with a damp clothiron with steam
Rayon, blended fabrics containing cotton	iron with steam
Corduroy, stretch corduroy	iron reverse side, with normal steam or shots of steam
Cotton, damask, linen	Einsprühen, mit Dampf oder mit Super-Dampfstoß bügeln	max.
Freshening up velvet, felt, suede	with steam or while holding iron upright, without touching the fabric with the base of the iron	max.
Badly wrinkled fabrics, creases that have been accidentally ironed in the wrong place, collars, pockets, seams, button tapes and very dry fabric that is difficult to iron	spray with water, iron with normal steam or shots of steam (wait approx. 4 sec. between shots of steam)	appropriate for the type of material
Ironing underneath buttons	make use of the specially shaped tip for precision ironing	appropriate for the type of material
Temperature: = low = medium = high

Tips

Sort your ironing according to the fabric-care symbols on the labels and begin at the lowest temperature.

In the case of items that do not have a fabric-care symbol, try the iron on a section that is normally hidden from view first of all. Textiles that have a printed pattern should be ironed at a lower temperature than those with no printing.

GB

This appliance is intended for household use and is not suitable for commercial use. Please read the instructions for use carefully and keep them in a safe place for future reference.

Safety information

This appliance conforms to accepted technical standards and the relevant safety requirements for electrical devices. Repairs to this appliance should only be carried out by a qualified expert. The manufacturer shall not be liable for damage caused by improper usage or failure to follow the instructions for use.

Connect and use the appliance only as specified on the rating plate.

Do not connect the appliance if either the mains cable or the appliance itself appear damaged.

Always unplug the appliance after use or in the event of a fault.

Do not:

- allow the mains cable to touch hot parts.

- pull the cable across sharp edges.

If the mains cable is damaged, it should only be replaced by our Customer Service Department in order to avoid all risk of injury.

Keep children away from the appliance.

When the appliance has reached the end of its working life, it should be clearly destroyed and disposed of properly.

Do not leave the iron unsupervised while it is switched on.

While iron is switched on

Burns hazard! The iron becomes hot while it is in use.
⚠ Danger of scalding! Avoid contact with hot steam.
⚠️ Fire hazard! Never put the iron down onto combustible material (e.g. clothing). During breaks in ironing or when you have finished, stand the iron on end or put it down on an area specifically intended for this purpose, such as the holder on the ironing board (Fig. 3). Unplug the iron from the mains whenever you leave the room.
⚠ Damage to the base! Do not put the iron down onto a hard rough surface.

Before you use the iron for the first time

Fill the tank with tap water, allow the iron to heat up and discharge the contents as steam by continually pressing the steam-shot button (Fig. 11).

Additional features

Appliances with automatic switch-off

The iron switches off automatically if it is left standing on its base for longer than 30 sec. without being moved, lying on its side for longer than 30 sec. or standing upright for longer than 8 min.

The red indicator light flashes (Fig. 2).

To switch the iron on again, move it backwards and forwards for a few seconds or unplug it and wait approx. 5 sec. before plugging it in again.

Appliances with drip stop

When the tank is full, the drip stop feature prevents water from leaking out of the steam nozzles when the iron is set to a low temperature.

Filling the tank with water

Unplug the iron from the mains socket. Important!

Use only tap water or a mixture of distilled and tap water. Other liquids will damage the iron.

Distilled water on its own does not produce enough steam.

Establishing the water hardness

Find out the water hardness from your local water supply company or, with certain models, use the enclosed test strip.

Dip the test strip into the water for 1 sec., shake it gently and wait 1 min. before reading off the result.

Water hardness	Measurement range	Test strip
very soft	0	○○○○
soft	0 - 1.3 mmol	●○○○
medium	1.3 - 2.5 mmol	●●○○
hard	2.5 - 3.8 mmol	●●●○
very hard	above 3.8 mmol	●●●●

Irons with refill beaker

Fill the beaker with water;

Water hardness	Mixing ratio Tap water : distilled water
very soft / soft	tap water
medium	approx. 2 : 1
hard	approx. 1 : 1
very hard	approx. 1 : 2

GB

Slide the steam volume control upwards as far as it will go (Fig. 9). Pour in the required amount of water (Fig. 7). The tank is full when the water level reaches the "max" mark. Slide the steam volume control downwards as far as it will go.

Irons with refill bottle

Fill the bottle with water:

Water hardness	Mixing tap water with distilled water
very soft / soft	tap water
medium	fill with distilled water up to the "mittel / medium" mark and top up with tap water
hard	fill with distilled water up to the "hart / hard" mark and top up with tap water
very hard	fill with distilled water up to the "sehr hart / very hard" mark and top up with tap water

Close the refill bottle. Slide the steam volume control upwards as far as it will go (Fig. 9). Hold the refill bottle over the opening in the iron and press the button (Fig. 8). Pour in the required amount of water. The tank is full when the water level reaches the "max" mark. If you try to pour in more water, the supply is cut off automatically. This might be followed by a discharge of steam for a short period.

Close the steam volume control.

When the refill bottle is full, its contents are sufficient to fill the iron 2 - 3 times.

Ironing without steam

Plug the iron into the mains. Set the steam volume control to "off" (Fig. 9). Set the temperature control to the required level (Fig. 4). The iron is ready for use (Fig. 1) when the green indicator light comes on. In order to spray water onto the clothes: Press down firmly on the spray button (Fig. 10).

Ironing with steam

Plug the iron into the mains. Set the temperature control to a position within the red zone (Fig. 4). The amount of steam can be continuously adjusted by means of the steam volume control (Fig. 9). If you wish to interrupt the supply of steam or end it completely, set the steam volume control to "off".

Ironing with shots of steam

Press the steam-shot button (Fig. 11). In order to obtain the full amount of steam, wait approx. 4 seconds before you press the button again.

Steam-ironing with the iron held vertically

Set the temperature control to a position within the red zone and hold the iron vertically at a max. distance of 1 cm. in front of the material (Fig. 12). Press the steam-shot button (Fig. 11). Wait approx. 4 sec. for the next shot of steam.

After use

Unplug the iron from the mains and set the temperature control to "off".

Empty the water tank by sliding the steam volume control upwards as far as it will go (Fig. 9) and pouring out the water.

Dry out the iron by plugging it into the mains again, setting the temperature control to ●●● and pressing the steam-shot button several times.

Set the temperature control to ● and pull out the mains plug.

The residual heat indicator remains illuminated until the iron has cooled down (Fig. 5). When this has happened, wind the connecting cable round the iron (Fig. 13).

If applicable, attach the refill bottle to the iron after it has cooled down (Fig. 14).

Care and maintenance

Pull out the mains plug.

Do not immerse the iron in water or clean it under a running tap.

Important:

Do not descale the iron and do not pour any chemical cleaning agents or solvents into the tank.

To clean the drip valve: every time you use the iron, set the steam volume control to "self clean" several times (Fig. 9).

Wipe the casing and the base with a damp cloth and then rub them dry. Do not use a scouring agent.

To clean off marks on the base: apply the iron as normal to a linen cloth soaked in vinegar.

If the base is badly stained: stand the iron in a receptacle containing vinegar (max. depth of 1 mm) for 15 min.

Then wipe the base clean with a damp cloth and heat up the iron briefly to dry it off.

FR

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Subject to change without notice.
