HB86E260 - Microwave SIEMENS - Free user manual and instructions

Product Type	Built-in Microwave with Grill
Brand	Siemens
Model	HB86E260
External Dimensions (HxWxD)	45.4 x 59.4 x 56.3 cm
Internal Dimensions (HxWxD)	24.2 x 44.5 x 34.7 cm
Weight	30 kg
Power Supply	220-240 V, 50/60 Hz
Power Output (Microwave)	900 W
Grill Power	1.5 kW
Functions	Microwave, Grill, Combination
Cooking Programs	Auto cook programs for various foods
Control Type	Electronic with digital display
Door Opening	Drop-down door
Interior Material	Stainless steel with enamel coating
Turntable	Removable glass turntable
Safety Features	Child lock, overheating protection
Cleaning	Easy-to-clean interior, recommended manual cleaning
Certifications	VDE tested, CE mark, EN 55011 Group 2 Class B
Accessories Included	Wire rack, baking tray, microwave grid
Replacement Parts	Halogen lamp type, cover glass

Frequently Asked Questions - HB86E260 SIEMENS

How do I replace the halogen lamp?

To replace the halogen lamp, first unplug the microwave. Unscrew the lamp cover on the left side wall (Fig. A). Remove the old halogen lamp (Fig. B) and insert a new one (Fig. C). Reattach the cover and plug the device back in.

Can I use metal containers in microwave mode?

No, metal containers should not be used in microwave mode as they can cause arcing and damage the appliance. Use microwave-safe glass or ceramic containers.

How do I clean the interior?

Clean the interior with a damp cloth and mild detergent. Avoid abrasive cleaners. The turntable can be removed and washed separately. For stubborn stains, use a steam function if available.

What is the maximum cooking time?

The maximum cooking time varies by mode, but typically up to 90 minutes for microwave and grill functions. Refer to the user manual for specific limits.

Why does the microwave not start?

Check that the door is fully closed and the child lock is disabled. Ensure the appliance is properly connected to power. If the problem persists, contact Siemens service.

Can I use the grill and microwave together?

Yes, the combination mode allows simultaneous use of microwave and grill for faster browning and cooking. Select the appropriate program on the control panel.

How do I set the child lock?

Press and hold the 'Lock' button for 3 seconds. The display will show a lock icon. To disable, repeat the same step. This prevents accidental operation by children.

What type of halogen lamp does it use?

The microwave uses a 230V, 25W halogen lamp with a G9 base. Ensure you replace it with the same specifications.

How do I preheat the microwave for grilling?

Preheat the grill function for 5 minutes before placing food inside. Use the provided grill rack for best results.

Is the microwave energy efficient?

The device is classified as Group 2 Class B per EN 55011/CISPR 11, indicating it is designed for household use with electromagnetic compatibility. It has standby power consumption below 1 W.

USER MANUAL HB86E260 SIEMENS

Eine Störung, was tun? 64

Two glass glasses, one with a spoon and the other with a black X symbol (no text or labels)

Verbrennungsgefahr!

Line drawing of a rectangular plate with ribbed texture and a curved side (no text or symbols)

Rost

Simple 3D illustration of a rectangular baking tray (no text or symbols)

Email-Backblech

Pure diagram of a circular grid pattern with radial lines, no text or symbols present

Mikrowellen-Backgitter

Diagram of a device with a screw inserted into a tablet, showing a black arrow indicating the process (no text or symbols present)

Illustration of a smartphone with an internal component and a directional arrow, labeled 'B' (no text or symbols on the diagram itself)

Illustration of a hand inserting a card into a smartphone (no text or symbols visible)

Two glass glasses, one with a spoon and the other with a black X symbol (no text or labels)

Verbrandingsgevaar!

Line drawing of a rectangular tray with evenly spaced slots and a curved handle (no text or symbols)

Rooster

Simple 3D illustration of a rectangular baking tray (no text or symbols)

Pure diagram of a circular grid pattern with radial lines, no text or symbols present

Magnetron-bakrooster

Diagram of a device with a slide and a door, showing a black arrow pointing to the slide (no text or symbols present)

Illustration of a smartphone with an internal component and a directional arrow, labeled 'B' (no text or symbols on the diagram itself)

Illustration of a hand inserting a card into a smartphone (no text or symbols visible)

-Apparaat45,4x59,4x56,3cm

-Binnenafmetingen24,2x44,5x34,7cm

Gewicht30kg

VDE-getest:ja

CE-keurmerk:ja

DitapparaatvoldoetaandenormEN55011resp. CISPR11.

Hetiseenproductvangroep2,klasseB.

Two glass glasses, one with a spoon and the other with a black X symbol (no text or labels)

Risquedebrûlures!

Line drawing of a rectangular tray with evenly spaced slots and a curved handle (no text or symbols)

Simple 3D illustration of a rectangular baking tray (no text or symbols)

Pure diagram of a circular grid pattern with radial lines, no text or symbols present

Remarque

Diagram of a device with a screwdriver inserted into a tablet, showing a black arrow indicating the process (no text or symbols present)

1. Desserrerlavisaucachedel'ampoulesurlaparoi latéralegaucheetretirerlecache(fig.A).

Illustration of a smartphone with an internal component and directional arrow, labeled 'B' (no text or symbols on the diagram itself)

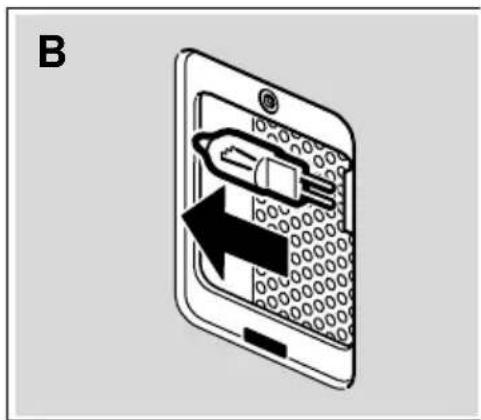

1. Retirerlalampehalogène (fig. B).

Illustration of a hand inserting a card into a smartphone (no text or symbols visible)

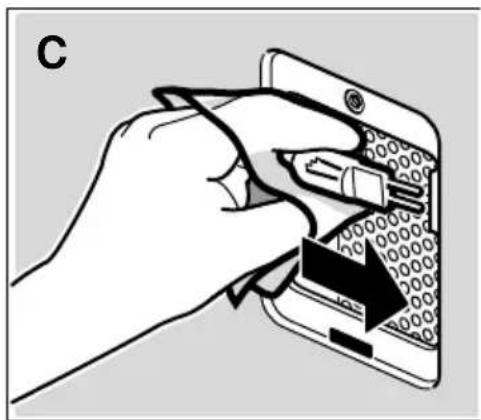

5.Mettreenplacelalampehalogèneneuve(fig.C).

Changerlecouvercleen verre

1. Visserlecachedelalampe. Remettrel'appareilenplacedansl'ordreinverse.

*Préchaufferlefour5minutes.

Gril
Letableaus'entendpourunenfournementdansle fourfroid.
