EC808SNP-1250 - Vacuum Cleaner Malmbergs - Free user manual and instructions

Brand	Malmbergs
Model	EC808SNP-1250
Product Type	Industrial Wet/Dry Vacuum Cleaner
Rated Voltage	220-240 V~
Frequency	50/60 Hz
Rated Power	1250 W
Container Capacity	20 L
Vacuum Pressure	16 kPa
Max Load of Appliance Outlet	2000 W
Mains Connection Cable	H05VV-F 3x1.5 mm²
Protection Class	IPX4
Wet Vacuum Cleaning	Yes, with foamed plastic filter
Dry Vacuum Cleaning	Yes, with dust bag
Synchronization Function	Yes, allows external tools to start vacuum automatically
Blowing Function	Yes
Included Accessories	Flexible hose, plastic inserting tube, long-square nozzle, short nozzle, dust bag, foamed plastic filter
Safety Features	Safety float valve, thermal protection (inferred)
Certifications	Intertek, CE
Maintenance	Empty container, clean/replace filters; do not use solvents
Intended Use	Industrial, not for health-damaging dust

Frequently Asked Questions - EC808SNP-1250 Malmbergs

Can I vacuum water with the EC808SNP-1250?

Yes, for wet vacuum cleaning you must use the supplied foamed plastic filter over the filter basket. The dust bag is not suitable for wet cleaning.

How do I use the synchronization function?

Push the switch to the 'II' shelf. Plug the vacuum into a wall outlet. Then plug another tool (e.g., saw) into the vacuum's outlet. Insert the hose into the tool's vent. When the tool is switched on, the vacuum will start automatically.

What should I NOT vacuum with this appliance?

Do not vacuum burning matches, glowing ashes, cigarette ends, flammable, corrosive, explosive substances, vapors or liquids. Also avoid vacuuming dust that is hazardous to health.

How do I switch between wet and dry cleaning?

For dry cleaning, slip the dust bag onto the socket. For wet cleaning, pull the foamed plastic filter over the filter basket. Always ensure you use the correct accessory.

What is the capacity of the container?

The container has a capacity of 20 liters.

Can I use the vacuum as a blower?

Yes, the vacuum has a blow connection that allows you to use it for blowing tasks. Refer to the manual for assembly instructions.

What does the safety float valve do?

The safety float valve prevents overflow when vacuuming liquids. When the maximum liquid level is reached, the valve cuts off suction automatically.

How do I clean the filters?

After use, empty the container. The foamed plastic filter can be rinsed with water and dried thoroughly. The dust bag should be replaced when full. Do not clean with solvents.

What is the maximum power of tools that can be connected to the outlet?

The appliance outlet can handle a maximum load of 2000 W.

Is the vacuum suitable for continuous industrial use?

Yes, it is designed for industrial applications, but always follow the safety instructions and do not exceed the specified runtime. Ensure proper maintenance for longevity.

USER MANUAL EC808SNP-1250 Malmbergs

Industrial Vacuum Cleaner

Blue and black vacuum cleaner with black hose, isolated on white background (no text or symbols)

MALMBERGS

SÄKERHETSANVISNINGAR

MONTERING

OBS:

KOKOAMINEN

HUOM:

WARNING! Before assembly and operation, please read the safety instructions and operating manual carefully.

1. Check all the accessories before connecting. Make sure that there are no defects.
2. Only connect to a proper 220-240V, 50/60Hz socket.
3. Pull the mains plug out of the socket when: the unit is not in use, before opening the unit, before cleaning and maintenance.
4. Never clean with solvents.
5. Do not use the cable to pull the plug out of the socket.
6. Care must be taken that the mains connection lead is not damaged by being driven over, crushed, stretched, etc.
7. The unit must not be operated if the mains connection lead is not in perfect condition.
8. If the supply cord is damaged, it must be replaced by a qualified person.
9. Replacement mains connection leads must not differ from the versions indicated by the manufacturer.
10. Do not vacuum: burning matches, glowing ashes and cigarette ends, inflammable, corrosive, fire hazard or explosive substances, vapours and liquids.
11. This unit is not suitable for vacuuming dust which is damaging to health.
12. Do not operate a defect unit.
13. Use only for operations for which the unit is intended.
14. Take great care when cleaning stairs.
15. Use only manufacturer's attachments and spare parts.
16. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
17. Children should be supervised to ensure that they do not play with the appliance.

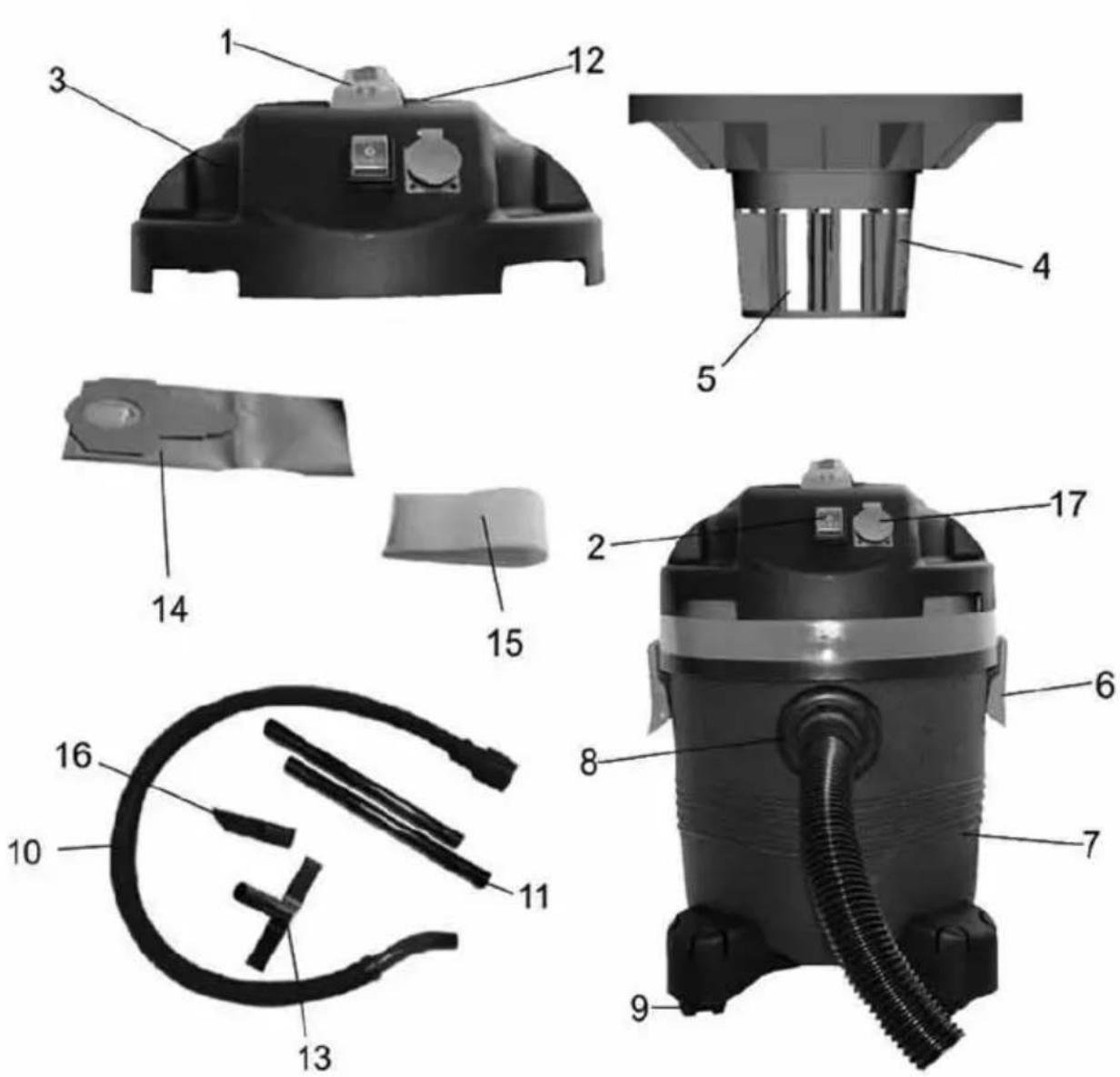

DESCRIPTION OF PARTS

1. Handle

2. ON/OFF-switch

3. Top section

4. Filter basket

5. Safety float valve

6. Clasp

7. Container

8. Vacuum hose connection

9. Rollers

10. Flexible vacuum hose

11. Plastic inserting tube

12. Blow connection

13. Long-square nozzle

14. Dust bag

15. Foamed plastic filter

16. Short nozzle

17. Outlet

OVERVIEW OF NOzzLES

ASSEMBLY

Please note:

Figure 6a: Use the supplied foamed plastic filter for wet vacuum cleaning. Figure 6b: Use the supplied dust bag for dry vacuum cleaning.

OPERATION

Wet Vacuum Cleaning

Pull the supplied foamed plastic filter over the filter basket (fig. 2) for wet vacuum cleaning. The dust bag included upon delivery is not suitable for wet vacuum cleaning!

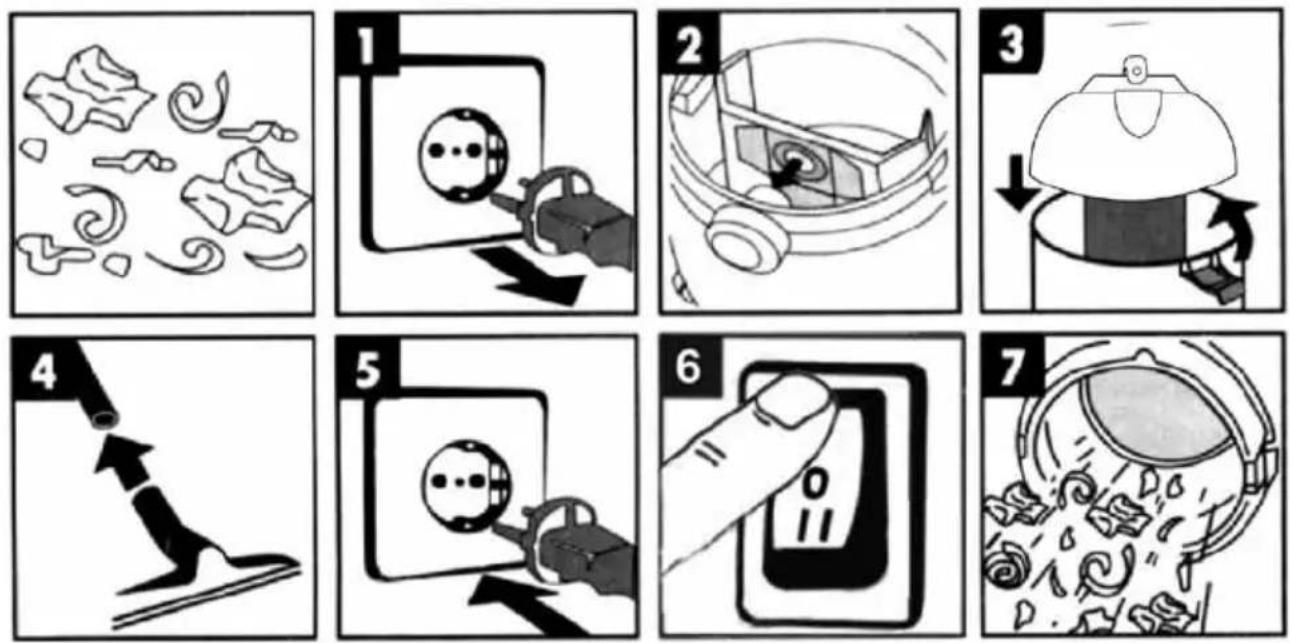

Dry Vacuum Cleaning

Slip the dust bag onto the socket (fig. 2) for dry vacuum cleaning. The dust bag is suitable only for dry vacuum cleaning!

Synchronization Function

1. Push the switch to the "II" shelf.
2. Put the power supply plug of the vacuum cleaner into the socket of the outer power.
3. Put the power supply plug of the other machines into the socket of the vacuum cleaner.
4. Put one of the hose intubate to the vent of the outer machines.
5. Once open the switch of the outer machines, they will be in synchronization work.

Attention:

1. When push the switch to the "I" shelf, the vacuum cleaner will work alone.
2. When push the switch to the "0" shelf, the two machines will not work. (For the outlet socket, whenever the switch on vacuum cleaner is at any level, there are electric supply on the socket if the power cord of vacuum cleaner is not unplugged).

Blowing

MAINTENANCE AND CLEANING

TECHNICAL DATA

Rated voltage: 220-240V\~

Frequency: 50/60Hz

Rated power: 1250W (EC808NS-1250)

Capacity: 20 l

Vacuum pressure: 16KPa

Max. load of appliance outlet: 2000W

Mains connection cable: H05VV-F 3x1.5 mm²

Protection class: IPX4

Intertek

CE
