Product Type	Video Splitter Extender
Brand	C2G
Model	29552
Number of VGA Outputs	8
Signal Bandwidth	300 MHz
Supported Signal Types	VGA, SVGA, Multi-sync
Maximum Cable Length	65 m (210 ft) with optional UL-2919 rated VGA cables
Input Connector	1 x HDB15 Male
Output Connectors	8 x HDB15 Female
Power Supply	AC 9V, 600 mA
Power Consumption (Normal)	600 mA (max)
Power Consumption (Power-save)	10 mA
LED Indicators	POWER (green), ACTIVE (amber)
Enclosure Material	Metal
Weight	720 g
Dimensions (W x H x D)	40 x 196 x 70 mm (estimated)
Operating Temperature	0°C to 40°C (estimated)
Storage Temperature	-20°C to 60°C (estimated)
Cascading Support	Yes, for increased VGA outputs
Automatic Power-Save	Yes, when VGA input is lost
Compatibility	VGA, SVGA, multi-sync monitors
Included Accessories	AC 9V power adapter
Optional Cables	PRO SERIES HD15 UXGA Monitor Cables (various lengths)
Warranty	Limited warranty (see manual)
Maintenance	Clean with a soft, dry cloth. Avoid liquids.
Safety	Use only supplied AC adapter. Do not expose to moisture.

Frequently Asked Questions - 29552 C2G

How many monitors can I connect to the C2G 29552?

You can connect up to 8 monitors using the VGA outputs.

What is the maximum cable length between the splitter and monitors?

With optional UL-2919 rated VGA cables, the maximum cable length is 65 meters (210 feet).

Does the 29552 require external power?

Yes, it requires an AC 9V power adapter (included). Power consumption is 600 mA during normal operation and only 10 mA in power-save mode.

Can I cascade multiple 29552 splitters to get more outputs?

Yes, the device supports cascaded operation to increase the number of VGA outputs beyond 8.

What video signal types are supported?

The splitter supports VGA, SVGA, and multi-sync signals.

How do I know the splitter is powered and receiving a signal?

The green POWER LED indicates power is on, and the amber ACTIVE LED lights up when a VGA input signal is detected.

Can I use this splitter with a laptop or desktop computer?

Yes, any device with a VGA output can be connected to the input. The splitter is plug-and-play, no software required.

What is the signal bandwidth of the 29552?

The signal bandwidth is 300 MHz, allowing high-resolution VGA signals.

Is there any special maintenance required?

Simply clean the enclosure with a soft, dry cloth. Avoid using liquid cleaners or exposing the device to moisture.

What is the warranty coverage?

The device comes with a limited warranty. For details, refer to the user manual. C2G disclaims liability for consequential damages.

USER MANUAL 29552 C2G

Service Through Every Connection

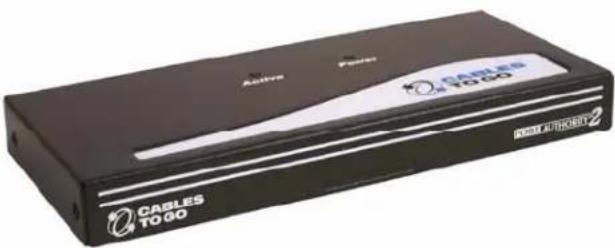

Video Splitter Extender User's Manual

Boost and transmit your VGA video signal to multiple Monitors

29550-2 Port

29551-4 Port

29552-8 Port

User's Manual

Introduction ......

Break the limits of SVGA with a VSE from Cables To Go. Simultaneously distribute any video signal to up to 8 different video outputs, while maintaining vivid picture quality. The VSE is powerful, yet easy to use. Superb high bandwidth circuit enables high-resolution VGA signals of up to 350MHz to be displayed on multiple monitors. Connect the cables, and you're ready to go! There is no software or complicated interface cards to install. The VSE not only distributes, but also boosts your high-resolution video signal up to 210 feet.

Application: ....

• presentations
  ● exhibits
  ● demonstration
  ● trade shows
  ● monitor testing and burn-in
  ● business meetings

Features ....

• Duplicate one VGA input to multiple VGA outputs.
  ● Effective transmission distance: 65M (210ft)*
  ● Automatic power-save when VGA input is lost.
  ● Applicable to VGA, SVGA and multi-sync monitors.
• Cascaded operation for increased VGA outputs.
• Crisp clear VGA images

*With Optional UL-2919 rated VGA cables.

Connection

One HDB15 male-to-female (M/F) cable is required to connect from the Video Splitter Input to a computer's VGA output. Multiple monitors should be connected to the Video Splitter's output ports as shown below.

Figure 1 : 29550 Connection

Figure 2:29551 Connection

Figure 3 : 29552 Connection

Operation

▶ACTIVE LED turns on when there is VGA signal at the Input port.
▶ POWER LED turns on when the Video Splitter is powered up by the AC 9V power adapter.

Specifications ....

Function 29550 29551 29552
Number of VGA output	2	4	8
Signal bandwidth 350MHz 300MHz
Signal type VGA, SVGA, Multi-sync
LED POWER (green) x 1ACTIVE (amber) x 1
Cable length 65M (210ft) Max.
- Out p	HDB15 male x 1 Connector -
	u tHDB15 female x 2	HDB15 female x 4	HDB15 female x 8
Power consumption	AC 9V, 600mA, normal operation 10mA, power-save mode
Enclosure	Metal
Weight	400g	428g	720g
Dimension (mm)	20 x 85 x 180		40x196 x70

Input

Optional Cables......

Description M/F M/M
6ft PRO SERIES HD15 UXGA MONITOR CABLE	28001	28011
10ft PRO SERIES HD15 UXGA MONITOR CABLE	28002	28012
15ft PRO SERIES HD15 UXGA MONITOR CABLE	28003	28013
25ft PRO SERIES HD15 UXGA MONITOR CABLE	28004	28014
35ft PRO SERIES HD15 UXGA MONITOR CABLE	28005	28015
50ft PRO SERIES HD15 UXGA MONITOR CABLE	28006	28016
75ft PRO SERIES HD15 UXGA MONITOR CABLE	28007	28017
100ft PRO SERIES HD15 UXGA MONITOR CABLE	28008	28018

Limited Warranty

IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY FOR DIRECT OR INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFIT, LOSS OF BUSINESS, OR FINANCIAL LOSS WHICH MAY BE CAUSED BY THE USE OF THE PRODUCT EXCEEDS THE PRICE PAID FOR THE PRODUCT.

The direct vendor makes no warranty or representation, expressed or implied with respect to the contents or use of this documentation, and especially disclaims its quality, performance, merchantability, or fitness for any particular purpose.

The direct vendor also reserves the right to revise or update the product or documentation without obligation to notify any user of such revisions or updates. For further information, please contact your direct vendor.

All the brand names and registered trademarks are the property of their respective owners.

CablesToGo™

Service Through Every Connection

1501 Webster Street

Dayton, Ohio 45404

1-800-293-4970

www.cablestogo.com

Copyright 02/2007 Cables To Go
