Product Type	Print Server
Model	521475
Brand	Intellinet
Connectivity	USB 2.0, Ethernet 10/100 Mbps
Network Protocols	TCP/IP, DHCP, LPR, Raw TCP
Supported OS	Windows, macOS, Linux
Max Printers Supported	1-2 printers
Dimensions (W x D x H)	120 mm x 80 mm x 30 mm
Weight	200 g
Power Supply	5V DC via USB or AC adapter
Power Consumption	2.5 W (max)
LED Indicators	Status, Link/Activity
Management	Web-based, utility software
Security	Password protection, IP filtering
Operating Temperature	0°C to 40°C
Storage Temperature	-10°C to 70°C
Humidity	10% to 90% non-condensing
Package Contents	Print server, USB cable, Ethernet cable, power adapter, manual
Repairability	Limited, no user-serviceable parts
Warranty	2 years

Frequently Asked Questions - 521475 Intellinet

How do I set up the Intellinet 521475 Print Server?

Connect the print server to your router via Ethernet cable, then connect your printer to the print server using USB. Install the provided software on your computer to complete the setup.

Which printers are compatible with the 521475?

The 521475 supports most USB printers that are PCL or PostScript capable. Check the compatibility list on the Intellinet website.

Can I use the print server wirelessly?

No, the 521475 is a wired print server. It must be connected to your network via an Ethernet cable.

How do I access the print server's web interface?

Open a web browser and enter the print server's IP address. You can find the IP via the utility software or by checking your router's DHCP client list.

What should I do if the print server is not detected?

Verify all cable connections. Ensure the printer is powered on. Try resetting the print server by pressing the reset button for 10 seconds. Reinstall the software.

Does the 521475 support macOS?

Yes, the print server supports macOS. Use the Bonjour protocol or install the Mac driver from the included CD.

Can I share multiple printers with one print server?

The 521475 has a single USB port, so it can only serve one printer at a time.

How do I update the firmware?

Download the latest firmware from the Intellinet support page. Access the web interface, go to Administration > Firmware Upgrade, and upload the file.

What do the LED indicators mean?

The Status LED blinks when power is on and data is transferring. The Link/Activity LED indicates network connection and activity.

Is the print server secure?

Yes, the 521475 supports password protection for the web interface and can restrict access via IP filtering.

User questions about 521475 Intellinet

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Print Server in PDF format for free! Find your manual 521475 - Intellinet and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 521475 by Intellinet.

USER MANUAL 521475 Intellinet

Copyright ©2006/2007 by this company. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company.

FCC COMPLIANCE STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment.

DISCLAIMER

This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

1. INTRODUCTION....1

1.1 Product Introduction......2
1.2 Product Package 3
1.3 Network Printing Architecture 4

1.3.1 Print Server Network Functions.... 5
1.3.2 Network Printing Functions for Clients.... 5
1.3.3 Network Printing Functions for Network Server...... 8

1.4 Network Printing Environment 9
1.5 Contents of the User's Manual 11
1.6 Firmware & Printing Function 13

2. HARDWARE INSTALLATION ....14

3. WINDOWS PEER-TO-PEER NETWORK ....15

3.1 System Architecture.... 16

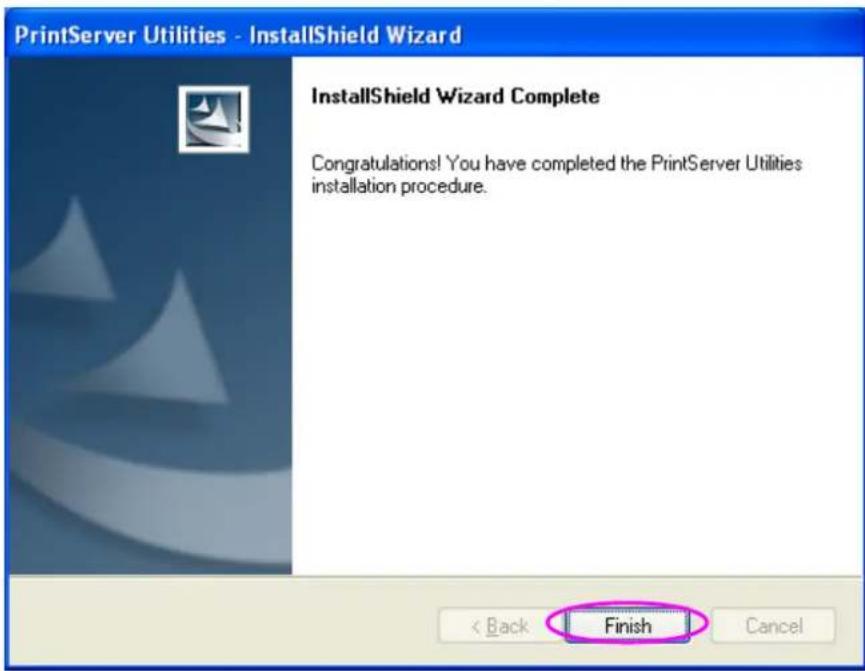

3.2 Administrator Installation and Setup 18
3.3 Administrator Utilities 26
3.4 Client Installation and Setup 27
3.5 Client Utilities 32

3.5.1 Network Ports Quick Setup 32
3.5.2 Remote Ports (Utility) 34

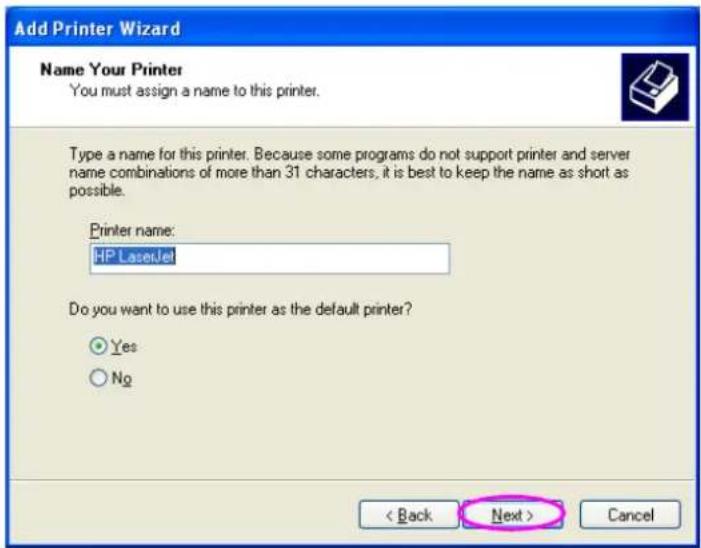

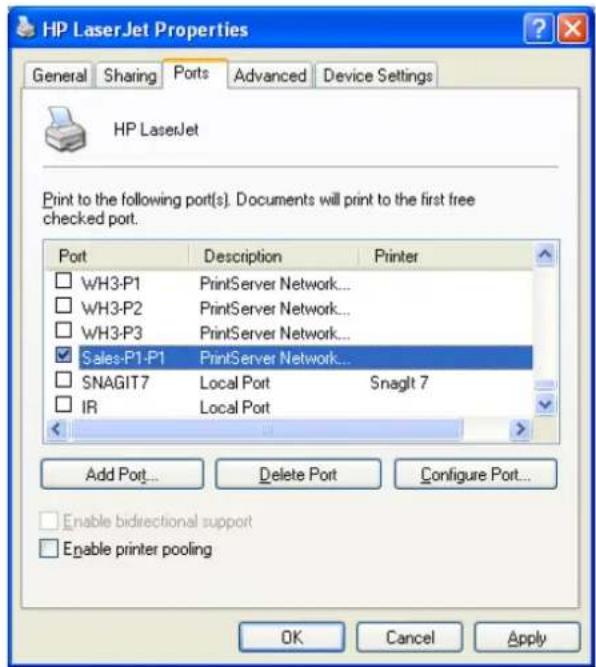

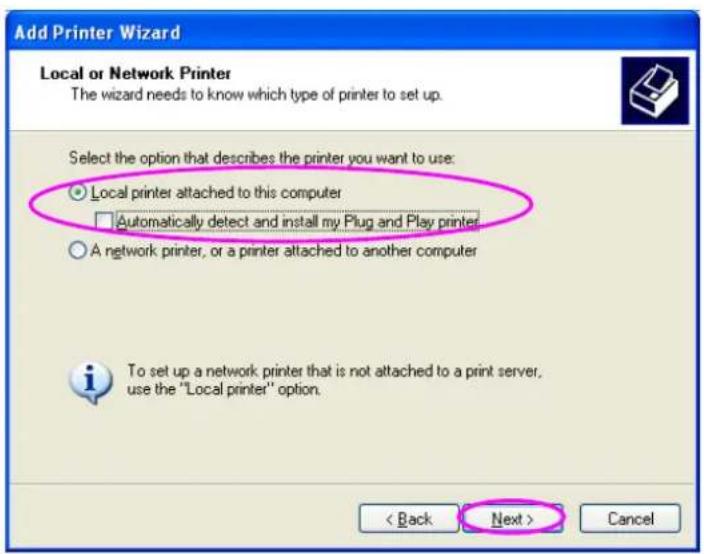

3.6 Windows Add Printer Procedure.... 37

4. WINDOWS NT/2000/2003 NETWORK....41

4.1 System Architecture...... 42
4.2 Windows NT/2000/2003 Server Installation and Setup . 43
4.3 User Installation and Setup.... 45

5. NETWARE NETWORK ....46

5.1 System Architecture......47
5.2 NetWare 3.x/4.x/5.x Installation & Setup 49

5.2.1 Installation Using PCONSOLE 49

6. UNIX SYSTEM NETWORK ....53

6.1 Introduction....54

6.2 Enable Print Server's TCP/IP Support....55

6.3 Setup Print Server's IP Address 56

6.3.1 DHCP....56

6.3.2 BOOTP 56

6.4 Verify Print Server's IP Address 59

6.5 Configure Remote LPD Printing on the Host...... 60

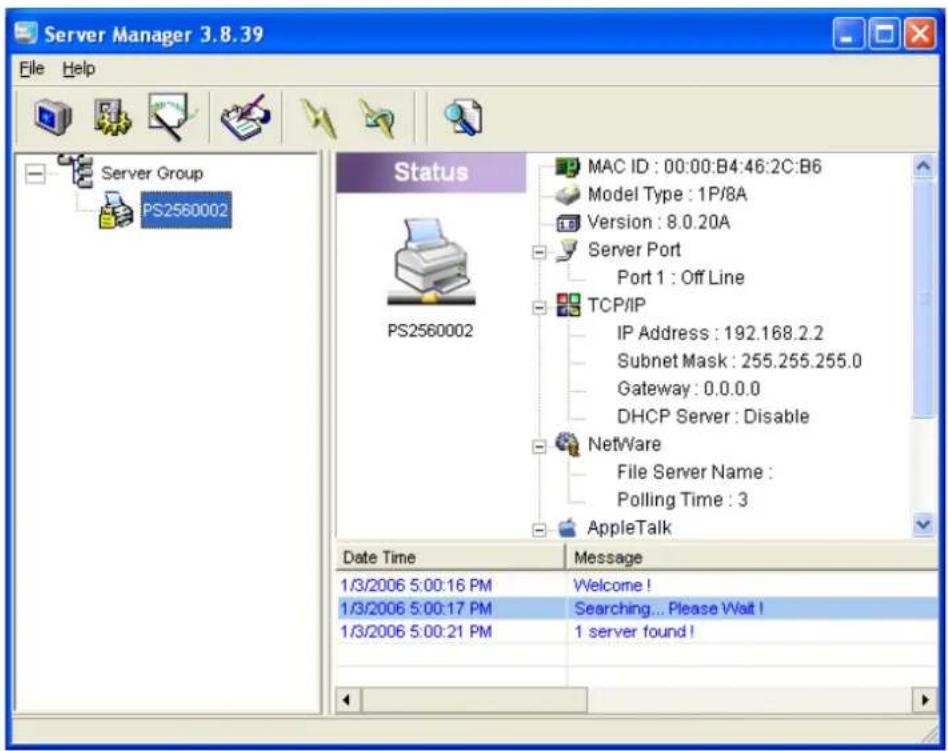

7. CONFIGURATION UTILITY ......63

7.1 Introduction....64

7.2 Search for All Available Print Server....66

7.3 Status of Print Server....67

7.4 Setup the Print Server 69

7.5 General Configuration.... 71

7.6 TCP/IP Configuration....72

7.7 Netware Print Server Configuration 74

7.8 AppleTalk Configuration 75

7.9 SNMP Configuration....76

7.10 SMB Configuration....77

7.11 System Configuration 78

7.12 Wizard....79

7.13 Report....83

8. WEB MANAGEMENT......84

8.1 Introduction....85

8.2 Login....86

8.3 Device Status.... 87

8.3.1 System.... 87

8.3.2 Printer.... 88

8.3.3 TCP/IP....89

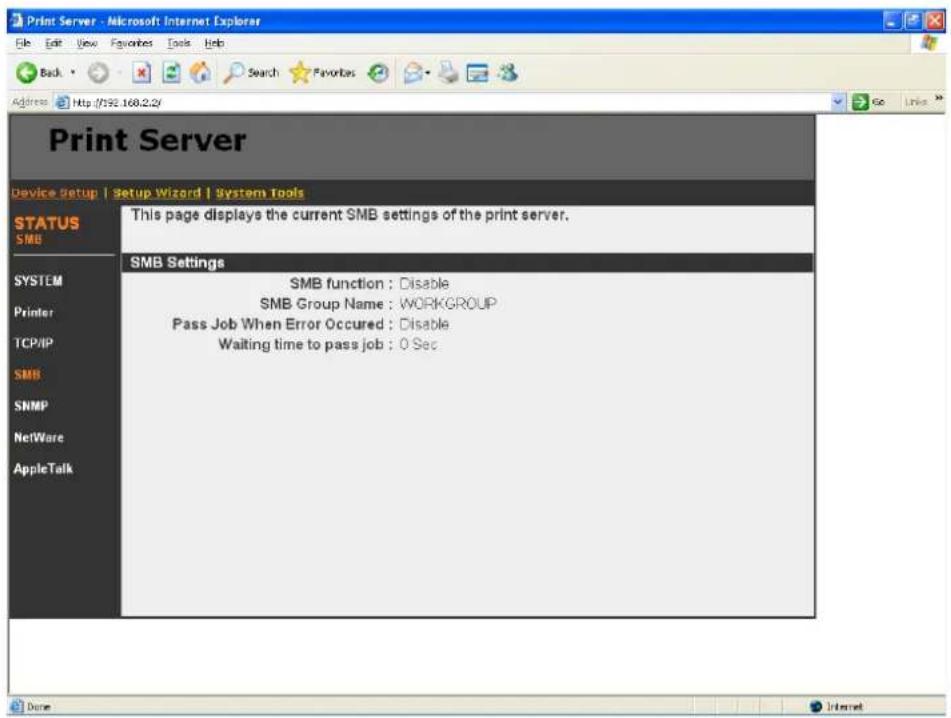

8.3.4 SMB....90

8.3.5 SNMP....91

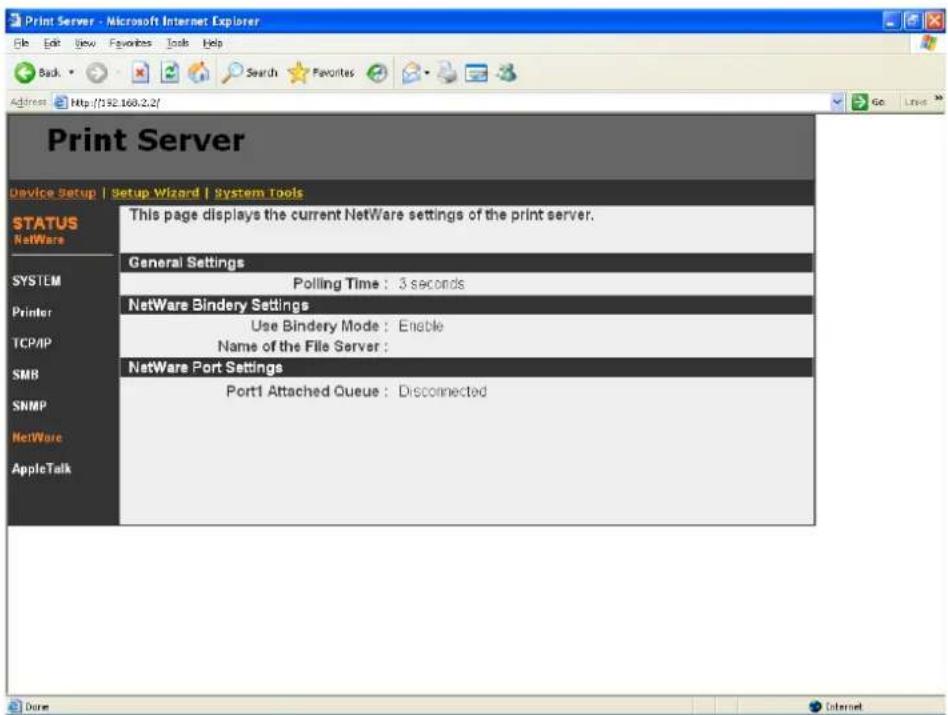

8.3.6 NetWare....92

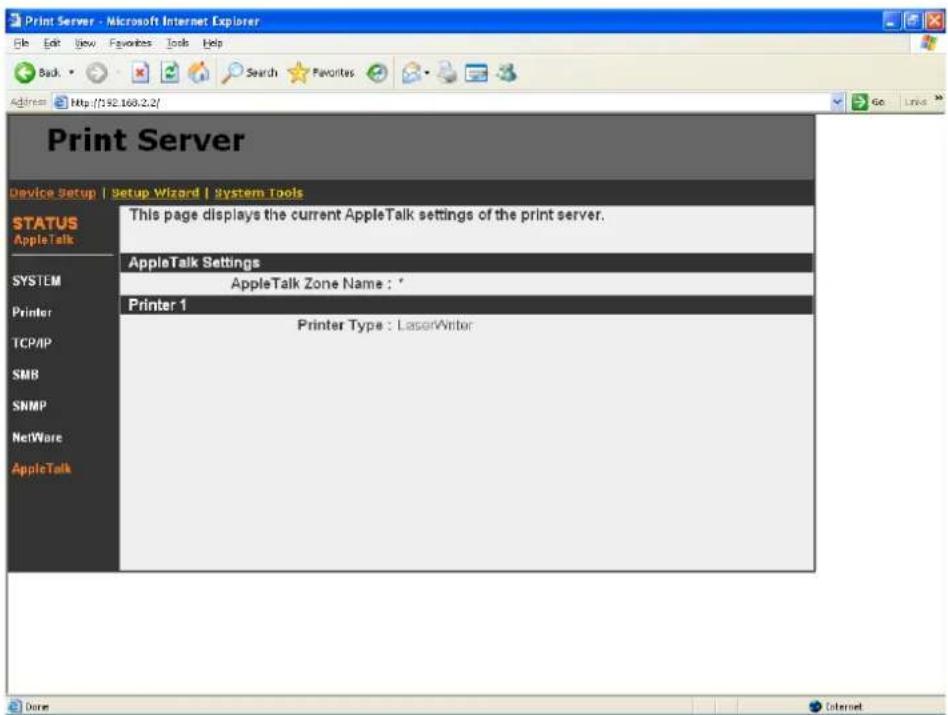

8.3.7 AppleTalk 93

8.4 Setup Wizard 94

8.4.1 System....94
8.4.1.1 Advanced Settings 95
8.4.2 TCP/IP....96
8.4.3 SMB....97
8.4.4 SNMP....98
8.4.5 NetWare....99
8.4.6 AppleTalk 100
8.4.7 Save Settings.... 101

8.5 System Tools....102

8.5.1 Load Default 102

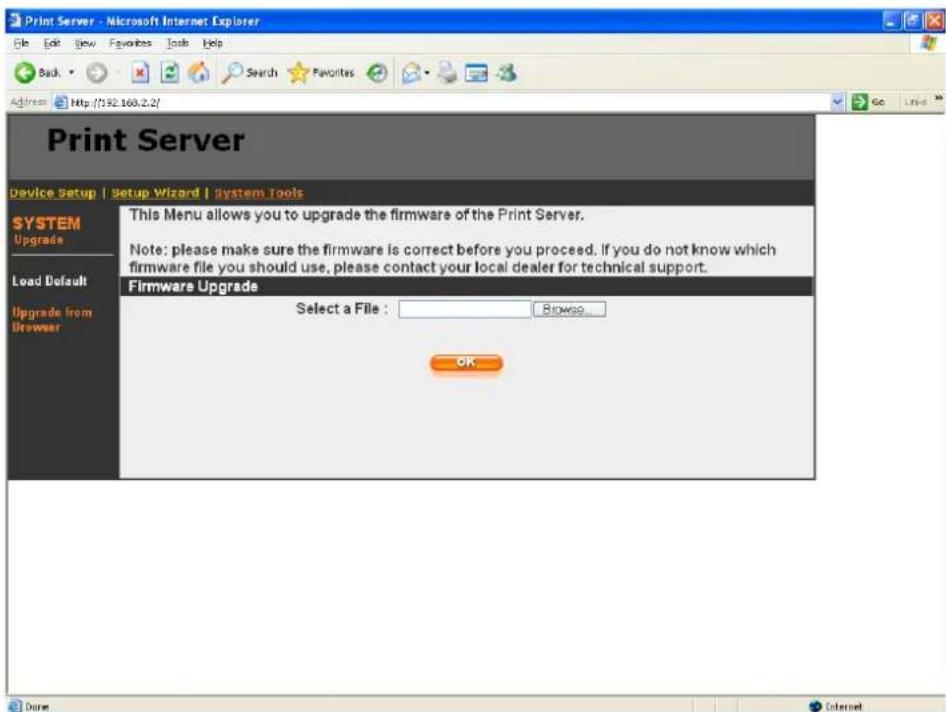

8.5.2 Upgrade Firmware from Browser.... 103

9. IPP PRINTING ....104

9.1 Introduction.... 105
9.2 System Setup 106

9.2.1 Print Server Side.... 106
9.2.2 Client Side.... 106

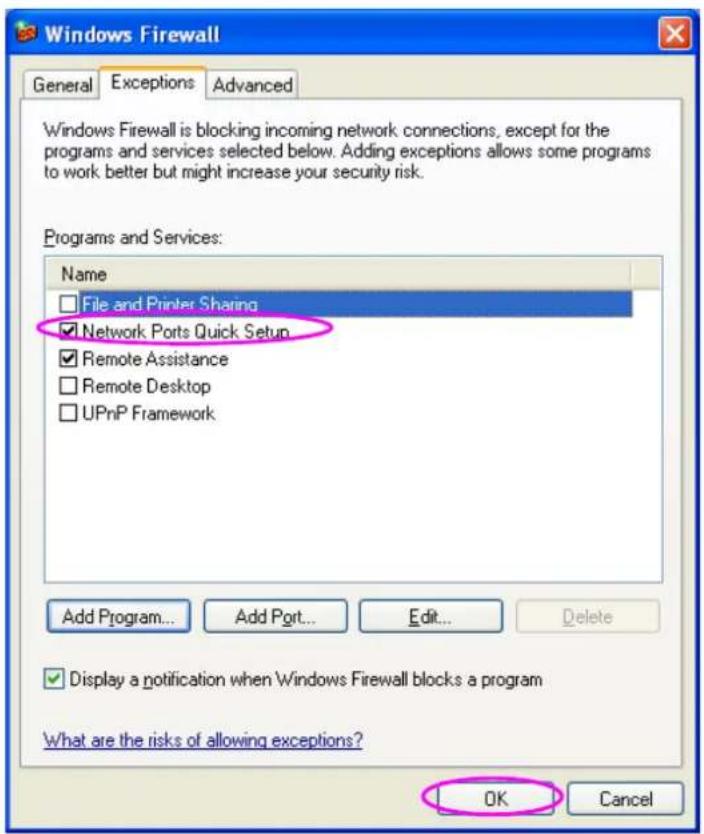

10. WINDOWS XP SP2 SETUP ....111

1. Introduction

1.1 Product Introduction

Thank you for purchasing and using our print server. This print server allows your printer to become a shared device on the network. It offers printing flexibility and manageability on your Local Area Network at an extremely low cost and with an absolute minimum setup and maintenance required.

This print server provides an Ethernet network port (10/100Mbps Ethernet) and one print port for printer.

This print server supports IPX/SPX, NetBEUI, TCP/IP and AppleTalk protocols. It is the best network printing solutions for various common network operating systems such as Windows 95/98SE/Me/NT/2000/XP/2003, NetWare, Unix/Linux and MAC OS, etc.

With the help of Installation Wizard, you can easily and instantly complete the settings for the printing environment, and start enjoying the fantastic features provided by the print server.

In the following chapters, we will introduce in detail the printing features, installation methods, and system configuration for different network environments.

If you would like to set up and install print server quickly, please refer to the Quick Installation Guide that comes along with this print server.

1.2 Product Package

This package contains the following components:

■ One Print Server
■ One Power Adapter
■ One Quick Installation Guide
■ One CD-ROM (Including all the software utilities, drivers and User's Manual)

1.3 Network Printing Architecture

This section illustrates how print server functions and operates on the network. Before you install and use print server, it is strongly recommended that you read this section completely, and select only the chapters you need according to your network operating system by “Contents of the User’s Manual” in next section.

This section will first introduce the role every component plays in the network-printing environment.

■ Print Server
■ Client User
■ Network Server (optional)

Intellinet 521475 - Network Printing Architecture - 1

Because print server supports IPX/SPX, NetBEUI, TCP/IP and AppleTalk network protocols, any networked computer can directly print to the print server from any of its installed protocol.

Intellinet 521475 - Network Printing Architecture - 2

1.3.2 Network Printing Functions for Clients

Intellinet 521475 - Network Printing Functions for Clients - 1

Common operating systems for clients are classified as following:

Windows 95/98SE/Me/NT/2000/XP/2003

Our print server system provides PTPP (Peer-to-Peer Printing) driver and utilities for Windows 95/98SE/Me/NT/2000/XP/2003 users. PTPP (Peer-to-Peer Printing) supports TCP/IP protocol.

Intellinet 521475 - Windows 95/98SE/Me/NT/2000/XP/2003 - 1

In the client installation procedure, after PTPP (Peer-to-Peer Printing Driver) is installed into Windows, the system will automatically (manual configuration is also allowed) search all the print servers on the network, and then add their printing ports into Windows' printing port (see below).

Intellinet 521475 - Windows 95/98SE/Me/NT/2000/XP/2003 - 2

UNIX / Linux

UNIX (include HP/UX, SCO Unix, SunOS, Solaris, Unixware DECUinx, IBM AIX and others) and Linux use the system-standard LPR to print through print server.

MAC OS

MAC OS can use the system-standard AppleTalk network to print through print server.

1.3.3 Network Printing Functions for Network Server

Intellinet 521475 - Network Printing Functions for Network Server - 1

Common network servers are classified as following:

Windows NT/2000/2003

Our print server system provides PTPP (Peer-to-Peer Printing) driver and utilities for Windows NT/2000/2003. After PTPP is installed, the server can directly print through print server. Adding this printing function into Windows NT/2000/2003 Server allows print queue, user authority management, and many other advanced features to be used.

NetWare 3.x/4.x/5.x

In NetWare environment, print server offers various printing modes like print queue, remote printer, etc.

1.4 Network Printing Environment

Common network environment are classified as following:

Windows Peer-to-Peer Network

The client's PTPP driver will use TCP/IP protocol to print through print server.

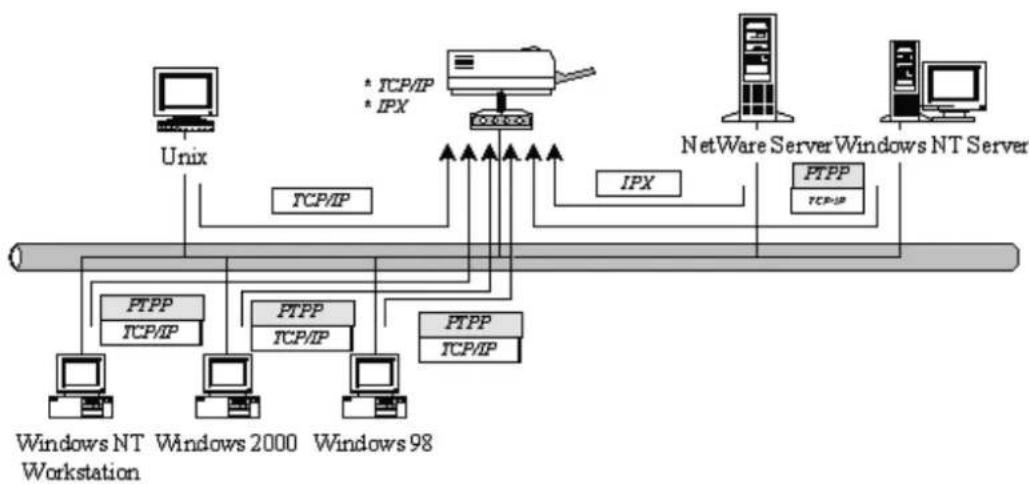

Intellinet 521475 - Network Printing Environment - 1


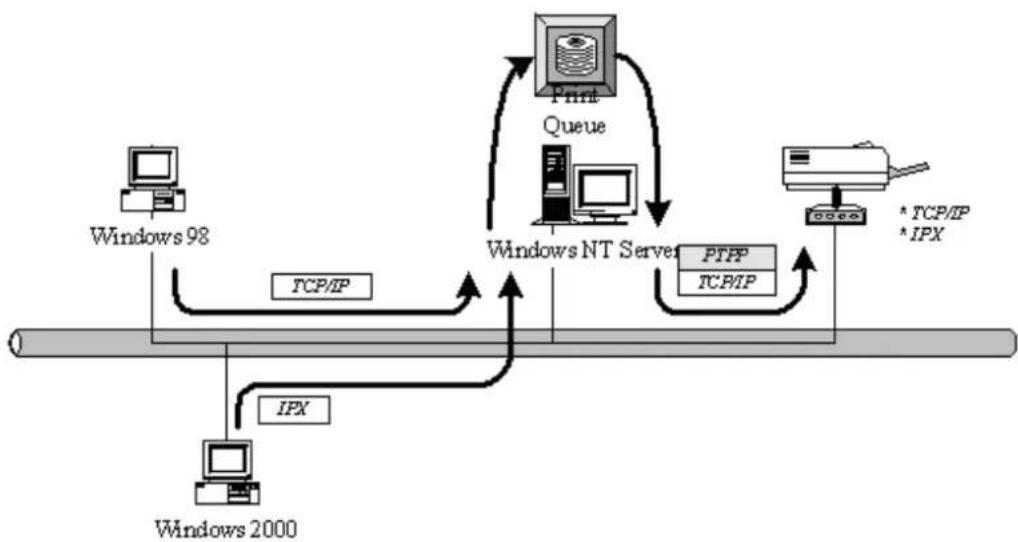

Windows NT/2000/2003 Network

Network printing function will become available after PTPP driver is installed into Windows NT/2000/2003. Adding this printing function into Windows NT/2000/2003 Server allows print queue, user authority management, and many other advanced features to be used.

Intellinet 521475 - Network Printing Environment - 2

NetWare Network (see below)
Intellinet 521475 - Network Printing Environment - 3

1.5 Contents of the User's Manual

Chapter 2 explains print server's hardware installation and configuration. It is strongly recommended for you to read.

The following chapters introduce:

Chapter 3. Windows Peer-to-Peer Network

Chapter 4. Windows NT/2000/2003 Server-Based Network

Chapter 5. NetWare Network

Chapter 6. UNIX System Network

You may select the appropriate chapters and sections to read depending on your network printing's requirement.

Chapter 7 and chapter 8 introduce print server's management and configuration utilities on Windows and Web Browser's environment respectively. You may select the appropriate management utility according to the administrator's computer platform.

Chapter 9 introduces Print Server's IPP Printing function and setup procedure. The IPP Printing provides a convenient way to print documents across the Internet by the IPP protocol.

Chapter 10 introduces how to deal with the problem that if you can't find any print server listed on the

“Available Ports” in “Network Ports Quick Setup” in Windows XP SP2.

1.6 Firmware & Printing Function

The print server provides a complete network printing solution. The feature set is listed below:

■ PTPP (Peer-to-Peer-Printing)
■ TCP/IP (LPR)
■ IPP Printing
■ NetWare Bindery Printing
AppleTalk
■ SMB Printing

2. Hardware Installation

Unpack the print server package and verify that all the items listed in the section 1.2 are provided.
Connect the print server to the printer you want to share on the network.
Connect the print server to your network by attached the network cable to the UTP port of the print server.
Connect the power adapter to the print server. The print server will perform the Power-On-Self-Test (POST) after it is powered on. During the POST, the Status and Ready LEDs will be on. When the LEDs are unlighted, the print server is ready.

NOTE1: MUST use the power adapter shipped with the print server, do NOT use any other power adapter from any sources.

NOTE2: To prevent the compatibility problem between print server and a few printer, it is recommended that you power on the print server before the printer.

3. Windows Peer-to-Peer Network

3.1 System Architecture

Print server supports Windows Peer-to-Peer network printing mode, which is suitable for most medium and small network environments. Through quick and simple installation procedure, users can immediately enjoy the convenience of network printing.

Intellinet 521475 - System Architecture - 1

Installation procedure is separated into following two parts:

Administrator Installation and Setup (refer to section 2 for more detailed information).

System administrators must:

- Install administrator's utilities into his/her computer.

- Configure print server from administrator's configuration utility.

Client Installation and Configuration (refer to section 3 for more detailed information).

Client users must install Windows PTPP driver (Peer-to-Peer Printing) for network printing.

In addition, after PTPP is installed, the system will automatically search for all print servers on the network, and add the printing port of the print servers into Windows' printing port (refer to Network Printing Architecture in section 1.4 for more detailed information).

3.2 Administrator Installation and Setup

The Administrator Installation can be performed on Windows 95/98SE/Me/NT/2000/XP/2003 with the same user interface. Before the installation, please verify that your network protocol is installed on your PC (TCP/IP, IPX and/or NetBEUI). It will be helpful in your installation process.

Insert the CD shipped along with the print server into your CD-ROM drive. The Autorun.exe program should be executed automatically. If not, run Autorun.exe manually from CD-ROM drive's root directory.
The “Installation Manager” will be displayed on the screen as following. Click “Administrator Installation”.

Administrator Installation Client Installation Quick Installation Guide User's Manual Exit

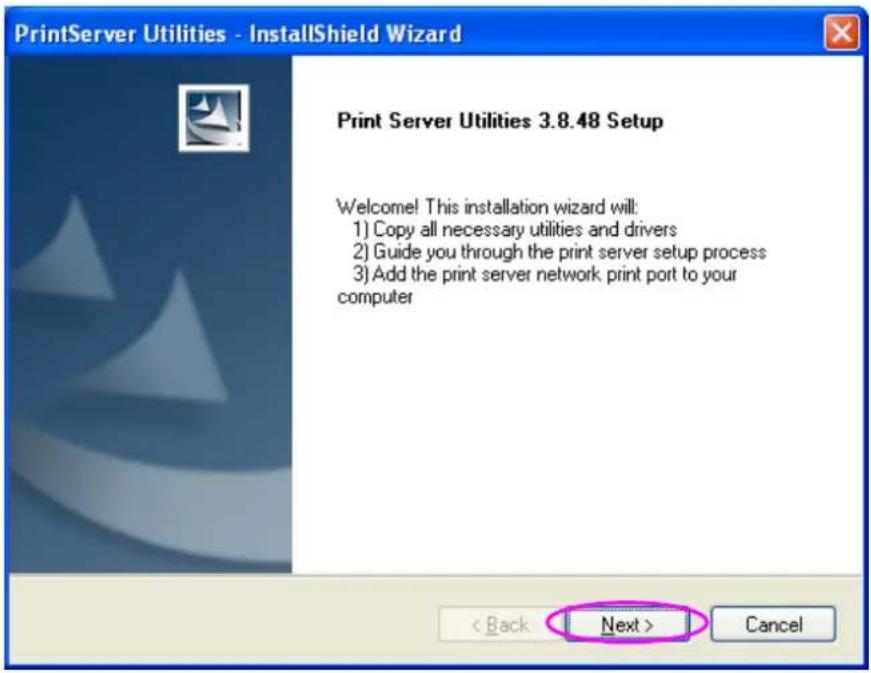

The “Print Server Utilities” window will be displayed. Click “Next”.

PrintServer Utilities - InstallShield Wizard Print Server Utilities 3.8.48 Setup Welcome! This installation wizard will: 1) Copy all necessary utilities and drivers 2) Guide you through the print server setup process 3) Add the print server network print port to your computer < Back Next > Cancel

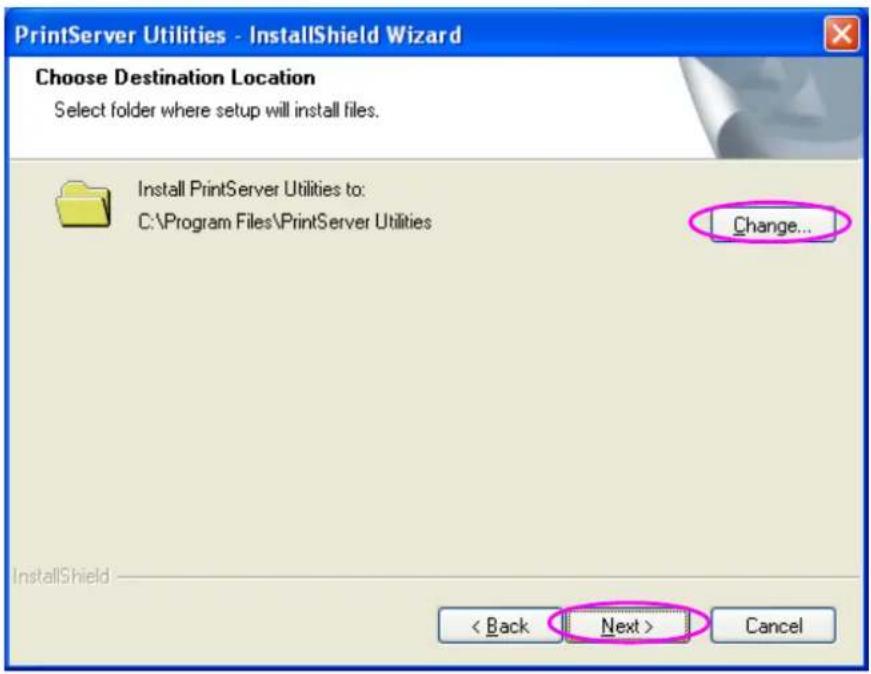

Click “Next” to install the utilities in the default folder or click “Change” to specify the destination folder where you would like to install the utilities.

$PrintServer Utilities - InstallShield Wizard Choose Destination Location Select folder where setup will install files. Install PrintServer Utilities to: C:\Program Files\PrintServer Utilities Change... < Back Next > Cancel$

Select the components you want to install. It is highly recommended to install all provided components. Click "Next" to continue.

The system will start to install the utilities automatically.

$PrintServer Utilities - InstallShield Wizard Setup Status PrintServer Utilities Setup is performing the requested operations. Installing C:\Program Files\PrintServer Utilities\PSAdmin.exe InstallShield Cancel$

You have completed the installation phase and prepare to configure the Print Server. The “Choose Print Server” will list all Print Servers within the network. Select the Print Server you would like to configure and click “Next”.

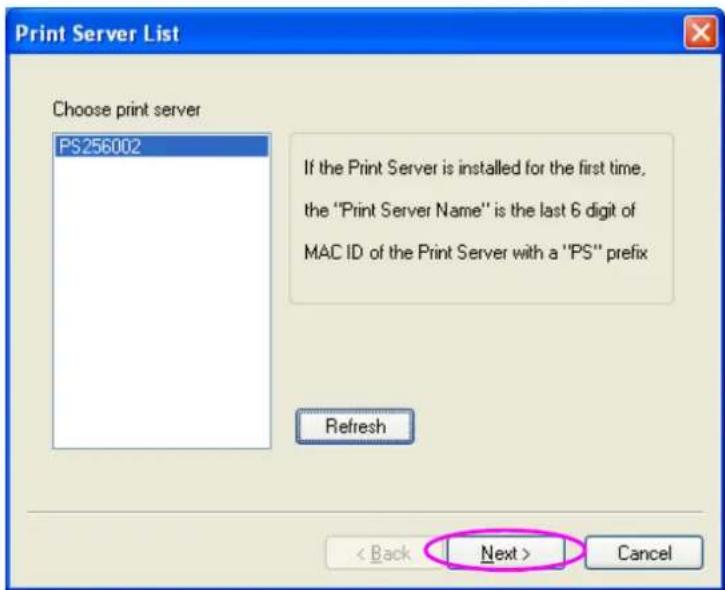

Print Server List Choose print server PS256002 If the Print Server is installed for the first time, the "Print Server Name" is the last 6 digit of MAC ID of the Print Server with a "PS" prefix Refresh < Back Next > Cancel

NOTE 1: If this is the first time you configure the Print Server, the “Print Server Name” is the last 6-digit of MAC ID with prefix “PS”. Please check the MAC ID on the print server.

NOTE 2: The list can only display the devices from the same manufacturer.

Specify a recognizable name for the Print Server and click "Next".

Name the Print Server Device name: PSCA82F3 The unique serial number of the print server Alias Name: PS256002 An alternative name for easy management < Back Next > Cancel

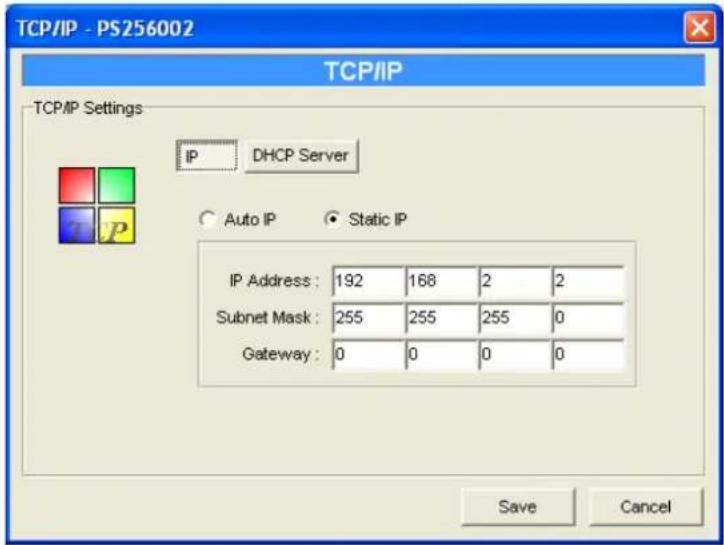

Specify the IP Address for the Print Server manually or click "Next" to keep default IP Address, i.e. 192.168.2.2.

Network Protocol and IP Address Configuration IPX/NetBEUI This print server supports IPX/NetBEUI network protocols. TCP/IP Assign the Print Server an IP address IP Address 182.168.2.2 Don't change Configure the IP Address later. < Back Next > Cancel

The configuration summary is displayed in the window. Now, you have completed the Print Server setup. Click "Finish" and your system will add network port of the Print Server to your PC automatically.

Add Network Port Device Name: PSCA82F3 Alias Name: PS256002 IPX support: Enable NetBEUI support: Enable TCP/IP support: Enable IP Address Assignment: Manual IP Address: 192.168.2.2 Click "Finish", the program will add the Network Port of the Print Server to your PC automatically. < Back Finish Cancel

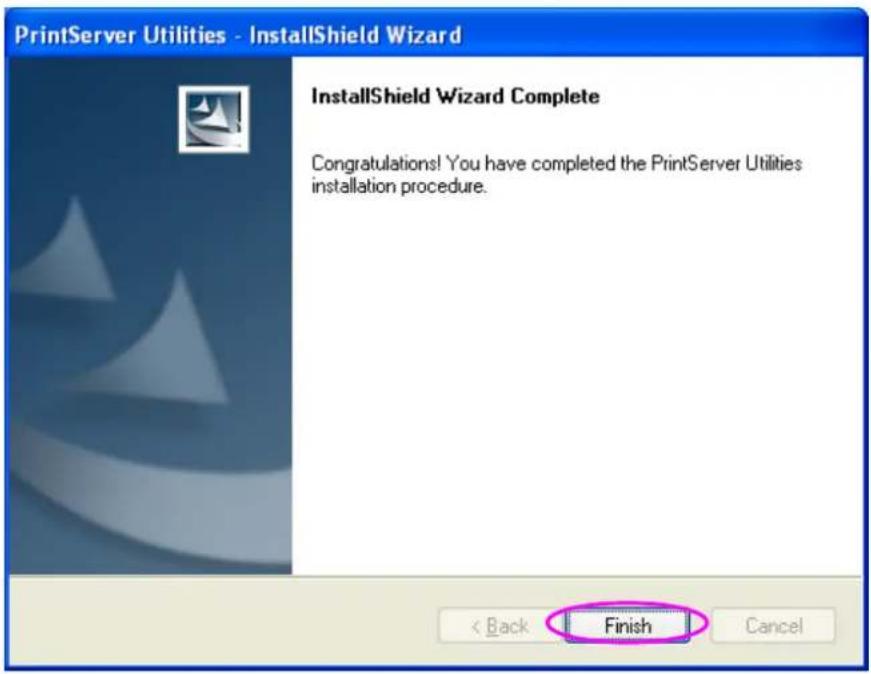

The Administrator Installation procedure is totally completed. Click "Finish".

PrintServer Utilities - InstallShield Wizard InstallShield Wizard Complete Congratulations! You have completed the PrintServer Utilities installation procedure. < Back Finish Cancel

The Administrator Installation Program have executed the installation procedure that performs the following tasks:

Install all utilities and drivers to the administrator's PC.
■ Configure the print server (including the print server name and network protocol)
Add the network port of the print server to the administrator's PC.

If you want to print from this administrator's PC to the print server, all you need to do is to perform Windows' standard "Add Printer" procedure (please refer to Section 3.6).

3.3 Administrator Utilities

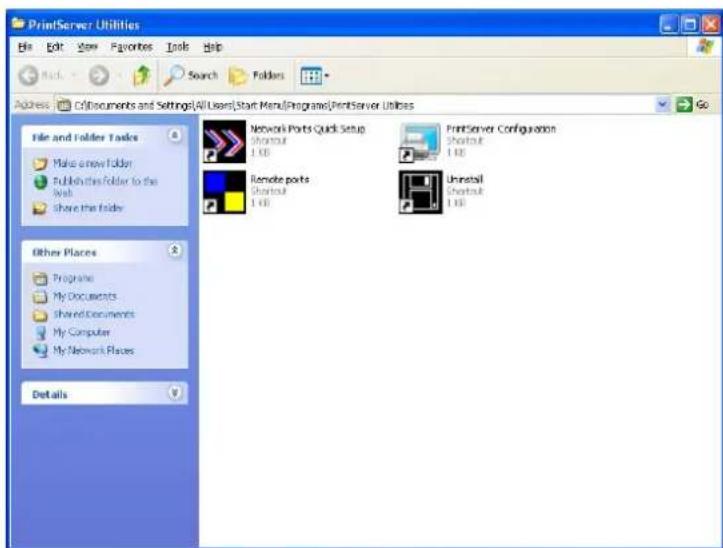

After Administrator Installation is completed, there will be four utilities in print server's Program folder.

■ Network Ports Quick Setup – Add the network ports of print servers within the network to your PC

- Print Server Configuration – Allows you to configure the print server's IP Address, network protocols and other advanced functions. Please refer to Chapter 7 for the detail instruction of the configuration.

■ Remote Ports – Add the network port of remote printer server to your PC.

■ Uninstall – Assistant for removing all installed administrator software.

$PrintServer Utilities File Edit View Favorites Tools Help Back Search Folders Address C:\Documents and Settings\All Users\Start Menu\Programs\PrintServer Utilities Go File and Folder Tasks Make new Folder Publishing Folder to the Web Share this Folder Network Ports Quick Setup Shortleaf 1 KB Remote ports Shortleaf 1 KB PrintServer Configuration Shortleaf 1 KB Uninstall Shortleaf 1 KB Other Places Programs My Documents Shared Documents My Computer My Network Places Details$

3.4 Client Installation and Setup

The Client Installation can be performed on Windows 95/98SE/Me/NT/2000/XP/2003 with the same user interface. Before the installation procedure, please confirm that your PC has connected to the network and installed at least one network protocol.

Insert the CD shipped along with the print server into your CD-ROM drive. The Autorun.exe program should be executed automatically. If not, run Autorun.exe manually from CD-ROM drive's root directory.
The "Installation Manager" will be displayed on the screen as follows. Click "Client Installation".

Administrator Installation Client Installation Quick Installation Guide User's Manual Exit

The “Print Server Utilities” window will be displayed. Click “Next”.

Click “Next” to install the utilities in the default folder or click “Change” to specify the destination folder where you would like to install the utilities.

The system will start to install the utilities automatically.

Now, the installation procedure is completed, you are ready to set up the client's computer. All network ports of the Print Servers detected on the network will be added to your PC automatically, click "Continue".

Note that if there are no print servers detected in the network currently, please click “Continue” to finish the installation. Please refer to Section 3.5.1 to add network ports of print servers manually.

Add Port PrintServer List PS256002-P1 192.168.2.2 Continue

The Client Installation procedure is completed. Click "Finish".

PrintServer Utilities - InstallShield Wizard InstallShield Wizard Complete Congratulations! You have completed the PrintServer Utilities installation procedure. < Back Finish Cancel

After the installation, you have completed the following tasks:

- Install all utilities and drivers to the client's PC.

- Add all the print server's network ports of the network to the client's PC.

You can then perform the Windows' standard "Add Printer" procedure to add network printers to your PC. Please refer to Section 3.6.

3.5 Client Utilities

After Client Installation is completed, there will be three tools in print server's Program folder.

■ Network Ports Quick Setup
■ Remote Ports
■ Uninstall Network Driver

The Uninstall Network Driver will assist you in removing all installed client software. The other two tools are described as follows.

$Print Server Utilities File Edit View Favorites Tools Help Address C:\Documents and Settings\All Users\Start Menu\Programs\Print Server Utilities File and Folder Tasks Make a new folder Publish this folder to the Web Share this folder Network Ports Quick Setup Shortcut 1 KB Remote ports Shortcut 1 KB Uninstall Network driver Shortcut 1 KB Other Places Programs My Documents Shared Documents My Computer My Network Places Details$

3.5.1 Network Ports Quick Setup

Network Ports Quick Setup Utility offers a very simple method to add or remove print server's printer port from the client's computer.

During the client's installation procedure, the system will automatically search for all print servers on the network, and add them into the printer ports of the client's computer (see below).

If you have just installed another new print server in the network, you must run this program first. This program will search for new print servers and allow you to add the new network printer port into client's computer conveniently. Perform the standard Add Printer procedure, then you can print directly to the printer through the newly installed print server.

Network Ports Quick Setup 3.0 Available Ports Chosen Ports PS256002-P1 OK Cancel Refresh Configure Port Auto IPX TCPIP NetBEUI Queue

Please be aware that Network Ports Quick Setup Utility can only detect and configure all print servers on the same network, it cannot search and configure print servers on other subnets across network segments. You must use Remote Ports Utility described in the next section to manage remote (across network segments) print servers.

Select the network ports in the “Available Ports” list and click “>” to add ports. If you want to add all available ports, please click “>>”. To cancel some of the network ports or all ports from the “Chosen Ports” list, please click “<” or “<<”.

3.5.2 Remote Ports (Utility)

Remote Ports Utility offers a convenient way for you to manage and add printer port of the remote print server. From the assistant of this utility, you can print to other print servers outside the subnet across network segment. However, please note that this function only supports TCP/IP network protocol.

Please follow the procedures described below:

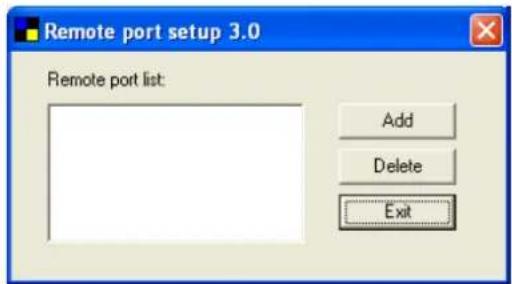

Step1. Run Remote Ports Utility. Clicks "Add" to add a remote print port.

Remote port setup 3.0 Remote port list: Add Delete Exit

Step2. Enter print server's name, IP address, select used ports, and enter LPR queue name of each port. Click "Ok".

Create remote port Print Server Name : OK IP Address : Cancel Port P1 P2 P3

Step3. The new remote print port is displayed as follows.

Remote port setup 3.0 Remote port list: Sales-P1-P1 Add Delete Exit

In order to use the remote printing function, you will have to proceed with normal Add Printer procedure and

select your printer port as the newly added remote printer port.

3.6 Windows Add Printer Procedure

After adding a “Network Port” of the print server to your PC by Administrator or Client Installation Program, you can follow the procedure described below to add printer to the Windows. Note that following “Add Printer” steps are running in Windows XP, the steps in other Operating Systems are similar.

Step1. Click “Start”, choose “Settings” and select “Printers and Faxes”.

Step2. Click "Add a Printer".

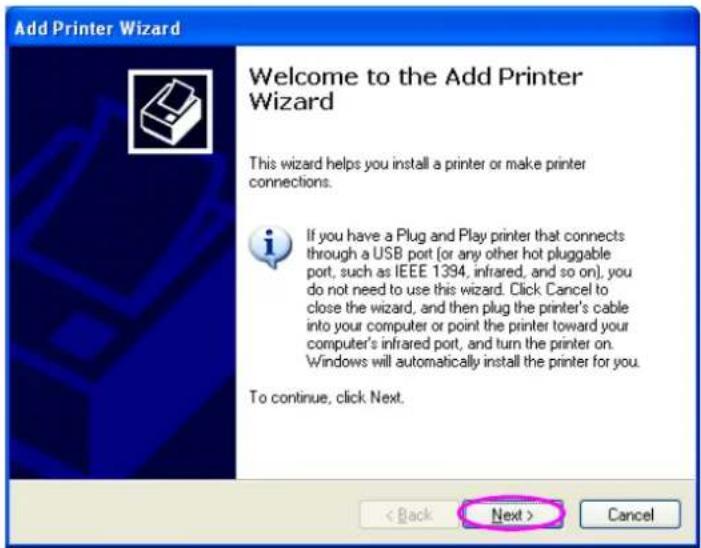

Step3. The “Add Printer Wizard” is displayed. Click “Next”.

Step4. Select “Local printer attached to this computer” and make sure that “Automatically detect and install my Plug and Play printer” is not selected. Click “Next”.

Step5. Choose the suitable “Print Server Network Port” which was created by the Administrator Installation or Client Installation process and click “Next”.

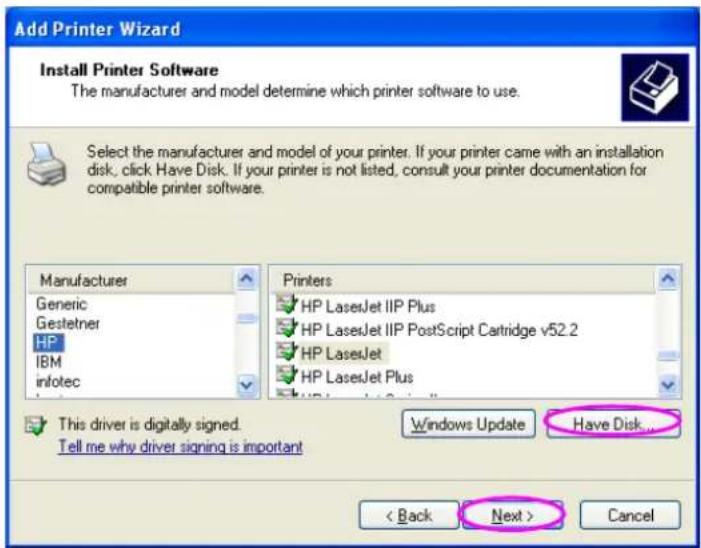

Step6. Select a suitable printer manufacturer and the printer model and click "Next". If your printer is not in the list, click "Have Disk..." to install the driver of the printer. After installation, the printer model will be added to the list.

Step7. Name your printer and setup the default printer, click "Next".

Add Printer Wizard Name Your Printer You must assign a name to this printer. Type a name for this printer. Because some programs do not support printer and server name combinations of more than 31 characters, it is best to keep the name as short as possible. Printer name: HP LaserJet Do you want to use this printer as the default printer? Yes No < Back Next > Cancel

Step8. Choose to print the test page or not. It is recommended to print a test page. Click "Next".

Add Printer Wizard Print Test Page To confirm that the printer is installed properly, you can print a test page. Do you want to print a test page? Yes No < Back Next > Cancel

Step9. You have added the printer to the PC successfully. The information of the printer is displayed in the windows. Click “Finish”.

Add Printer Wizard Completing the Add Printer Wizard You have successfully completed the Add Printer Wizard. You specified the following printer settings: Name: HP LaserJet Share name: Port: PS256002-P1 Model: HP LaserJet Default: Yes Test page: Yes To close this wizard, click Finish. < Back Finish Cancel

4. Windows NT/2000/2003 Network

4.1 System Architecture

In Windows network environment, other than the Peer-to-Peer network printing architecture described in the previous chapter, we also offer the Server-Based Printing architecture for Windows NT/2000/2003 server. Only one Windows NT/2000/2003 is required to have Windows PTPP (Peer-to-Peer Printing) driver installed and share the printing service on the network. Other network users can simply connect to the server and access the shared printer (see below).

Intellinet 521475 - System Architecture - 1

4.2 Windows NT/2000/2003 Server Installation and Setup

Please follow the procedures described below for installation and construct a peer-to-peer connection (PTPP) between Windows NT/2000/2003 Server and Print Server.

Intellinet 521475 - Windows NT/2000/2003 Server Installation and Setup - 1

Step1.

If this is your first time installing print server, please install the administrator software on Windows NT/2000/2003 server first. Refer to section 3.2 for installation instructions.

If your network has already installed a working print server and your Windows NT/2000/2003 server has not yet installed the PTPP driver, please install the client software. Refer to section 3.4 and 3.5 for installation instructions.

Step2.

Please add/configure the Peer-to-Peer Printing of the Windows NT/2000/2003 network printer and verify that you can print from Windows NT/2000/2003 to the print server by the installed PTPP driver.

Step3.

Share the above server's printer to the network by performing the standard Windows printer sharing process.

4.3 User Installation and Setup

Intellinet 521475 - User Installation and Setup - 1

After server side's installation is completed, client side will be able to find the server's shared printer in Network Neighborhood. You only need to perform Window's standard Add New Printer procedure, select "Network Printer" shown in the screen below, and complete the configurations afterwards to access the shared printer.

Add Printer Wizard How is this printer attached to your computer? If it is directly attached to your computer, click Local Printer. If it is attached to another computer, click Network Printer ○ Local printer ● Network printer < Back Next > Cancel

5. NetWare Network

5.1 System Architecture

We implement NetWare printer sharing functionality into the print server itself, thus allowing one or more printers attached by a print server to be connected to the network. We have developed the print server to support NetWare print server.

Embedded print server, which emulates the “queue management functionality” of NetWare print server, PSERVER program running on the NetWare server. A user first prints a job at a workstation, the job is routed to a NetWare server, the NetWare server stores the job in a print queue and then the print server gets the print job from the queue to printers.

Intellinet 521475 - System Architecture - 1

Compare with NetWare printing functionality, the advantages of embedding the NetWare network printing functionality in the print server include:

■ Installation is easier and quicker.
■ Network management is easier.

■ Printing performance is enhanced.
- Relieve NetWare file server's burden.
■ Relieve the need of a workstation running the remote printer utility.
■ Improve productivity by locating the printer near the workgroup.

Each print server should log into a NetWare server before servicing the print jobs. Each print server will occupy a user account with which it can log into the NetWare server.

5.2 NetWare 3.x/4.x/5.x Installation & Setup

Once your print server is connected to your Ethernet network, you can set it up for use with your networking software.

5.2.1 Installation Using PCONSOLE

5.2.1.1 Configuring as Print Server Mode

Run the NetWare PCONSOLE program.
Change the current file server, if necessary, using the Change Current File Server menu selection.
Choose the Print Queue Information menu selection.
Press the Insert key to add a new print queue.
Type in a print queue name, such as "PQ" or "Q1".

NetWare Print Console U3.75 Friday July 31, 1998 5:14 User SUPERVISOR On File Server SERVER Connection 2 Print Queues available Options ge Current File Server t Queue Information New Print Queue Name: PS30100C_Q1_

You have now successfully created the print queue that your print server will serve. Press the Escape

key until the Available Options main menu is displayed.

Select Print Server Information.
Press the Insert key to add a new NetWare print server object. The print server name can be identical to the PSxxxxxx name printed on the label of the print server.

NetWare Print Console U3.75 User SUPERVISOR On File Server SERVER Connection 2 Print Servers available Options ge Current File Server t Queue Information New Print Server Name: PS38100C

Press Enter to select the newly created print server.
Select Print Server Configuration.
Select Printer Configuration.
Select Printer 0 (or Printer 1, Printer 2), and press Enter, then select LPT1 (or LPT2, LPT3) in the Type field. If your print server is with only one port, you do not need to configure this Type field.

Press Escape, and answer Yes to the Save Changes question.
Select Queues Serviced by Printer, then select Printer 0 (or Printer 1, Printer 2) and press Enter.
Press Insert and add your newly created print queue to the list of queues serviced by the printer. Enter a priority number for the queue service, or press Enter to accept the default.

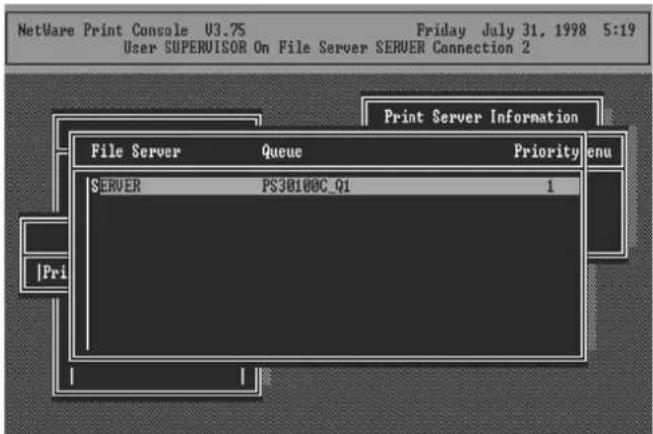

NetWare Print Console U3.75 User SUPERVISOR On File Server SERVER Connection 2 Print Server Information File Server Queue Priority SERVER PS38100C Q1 1 |Pri

Repeatedly press Escape to exit the PCONSOLE program.
Reset the print server to have the changes take effect.

NOTE: If the print server you have is with multiple printer connectors, you may create multiple print queues and printer objects.

Your print server should now be ready to use. You should be able to redirect printing to your print server using a CAPTURE command such as the one shown in the previous section.

6. UNIX System Network

6.1 Introduction

The print server is available for TCP/IP printing by Unix LPD (Line Printer Daemon) protocol. The LPD protocol originated with Unix release is based on the BSD version of Unix and supported under most versions of Unix.

This chapter explains how to configure the print server for TCP/IP operation, and how to modify configuration files on your Unix system to allow printing to the print server. The configuration examples in this manual follow the syntax for BSD based Unix systems. Please refer to the related system documentation for the correct syntax of your systems.

To configure the print server for LPD printing, perform the procedures below:

Enable Print Server's TCP/IP Support.
Set up Print Server's IP address.
Verify Print Server's IP Address.
Configure remote LPD printing on the host.
Print a test page.

In the next sections, we will describe these five procedures step by step.

6.2 Enable Print Server's TCP/IP Support

The default configuration of the print server is with TCP/IP support enabled. Anyway, you can configure the print server to enable TCP/IP support using the configuration program.

6.3 Setup Print Server's IP Address

The print server must have a unique IP address in order to be recognized by the network.

You can set up the IP address on the various Unix systems using any one of the following methods:

DHCP (Dynamic Host Configuration Protocol)
BOOTP (Bootstrap Protocol)

The print server will use the last three methods to obtain its IP address automatically if its IP address is configured as Auto (0.0.0.0).

6.3.1 DHCP

There are many Unix systems that support DHCP protocol, and the procedures to configure the DHCP server database are different. This manual does not describe the DHCP server configuration on the Unix systems. It is highly recommended that the DHCP server should be located on the same network as the print server.

6.3.2 BOOTP

If you have the BOOTP daemon, bootpd, running on your UNIX system that is accessible by the print server, you can use the BOOTP protocol to set up the IP address of the print server. We recommend that the BOOTP server should be located on the same subnet as the print server. If you use Network Information Services (NIS) in your system, you may need to rebuild the NIS map with the BOOTP

services before doing the following BOOTP configuration. To rebuild the NIS map, please refer to your system documentation.

To configure the IP address data for the BOOTP server, you will need to log in the host of BOOTP server as the superuser (root). Perform the following steps to add address entries,

Optionally, assign a name corresponding to the print server's IP address. You can add this address to the /etc/hosts file, by adding a line such as:

203.66.191.12

pserver

Add an entry to the host's /etc/bootptab file, similar to the following:

hostname:\

:ht=1:\

:ha=print_server_ethernet_address:

:ip=print_server_ip_address:

Lines should be indented with tabs.

Where hostname is the device name of a print server, the ht=1 tag specifies the hardware type is Ethernet, the ha= tag specifies the Ethernet address of a print server, which is the Node ID located on the print server. The ha tag must be preceded by the ht tag. The ip= tag should correspond to the IP address you want to assign to the print server.

For example, a print server with the following configuration:

Node ID: 0000B4010101 (this implies Ethernet

address is 0000B4010101),

IP address: 203.66.191.12

The entry for this print server in the /etc/bootptab file should be:

PS010101:

:ht=1:\

:ha=0000B4010101:\

:ip=203.66.191.12:

6.4 Verify Print Server's IP Address

To verify that your print server is responding to the newly assigned IP address using a PING command:

ping ip-address

6.5 Configure Remote LPD Printing on the Host

The procedure you use to configure your Unix host(s) to allow printing to your network remote print server varies between different varieties of Unix. The procedure below can be used for Unix variants that are related to BSD Unix, such as SunOS or Linux. For other versions of Unix, consult your system documentation, keeping in mind that:

The print server should be treated as a BSD networked print server host.
The host name should be the name (or IP address) that you have assigned to the print server.
The printer name (or queue name) on the remote host should be lpt1, lpt2 or lpt3, the name of the printer port on the print server.

You will need to perform the tasks below, logged in as the superuser (root). To configure your Unix host for printing,

Optionally, assign a name corresponding to the print server's IP address. You can add this address to the /etc/hosts file, by adding a line such as:

203.66.191.186

pserver

Create a spool directory for the printer in the same directory where spool directories are normally kept on the machine, such as /var/spool or /var/spool/lpd:

mkdir /var/spool/lpd/pserverd
chown daemon /var/spool/lpd/pserverd
chgrp daemon /var/spool/lpd/pserverd
chmod 775 /var/spool/lpd/pserverd

Add an entry to the host's /etc/printcap file, similar to the following:

printer-name:\
:lp=:\
:rm=203.66.191.186:\
:rp=lpt1:\
:lf=/var/spool/lpd/pserverd.log:\
:sd=/var/spool/lpd/pserverd:\
:mx#0:

Lines should be indented with tabs. More than one printer name can be used, with variants separated by vertical bars (name1|name2).

The rm= entry should correspond to the IP address you have assigned to the print server. You can also use a host name if you have assigned one in the /etc/hosts file.

The sd= entry should correspond to the spool directory you created in the previous step.

The rp= entry should correspond to the port name of the remote printer. The values should be one of lpt1, lpt2 or lpt3 depends on the printer port.

The print server should now be available for printing from your Unix host.

7. Configuration Utility

7.1 Introduction

This chapter introduces print server's system configuration utility in Windows environment. This utility is automatically installed during Windows Administrator Utility installation procedure - refer to section 3.2 and 3.3.

This utility provides the most complete management and configuration functions on the print server side. This utility only provides configuration functions for print server itself; it does not include configuration functions for client side or other file server or NetWare server in the network environment.

The Configuration Utility provides the following configuration and management functions:

■ Search Print Server: Search All Available Printer Servers on the Network.
■ Print Server Status: Display Print Server Network Status.
■ General Configuration: General Information of print server.
■ TCP/IP Configuration: IP Address and DHCP Server Configuration.
■ NetWare Configuration: NetWare Printing Configuration.
■ AppleTalk Configuration: AppleTalk Protocol Setting.

■ SNMP Configuration: SNMP Information Configuration.
■ SMB: Configure the SMB Group Name.
■ System Configuration: Print Server Network Ability Setting and Firmware Upgrade.
■
■ Setup Wizard: Guide You Through All the Settings.
■ Report: List the Status of All Available Print Servers on the Network.

We will explain each function separately in the following section.

7.2 Search for All Available Print Server

Every time when you run print server's configuration utility, click the "Search" icon on the tool bar. The configuration utility will delay for several seconds because the utility is using system's available network protocols to search for all print servers on the network. All available print servers will be listed under "Server Group" on the left side of the window.

You must select the print server you would like to configure from the list. The system will, at the same time, display the selected print server's status on the right side of the window.

7.3 Status of Print Server

Intellinet 521475 - Status of Print Server - 2

Click “Status” icon on the tool bar, the status of the current selected print server will be showed on the right side of the window.

The information of the print server displayed are MAC ID, Model Type, Firmware Version, status of each printer port, NetWare file server name, NetWare file server polling interval, NetWare printer queue names, IP address, subnet mask, default gateway, AppleTalk printer type, AppleTalk zone and print server printing ability...etc.

You can refresh the print server's status by pressing the "Refresh" button.

You can restart the print server by pressing the "Reboot" button.

7.4 Setup the Print Server

Server Manager 3.8.39 File Help Server Group PS2560002 Setup General TCP/IP NetWare PS2560002 AppleTalk SNMP SMB System Date Time Message 1/3/2006 5:00:16 PM Welcome! 1/3/2006 5:00:17 PM Searching... Please Wait! 1/3/2006 5:00:21 PM 1 server found!

Click “Setup” icon on the tool bar, the setup items of the current selected print server will be showed on the right side of the window.

Double click one of the icons to set up the selected print server. A screen will pop up to verify “User Name” and “Password” of the print server. The default values are as follows.

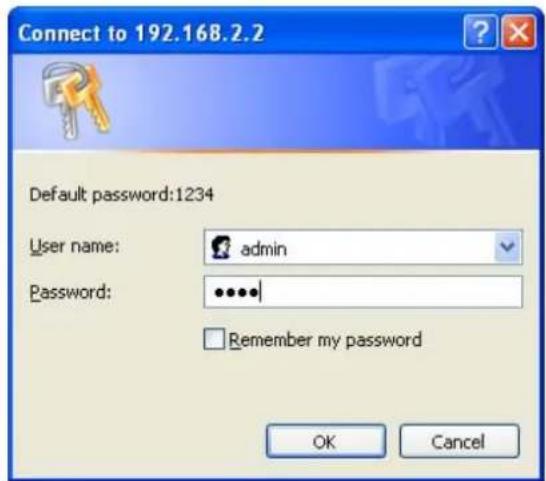

User Name: admin
Password: 1234

7.5 General Configuration

General - PS2560002 General General Settings Device Info MAC ID: 00:00:B4:46:2C:B6 Type: 1P/8A Version: 8.0.20A Port No: 1 Server Name: PS2560002 Set User Name/Password User Name: Password: Retype Password: Save Cancel

Double Click “General” icon and the General configuration window will pop-up.

You can see basic print server information in this page. You also can configure the “Server Name”, “User Name” and “Password” here.

Server Name, the name of the print server. You can use this name to identify the print server when you are searching for the print server by the administration and client utilities.

User Name / Password is used to authenticate the administrator by the Web administration tool.

7.6 TCP/IP Configuration

TCP/IP - PS256002 TCP/IP TCP/IP Settings IP DHCP Server Auto IP Static IP IP Address: 192 168 2 2 Subnet Mask: 255 255 255 0 Gateway: 0 0 0 0 Save Cancel

TCP/IP - PS256002 TCP/IP TCP/IP Settings IP DHCP Server Auto Enable Disable Starting Address: 0 0 0 0 Range: 0 Subnet Mask: 0 0 0 0 Gateway: 0 0 0 0 DNS: 0 0 0 0 Save Cancel

Double Click “TCP/IP” icon and the TCP/IP configuration window will pop-up.

You can configure the print server to automatically get IP from DHCP server or manually specify static IP. The print server also has a built-in DHCP server. You can enable this DHCP server and let it manages IP for you.

Click the “IP” button to enter the IP setting page. If you need the print server to automatically get an IP from DHCP server, select “Auto IP”. You also can select “Static IP” to manually assign “IP Address”, “Subnet Mask” and “Gateway” for the print server.

Click the “DHCP Server” button to enter the DHCP server’s setting page. You can “Enable/Disable” the DHCP server or set “Auto” and assign a range of IP addresses here. The DHCP server is disabled by default. If Auto is selected, the DHCP Server of print server will be enabled only when there is no other DHCP Server within the network. When “Enable” or “Auto” is selected, you have to configure “Starting Address”, “Range”, “Subnet Mask”, “Gateway” and “DNS”. The print server will assign a unique IP for each client.

7.7 Netware Print Server Configuration

NetWare - PS256002 NetWare NetWare Settings Polling Time: 3 (Sec.) File Server to be serviced NetWare Server : Save Cancel

Double Click “NetWare” icon and the NetWare configuration window will pop-up.

This print server supports NetWare Bindery Printing method. The print server periodically polls the NetWare server printer queues for printing jobs. You have to assign the NetWare server name, print server polling interval and the name of queue on the NetWare server for each printer port.

Polling Time is the polling interval of the print server for waiting printing jobs on the NetWare server.

NetWare Server is the name of the NetWare file server that provides printer queues.

7.8 AppleTalk Configuration

AppleTalk - PS256002 AppleTalk AppleTalk Settings Zone Name : Printer Type Port 1: LaserWriter Port 2: LaserWriter Port 3: LaserWriter Save Cancel

Double Click “AppleTalk” icon and the AppleTalk configuration window will pop-up.

AppleTalk is a data communication protocol often used by Macintoshes. The print server can use these parameters to join the AppleTalk network and share the printer to other AppleTalk workstations. You have to setup the “Zone Name” and “Printer Type” for each printer port of this print server.

Zone Name: Print server has to join zones of AppleTalk before it can be shared to other workstations. Only workstations in the same zone can share the printer. If you want to share the printer to all workstations in all Zones, you should enter only “*” in the “Zone Name” field.

Printer Type, the type of printer attached to each printer port. You can get the printer type from the manufacturer of the printer.

7.9 SNMP Configuration

SNMP - PS256002 SNMP SNMP Contact : Location : Save Cancel

Double Click “SNMP” icon and the SNMP configuration window will pop up.

Contact: You can enter the print server administrator's contact information here. This information will be displayed in the SNMP management tool.

Location: You can enter the installed location of the print server here. This information will be displayed in the SNMP management tool.

7.10 SMB Configuration

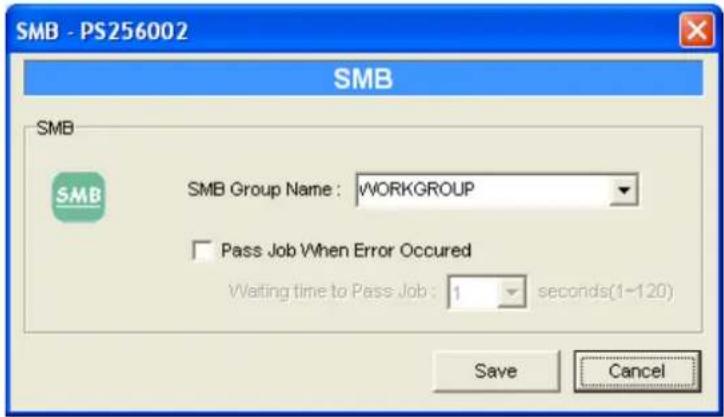

SMB - PS256002 SMB SMB Group Name: WORKGROUP Pass Job When Error Occured Waiting time to Pass Job: 1 seconds(1-120) Save Cancel

SMB Group Name, the name of SMB group that this print server belongs to. All PC should join the same group before they can use this print server by SMB protocol.

Pass Job when Error Occurred: When the printer is interrupted because of paper out or off line while printing, user can set the interval time to bypass the current printing job. Or the printing document will not be printed completely or with unformatted messages.

7.11 System Configuration

System - PS2560002 System System Settings Enable Appletalk Printing Enable Rendezvous Printing Enable LPR Printing Enable NetVWare Binary Printing Enable TCP RAW Printing Enable IPP Printing Enable SMB Enable SNMP Enable NetBEUI Update : ... Upgrade Load Default Save Cancel

Double Click “System” icon and the System configuration window will pop-up.

In the System configuration page, you can select to enable/disable each printing or management protocol, upgrade the new firmware for this print server, and load factory defaults to the print server.

Upgrade Firmware: You can use this “Upgrade Firmware” tool to update the newest firmware of the print server. Click “☐” button and select the correct firmware in your PC. After selecting the firmware file, click the “Upgrade” button to finish the firmware update process.

Load Default: If you want to reset the Print Server to default factory settings, please click "Load Default".

7.12 Wizard

Server Manager 3.8.39 File Help Server Group PS256002 Wizard Print Server Setup Wizard PS256002 Date Time Message 12/12/2005 2:54:50 PM Welcome ! 12/12/2005 2:54:51 PM Searching... Please Wait ! 12/12/2005 2:55:00 PM 1 server found ! 12/12/2005 2:55:13 PM Verification Successful !

Intellinet 521475 - Wizard - 2

Click “Wizard” icon on the tool bar, the setup wizard item of the current selected print server will be showed on the right side of the window.

Double click the “Print Server Setup Wizard” the setup wizard will guide you through all the setup process.

Step 1: Set up the name of this print server.

Print Server Setup Wizard - PS2560002 General Settings Server Name: PS2560002 Cancel Next >>

Step 2: Select to enable required printing protocol. Please refer to section 7.11 for detail information.

Print Server Setup Wizard - PS2560002 System Settings Enable Appletalk Printing Enable Rendezvous Printing Enable LPR Printing Enable NetWare Binary Printing Enable TCP RAW Printing Enable IPP Printing Enable SMB Enable SNMP Enable NetBEUI << Back Cancel Next >>

Step 3: Setup the IP of this print server and the DHCP server. Please refer to section 7.6 for detail information.

Print Server Setup Wizard - PS256002 TCP/IP Settings IP DHCP Server Auto IP Static IP IP Address: 192 168 2 2 Subnet Mask: 255 255 255 0 Gateway: 192 168 2 254 << Back Cancel Next >>

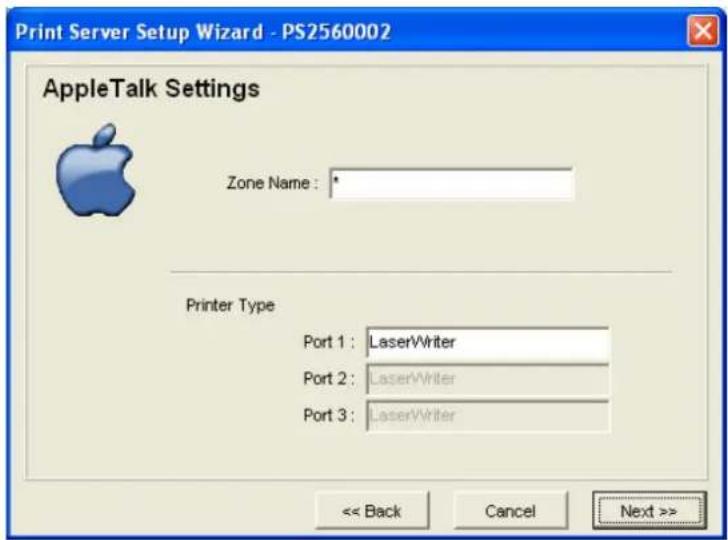

Step 4: Setup the AppleTalk printing. Please refer to section 7.8 for detail information.

Print Server Setup Wizard - PS2560002 AppleTalk Settings Zone Name: * Printer Type Port 1: LaserWriter Port 2: LaserWriter Port 3: LaserWriter << Back Cancel Next >>

Step 5: Setup the NetWare printing. Please refer to section 7.7 for detail information.

Print Server Setup Wizard - PS2560002 NetWare Settings Polling Time: 3 (Sec.) File Server to be serviced NetWare Server : < Back Cancel Next >>

Step 6: Click “Save” to finish setting. Please reboot the print server to let these settings take effect.

Print Server Setup Wizard - PS2560002 Setup Status Summary Server Name: PS2560002 Print Protocol AppleTalk Printing: Enable Rendezvous Printing: Not Support LPR Print: Enable NetWare Binary Printing: Enable Raw Print: Enable IPP Print: Enable SMB: Enable SNMP: Enable NetBEUI: Enable IP Settings << Back Cancel Save

7.13 Report

Report Device Name MAC ID Model Type Version Status PS2560002 00:00:B4:46:2C:... 1P/8A 8.0.20A << << << << << << << << << << << << << << << << << << << << << << << << << << << << << << << << << << << << << << << << << << << << << << << << << << << 1P/8A 8.0.20A

Click "Report" icon on the tool bar, the Report window will pop up.

The report lists basic information of all available print servers on the network. The information includes Device Name, MAC ID, Model Type and Firmware Version of the print server.

8. Web Management

8.1 Introduction

Print server can be configured and managed on the Web. Through Local Area Network, or even Internet, administrator can easily configure and manage print server's various main functions in browsers. Simply enter print server's IP address into your browser's address field to manage a print server by print server's built-in Web Server.

The default IP Address, User Name and Password settings of the Print server are as follows.

• IP Address: 192.168.2.2
- User Name: Admin
- Password: 1234

You may use any Web Browser to review the status or configure the settings of the print server. After entering the IP address of the print server, a login page display. You have to enter correct “User Name” and “Password” before going to the Web Management pages.

Notes: Default User Name is “admin”, default password is “1234”.

Connect to 192.168.2.2 Default password:1234 User name: admin Password: ••••• Remember my password OK Cancel

8.3 Device Status

8.3.1 System

System Information includes “Device Name”, “Print Server Name”, “Model Type”, “Firmware Version”, “MAC Address” and the protocols enabled status, etc.

8.3.2 Printer

This page lists information of printer connected to the printer port.

8.3.3 TCP/IP

Print Server Device Setup | Setup Wizard | System Tools STATUS TCP/IP This page displays the current TCP/IP settings of the print server. TCP/IP Settings Use DHCP/BOOTP : Off IP Address : 192.168.2.2 Subnet Mask : 255.255.255.0 Gateway : 0.0.0.0 Use DHCP Server : Off

This page lists all TCP/IP settings of the print server including “IP Address”, “Subnet Mask” and “Gateway”. It also lists DHCP server setting.

8.3.4 SMB

Print Server Device Setup | Setup Wizard | System Tools STATUS SMB SYSTEM Printer TCP/IP SMB SNMP NetWare AppleTalk This page displays the current SMB settings of the print server. SMB Settings SMB function : Disable SMB Group Name : WORKGROUP Pass Job When Error Occurred : Disable Waiting time to pass job : 0 Sec

This page lists the SMB group and the pass job interval time settings of the print server.

8.3.5 SNMP

Print Server Device Setup | Setup Wizard | System Tools STATUS SNMP SYSTEM Printer TCP/IP SMB SNMP NetWare AppleTalk This page displays the current SNMP settings of the print server. SNMP Settings SNMP System Contact : None SNMP System Location : None

This page lists the SNMP settings of the print server. It includes the settings of “SNMP System Contact” and “SNMP System Location”.

8.3.6 NetWare

Print Server Device Setup | Setup Wizard | System Tools STATUS NetWare SYSTEM Printer TCP/IP SMB SNMP NetWare AppleTalk This page displays the current NetWare settings of the print server. General Settings Polling Time : 3 seconds NetWare Bindery Settings Use Bindery Mode : Enable Name of the File Server : NetWare Port Settings Port1 Attached Queue : Disconnected

This page lists NetWare settings, including “Polling Time”, “Use Bindery Mode”, “Name of the File Server” and “Port Attached Queue”.

8.3.7 AppleTalk

Print Server Device Setup | Setup Wizard | System Tools STATUS AppleTalk This page displays the current AppleTalk settings of the print server. AppleTalk Settings AppleTalk Zone Name : * Printer 1 Printer Type : LaserWriter

This page lists AppleTalk settings, including "AppleTalk Zone Name" and "Printer Type" of the printer connected to the print port.

8.4 Setup Wizard

8.4.1 System

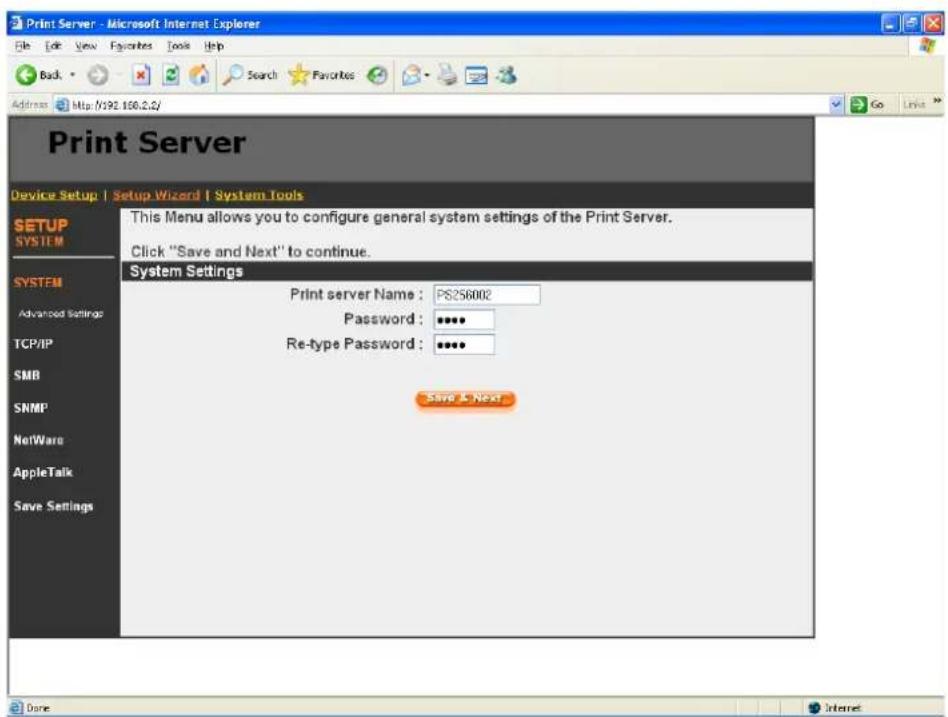

Print Server Device Setup | Setup Wizard | System Tools SETUP SYSTEM SYSTEM Advanced Settings TCP/IP SMB SNMP NetWare AppleTalk Save Settings This Menu allows you to configure general system settings of the Print Server. Click "Save and Next" to continue. System Settings Print server Name : PS256002 Password : ****** Re-type Password : ****** Save & Next Done

You can change the print server name and password of the print server from here.

Print Server Name, the name of the print server. You can use this name to identify the print server when you are searching for the print server by the administration and client utilities.

Password, enter the password you want to change to the print server. The password can be up to 7-digit alphanumeric format. The default password is “1234”.

Re-type Password, enter the password you want to change to the print server again.

8.4.1.1 Advanced Settings

Print Server Device Setup | Setup Wizard | System Tools SETUP SYSTEM Advanced Settings TCP/IP SMB SNMP NetWare AppleTalk Save Settings This page allows you to configure Advance settings for the Print Server. Click "Save and Next" to continue. System Configure IPX: Enable TCP/IP Printing(LPR/IPP/RAW/SMB): Enable NetBEUI: Enable AppleTalk Printing: Enable Save & Next Done

You can enable/disable the printing protocols from the screen. To enable the function, please select "Enable"; to disable the function, please select "Disable".

8.4.2 TCP/IP

If you need the print server to automatically get an IP from DHCP server, select "Enable Obtain TCP/IP Settings Automatically (Use DHCP/BOOTP)". You also can select "Disable Use the following TCP/IP Settings" to manually assign "IP Address", "Subnet Mask" and "Gateway" for the print server.

You can enable/disable or set auto for the print server's DHCP server. The DHCP server is disabled by default. If the DHCP Server is enabled or set Auto, you have to assign a range of IP addresses here. Fill in the

“Start IP”, “Range”, “DNS”, “Subnet Mask” and “Gateway”, and the print server will assign a unique IP for each client. Note that when “Auto” is selected, the DHCP Server of the print server will be enabled only when there is no other DHCP Server within the network.

8.4.3 SMB

Print Server Device Setup | Setup Wizard | System Tools SETUP SMB SYSTEM Advanced Settings TCP/IP SMB SNMP NetWare AppleTalk Save Settings This page allows you to configure SMB settings for the Print Server. Click "Save and Next" to continue. SMB Configure SMB Enable : Enable SMB Group Name : WORKGROUP Pass Job When Error Occured: Enable Waiting time to Pass Job: 0 seconds(1~120) Save & Next Done

You can enable/disable the SMB protocol from here. If SMB is enabled, enter the “SMB Group Name” to specify the SMB group that this print server belongs to. All PC should join the same group before they can use this print server by SMB protocol.

“Pass Job When Error Occurred” is for you to set the interval time for bypassing the current printing job in order to avoid the printing job is not printed completely while the

printer is interrupted unexpectedly because of paper out or off line.

8.4.4 SNMP

Print Server - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites Address http://192.168.2.2/ Print Server Device Setup | Setup Wizard | System Tools TThis page allows you to configure SNMP settings for the Print Server. Click "Save and Next" to continue. SNMP Configure SNMP System Contact : SNMP System Location : Save & Next Done Internet

The print server supports SNMP configuration. If it is enabled, please set up the following parameters.

SNMP System Contact: You can enter the print server administrator's contact information here. This information will be displayed in the SNMP management tool.

SNMP System Location: You can enter the installed location of the print server here. This information will be displayed in the SNMP management tool.

8.4.5 NetWare

Print Server Device Setup | Setup Wizard | System Tools SETUP NetWare SYSTEM Advanced Settings TCP/IP SMB SNMP NetWare AppleTalk Save Settings This Menu allows you to configure the NetWare function of the Print Server. Click "Save and Next" to continue. General Settings Polling Time : 3 seconds(min: 3, max: 28 seconds) NetWare Bindery Settings Name of the File Server : SAVE & Next Done

Polling Time is the polling interval of the print server for waiting printing jobs on the NetWare server.

Name of the File Server is the name of the NetWare file server that provides printer queues.

8.4.6 AppleTalk

AppleTalk is a data communication protocol often used by Macintoshes. The print server can use these parameters to join the AppleTalk network and share the printer to other AppleTalk workstations. You have to select to enable or disable AppleTalk, and setup the “Zone Name” and “Printer Type” for each printer port of this print server.

AppleTalk Enable: Enable or disable "AppleTalk".

AppleTalk Zone Name: Print server has to join zones of AppleTalk before it can be shared to other workstations. Only workstations in the same zone can share the printer. If you want to share the printer to all workstations in all Zones, you should enter only “*” in the “Zone Name” field.

Printer Type, the type of printer attached to each printer port. You can get the printer type from the manufacturer of the printer.

8.4.7 Save Settings

You can click the "Save Settings" to save the settings and restart the system.

8.5 System Tools

8.5.1 Load Default

Print Server Device Setup | Setup Wizard | System Tools SYSTEM Load Default Load Default Upgrade from Browser This menu allows you to restore the factory default settings. Load Factory Defaults Are you sure you want to load factory defaults ? OK

You can use this page to restore the factory default settings. All of your previous setup will be cleared.

8.5.2 Upgrade Firmware from Browser

You can upgrade new firmware for this print server in this page. Click “Browse” to select the new firmware in your storage and then click “OK”, the firmware will be updated in several minutes.

Be aware that if you have started upgrading firmware, you have to follow all the upgrading steps or the print server can't turn back to normal configuration.

9. IPP Printing

9.1 Introduction

IPP (Internet Printing Protocol) Printing provides a convenient way of remote printing service by TCP/IP. The print server can support IPP printing by default. It is needless to do any setting. Any PC that can support IPP printing, for example Windows 2000/XP, can directly uses the print server by IP. By using the IPP printing, you can share the printer to all the PC's that can access the print server by IP. You can even share your printer to Internet users.

9.2 System Setup

9.2.1 Print Server Side

It is needless to do any setting on the print server side. Make sure the print server has correct IP settings. If you want to share the printers to Internet users, you have to set a real IP to the print server. You also have to make sure that any gateway, router or firewall does not block IPP protocol if you have these gateway devices installed in your network.

9.2.2 Client Side

You only need to perform Window's standard Add New Printer procedure.

Step1. Click “Start”, choose “Settings” and select “Printers and Faxes”.

Step2. Click "Add a Printer".

Step3. The “Add Printer Wizard” is displayed. Click “Next”.

Step4. Select “A network printer, or a printer attached to another computer”. Click “Next”.

Step5. Select “Connect to a printer on the Internet or on a home or office network” and enter the URL of print server. The URL format is “http://IP:631/Port Name”. The IP should be the print server’s IP. The number 631 is IPP standard port number. Port Name is the port name of print server that your printer is connected to. The default port name is “lpt1”. One example of the URL is http://192.168.3.66:631/lpt1. After entering the URL of print server, click “Next”.

Step7. Choose to set the print whether as a default printer or not. Click "Next".

Add Printer Wizard Default Printer Your computer will always send documents to the default printer unless you specify otherwise. Do you want to use this printer as the default printer? Yes No < Back Next > Cancel

Step8. You have added the network printer to the PC successfully. The information of the printer is displayed in the windows. Click "Finish".

Add Printer Wizard Completing the Add Printer Wizard You have successfully completed the Add Printer Wizard. You specified the following printer settings: Name: unknown on http://192.168.3.66:631 Default: Yes Location: Comment: To close this wizard, click Finish. < Back Finish Cancel

10. Windows XP SP2 Setup

In Windows XP SP2, XP SP2's firewall would block the unknown communications. This print server has allowed the communications data passed through the XP SP2's firewall.

In case that you do not find any print server listed on the “Available Ports” in “Network Ports Quick Setup”, please follow the steps below.

Step1. Click “Start”, choose “Settings” and select “Network Connections”.

Step2. Right click “Local Area Connection” and select “Properties”.

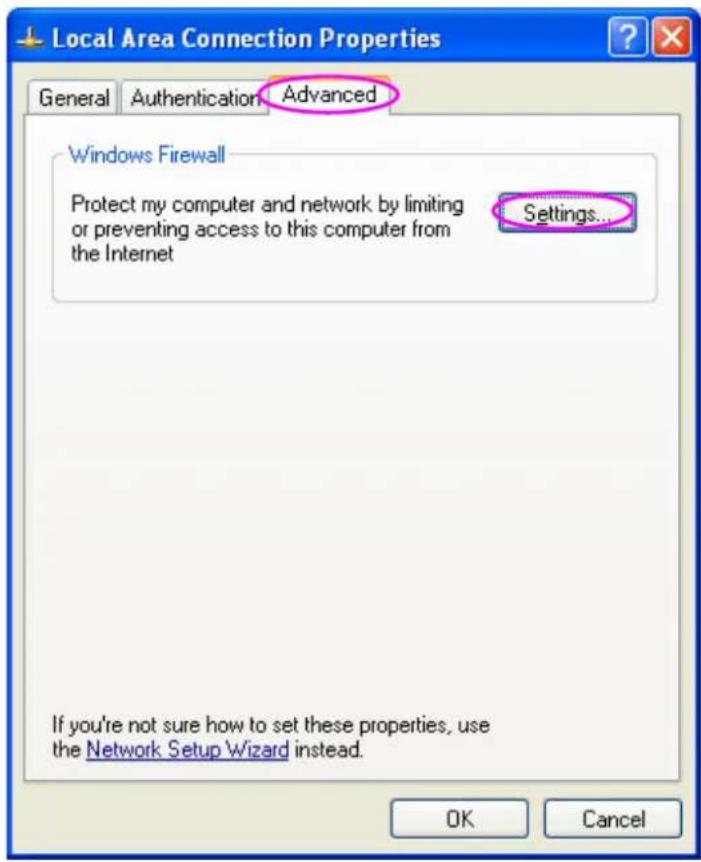

Step3. Select "Advanced" tab and click "Settings...".

Local Area Connection Properties General Authentication Advanced Windows Firewall Protect my computer and network by limiting or preventing access to this computer from the Internet Settings... If you're not sure how to set these properties, use the Network Setup Wizard instead. OK Cancel

Step4. Select "Exceptions" tab and click "Add Program...".

Step5. Click "Browse" to add a new program.

$Add a Program To allow communications with a program by adding it to the Exceptions list, select the program, or click Browse to search for one that is not listed. Programs: Admin Utility Camera Viewer CCS Configuration FreeCell Hearts Internet Backgammon Internet Checkers Internet Explorer Internet Hearts Internet Reversi Path: C:\Program Files\Internet Camera\admin\admi Browse... Change scope... OK Cancel$

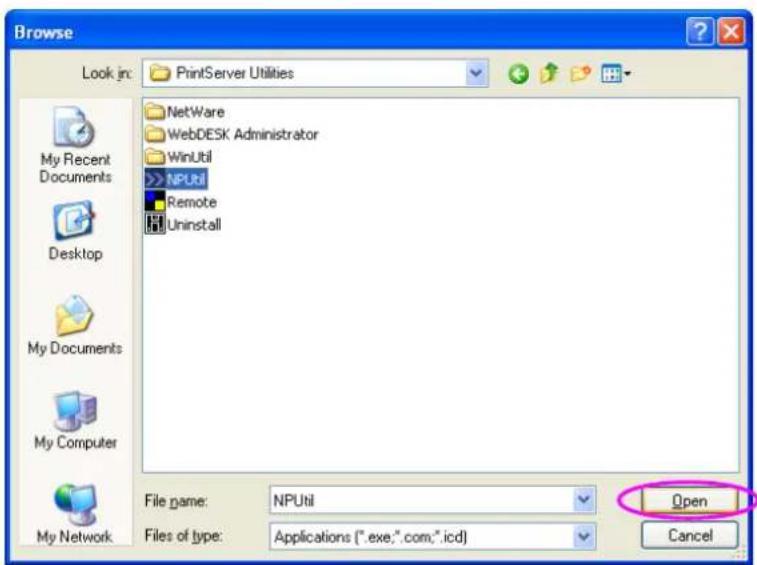

Step6. Open the “NPUtil” file from “C:\Program Files\PrintServer Utilities” (where C:\ is the system drive).

Browse Look inc: PrintServer Utilities My Recent Documents Desktop My Documents My Computer My Network NetWare WebDESK Administrator WinUtil NPUM Remote Uninstall File name: NPUtil Files of type: Applications (*.exe;*.com;*.icd) Open Cancel

Step7. A new program “Network Ports Quick Setup” is displayed in the list, click “Ok”.

$Add a Program To allow communications with a program by adding it to the Exceptions list, select the program, or click Browse to search for one that is not listed. Programs: Internet Explorer Internet Hearts Internet Reversi Internet Spades Minesweeper MSN Explorer Network Ports Quick Setup Outlook Express Pinball PrintServer Configuration ProMagic Path: C:\Program Files\PrintServer Utilities\NPUtil.ex Browse... Change scope... OK Cancel$

Step8. Click “Ok”. You have completed the setting. The Windows XP SP2 will allow the incoming network connections activated by the program.

521475 - Print Server Intellinet - Free user manual and instructions

Frequently Asked Questions - 521475 Intellinet

User questions about 521475 Intellinet

USER MANUAL 521475 Intellinet

FCC COMPLIANCE STATEMENT

DISCLAIMER

CONTENTS

1. INTRODUCTION....1

2. HARDWARE INSTALLATION ....14

3. WINDOWS PEER-TO-PEER NETWORK ....15

4. WINDOWS NT/2000/2003 NETWORK....41

5. NETWARE NETWORK ....46

6. UNIX SYSTEM NETWORK ....53

7. CONFIGURATION UTILITY ......63

8. WEB MANAGEMENT......84

8.4 Setup Wizard 94

8.5 System Tools....102

9. IPP PRINTING ....104

10. WINDOWS XP SP2 SETUP ....111

1. Introduction

1.1 Product Introduction

1.2 Product Package

1.3 Network Printing Architecture

1.3.2 Network Printing Functions for Clients

Windows 95/98SE/Me/NT/2000/XP/2003

UNIX / Linux

MAC OS

1.3.3 Network Printing Functions for Network Server

1.4 Network Printing Environment

1.5 Contents of the User's Manual

1.6 Firmware & Printing Function

2. Hardware Installation

3. Windows Peer-to-Peer Network

3.1 System Architecture

3.2 Administrator Installation and Setup

3.3 Administrator Utilities

3.4 Client Installation and Setup

3.5 Client Utilities

3.5.1 Network Ports Quick Setup

3.5.2 Remote Ports (Utility)

3.6 Windows Add Printer Procedure

4. Windows NT/2000/2003 Network

4.1 System Architecture

4.2 Windows NT/2000/2003 Server Installation and Setup

4.3 User Installation and Setup

5. NetWare Network

5.1 System Architecture

5.2 NetWare 3.x/4.x/5.x Installation & Setup

5.2.1 Installation Using PCONSOLE

5.2.1.1 Configuring as Print Server Mode

6. UNIX System Network

6.1 Introduction

6.2 Enable Print Server's TCP/IP Support

6.3 Setup Print Server's IP Address

6.3.1 DHCP

6.3.2 BOOTP

6.4 Verify Print Server's IP Address

6.5 Configure Remote LPD Printing on the Host

7. Configuration Utility

7.1 Introduction

7.2 Search for All Available Print Server

7.3 Status of Print Server

7.4 Setup the Print Server

7.5 General Configuration

7.6 TCP/IP Configuration

7.7 Netware Print Server Configuration

7.8 AppleTalk Configuration

7.9 SNMP Configuration

7.10 SMB Configuration

7.11 System Configuration

7.12 Wizard

7.13 Report

8. Web Management

8.1 Introduction

8.2 Login

8.3 Device Status

8.3.1 System

8.3.2 Printer

8.3.3 TCP/IP

8.3.4 SMB
