LTA5364 - Flat Panel Mount Chief - Free user manual and instructions

Product Type	Flat Panel Mount
Brand	Chief
Model	LTA5364
Max Mounting Pattern (without reversing uprights)	30.6" (777.2 mm)
Max Mounting Pattern (with reversing uprights)	35.2" (894 mm)
Minimum Vertical Lift for Hook Engagement	0.56" (14.2 mm)
Depth when Flat to Wall	1.99" (50.5 mm)
Material	Steel
Finish	Black Powder Coated
Weight Capacity	150 lbs (68 kg)
Screen Size Compatibility	Up to 60 inches
VESA Compatible	Up to 600x400 mm
Tilt Adjustment	Yes
Installation Type	Fixed wall mount
Mounting Hardware Included	Yes
Warranty	10 years
Country of Origin	USA
Product Series	LTAU / LTAXXXX
Customer Support	1-800-582-6480
Manual Availability	PDF download
Cleaning Instructions	Wipe with dry cloth

Frequently Asked Questions - LTA5364 Chief

What is the maximum weight capacity of the Chief LTA5364 mount?

The maximum weight capacity is 150 lbs (68 kg), suitable for most flat panel TVs. Always ensure your wall can support the combined weight.

What VESA patterns does the LTA5364 support?

It supports VESA patterns up to 600x400 mm, covering most TVs from 32" to 65".

What tools are needed for installation?

You'll need a drill, level, screwdriver, and appropriate bits. All necessary mounting hardware is included.

Does the mount allow tilt adjustment?

Yes, the LTA5364 features tilt adjustment to reduce glare and improve viewing angles.

Can I install this mount on drywall?

It is recommended to mount into wood studs or solid concrete. For drywall alone, use appropriate anchors (not included) but ensure load capacity.

How deep is the mount when the TV is flat against the wall?

The mount depth is only 1.99" (50.5 mm), providing a low-profile look.

Is the mount compatible with curved TVs?

Generally yes, as long as the VESA pattern and weight are within specifications. The tilt feature can help accommodate slight curvature.

How do I adjust the tilt after installation?

Use the included hex key to loosen the tilt tension screws, adjust the angle, then retighten.

Can I use this mount with a Chief LTAU universal plate?

Yes, the LTA5364 is part of the LTA series and is designed to work with LTAU universal adapters for non-standard VESA patterns.

What is the warranty for the Chief LTA5364?

Chief offers a 10-year warranty against defects in materials and workmanship.

USER MANUAL LTA5364 Chief

NOTES:

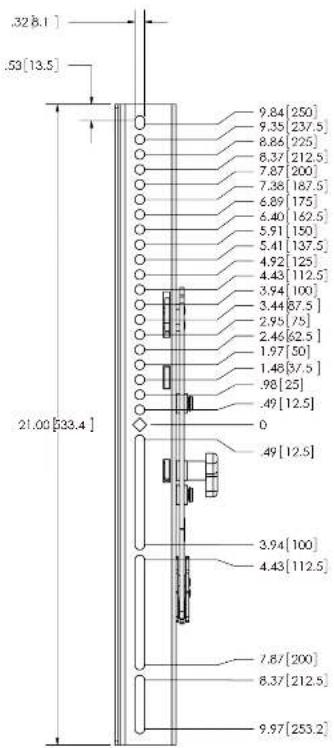

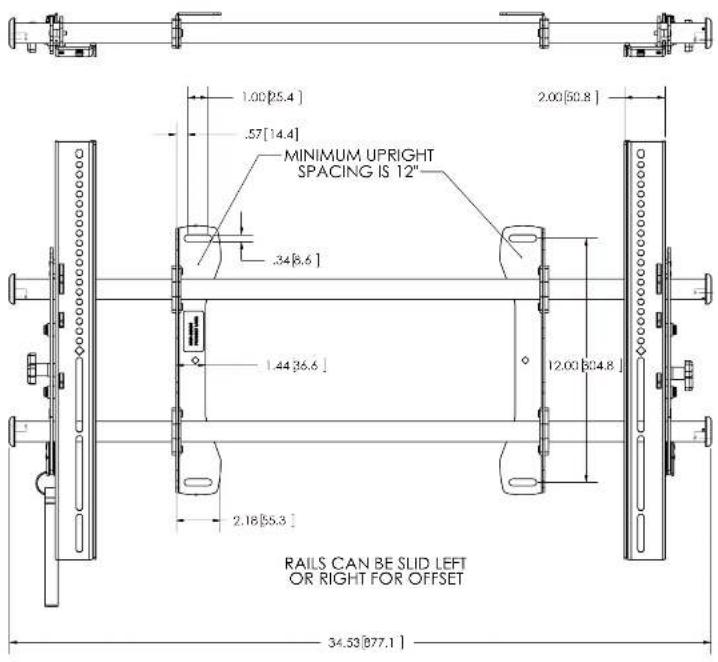

1. MAX MOUNTING PATTERN IS 30.6" (777.2 mm) WITHOUT REVERSING UPRIGHTS.
2. MAX MOUNTING PATTERN IS 35.2" (894 mm) WITH REVERSING UPRIGHTS.
3. FOR RECESSED APPLICATIONS, MINIMUM VERTICAL LIFT FOR HOOK ENGAGEMENT IS .56"[14.2mm].
4. MOUNT IS 1.99"[50.5mm] DEEP WHEN FLAT TO WALL.

CHIEF MANUFACTURING INC. PRODUCT ORDER NUMBER IS: LTAU AND LTAXXXX PHONE: [phone]

THE INFORMATION AND DESIGNS CONTAINED IN THIS DRAWING ARE CONFIDENTIAL AND THE PROPRIETARY PROPERTY OF MILESTONE AV TECHNOLOGIES NEITHER THIS DESIGN NOR ANY INFORMATION CONTAINED IN THIS DRAWING MAY BE REPRODUCED OR DISCLOSED TO OTHERS WITHOUT THE EXPRESS WRITTEN CONSENT OF MILESTONE AV TECHNOLOGIES.

CUSTOMER PRINT LTAU AND LTAXXXX
B LTAU AND LTAXXXX
