Product Type	Overdrive/Distortion Pedal
Model	Blues
Brand	Hotone
Category	Uncategorized
Dimensions	74 x 44 x 50 mm (approx.)
Weight	150 g (approx.)
Power Supply	9V DC, center negative, 2.1mm jack
Current Consumption	20 mA (approx.)
Battery Option	Not supported (DC only)
Controls	Volume, Tone, Gain
True Bypass	Yes
LED Indicator	Yes (power on)
Input Impedance	500 kΩ (approx.)
Output Impedance	10 kΩ (approx.)
Frequency Response	20 Hz - 20 kHz
Signal-to-Noise Ratio	> 90 dB
Chassis Material	Aluminum alloy
Cleaning Instructions	Wipe with a dry, soft cloth
Safety Precautions	Avoid moisture and extreme temperatures
Repairability	Not user-serviceable; contact Hotone support
Compatibility	Electric guitar and bass (standard passive pickups)

Frequently Asked Questions - Blues Hotone

How do I connect the Hotone Blues pedal?

Connect a standard 1/4" instrument cable from your guitar to the input jack, and another cable from the output jack to your amplifier. Ensure the pedal is powered via a 9V DC power supply (center negative).

What power supply does the Blues require?

It requires a 9V DC power supply with center negative polarity and a 2.1mm barrel connector. Current consumption is approximately 20 mA. Battery operation is not supported.

Is the Hotone Blues true bypass?

Yes, the pedal features true bypass switching, ensuring your guitar signal remains unaffected when the pedal is disengaged.

Does the pedal have an LED indicator?

Yes, a red LED lights up when the pedal is engaged, indicating it is active.

Can I use the Blues with a bass guitar?

Yes, it can be used with bass, though it is designed primarily for electric guitar. The tone controls may need adjustment for optimal bass response.

How do I adjust the tone on the Blues?

Use the Tone knob to shape the high-frequency content. Turn clockwise for brighter tone, counterclockwise for darker tone. The Gain knob controls distortion level, and Volume sets output level.

Why is there noise when the pedal is engaged?

Noise can be caused by poor power supply, cable issues, or high gain settings. Try using a quality isolated power supply, check cables, and reduce gain if necessary.

Does the Blues require a battery?

No, the Blues does not have a battery compartment. It must be powered via an external 9V DC power supply.

What is the warranty for Hotone Blues?

Hotone offers a limited warranty covering defects in materials and workmanship. Check with your retailer or Hotone support for specific terms and duration.

What are the dimensions of the Hotone Blues?

Approximately 74 mm x 44 mm x 50 mm (2.9" x 1.7" x 2.0"), making it a compact mini pedal suitable for pedalboards.

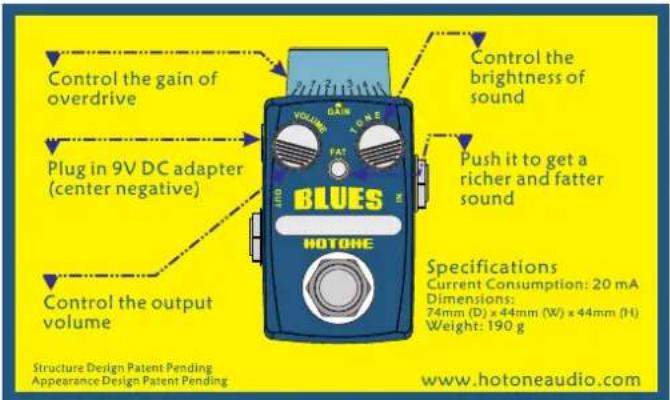

USER MANUAL Blues Hotone

THANK YOU FOR PURCHASING A HOTONE PRODUCT!

BLUES is an overdrive stompbox for both guitarists and bassists. It has full range frequency response to create that classic blues tube-drive tone: clear, transparent, and detailed. With the FAT button, you get a richer tone with more low end. Of course, it sounds great on bass too!
