Product Type	Breakout Box / Wall Socket
Model	BO6S1
Brand	Showtec (by Showgear)
Input Voltage	230 V AC, 50/60 Hz
Maximum Current per Channel	16 A
Number of Outputs	6 x Schuko (Type F)
Input Connector	16-pin HAN16 male
Housing Material	Metal
Color	Black
IP Rating	IP20
Dimensions (L x W x H)	255 x 150 x 102 mm
Weight	1.96 kg
Ambient Temperature Range	0 °C to 35 °C
Protection Class	IEC Class I (grounded)
Intended Use	Professional indoor use (not for households)
Mounting Options	Flat surface or truss (via M10 clamp screws)
Safety Features	Ground (earth) connection; secondary suspension support
Maintenance	Visual inspection before each use; clean with soft, lint-free cloth
Spare Parts / Repairability	No user-serviceable parts; contact dealer for service
Certifications	CE, UKCA

Frequently Asked Questions - BO6S1 Showtec

What is the maximum load I can connect to each Schuko output?

Each Schuko output can handle a maximum current of 16 A at 230 V AC. Ensure the total load does not exceed the rated capacity.

Can I use this breakout box outdoors?

No, the device is IP20 rated and designed for indoor use only. Do not expose it to water or moisture.

How do I connect the BO6S1 to power?

Use the 16-pin HAN16 male input connector (cable not included). Connect it to a suitable power source that matches the input voltage (230 V AC, 50/60 Hz) and ensure proper grounding.

What accessories are available for this product?

Optional power multicables with 16-pin HAN16 connectors are available in lengths of 5 m (FP035), 15 m (FP0315), and 25 m (FP0325). Contact your dealer for purchase.

How should I mount the device to a truss?

Remove the M10 clamp mounting screws, attach a suitable clamp, then secure the device to the truss. Use a secondary suspension (e.g., safety cable) capable of holding 10 times the device weight, attached through the handle.

The device does not power on. What should I check?

First, ensure the power supply is switched on and cables are properly connected. Check that the total load of connected devices does not exceed 16 A per channel and that the input voltage matches 230 V AC, 50/60 Hz.

Is the BO6S1 suitable for home use?

No, this device is intended for professional use in indoor installations (environment B). It is not suitable for households or residential buildings.

How do I clean the device?

Disconnect power and let it cool for 5 minutes. Clean with a soft, lint-free cloth. Do not use alcohol, solvents, or immerse in liquid.

Can I repair the device myself?

No, the device contains no user-serviceable parts. Do not open or modify it. Refer servicing to instructed or skilled persons, or contact your Highlite International dealer.

What safety precautions should I take during installation?

Always disconnect power before installation or maintenance. Ensure the device is properly grounded (IEC Class I). Use a secondary suspension if rigging. Follow all applicable electrical safety regulations.

USER MANUAL BO6S1 Showtec

ENGLISH

BO6S1 Breakoutbox 6 Schuko

V1

Product code: 50287

Preface

Thank you for purchasing this Showgear product.

The purpose of this user manual is to provide instructions for the correct and safe use of this product.

Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.

This user manual contains information concerning:

• Safety instructions
  • Installation and operation of the device
• Intended and non-intended use of the device
• Maintenance procedures
• Troubleshooting
• Transport, storage and disposal of the device

Non-observance of the instructions in this user manual may result in serious injuries and damage of property.

©2022 Showgear. All rights reserved.

No part of this document may be copied, published or otherwise reproduced without the prior written consent of Highlite International.

Design and product specifications are subject to change without prior notice.

For the latest version of this document, please visit our website www.highlite.com or contact us at [e-mail].

Highlite International and its authorized service providers are not liable for any injury, damage, direct or indirect loss, consequential or economic loss or any other loss arising from the use of, or inability to use or reliance on the information contained in this document.

Table of contents

1. Introduction......3

1.1. Before Using the Product ....3
1.2. Intended Use 3
1.3. Product Lifespan....3
1.4. Text Conventions....3
1.5. Symbols and Signal Words....4
1.6. Symbols on the Information Label 4

2. Safety 5

2.1. Warnings and Safety Instructions ....5
2.2. Requirements for the User....7

3. Description of the Device....8

3.1. Front View 8
3.2. Product Specifications 8
3.1. Optional Accessories....9
3.2. Dimensions....9

4. Installation....9

4.1. Safety Instructions for Installation 9
4.2. Installation Site Requirements 9
4.3. Rigging 10

5. Setup and Operation ....11

5.1. Warnings and Precautions ....11
5.2. Safety Instructions for Operation....11
5.3. Connecting to Power Supply....11
5.3.1. HAN16 Connector 12

6. Troubleshooting 12

7. Maintenance ....13

7.1. Safety Instructions for Maintenance....13
7.2. Preventive Maintenance....13
7.2.1. Basic Cleaning Instructions....13
7.3. Corrective Maintenance....14

8. Deinstallation, Transportation and Storage 14

9. Disposal 14

10. Approval....14

1. Introduction

1.1. Before Using the Product

Important Read and follow the instructions in this user manual before installing, operating or servicing this product.

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual.

After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer.

Your shipment includes:

• Showgear 4 BO6S1 Breakoutbox 6 Schuko
- User manual

Fig. 01

1.2. Intended Use

This device is intended for professional use as a breakout box. It is suitable only for indoor installation. This device is not suitable for households and residential buildings.

This device is designed for use in environment B.

Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use.

1.3. Product Lifespan

This device is not designed for permanent operation. Disconnect the device from the electrical power supply when the device is not in operation. This will reduce the wear and will improve the device's lifespan.

1.4. Text Conventions

Throughout the user manual the following text conventions are used:

• Buttons: All buttons are in bold lettering, for example "Press the UP/DOWN buttons"
• References: References to chapters and parts of the device are in bold lettering, for example: "Refer to 2. Safety", "turn the adjustment screw (02)"
  • 0–255: Defines a range of values
  Notes: Note: (in bold lettering) is followed by useful information or tips

1.5. Symbols and Signal Words

Safety notes and warnings are indicated throughout the user manual by safety signs.

Always follow the instructions provided in this user manual.

DANGER	Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING	Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION	Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.
Attention	Indicates important information for the correct operation and use of the product.

Important Read and observe the instructions in this document.

Electrical hazard

Provides important information about the disposal of this product.

1.6. Symbols on the Information Label

This product is provided with an information label. The information label is located on the backside of the device.

The information label contains the following symbols:

This device shall not be treated as household waste.

This device is designed for indoor use.

Caution: Risk of electric shock. Do not open.

Caution: To reduce the risk of electric shock, do not remove cover. No user-serviceable parts inside. Refer servicing to qualified personnel.

2. Safety

Important

Read and follow the instructions in this user manual before installing, operating or servicing this product.

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual.

2.1. Warnings and Safety Instructions

DANGER

Danger for children

For adult use only. The device must be installed beyond the reach of children.

- Do not leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within children's reach. Packaging material is a potential source of danger for children.

DANGER

Electric shock caused by dangerous voltage inside

There are areas within the device where dangerous touch voltage may be present.

- Disconnect the device from electrical power supply before service and maintenance, and when the device is not in use.

DANGER

Electric shock caused by short-circuit

This device falls under IEC protection class I.

• Make sure that the device is electrically connected to ground (earth). Connect the device only to a socket-outlet with ground (earth) connection.
• Do not cover the ground (earth) connection.
• Do not immerse the device in water or other liquids. Do not install the device in a location where flooding may occur.
• Do not use the device during thunderstorms. Disconnect the device from the electrical power supply immediately.

Attention Power supply

• Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device.
• Make sure that the cross-sectional area of the extension cords and power cables is sufficient for the required power consumption of the device.

Attention General safety

• Do not shake the device. Avoid brute force when installing or operating the device.
• If the device is dropped or struck, disconnect the device from the electrical power supply immediately.
• If the device is exposed to extreme temperature variations (e.g. after transportation), do not switch it on immediately. Let the device reach room temperature before switching it on, otherwise it may be damaged by the formed condensation.
• If the device fails to work properly, discontinue the use immediately.

Attention For professional use only This device shall be used only for the purposes it is designed for.

This device is designed to be used as a socket box. Any incorrect use may lead to hazardous situations and result in injuries and material damage.

• This device is not suitable for households and residential buildings.
- This device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage.

Attention Before each use, examine the device visually for any defects.

Make sure that:

• All screws used for installing the device or parts of the device are tightly fastened and are not corroded.
• There are no deformations on housings, fixations and installation points.
• The power cables are not damaged and do not show any material fatigue.

Attention

Do not expose the device to conditions that exceed the rated IP class conditions.

This device is IP20 rated. IP (Ingress Protection) 20 class provides protection against solid objects greater than 12 mm, such as fingers, and no protection against harmful ingress of water.

2.2. Requirements for the User

This product may be used by ordinary persons. Maintenance may be carried by ordinary persons. Installation and service shall be carried out only by instructed or skilled persons. Contact your Highlite dealer for more information.

Instructed persons have been instructed and trained by a skilled person, or are supervised by a skilled person, for specific tasks and work activities associated with the installation, service and maintenance of this product, so that they can identify risks and take precautions to avoid them.

Skilled persons have training or experience, which enables them to recognize risks and to avoid hazards associated with the installation, service and maintenance of this product.

Ordinary persons are all persons other than instructed persons and skilled persons. Ordinary persons include not only users of the product but also any other persons that may have access to the device or who may be in the vicinity of the device.

3. Description of the Device

The Showgear BO6S1 Breakoutbox 6 Schuko is a breakout box. Thanks to the 16-pin HAN16 power connector, the incoming signal connections are kept separately, which makes it easy to find and troubleshoot any faulty device or incorrect signal. The device is equipped with 6 Schuko outputs. The maximum allowed current load is 16 A per channel.

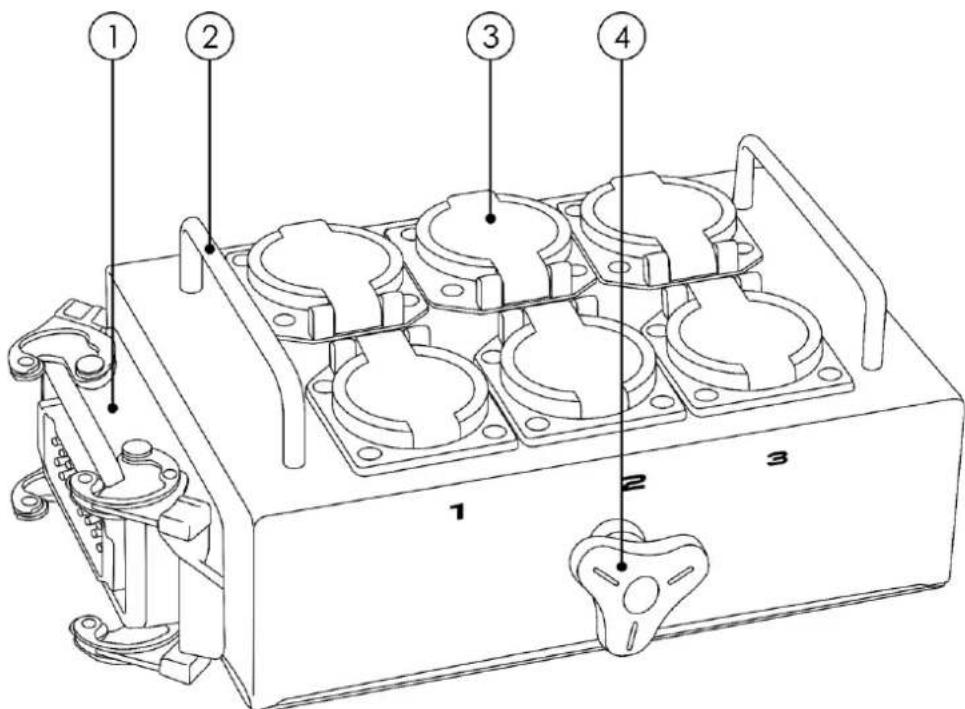

3.1. Front View

Fig. 02

01) 230 V 16-pin HAN16 male power connector IN

03) 6 x Schuko power connectors OUT (CH1-6)

02) 2 x carrying handle

04) 2 x M10 clamp mounting screw

3.2. Product Specifications

Model:	BO6S1 Breakoutbox 6 Schuko
Electrical:
Input voltage:	230 V AC, 50/60 Hz, max. 16 A per channel
Rated current:	16 A
Physical:
Dimensions:	255 x 150 x 102 mm (LxWxH)
Weight:	1,96 kg
Connections:
Power connections:	16-pin HAN16 connector IN
Power connectors OUT:	6 x Schuko connectors OUT
Construction:
Housing:	Metal
Color:	Black
IP rating:	IP20
Thermal:
Ambient temperature ta:	0-35 °C

3.1. Optional Accessories

You can additionally purchase the following accessories:

Product code: FP035 (Power Multicable 16-pin, 16 x 1,5 mm², 5 m)

Product code: FP0315 (Power Multicable 16-pin, 16 x 1,5 mm², 15 m)

Product code: FP0325 (Power Multicable 16-pin, 16 x 1.5 mm ² , 25 m)

3.2. Dimensions

Fig. 03

4. Installation

4.1. Safety Instructions for Installation

WARNING

Incorrect installation can cause serious injuries and damage of property.

Installation must be carried out only by instructed or skilled persons.

Follow all applicable European, national and local safety regulations concerning electrical installations.

Attention

Make sure there is enough space for ventilation around the device.

4.2. Installation Site Requirements

• The device must be installed only indoors.
• The device can be mounted to a truss or other rigging structure in any orientation.
• The maximum ambient temperature t_α = 35°C must never be exceeded.
  • The relative humidity must not exceed 50 % with an ambient temperature of 35 °C.

4.3. Rigging

The device can be positioned on a flat surface or mounted to a truss or other rigging structure in any orientation. Make sure that all loads are within the pre-determined limits of the supporting structure.

CAUTION

Restrict the access under the work area during rigging and/or derigging.

To mount the device, follow the steps below:

01) Turn one or both the M10 clamp mounting screws (04) counterclockwise to remove them.

02) Install the clamp, as shown in Fig. 04. Make sure that the clamp is suitable for attaching the device to a truss.

Fig. 04

03) Attach the device to the supporting structure. Make sure that the device cannot move freely.

04) Secure the device with a secondary suspension, for example a safety cable. Make sure that the secondary suspension can hold 10 times the weight of the device. If possible, the secondary suspension should be attached to a supporting structure independent of the primary suspension. Put the safety cable through the handle, as shown in Fig. 04.

5. Setup and Operation

5.1. Warnings and Precautions

Attention

Connect all cables before supplying power.

Disconnect power supply before connecting or disconnecting cables.

5.2. Safety Instructions for Operation

Attention

This device must be used only for the purposes it is designed for.

This device is intended for professional use as a breakout box. It is suitable only for indoor installation. This device is not suitable for households and residential buildings.

This device is designed for use in environment B.

Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use.

Attention

Power supply

Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device.

To operate the device:

01) Connect the device to the power supply. See 5.3. Connecting to Power Supply on page 11 for more information.
02) Connect external device(s) to the 6 x Schuko power connectors OUT (03).

5.3. Connecting to Power Supply

DANGER

Electric shock caused by short-circuit

The device accepts AC mains power at 230 V and 50/60 Hz. Do not supply power at any other voltage or frequency to the device.

This device falls under IEC protection class I. Make sure that the device is always electrically connected to the ground (earth).

Before connecting the device to the socket-outlet:

• Make sure that the power supply matches the input voltage specified on the information label on the device.
• Make sure that the socket-outlet has ground (earth) connection.

Connect the device to the socket-outlet with the power plug.

5.3.1. HAN16 Connector

The 230 V 16-pin HAN16 male power connector IN (01) has the following pinout:

This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts.

Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage.

Refer servicing to instructed or skilled persons. Contact your Highlite International dealer in case the solution is not described in the table.

Problem	Probable cause(s)	Solution
The device does not function at all	No power to the device	Check if power is switched on and cables are plugged inCheck the total load of the connected devices.

7. Maintenance

7.1. Safety Instructions for Maintenance

DANGER

Electric shock caused by dangerous voltage inside

Disconnect power supply before servicing or cleaning.

7.2. Preventive Maintenance

Attention

Before use, examine the device visually for any defects.

Make sure that:

• All screws used for installing the device or parts of the device are tightly fastened and are not corroded.
• There are no deformations on housings, fixations and installation points.
• The power cables are not damaged and do not show any material fatigue.

7.2.1. Basic Cleaning Instructions

To clean the device, follow the steps below:

01) Disconnect the device from the electrical power supply.
02) Allow the device to cool down for 5 minutes.
03) Clean the device with a soft, lint-free cloth.

Attention

• Do not immerse the device in liquid.
• Do not use alcohol or solvents.

7.3. Corrective Maintenance

The device does not contain user-serviceable parts. Do not open the device and do not modify the device.

Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for more information.

8. Deinstallation, Transportation and Storage

• Disconnect power supply before deinstallation.
• Use the original packaging to transport the device, if possible.
• Clean the device before storing. Follow the cleaning instructions in chapter 7.2.1. Basic Cleaning Instructions on page 13.
• Store the device in the original packaging, if possible.

9. Disposal

Correct disposal of this product

Waste Electrical and Electronic Equipment

This symbol on the product, its packaging or documents indicates that the product shall not be treated as household waste. Dispose of this product by handing it to the respective collection point for recycling of electrical and electronic equipment. This is to avoid environmental damage or personal injury due to uncontrolled waste disposal. For more detailed information about recycling of this product contact the local authorities or the authorized dealer.

10. Approval

CE

UKCA

Check the respective product page on the website of Highlite International (www.highlite.com) for an available declaration of conformity.

SHOW

GEAR
