| Brand | Lifan |
| Model | ST2CCWP-LT |
| Product Type | Water Pump |
| Power Source | Electric (230V AC, 50Hz) |
| Power Consumption | 750 W |
| Max Flow Rate | 60 L/min |
| Max Head | 35 m |
| Suction Port Size | 1 inch (25 mm) |
| Discharge Port Size | 1 inch (25 mm) |
| Housing Material | Cast Iron |
| Impeller Material | Brass |
| Dimensions (L x W x H) | 30 x 20 x 25 cm |
| Weight | 12 kg |
| Max Liquid Temperature | 35 °C |
| Protection Rating | IP44 |
| Suction Lift | 8 m |
| Priming | Self-priming up to 2 m |
| Safety Features | Thermal overload protection, IP44 splash-proof |
| Maintenance | Regular cleaning of filter, check seals |
| Spare Parts Available | Yes, seals, impeller, capacitors |
| Reparability | User serviceable with basic tools |
| Manual Languages | English, French, German, Spanish |
Frequently Asked Questions - ST2CCWP-LT Lifan
How do I prime the Lifan ST2CCWP-LT pump?

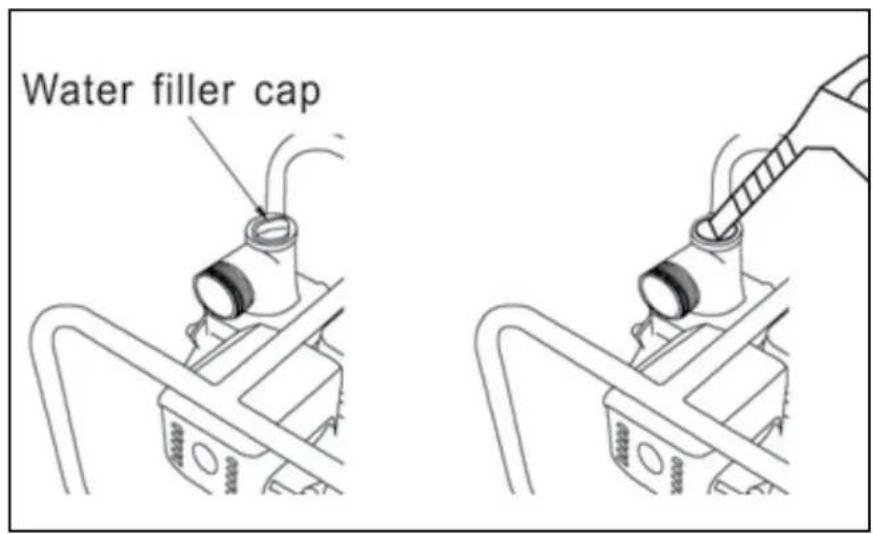

Fill the pump casing with water through the priming plug before starting. Ensure the suction pipe is full of water and free of air locks.
What is the maximum suction height for this pump?
The maximum suction lift is 8 meters. For best performance, keep suction pipe as short and straight as possible.
Can the pump run dry?
No, running dry will damage the seals and impeller. Always ensure the pump is primed and water is present before operation.
How do I clean the pump filter?
Turn off power and remove the suction hose. Clean the filter screen with a soft brush and water. Reinstall securely.
What type of liquid can this pump handle?
It is designed for clean or slightly dirty water. Do not use for flammable, corrosive, or abrasive liquids.
Why is my pump not starting?
Check power supply, thermal overload, and capacitor. Also verify that the pump is primed and impeller is not jammed.
How often should I replace the seals?
Inspect seals annually. Replace if leaking or after 2000 hours of operation.
Can I install the pump outdoors?
Yes, with IP44 rating it is splash-proof. However, protect from direct rain and freezing temperatures.
What is the noise level of this pump?
Typical noise level is around 70 dB at 1 meter. Install on a vibration-damping base to reduce noise.
Where can I find spare parts for the ST2CCWP-LT?
Spare parts are available from authorized Lifan dealers or online marketplaces. Common parts include seals, impellers, and capacitors.
