5152 - Splitter TELEVES - Free user manual and instructions

Product Type	RF Splitter
Brand	Televes
Model	5152
Number of Outputs	4
Frequency Range	5 - 2400 MHz
Insertion Loss (MATV BK)	7.5 dB
Insertion Loss (IF SAT)	10 dB
Rejection Between Outputs	>20 dB
Max. DC Pass Current	1 A
Connector Type	F-type
Impedance	75 Ω
Power Supply	Passive (no external power required)
Dimensions (approx.)	85 x 60 x 25 mm
Weight (approx.)	100 g
Operating Temperature	-20°C to +60°C
Color	Silver / Metal
Compliance	CE, Low Voltage Directive 2006/95/EC, EMC Directive 2004/108/EC
Application	Indoor distribution of TV/SAT signals
Maintenance	Keep connectors clean; no user-serviceable parts
Safety	Do not expose to moisture; ensure proper grounding

Frequently Asked Questions - 5152 TELEVES

What type of splitter is the Televes 5152?

The Televes 5152 is a 4-way passive splitter designed for MATV and IF SAT signals.

What frequency range does it support?

It supports a frequency range of 5 to 2400 MHz, covering terrestrial TV and satellite IF bands.

Can I use this splitter to combine signals?

No, it is a splitter only and should not be used as a combiner; doing so may degrade performance.

Does the Televes 5152 require a power supply?

No, it is a passive device and does not require external power.

What is the insertion loss on each output?

Insertion loss is 7.5 dB for MATV and 10 dB for IF SAT signals.

How many devices can I connect using this splitter?

You can connect up to 4 devices (one per output).

Can I use it for satellite signals?

Yes, it supports IF SAT frequencies up to 2400 MHz, suitable for satellite LNB signals.

What is the maximum DC pass current?

The splitter can pass up to 1 A DC current for powering active components like LNBs.

Is the Televes 5152 shielded?

Yes, it has a metal housing with good shielding to minimize interference.

How do I install the splitter?

Connect the input to your antenna or distribution amplifier, then connect each output to your devices using F-type cables. Ensure all connections are tight.

USER MANUAL 5152 TELEVES

Ref. 5150, 5151, 5152, 5153

Art. Nr. SAV25FN, SAV39FN, SAV49FN, SAV512FN

GAMA DE PRODUCTOS / GAMA DE PRODUTOS / GAMME DE PRODUITS PRODUCT RANGE / PRODUKTPALETTE

Ref Art.Nr.		Descripción / Description Tipo / Type

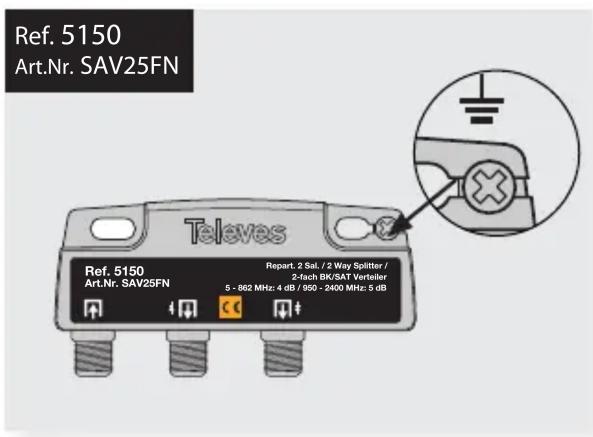

5150 SAV25FN 2W Splitter F (4/5 dB) 2 Outs
5151 SAV39FN 3W Splitter F (4/5 dB) 3 Outs
5152 SAV52FN 4W Splitter F (4/5 dB) 4 Outs
5153 SAV53FN 5W Splitter F (4/5 dB) 5 Outs

Especif. técnicas	Especif. técnicas	Caract. techniq.	Technical specif.	Tech. Daten			5150 SAV25FN	5151 SAV39FN	5152 SAV49FN	5153 SAV512FN
Margen freq.	Margem freq.	Marge fréq.	Freq. range	Frequenz-bereich		MHz	5 - 2400
Salidas Saídas Sorties Outputs				Ausgänge			2 3 4 5
Pérdidas inserción	Perdas inserção	Pertes dériva-tion	Tap loss	Verteil-dämpfung	MATV BK	dB	4 7 7,5 10
					IF SAT		5 8 10 12
Rech. entre salidas	Rejeiç. entre saídas	Réjéct sorties	Rejection between outputs	Ent-kopplung	MATV BK		>20
					IF SAT		>20
Corrien-te máx.	Corrente max.	Courant max.	Max. current	Max. DC-Pass		A	1

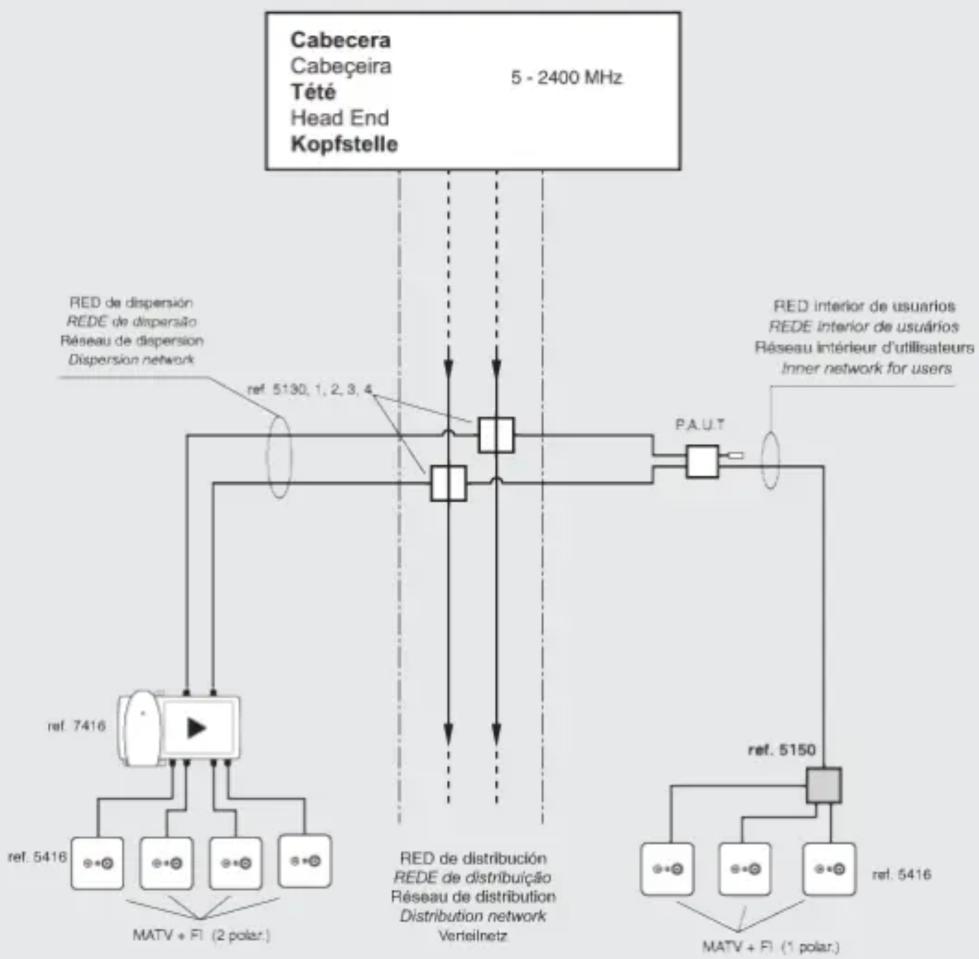

AplicaciónAplicaçãoApplicationApplicationAnwendungsbeispiel

Televes

DECLARATION OF CONFORMITY N° 110907123954

- Low Voltage Directive 2006/95/EC.

- EMC Directive 2004 / 108 / EC.

Following standards/ Con las normas / Con as normas / Selon les normes / Con le norme / Folgende Anforderung / Anóloxöta pyútezta / Foljende standard / Seuroavien standarden / Zantosowanie natgepujagcech norm / Pagal standardus / Csehyponax cnaudupnon / Respecta annatorele standarde / A Következő szárványoknak / Folgende standarder / Folgende standarder / Folgende richtalijnen en normen / Hačymponax cnaudupnon / Järgwistele standarditele:

EN 60728-11:2005, EN 50083-2:2006

CE
