GT100 - Gps BLAUPUNKT - Free user manual and instructions

Brand	Blaupunkt
Model	GT100
Category	GPS Tracker
Operating Voltage	DC 9V-36V
Current Consumption	10 mA
Navigation System	GPS
Location Accuracy	Up to 10 meters
GSM Frequency	850/900/1800/1900 MHz
Internet Protocol	TCP
Working Temperature	-25°C to +75°C
Storage Temperature	-40°C to +85°C
Standby Battery Life	0.5 hours
Dimensions (LxWxH)	78.5 x 23 x 12 mm
SIM Card Slot	Yes
Indicator Lights	GSM (red) and GPS (yellow)
Functions	Vehicle status detection, alarm notifications, geo-fencing, speed alerts, remote fuel cut-off
Installation	Inside dashboard or car trunk
Wiring Requirements	12V/24V vehicle system; optional remote fuel cut-off wiring
Mobile Application	Tracking, playback, dynamic view, fence setting, mileage & velocity analysis
Safety Notes	Keep away from children and flammable areas; store in dry place

Frequently Asked Questions - GT100 BLAUPUNKT

How do I install the Blaupunkt GT100 GPS tracker?

Install the device inside the dashboard or car trunk using the provided 3M tape. Ensure the SIM card is inserted correctly and the wiring is connected to a 12V/24V power source. For remote fuel cut-off, follow the wiring diagram in the manual.

What SIM card does the GT100 require?

The device requires a standard SIM card with SMS and data (GPRS/Internet) capabilities. Ensure it is activated and has sufficient credit for sending SMS commands.

Why is the GPS signal weak or not detected?

Weak GPS signal can be due to improper placement (e.g., under metal). Ensure the device is positioned with a clear view of the sky, ideally on the dashboard or top of the trunk, and not shielded by metal objects.

How do I interpret the indicator lights?

GSM LED (red): Fast flash = initializing; slow flash = normal GSM signal; long bright = GPRS online; off = no signal. GPS LED (yellow): Fast flash = searching for signal; long bright = normal GPS; off = no signal or device not working.

Can I set up geo-fences?

Yes, through the mobile application (Tracking section > Fence). You can define areas and receive alerts when the vehicle enters or leaves the fence.

What happens if the external power is disconnected?

When vehicle voltage drops below 5V, the device uses its backup battery for up to 0.5 hours. If the backup battery depletes, tracking stops until power is restored.

How do I perform a remote fuel cut-off?

The remote fuel cut-off function requires additional wiring: connect the yellow wire to the fuel pump relay, following the diagram in the manual. This allows you to stop the vehicle via SMS command.

What is the maximum speed alert threshold?

The default speed alert is triggered when exceeding 120 km/h for 10 seconds. You can change this threshold via the mobile app settings.

How do I troubleshoot if the device is not responding to SMS commands?

First, check if the SIM card has credit and internet access. Ensure the SIM is properly inserted and the SMS command is correct. If the issue persists, restart the device or contact Blaupunkt support.

Is the Blaupunkt GT100 suitable for use in the USA or Canada?

No, this product is not intended for sale in the United States or Canada. It is designed for use with local telecommunication networks elsewhere; test network compatibility before purchase.

USER MANUAL GT100 BLAUPUNKT

Black handheld electronic device with a cable, no visible text or symbols

Enjoy it.

Safety Notes

This device has been manufactured according to established safety guidelines. However, dangers may still occur if the safety notes in this manual is not observed. This manual is intended to familiarize the user with the device's important functions. Read this carefully, prior to using the device. Keep this manual in an easily accessible location. In addition, do observe the instructions of the devices used in conjunction with this device.

Attentions

- This device is intended for installation and operation in a vehicle with 12V and 24V vehicle system voltage.

- Keep the device away from children.

- Keep the device away from flammable areas or liquids.

- The device should be stored in dry and low humidity place.

- Ensure the car battery is fully charged.

- Weak signal or signal interference of device can arise from obstacle locations such as underground parking.

- For abnormalities, please refer to the "Troubleshooting" section. Consult with Blaupunkt dealer for further assistance, in case if the problem cannot be resolved.

This manual may be updated from time to time without any notice. Visit www.blaupunkt.com/ase for latest info.

Disclaimer

In no event shall Blaupunkt be liable for any direct, indirect, punitive, incidental, special consequential damages to property or life and whatsoever arising out of or connected with the use or misuse of our products.

USA & CANADA: This product is not intended for sale in the United States and Canada. If purchased in the U.S. or Canada, this product is purchased on as-is basis. No warranty, whether expressed or implied is provided in the U.S. or Canada.

Blaupunkt does not warrant the performance of the local telecommunication network used with our product. It is recommended to test for network compatibility prior to purchase.

Diagram of a USB cable connector with labeled pin (no text or symbols beyond basic labels)

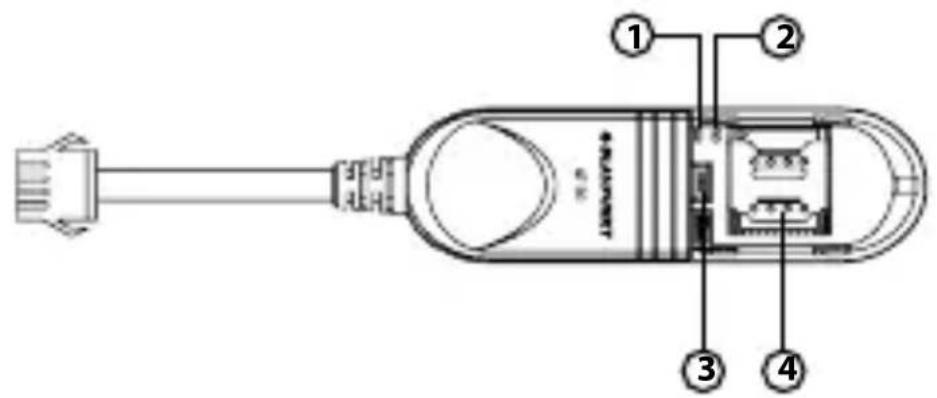

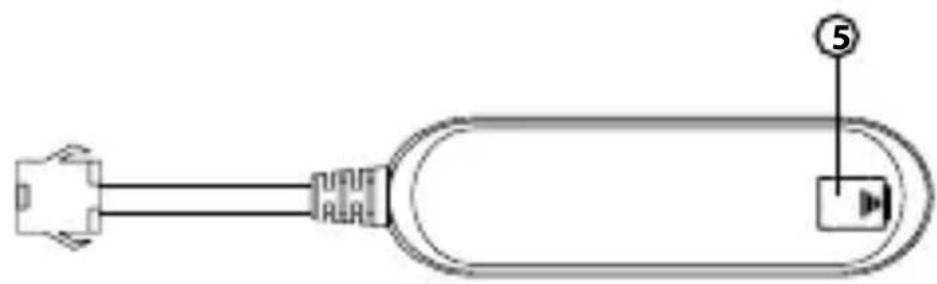

Functions

1. Indicator light of GSM
2. Indicator light of GPS
3. Switch (On/Off)
4. SIM card slot
5. Light sensor

SPECIFICATIONS

• Operating Voltage : DC 9V-36V
- Current: 10 ~mA
• Navigation System : GPS
- Location Accuracy: Up to 10 meters
• GSM Frequency : 850/900/1800/1900MHz
- Internet Protocol : TCP
• Working Temperature: -25^ +75^
• Storage Temperature : -40°C \~ +85°C
• Standby Battery : 0.5 Hours
• Dimension (LxWxH) : 78.5x23x12mm

FUNCTION LIST OF THE DEVICE

Functions	Details	Descriptions
Vehicle Status Detection	Acc On/ Off	Uploaded data include the Acc On/Off status each time in dynamic view.
Alarm Notification	External Power Disconnection	When the vehicle voltage is <5V,vehicle battery consumption is stopped. When the backup battery of device is depleted, the tracking function will be disconnected.
	Low External Battery	Vehicle battery voltage is between 5V to 10V. It is an indicate that the vehicle battery is low.
	External Power Supply	Power is supplied to the device.
	External Power Disconnection	Power supply has been disconnected from the device.
	Enter Fence	The vehicle enters the defined area set by user.
	Leave Fence	The vehicle leaves the defined area set by user.
	Speeding Start	Vehicle speed exceeds value set.Default is 120km/hr for 10 seconds.
	Speeding End	Vehicle speed is below value set after speeding is detected.

TROUBLESHOOTING

If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt authorized dealer if problem persist.

Problems	Possible Causes	Solutions
Weak or no GPS signal	GPS tracking device is not positioned properly.	Check the installation location of the device.
		Ensure it is not being shielded by metal.
The device is not responding to SMS commands	SIM card has run out of credit.	Top up the SIM card.
	Improper installation of SIM card.	Check whether the SIM card has been slotted correctly.
		Check that the SMS command is correct.

1. Remove device cover and insert the SIM card into the SIM card slot and close back the device.

(Ensure the SIM card has Internet access)

1. Tear off the 3M tape on the back of device and paste it inside the dashboard or car trunk.

Inside Dashboard Car Trunk

Indicator of GSM and GPS

System	Indicator Light	Status	Meaning
GSM	Red	Fast Flash	GSM initialising
		Slow Flash	Normal GSM signal
		Long Bright	GPRS online
		No Light	No GSM signal/ No SIM card
GPS	Yellow	Fast Flash	Searching for GPS Signal
		Long Bright	Normal GPS signal
		No Light	No GPS signal/ GPS not working

SOFTWARE OPERATION

Mobile Application

Home Page

1.0 Click on the menu button
2.0 Click to enter tracking interface.

1.0 Menu

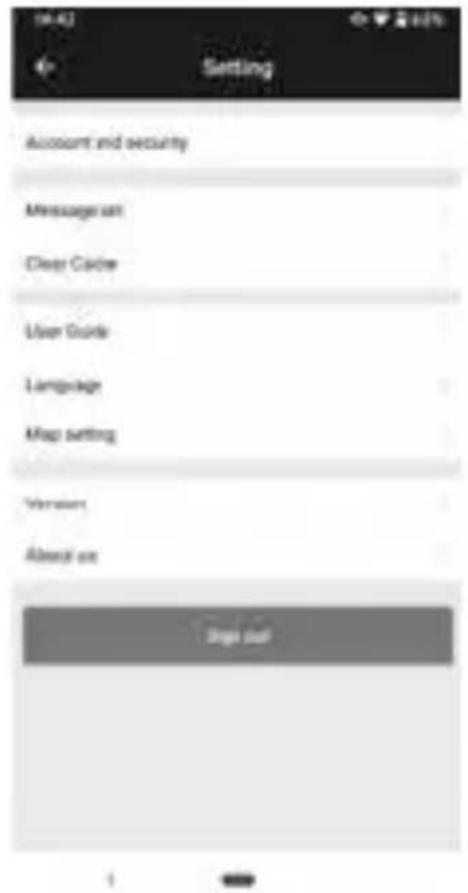

1.1 Setting

2.0 Tracking

- Click to enter tracking details interface.

2.1 Tracking Details 2.1.1 Playback

2.1.2 Dynamic

2.1.3 Fence

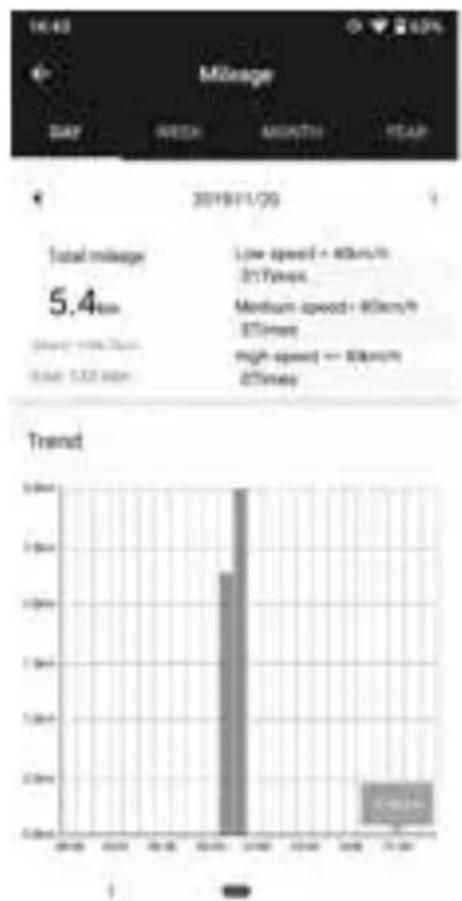

2.1.4 Mileage Analysis & Report

2.1.5 Velocity Analysis & Report

Designed and engineered by Blaupunkt Competence Centre

1 351 19 001 18 01
