Type of Product	AM/FM Tabletop Radio
Brand	Crosley
Model	CR31D
Dimensions (W x H x D)	12.2 x 7.5 x 6.1 inches
Weight	3.2 lbs
Power Supply	AC 120V 60Hz or 4 x C batteries (not included)
Power Consumption	10W (max)
Radio Bands	AM (520-1710 kHz), FM (88-108 MHz)
Speaker	Full-range 3-inch driver
Output Power	2W RMS
Headphone Jack	3.5mm stereo
Tuning	Analog knob with LED indicator
Controls	Volume, tuning, on/off, band selector
Bluetooth	Built-in Bluetooth 5.0 for wireless streaming
Material	Wood-like cabinet with fabric grille
Care and Cleaning	Wipe with a soft, dry cloth; do not use liquids or cleaners
Safety Warnings	Keep away from water, heat sources, and direct sunlight; unplug during storms
Spare Parts	Contact Crosley customer service for replacement parts
Repairability	Refer to qualified service personnel; no user-serviceable parts inside
General Information	Vintage design with modern features; includes instruction manual

Frequently Asked Questions - CR31D Crosley

How do I set the time on the Crosley CR31D?

The CR31D is a radio only and does not have a clock. It is designed for AM/FM listening without time display.

How do I connect Bluetooth?

Turn on the radio, press the Bluetooth button to enter pairing mode. On your device, select 'Crosley CR31D' from the Bluetooth list. Once connected, you can stream audio wirelessly.

Why is there no sound?

Check that the volume is turned up. Ensure the radio is on and tuned to a station with signal. If using Bluetooth, make sure your device is connected and playing. Also, check if headphones are plugged in (they mute the speaker).

Can I use batteries?

Yes, the radio can be powered by 4 C batteries (not included) for portable use. It also works with the included AC adaptor.

How do I improve FM reception?

Extend the built-in telescopic antenna fully for better FM reception. For AM, rotate the radio for best signal. Avoid placing near metal objects or electronic interference.

What is the warranty?

Crosley offers a limited one-year warranty covering manufacturing defects. Retain your proof of purchase for warranty claims.

Can I use this radio outdoors?

The CR31D is designed for indoor use only. Keep it away from moisture, rain, and extreme temperatures.

How do I clean the radio?

Unplug the radio. Wipe the cabinet and grille with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners.

Does it have an alarm?

No, the CR31D is a simple AM/FM radio without alarm or sleep timer functions.

What should I do if the radio does not power on?

First, check the AC adaptor connection or battery installation. Try a different outlet. If using batteries, ensure they are fresh and oriented correctly. If it still does not work, contact Crosley support.

USER MANUAL CR31D Crosley

Questions, problems, missing parts?

Before returning to the store, call Customer Service

8 a.m. – 6 p.m., EST, Monday – Friday

1-888-CROSLEY

www.crosleyradio.com

Safety Instructions

Read and understand this entire manual before using this product. Keep these instructions for future reference.

1. Do not use this product near water.
2. This product should be operated only by the type of power source indicated on the marking label or in this instruction manual.
3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician.
4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
9. Do not use attachments not recommended by the product manufacturer as they may cause hazards.
10. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings.
12. Unplug the product during lightning storm or when unused for long periods of time.

Items in this package

Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package:

- Radio

Please contact Crosley customer service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes.

Specifications

Frequency Range AM 520 - 1710 KHz

FM 87.5 - 108.5 MHz

Power consumption 10W

Power Source AC 120V \~ 60 Hz

Speaker 3" 8Ω 5Wx1

Note:

- Design and specifications are subject to change without notice.

- To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, you will need to turn off the power and turn it on again.

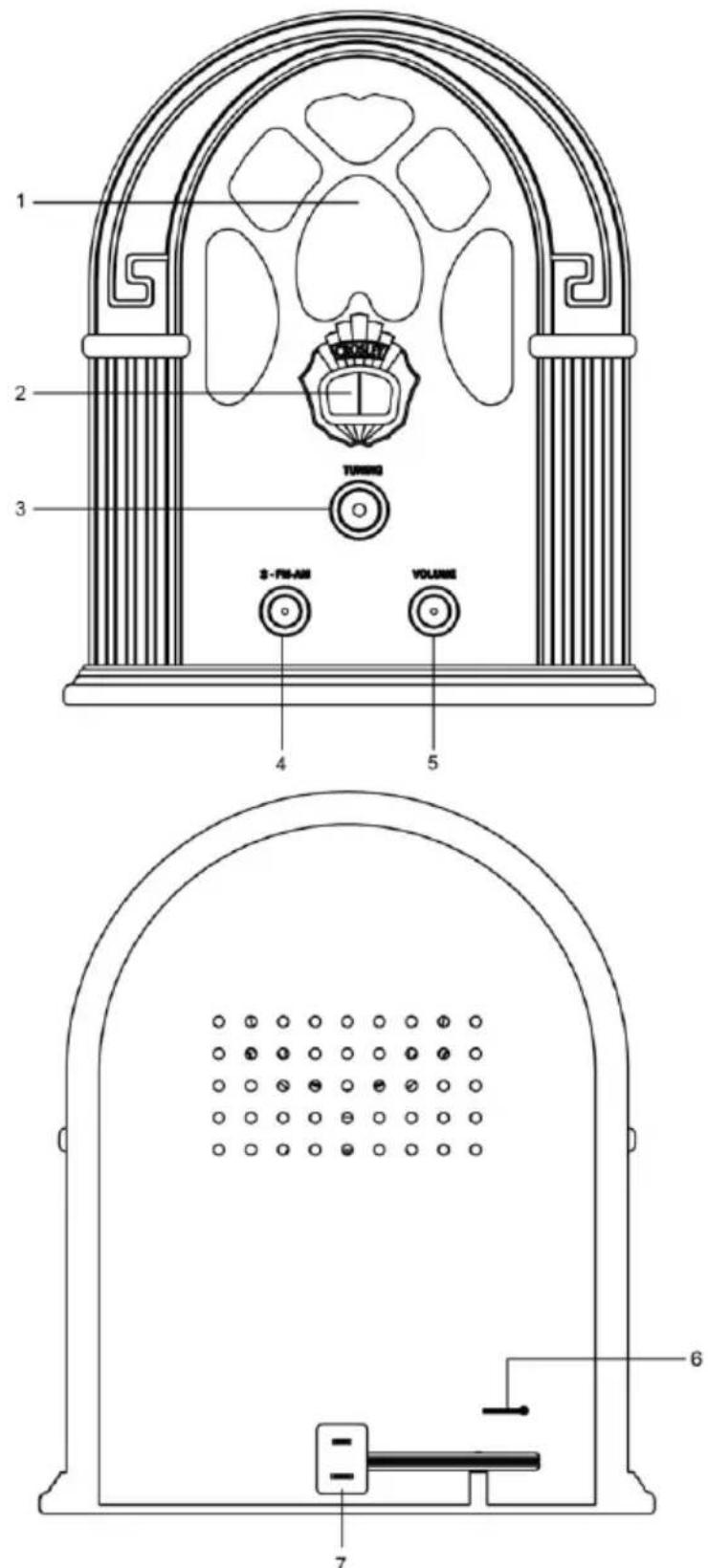

Product Description

1. Speaker
2. Tuner Dial
3. Tuning Knob

4. Function Knob

5. On-Off Switch/Volume Control

6. FM Antenna
7. A/C Power Cord

Initial Setup

Essential Setup

1. Place the unit on a flat and level surface. The selected location should be stable and free from vibration.
2. Unwind the A/C Power Cord at the back of the unit and connect it to a power outlet.
3. Plug A/C cord into appropriate outlet.
4. Untie the FM Antenna and allow it to hang in a straight line.

Radio Operation

1. Turn the unit ON by turning the On-Off Switch/Volume Control clockwise to the ON position.
2. Select the desired waveband by turning the Function Knob to either the AM or FM position.
3. Turn the Tuning Knob to select the desired station on the Tuner Dial.
4. Adjust the volume to the desired listening level by turning the On-Off Switch/Volume.
5. Turn the unit off by turning the On-Off Switch/Volume counterclockwise to the off position.

Note:

• The unit is equipped with a FM wire antenna. To FM improve reception, move the wire around until the reception is clear without interferences. Do not connect the wire to any additional antenna.
• The AM antenna is built inside the unit. If AM reception is poor, try to rotate the unit for better reception.

Bluetooth Operation

1. Turn the unit ON by turning the On-Off Switch/Volume Control clockwise to the ON position.
2. Turn Function Knob to the Bluetooth mode, the Tuner Dial will light will change to blue.
3. Turn on the Bluetooth feature of your audio device, search for "Crosley CR31" and pair.
4. Play and stream music from your device to the unit.

Note:

- Bluetooth version - 4.2

Troubleshooting

There is no power

• Power adaptor is not connected correctly.
• No power at the power outlet.

There is no sound

• Function Knob is in the Bluetooth position
- Make sure the volume is turned up.

FCC Statements

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
