Product Type	Roller blind
Brand	Hard Head
Model	001-723
Operation	Manual, ball chain mechanism
Width Adjustment	Yes, reducible (see Fig. 1)
Mounting Type	Wall or ceiling mount (top rail)
Recommended Installation Height	Top rail and safety device at least 1.5 m above floor
Safety Features	Line tensioner (I) and ball chain safety device (H)
Child Safety	Keep lines out of reach; move furniture away from lines; do not tie or loop lines
Installation Requirements	Must be installed by persons with requisite experience; safety device must be screwed to stable surface (no glue)
Cleaning	Vacuum cleaner or cloth

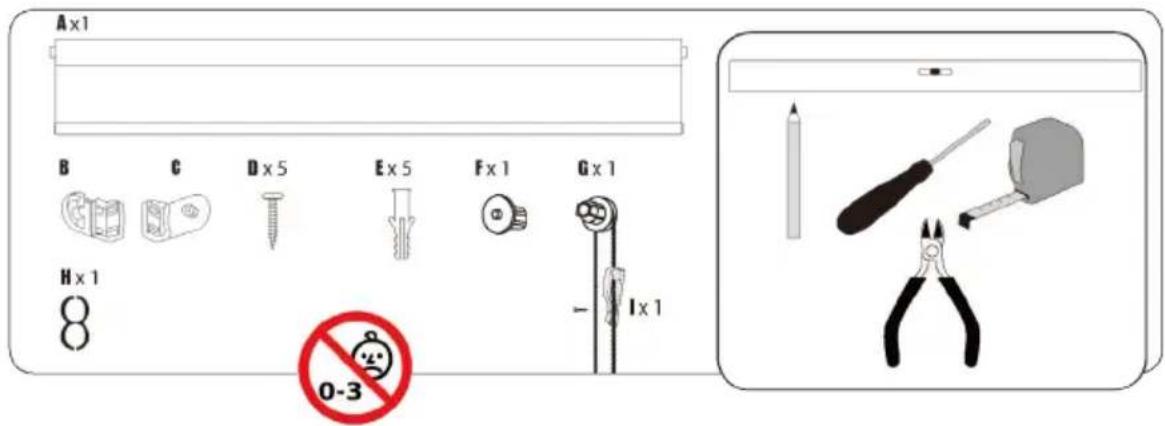

Included Parts	Top rail, blind fabric, ball chain, line tensioner, ball chain safety device
Material	Fabric, plastic, metal components
Chain Type	Ball chain
Safety Device Reset	Reassemble parts after tripping before reuse
Maintenance	Clean as needed; inspect safety devices regularly
Manufacturer	Jula AB, Box 363, 532 24 SKARA
Distributor	Jula Poland Sp. z o.o.
Certification/Standards	Complies with safety regulations for blinds (CE, etc.)

Frequently Asked Questions - 001-723 Hard Head

How do I install the roller blind?

Mount the top rail at least 1.5 m above the floor. Install the line tensioner (I) and ball chain safety device (H) according to the instructions. Use screws suitable for the wall material. Ensure all lines are positioned as shown in the diagrams.

What safety features are included?

The blind comes with a line tensioner (I) and a ball chain safety device (H) to prevent dangerous loops and keep chains out of children's reach.

How do I clean the roller blind?

Use a vacuum cleaner with a soft brush or a damp cloth to clean the fabric. Do not use harsh chemicals or immerse in water.

Can I reduce the width of the blind?

Yes, the width can be reduced. Refer to Fig. 1 in the manual for instructions on how to cut the rail and fabric to the desired size.

Why is the safety device important?

Small children can be strangled by loops in lines or chains. The safety devices keep the chains taut and out of reach, preventing accidents. Always install them correctly.

At what height should the blind be installed?

The top rail and the safety device (line tensioner) must be mounted at least 1.5 m above the floor to keep them out of children's reach.

Can I glue the safety device to the wall?

No. The safety device must be screwed into a stable surface. Glue or press fit is not secure enough.

What should I do if the ball chain safety device trips?

If the safety device activates, it has eliminated a dangerous loop. Before using the blind again, reassemble the parts of the safety device as per the instructions.

Is this blind suitable for all window sizes?

The blind can be adjusted in width, but you should measure your window and follow the instructions carefully. For very large windows, multiple blinds may be needed.

Where can I get support or replacement parts?

Contact Jula’s service department via their website (www.jula.com). Keep your model number (001-723) and purchase details ready.

USER MANUAL 001-723 Hard Head

Operating instructions (Translation of the original instructions) Important! Read the user instructions carefully before use. Save them for future reference.

Jula reserves the right to make changes. In the event of problems, please contact our service department. www.jula.com

Tillverkare/ Produsent/ Producenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Distributör/ Distributør/ Dystrybutor/ Distributor

Jula Poland Sp. z o.o., ul.

2

2

3

SÄKERHETSANVISNINGAR

WARNING

ADVARSEL

OSTRZEŻENIE

WARNING

• Small children have been choked in loops formed on lines, chains, straps and handling lines.
• Keep lines out of the reach of children to avoid accidents as a result of choking or getting trapped. Lines can fasten round the necks of children.
• Move beds and other furniture away from lines to sunshades and other curtains.
• Do not tie lines together. Make sure that lines do not twist together, or form loops.
• The safety device, the line tensioner (I), must be placed sufficiently high up to be out of the reach of children, but still accessible for adults.

- The safety device, the line tensioner, must be fastened on a stable surface with screws that suit the wall or surface material. It must not be glued or pressed in place.

- The top rail must be placed at least 1.5 m above the floor.

- The safety device, the line tensioner, must be mounted at least 1.5 m above the floor.

- Children can be choked if the safety device, line tensioner, is not installed and adjusted. This device must always be used to keep lines and chains out of the reach of children.

- Children can be choked if this safety device is not installed and adjusted. Read the instructions carefully and install accordingly.

- The installation must be carried out by persons with the requisite experience.

- The safety device for the ball chain (H) eliminates the dangerous loop and must be installed according to the instructions. If the safety

device for the ball chain has tripped the parts must be put together again before using it again.

• Make sure the lines are positioned as shown in the installation instructions.

INSTALLATION

REDUCING THE WIDTH

FIG. 1

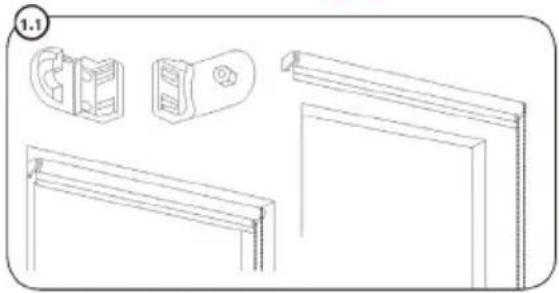

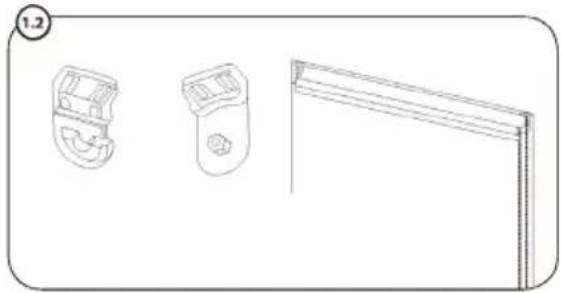

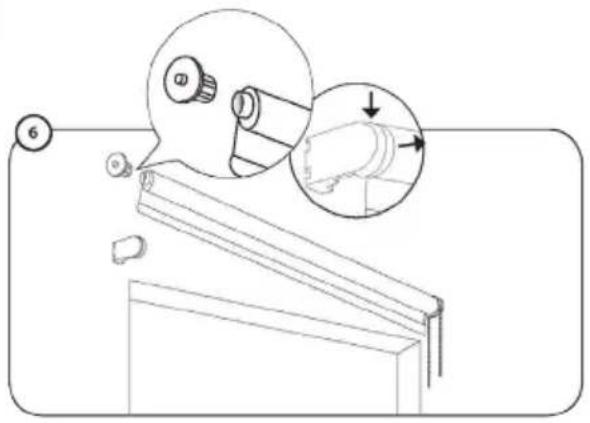

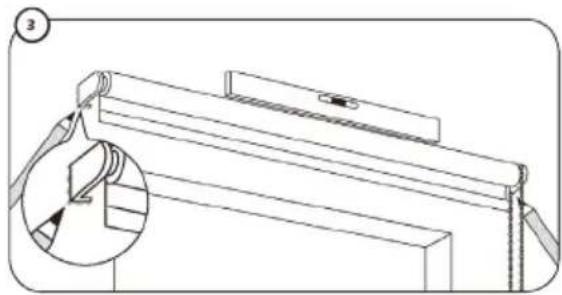

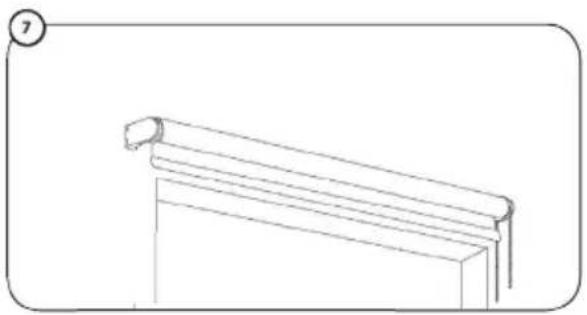

INSTALLATION

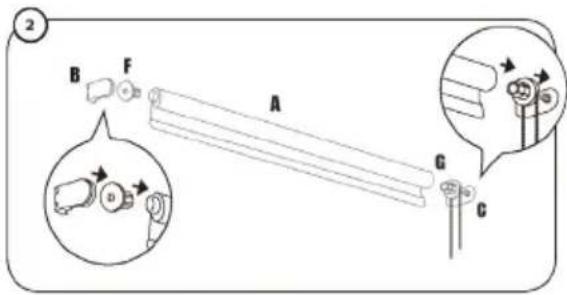

FIG. 2

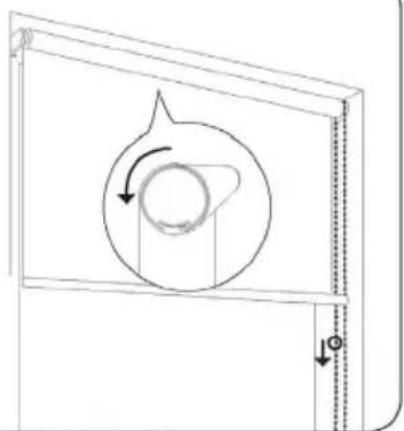

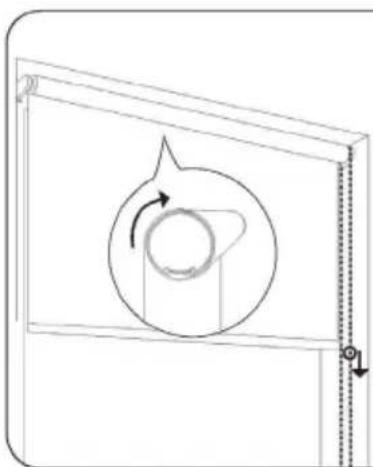

USE

FIG. 3

MAINTENANCE

Clean with a vacuum cleaner or cloth.
