Product Type	Built-in Microwave with Grill
Brand	Siemens
Model	HF26546
Power Supply	230 V, 50 Hz
Total Connected Load	2.620 kW
Microwave Power	1000 W (max)
Grill Power	1300 W
Frequency	2.450 MHz
Appliance Dimensions (H x W x D)	31 x 51 x 39 cm
Cooking Compartment Dimensions (H x W x D)	21.5 x 36 x 35 cm
Cooking Compartment Capacity	Approx. 27 L
Weight	13 kg
Control Type	Push-in rotary knobs
Microwave Settings	5 power levels: 90 W, 180 W, 360 W, 600 W, 1000 W
Grill Settings	3 levels (low, medium, high)
Cooking Functions	Microwave only, Grill only, Combination (Microwave + Grill), Automatic programs (10), Memory (2 slots)
Accessories Included	Turntable, Universal pan, Wire grill
Safety Features	Child supervision required, door interlock, overheat protection
Cleaning	Wipe with damp cloth; avoid abrasives
Installation	Built-in only; requires 16 A circuit
Certifications	CE, VDE, EN55011 (Group 2, Class B)

Frequently Asked Questions - HF26546 SIEMENS

How do I set the clock on my Siemens HF26546 microwave?

Press the clock button, then use the rotary knob to set the time. Press the clock button again to confirm. To hide the clock, press the clock button then the Stop button.

What microwave power settings are available?

The microwave has five power levels: 90W for delicate defrosting, 180W for defrosting, 360W for cooking meat and delicate foods, 600W for general heating and cooking, and 1000W for liquids.

Can I use metal containers in the microwave?

No, metal containers block microwaves and can cause sparks. Avoid metal items. However, small pieces of aluminium foil can be used to cover delicate parts during defrosting, but must not touch the oven walls.

How do I use the automatic programs?

Press the P button, select the program number with the knob, press the Weight button, set the weight with the knob, then press Start. The oven will adjust time and power automatically.

How do I clean the microwave interior?

Wipe with a damp cloth after it has cooled. For stubborn dirt, use a mild cleaning agent. Avoid harsh cleaners or scouring pads. To remove odors, heat a cup of water with lemon juice for 1-2 minutes.

Why is my microwave not heating?

Check that the door is closed properly, the plug is connected, and the Start button was pressed. If the display shows a time, the knob may have been accidentally turned; press Stop.

Can I grill without the microwave?

Yes, you can use the grill function alone. Press the Grill button, select the grill level (1-3), set the time, and press Start. Always use the wire grill on the turntable with the universal pan to catch drips.

How do I use the memory function?

Press the M button once for M1 or twice for M2, select a microwave setting and time, then press M again to save. To use, press M once/twice then Start.

What should I do if the turntable makes noise?

Clean the roller ring and the recess in the cooking compartment. Dirt may have accumulated. Ensure the roller ring is properly seated.

Is the microwave suitable for baby food?

Yes, but heat baby food without the lid or teat, stir well, and check the temperature before feeding to avoid scalding.

USER MANUAL HF26546 SIEMENS

Eine Störung, was tun? 41

Kundendienst 42

Technische Daten 43

Two glass glasses, one with a spoon and the other with a black X symbol (no text or labels)

□Hinweis:

Illustration of a microwave oven with a circular lid and ventilation slots (no text or symbols)

Simple illustration of a round oval plate with no text or symbols

Simple line drawing of a circular metal grate with two legs and vertical supports (no text or symbols)

Front view of a microwave oven with control panel and display (no visible text or symbols)

Universalpfanne

Using this microwav will make cooking a real pleasure.

Pleasereadtheinstructionmanualtoensurethatyoumake useofallthetechnicaladvantagestheappliancehastooffer.

The start of the instruction manual contains an number of important notes relating to safety. You will then be introduced to the individual component so your new appliance. This section explains all the function so your new appliance and how to operate it.

Thetableshavebeenstructuredinsuchawayastoprovide astep-by-stepguidetothecookersettings. Theycontain informationonsimplerecipes,appropriateovenwareandthe idealsettings,allofwhichhaveofcoursebeencarefully testedinourcookingstudio.

Italsocontainsanumberoftipsoncareandcleaningto ensurethatyourappliancecontinuestolookgoodforalong time.Intheunlikelyeventofamalfunction,thelastfew pagescontaininformationonhowtorectifyminorfaults yourself.

Should you have any questions, always referto the detailed table of contents first. This will help you find the right section quickly.

We hopethatyouwillenjoycookingwithyournew microwave.

Tableofcontents

Beforeconnectingyournewappliance47......

Beforeinstallation47......

Installationandconnection48......

Importantinformation49......

Safetyinformation49......

Safety information for microwave operation ..... 51

The control panel 54

Push-in control knobs 55

Types of heating 55

Accessories 55

Before using for the first time 57

Setting the clock 57

Heating up the oven interior 58

The microwave 58

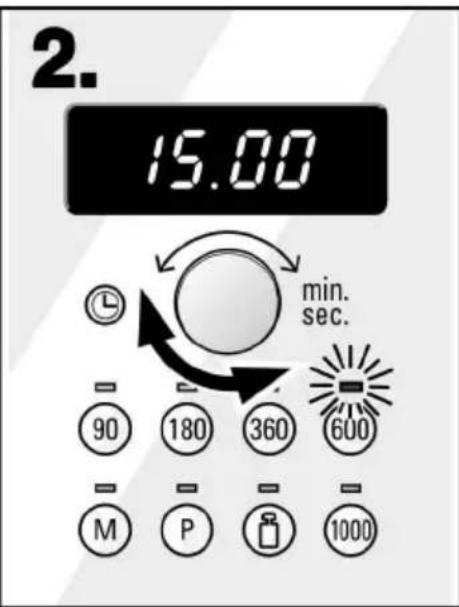

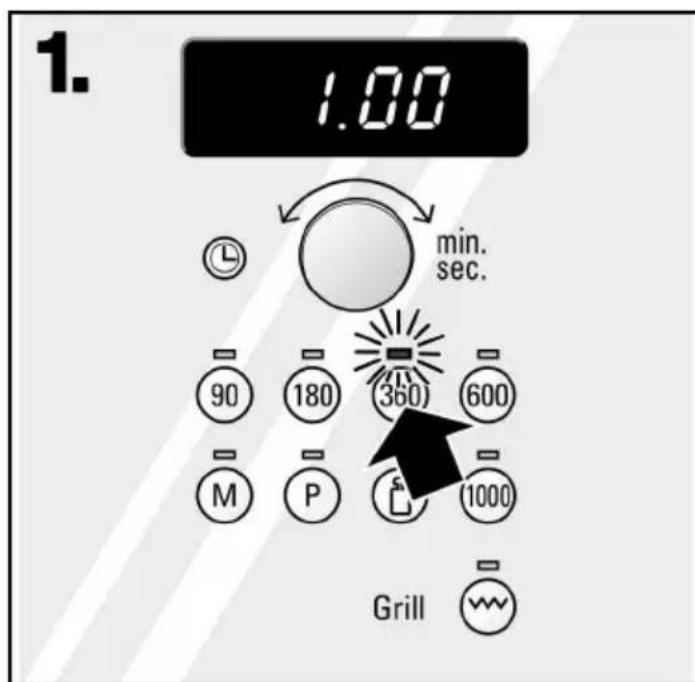

Setting procedure 59

Defrosting, heatingupandcooking with the microwave 60

Ovenware 60

Notes on the tables 61

Defrosting 61

Defrosting, heating up or cooking frozen foods .... 63

Heating food 64

Cooking food 65

Advice on microwave operation 66

Grilling 67

Setting procedure: 67

Grilling table 68

Tableofcontents

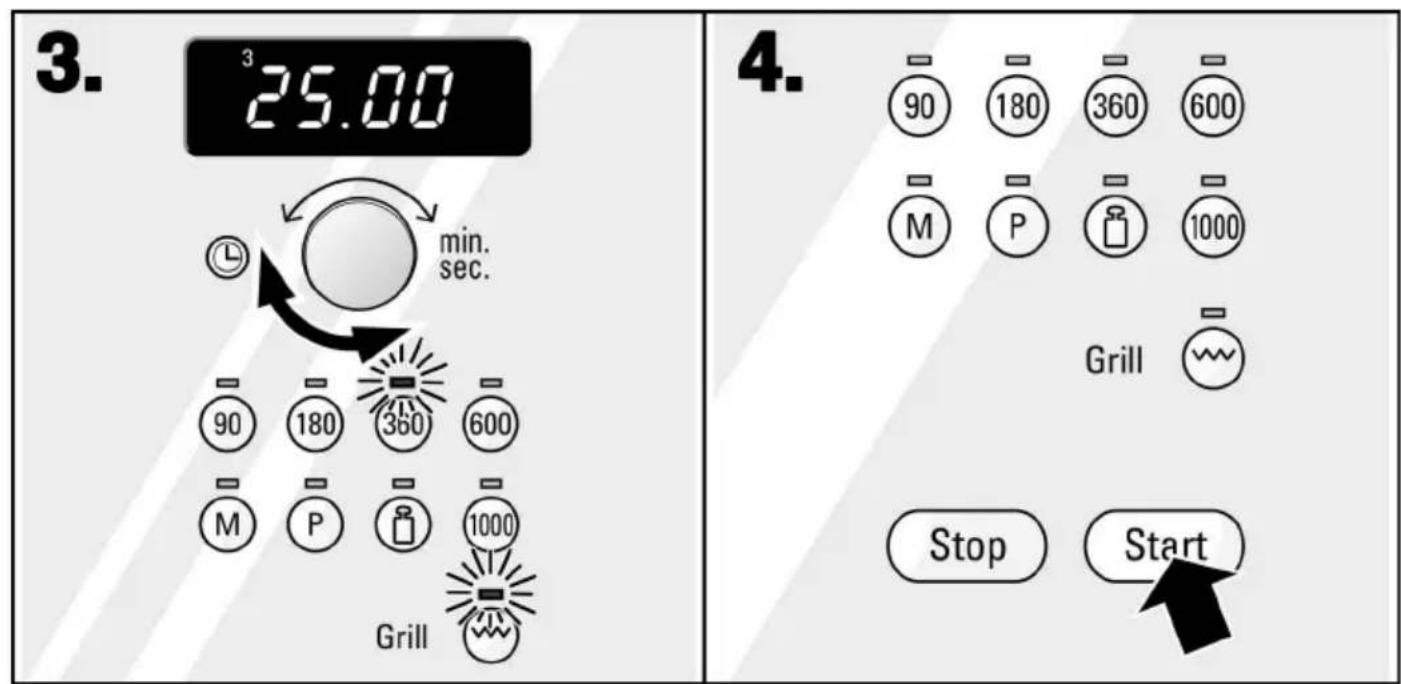

Combinedmicrowaveandgrilloperation69......

Settingprocedure:69......

Grillcombinedwiththemicrowave70......

Automaticprogramming72......

Defrosting programmes 72

Cooking programmes 73

Combination cooking programmes 75

Setting procedure: 76

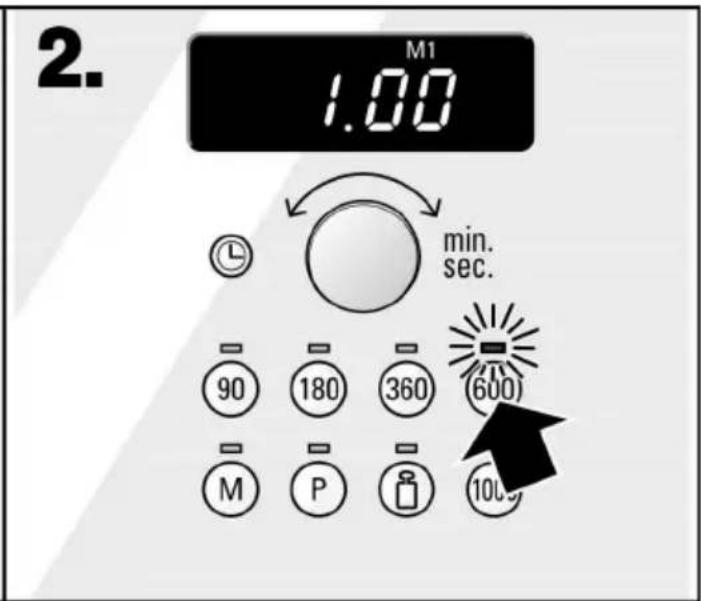

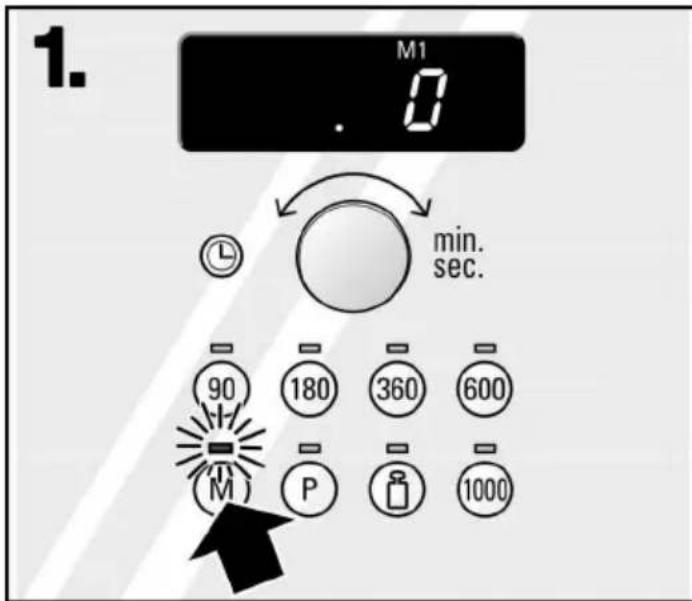

Memory 77

Storing settings 77

Starting the Memory function 79

Changing the signal duration 80

TestdishesinaccordancewithEN60705 ..... 81

Care and cleaning 82

Oven exterior 82

Oven interior 82

Accessories 83

Turntable 83

Troubleshooting 83

After-sales service 84

Technical data 85

Beforeconnectingyournew appliance

Importantsafety precautions

☐Pleasereadthisinstructionmanualcarefully.Only thenwilyoubeabletooperateyourappliance safelyandcorrectly.

☐Pleasekeeptheinstructionandinstallationmanual inasafeplace.Passontheinstructionmanualto thenewownerifyouselltheappliance.

Beforeinstallation

Disposinginan environmentally-responsible manner

☐Unpackovenandremoveallpackingmaterial.

☐Thisapplianceislabelledinaccordancewiththe EuropeanDirective2002/96/ECconcerningused electricalandelectronicappliances(waste electricalandelectronicequipment-WEEE).

☐Theguidelinedeterminestheframeworkforthe returnandrecyclingofusedappliancesas applicable.

Transportdamage

☐ Check the appliance for damage after unpacking it. Donot connect the appliance ifithas been damaged in transport.

□Ifthesupplycordisdamaged,itmustonlybe replacedbythemanufactureroritisservice personnelorsimilarlyqualifiedpersoninorderto acoidahazard.

Installationandconnection

☐Pleaseobservethespecialinstallationinstructions.

☐Thisovenisintendedforbuilt-inuseonly.Itisnot intendedforcounter-topuseorforuseinsidea cupboard.

☐Theappliancecanbeinstalledina60cmwide high-sidedunit(atleast85cmabovethefloor).

☐The appliance is fitted with a plug, and must only be connected to a properly installed socket outlet with earthing contact. The fuse protection must comprise 16 amperes (automatic circuit breaker with trigger characteristic LorB). Themains voltagemust correspond with the voltages specified on the name plate.

☐The installation of the socket or replacement of the connecting cable must only be carried out by a qualified electrician. If the plug is no longer, accessible subsequent to installation, an all-pole disconnecting device must be present on the installations, with a contact gap of at least 3 mm.

☐Multipleplugs,plugconnectorsandextension cablesmustnotbeused.Overloadcanleadto a firehazard.

Importantinformation

Safetyinformation

This appliance complies with the safety regulations for electrical appliances. Repairs must only be carried out by after-sales service engineers who have been trained by the manufacturer. Repair that are carried out incorrectly may constitute a serious hazard to the user.

The appliance is intended only for domestic use. Use it only for the preparation of food.

Adultsandchildrenmustnotoperatetheappliance withoutsupervision

-iftheyarephysicallyormentallyincapable ofdoingso

-oriftheylacktheknowledgeandexperience requiredtooperatetheappliancecorrectly and safely.

Childrenmustbesupervisedbyadultsatalltimes duringcombinedoperation.Thereisariskofburning.

Childrenandmicrowaves

Childrenmustonlybeallowedtousemicrowave ovensiftheyhavebeenproperlyinstructed.They mustbeabletooperatetheappliancecorrectlyand understandtherisksoutlinedinthisinstruction manual.

Childrenmustbesupervisedwhenusingthe appliance,toensurethattheydonotplaywithit.

Hotsurfaces

Nevertouchthesurfacesofheatingandcooking appliances. Theywillbecomehotduringoperation. Theinternalsurfacesoftheapplianceandtheheating elementsgetveryhot.Thereisariskofburning. Childrenmustbekeptatasafedistancefromthe appliance.

Nevertrapcablesofelectricalappliancesinthe appliancedoor. Theinsulationcouldbedamaged. Shortcircuit,riskofelectrocution.

Cookingcompartment

Neverusethetopoftheapplianceasaworktop. Thereisariskoffire.

Neverstorecombustibleitemsinthecooking compartment. They could catch fire if the appliance is switched on. There is a risk of burning.

Neveropentheappliancedoorifthereissmokeinthe cookingcompartment.Pullouttheapplianceplug.

Neverswitchontheapplianceunlesssthereisfoodin thecookingcompartment.Itcouldbeoverloaded.An exceptiontothisruleisforshort-termtestingof ovenware(seetheMicrowave,ovenwaresection).

Neverusethemicrowaveovenwithouttheturntable.

Neverplacefooddirectlyontheturntable.Alwaysuse adish.

Liquidthathasboiledovermustnotbeallowedtorun throughtheturntabledriveintotheinteriorofthe appliance. Observetheprocedure. Useashort cookingtimeandresetifnecessary.

Becarefulwithfoodthatispreparedwithdrinkswitha highalcoholcontent(e.g.cognac,rum). Alcoholevaporatesathightemperatures.In unfavourablecircumstances,thealcoholvapours couldcatchfireintheappliance.Thereisariskof burning. Useonlysmallquantitiesofdrinkswithahighalcohol contentandopentheappliancedoorcarefully.

Appliancedoorandseal

Neveroperatetheapplianceiftheappliancedooris damaged. Otherwisemicrowaveenergymayescape. Calltheafter-salesservice.

Theappliancedoormustcloseproperly. Ifthesealisverydirty,theappliancedoorwillno longercloseproperlyduringoperation.Thefrontsof adjacentunitscouldbedamaged.Alwayskeepthe sealclean.

Environment

Neverexposethemicrowaveoventoexcessiveheat ormoisture.

Cleaningmethod

⚠️ Donotusehigh-pressurecleanersorsteamjet cleaners.

Shortcircuit, riskofelectrocution.

Cleantheapplianceonaregularbasis. Thesurface of the appliance could be destroyed and the appliance could corrode overtime if it is not cleaned with sufficient care. Microwave energy could escape.

Repairs

⚠️ Repairsmustbecarriedoutonlybyafter-salesservice engineerswhohavebeentrainedbythe manufacturer.Repairsthatarecarriedoutincorrectly mayconstituteaserioushazardtotheuser.

Nevercarryoutrepairormaintenanceworkwhich requiresyoutoremovethecoverthatprotectsagainst microwaveenergy.Calltheafter-salesservice.

You must not openthecasing. The appliance is a high-voltage appliance.

Neverswitchonadefectiveappliance.Pulloutthe applianceplug.Calltheafter-salesservice.

Neverreplacethecookingcompartmentlightyourself. Calltheafter-salesservice.

CAUTION: Repair and maintenance work in which the cover that protects against microwave energy must be removed must only be carried out by a specialist personnel, duet other risks involved.

Safetyinformation formicrowave operation

☐ Themicrowavemustonlybeswitchedonwhen thereisfoodinthecookingcompartment.

□Alwaysusethemicrowavesettingsandcooking timesspecifiedintheinstructionmanual.Ifyou selectaheatsettingthatistoohighoracooking timethatistoolong,thismaycausethefoodto igniteandtheappliancetobedamaged.Riskof fire.

☐ Themicrowaveshouldonlybeusedforheating foodanddrinks. Usingthemicrowaveforother purposesmaybedangerousandmayresultin damagee.g. grainsorcerealscouldcatchfire whenheated.Thereisariskofburning.

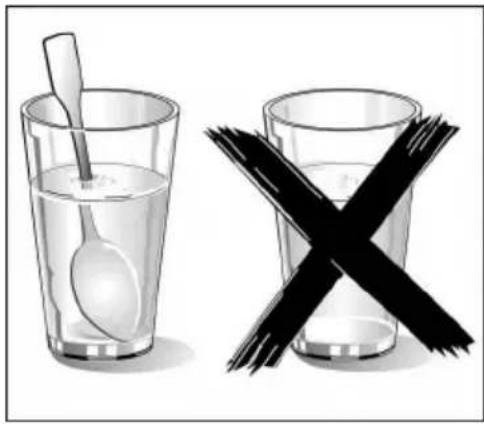

Two glass glasses, one with a spoon and the other with a black X symbol (no text or labels)

Riskofscalding

Whenheatingupliquids,alwaysplaceateaspoon inthecontainertopreventdelayedboiling.When boilingisdelayed,theliquidcomestotheboil withoutthecustomarysteambubbles.The slightestvibrationcancausethehotliquidtoboil overorspatterviolently.Thiscancauseinjuries andscalds.

Babyfood:

Alwaysheatupbabyfoodinaglassorbottle withoutthelidorteat.Onceheated,thebabyfood shouldbestirredorshakenthoroughlytodistribute theheatevenly.Alwayscheckthetemperature beforegivingthefoodtoyourbaby.Thereisarisk ofscalding.

☐Neverheatupfoodordrinksintightlysealed containers.Thereisariskofexplosion.

□Alcoholicdrinksmustnotbeoverheated.Thereis ariskofexplosion.

☐Donotheatanymealsinheat-retainingpackages astheycouldignite.Foodincontainersmadeof plastic,paperorothercombustiblematerialsmust bemonitoredduringheating.Airtightpackaging mayburstwhenthefoodisheated.

Not:

Nevercookeggsintheirshellsnorheatup hard-boiledeggs, astheymaycrackoreexplode evenafterthemicrowaveheatinghasended. The sameappliestoshellfishandcrustaceans. Always pricktheyolkfirstforfriedorpoachedeggs.

□Alwayspricktheskinoffoodstuffswithhardcrusts orskinssuchasapples,tomatoes,potatoesand sausagesbeforecookingtopreventtheskinfrom bursting.

☐Youmustcarefullymonitortheprocesswhen dryingherbs, fruit, breadormushroomsas overdryingcancreateafirehazard.

□Neverheatupcookingoilinamicrowaveasit couldignite.

□Useonlymicrowavablecontainers.

□Porcelainorceramicovenwarecanhavesmall perforationsinthehandlesorlid.Theseperforationsconcealacavitybelow.Anyliquidthat penetratesthiscavitymaycausetheovenwareto crack.

□Alwaysusethemicrowavesettingsandcooking timesspecifiedintheinstructionmanual.Ifyou selectaheatsettingthatistoohighoracooking timethatistoolong,thismaycausethefoodto igniteandtheappliancetobedamaged.

□Mealsheatedintheovengiveoffheat.The ovenwarecanbecomehot.Alwaysuseoven gloveswhentakingovenwareoutoftheoven.

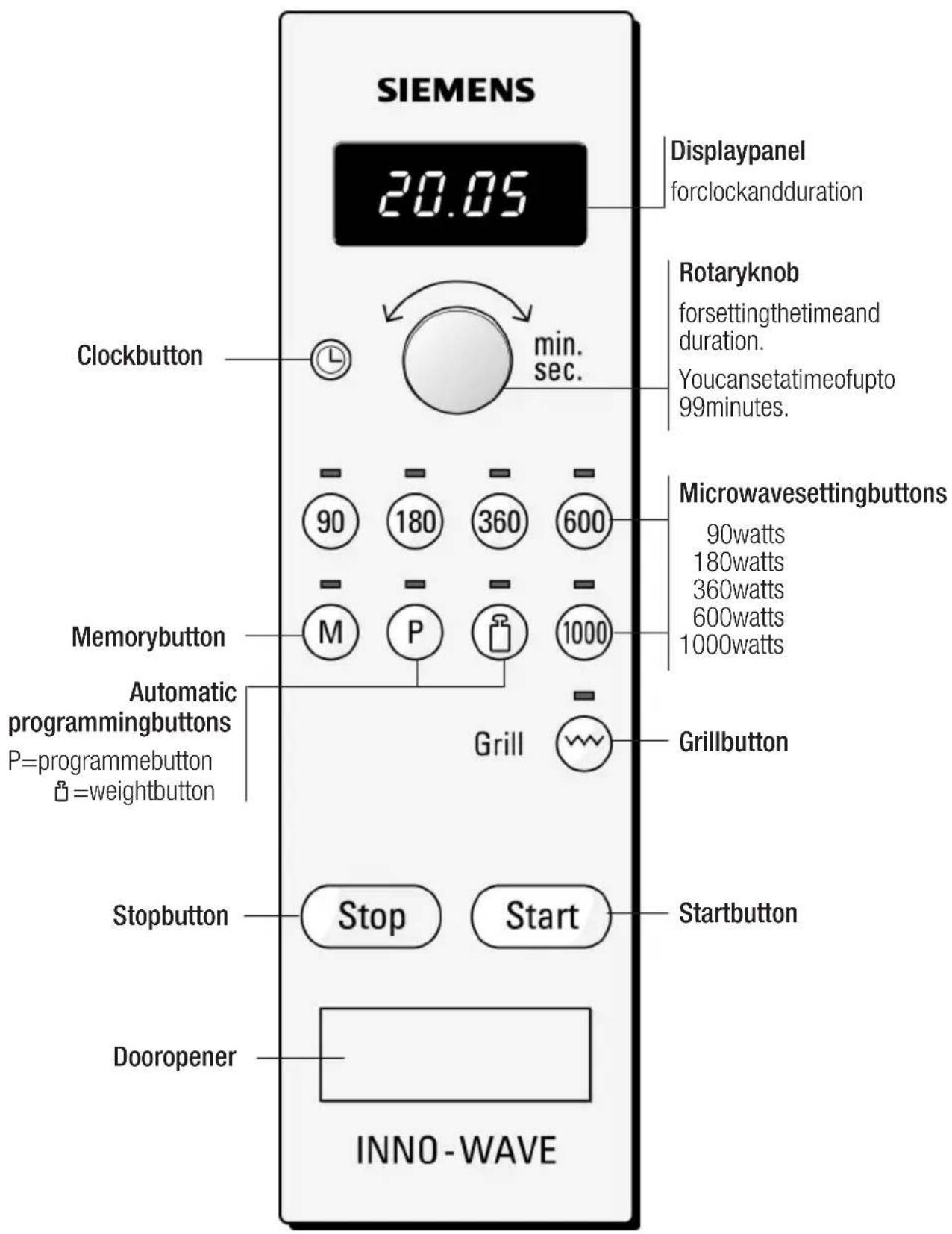

Thecontrolpanel

Push-incontrol knobs

Theknobcanbepushedinatanyposition. Simplypressthecontrolknobtoreleaseitorpushit in. Theknobcanbeturnedtotherightorleft.

Typesofheating

Microwaves

These are converted to heat when they come into contact with food. The microwave is ideal for rapid defrosting, heating up, melting and cooking.

Microwavesettings

1000Wforheatingupliquids. 600Wforheatingupandcookingfood. 360Wforcookingmeatandheatingup delicatefoods. 180Wfordefrostingandcontinuedcooking. 90Wfordefrostingdelicatefoods.

Grill

Theentiresurfaceunderthegrillheatingelement becomeshot.Youcangrillsteaks,sausages,fishor toastinthisway.

Grillcombinedwiththe microwave

Thisinvolvesthesimultaneousoperationofthegrill andthemicrowave.Thefoodwillbecomecrispyand brown,butwilldosomuchquickerandusingless energy.

Accessories

Theturntable

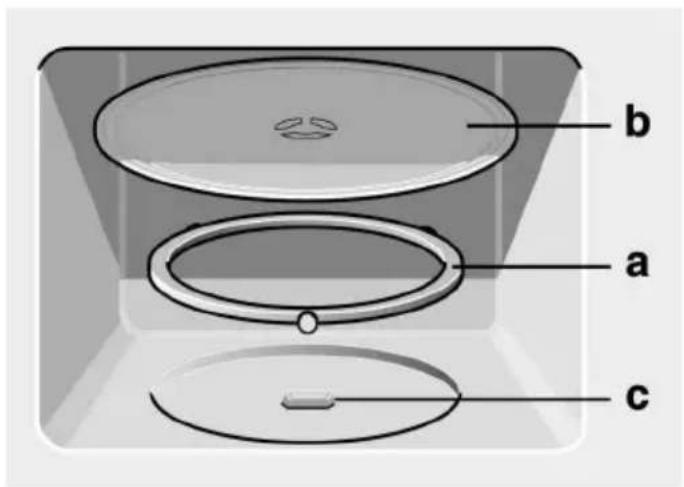

Toinserttheturntable:

1. Placetherollerring(a) intotherecess inthecookingcompartment.
2. Allow the turntable(b) to slot into place in the drive(c) in the centre of the cooking compartment base.

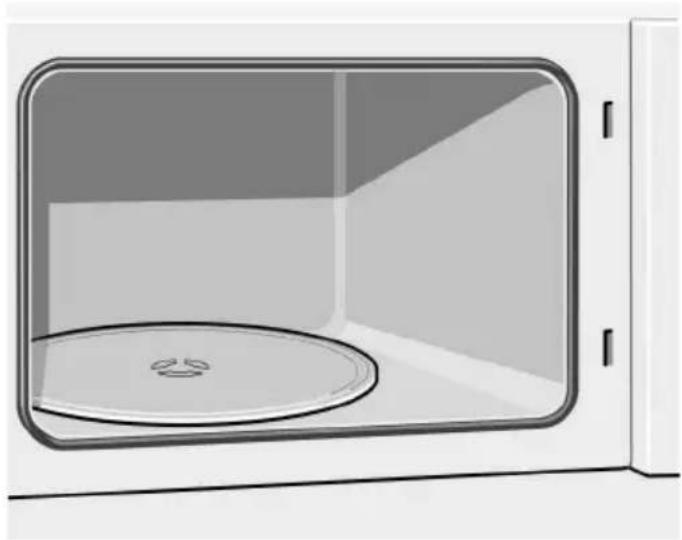

Illustration of a microwave oven with a circular lid and ventilation slots (no text or symbols)

Youshouldonlyusetheappliancewith theturntableinplace.Ensurethatitis properlyfitted.

The turntableturns during all types of heating. It can turn anti-clockwise or clockwise.

Simple illustration of a round oval plate with no text or symbols

Universalpan

It can be used to catch dripping fat when grilling directly on the wire grill, or when cooking and grilling in combination.

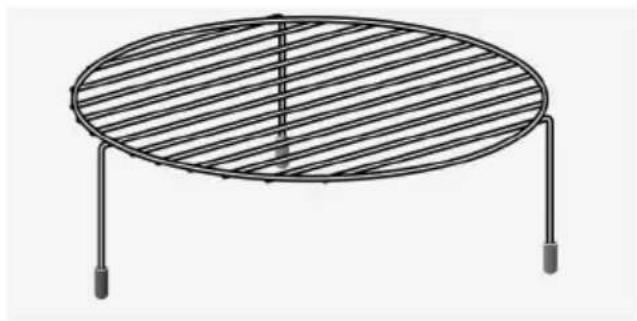

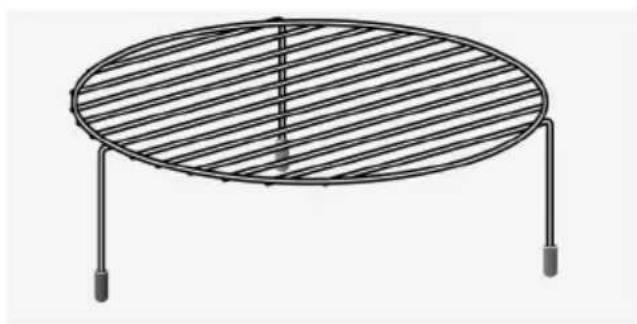

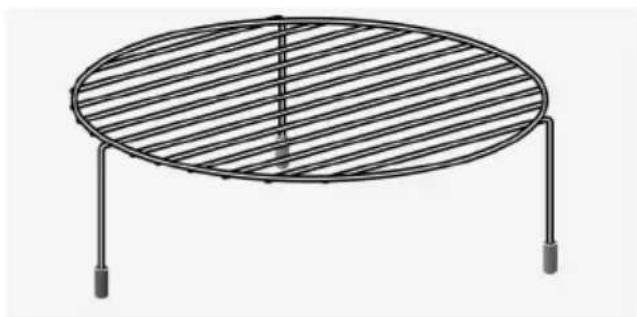

Simple line drawing of a circular metal grate with two legs and a central vertical divider (no text or symbols)

Wiregrill

Forgrillingsteaks, sausagesortoast, orasasurfaceforflatcasseroledishes forexample.

Putthegrillrackontheturntableorinthe universalpan.

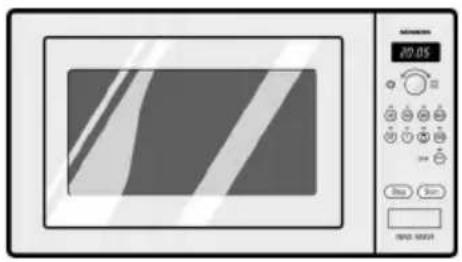

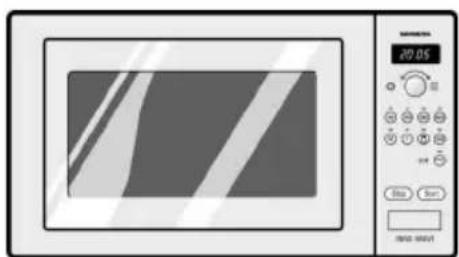

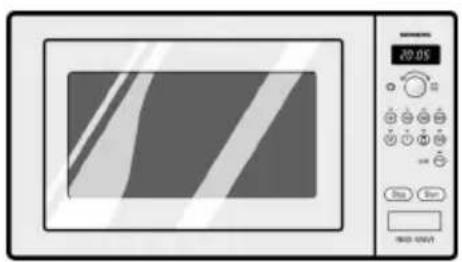

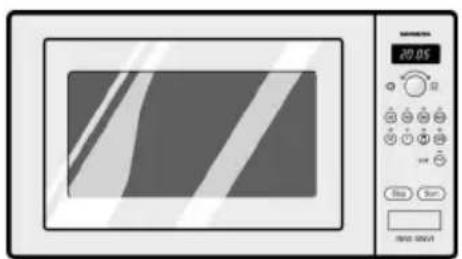

Front view of a microwave oven with control panel and display (no visible text or symbols)

Notes

☐Theapplianceisfittedwithacooling fan. Thefanmaycontinuetooperate aftertheovenhasbeenswitchedoff.

☐Condensationmayappearonthe doorpanel,interiorwallsandfloor. Thisisnormalanddoesnotaffectthe operationofthemicrowave.Please wipeawaythecondensationafter cooking.

Beforeusingforthefirsttime

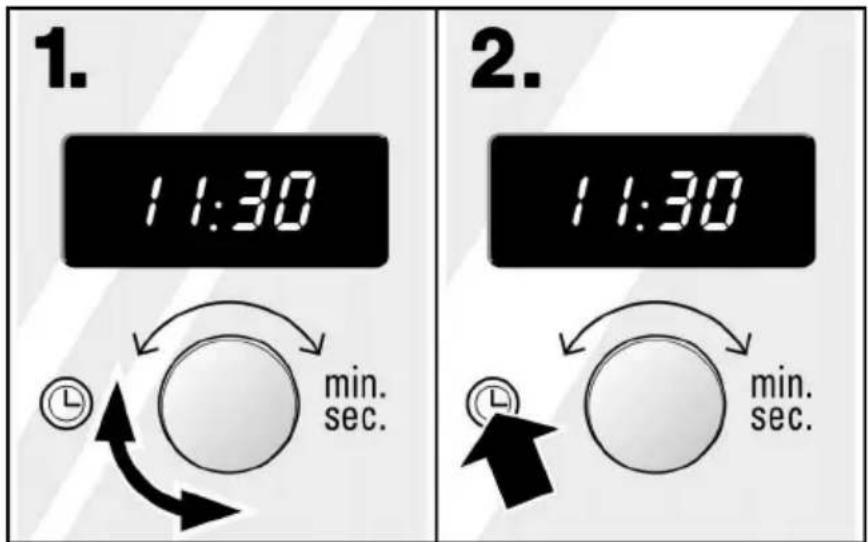

Settingtheclock

Threezerosappearinthedisplaypanelwhenthe ovenisfirstconnectedoriftherehasbeenapower failure. Afterashorttime12:00willappearinthe display.

Setthetime.

1. Setthetimeusingtherotary knob.
2. Pressthe①clockbutton.

Hidingthetime

PresstheclockbuttonandthenpresstheStop button.

Thedisplayisblank.

Showingthetime

Presstheclockbutton①andsetthetimeas describedinpoints1 and2.

Changingthetime e.g.fromsummertowinter time

PresstheclockbuttonLandsetthetimeas describedinpoints1 and2.

Note

□Ifadurationsuddenlyappearsinthedisplay,the knobhasbeenturnedbyaccident.PresstheStop button.Theclockreappearsinthedisplay.

Heatinguptheoven interior

Heattheemptycookerfor10minuteswiththedoor closedtoremovethenewovensmell.

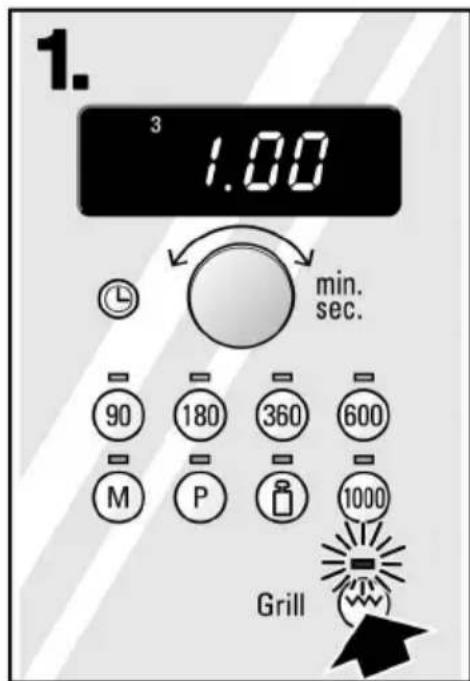

1. PresstheGrillbutton.
2. Setto10minutesusingtherotaryknob.

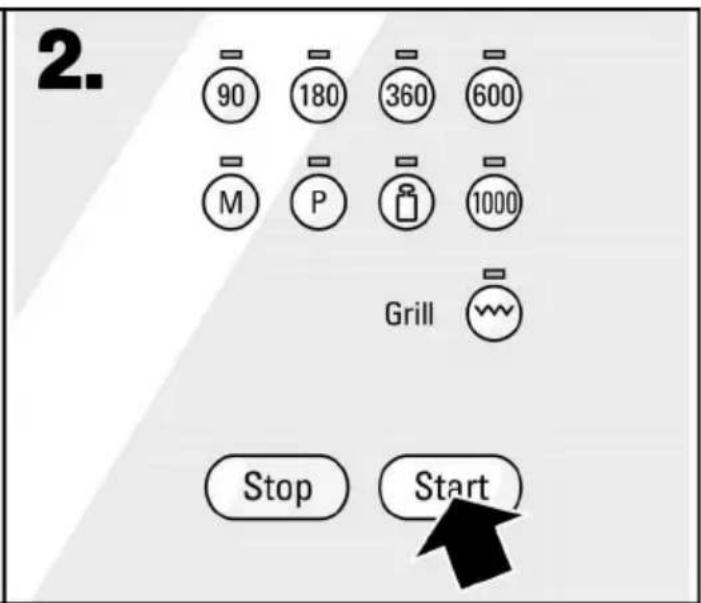

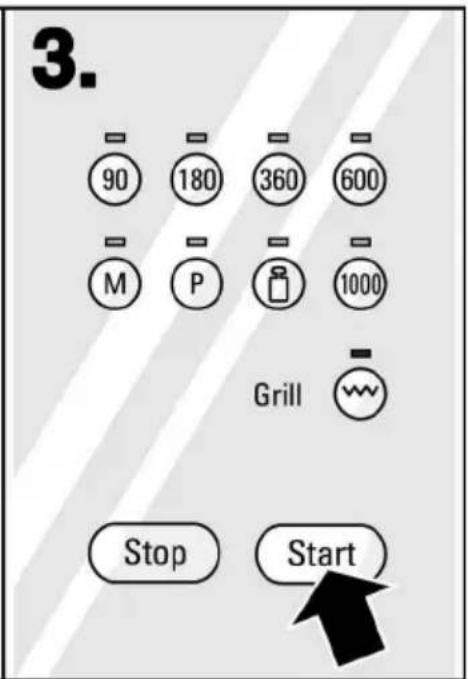

3. PresstheStartbutton.

Itisbesttoventilatethekitchenbecauseofthesmell whichthisproduces.

Themicrowave

Youcansetthemicrowaveforsingleoperationi.e.on itsownorforcombinedoperationwiththegrill.

Whynottryoutitoutstraightaway?Youcouldheat upacupofwater,forexample.

Usealargecupwithoutadecorativegoldorsilverrim andplaceateaspooninit.Placethecupofwateron theturntable.

1. Pressthe1000wattmicrowavesettingbutton.
2. Setto1 minuteusingtheknob.
3. PresstheStartbutton.

Asignalsoundsafter1minute. Thewaterishot.

Pleasereadthesafetyinstructionsatthefrontofthe instructionmanual. They are very important.

Settingprocedure

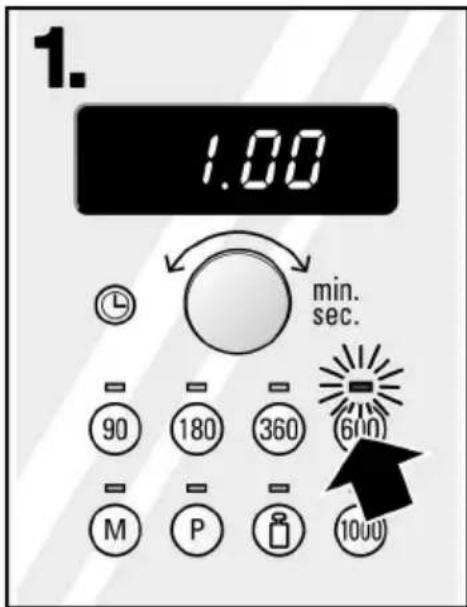

1. Pressthebuttonforthe microwavesettingyourequire. Theindicatorlightabovethe buttonflashes.

2. Settheduration using therotaryknob.

3.PresstheStartbutton.

	Theindicatorlightabovethemicrowavesettinglights up. Thetimecountsdowninthedisplay.
Whenthetimehaselapsed	asignalsounds.0appearsinthedisplay.IfyouopentheovendoororpresstheStopbutton, theclockwillbedisplayedoncemore.
Correction	Ifyouhaveonlymadeonemicrowavesetting,youcan changethedurationatanytime.Ifyouhavemade severalmicrowavepowerandtimesettings,the durationcanonlybechangedbeforethestartof microwaveoperation.
Pause	PresstheStopbuttononceoropentheovendoor.PresstheStartbuttonafterclosingthedoor.
Cancel	PresstheStopbuttontwiceoropenthedoorand presstheStopbuttononce.

Notes

☐Youcansetatimeofupto99minutes. 1 minutein1secondincrements upto5minutesin10secondincrements upto30minutesin1minuteincrements upto99minutesin5minuteincrements.
☐The1000wattsettingcanbesetforamaximumof 30minutes, allothersettingscanbesetforupto 99minutes.
☐Youcansetthemicrowavesettingfirstandthen thetime,orvisaversa.

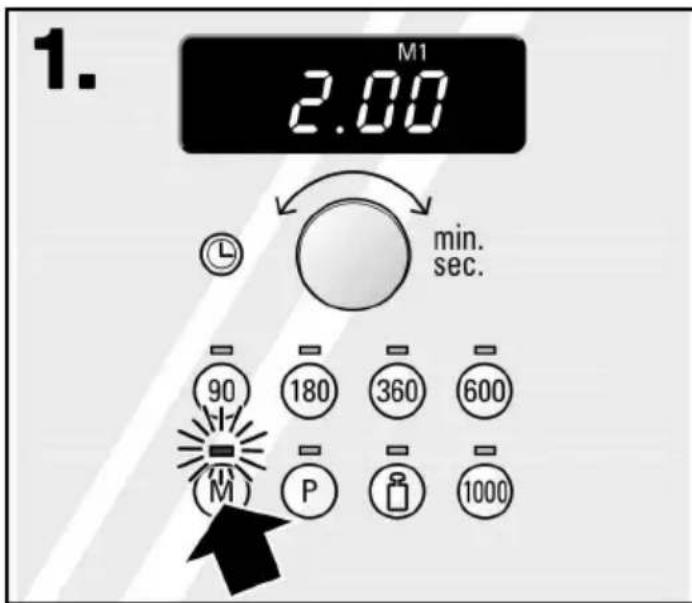

Settingseveralmicrowave settingsoneafteranother

Proceedasdescribedinpoints1 and2. Thensetthe secondmicrowavesettingandtime.Youcansetup to3microwavesettingsoneafteranother.Whenyou havefinishedthesettings,presstheStartbutton.

☐Youcanalsosetamicrowavesettingtwice: e.g.600watts-360watts-600watts. 1000wattscanonlybesetonce.

Defrosting, heatingupand cookingwiththemicrowave

Ovenware

Useheatresistantovenwaremadeofglass,glassand ceramic,porcelain,ceramicorheat-resistantplastic. Thesematerialsdonotblockthemicrowaves.

Thisisnotthecasewithovenwaremadeofmetal.The microwavesareobstructedwhichmeansthatthe foodinclosedmetalcontainersremainscold. Makesurethatthereisagapofatleast2cmbetween metalitemssuchasspoonsandthewallsandthe insideofthedoor.Theglassontheinsideofthedoor couldbedamagedbysparks.

Ovenwaretest:

Youcanoftenuseservingdishesforcookingfood.

This saves you from having to transfer the food and mean there is less washing up.

Youshouldonlyuseovenwarewithgoldorsilverrims iftheovenwaremanufacturerguaranteesthattheyare suitableforuseinthemicrowave.

Alwaysplacetheovenwaredirectlyontheturntable.

Carryoutthefollowingtestifyouareunsurewhether yourovenwareissuitableforuseinthemicrowave:

Placetheemptydishintheovenfor ^1/2 to 1 minuteat fullpower. Check the temperature during this period.

Thedishshouldstillbecoldorhand-hot. Thedishis unsuitableifitbecomeshotorsparksaregenerated.

N.B. Themicrowavemustonlybeswitchedonwhen thereisfoodinthecookingcompartment. Theonly exceptiontothisruleisthisovenwaretest.

Notesonthetables

The following tables provide you with numerous options and settings forthemicrowave.

Thetimesspecifiedinthetablesareonlyguidelines.

They may vary according to the ovenware used, the quality, temperature and consistency of the food.

Timerangesareoftenspecifiedinthetables.Setthe shortesttimefirststandthenextendthetimeif necessary.

It may be that you have different quantities from those specified in the tables.

Aruleofthumbcanbeapplied:

Doubletheamount-almostdoublethetime

Halftheamount-halfthetime.

Alwaysplacetheovenwareontheturntable.

Defrosting

☐Placethefrozenfoodinanopencontaineronthe turntable.

☐Turnorstirthefoodonceortwiceduringthe defrostingtime.Largepiecesoffoodshouldbe turnedseveraltimes.

☐Leavedefrosteditemstostandatroomtemperatureforafurther10to20minutessothatthe temperaturecanstabilize.Withpoultry,thegiblets canberemovedatthispoint.Meatcanstillbe preparedevenifitisfrozeninthecentre.

☐Delicatepartssuchasthelegsandwingsof chickenorfattyouterlayersofroastscanbe coveredwithsmallpiecesofaluminiumfoil. Thefoil mustnotcomeintocontactwiththeovenwalls. Youcanremovethefoilhalfwaythroughthe defrostingtime.

	AmountMicrowavesettinginwattsTimeinminutes		Notes
Wholejointsofmeate.g.beeF,porkorveal(withorwithoutbones)	800g1,000g1,500g	180W,15min.+90W,15-25min.180W,20min.+90W,20-30min.180W,30min.+90W,25-35min.	Coverdelicatepartswithaluminiumfoil.
Dicedorslicedbeef,porkandveal	200g500g800g	180W,5min.+90W,4-6min.180W,10min.+90W,5-10min.180W,10min.+90W,10-15min.	Coverdelicatepartswithaluminiumfoil.Separatethepartswhenturning.
Mixedmincedmeat200g		90W,15min.500g800g	Freezeflatifpossible.Turnseveraltimesduringdefrostingandremovemeatwhichhasalreadybeendefrosted.
Poultryorpoultryportions	600g1,200g	180W,8min.+90W,10-15min.180W,15min.+90W,20-25min.	Wraplegsandwingsinaluminiumfoil.
Fishfillet,fishsteak,slices	400g180W,5min.+90W,10-15min.Separatedefrosteditments.
Wholefish300g		180W,3min.+90W,10-15min.600g	Coverdelicatepartswithsmallpiecesofaluminiumfoil.
Vegetablese.g.peas300g	180W,10-15min.
Fruite.g.raspberries	300g500g	180W,7-10min.180W,8min.+90W,5-10min.	Stircarefullyduringdefrostingandseparatethedefrostedparts.
Butter125g		180W,2min.+90W,2-3min.250g	Removeallthepackaging.
Wholeloaf500g		180W,8min.+90W,5-10min.1,000g	180W,12min.+90W,10-20min.
Drycakes e.g.creamingmethod cakes	500g750gAmount	90W,10-15min.180W,5min.+90W,10-15min.Timeinminutes	Separatethepiecesofcakewhenturningthem.Onlyforcakeswithouticing,creamorcrèmepâtissière.NotesMicrowavesettinginwatts
Juicycakes	500g	180W,5min.+90W,15-20min.	Onlyforcakeswithouticingor gelatine.
e.g.fruitcakeandquark cake	750g	180W,7min.+90W,15-20min.

Defrosting, heating uporcooking frozenfoods

☐Takeready-mademealsoutoftheirpackaging. Theywillheatupmorequicklyandevenlyifyou placetheminmicrowavabledishes.Differentparts ofthemealmayheatupatdifferentrates.
☐Foodwhichislaidflatheatsupquickerthanifitis piledhigh.Thereforeitisbesttospreadoutthe foodsothatitiesflatinthecontainer.Youshould notplacelayersoffoodontopofeachother.
□Alwayscoverthefood.Ifyoudonothavea suitablelidforyourdish,useaplateorspecial microwavefoil.
☐You should stirorturn the food twoto threetimes during heating.
Once you have heated up themeals, leavethem to stand for another 2 to 5 minutes that the temperature can stabilize.
☐Theindividualtasteofthefoodisretainedtoa largedegree.Youcanthereforegoeasyonsalt andspices.

	AmountMicrowavesettinginwattsTimeinminutes		Notes
Menu, platedmeal, ready-made mealsin2to3parts	300-400g600W,8-13min.
Soups400g600W,8-10min.
Stews500g600W,10-13min.
Meat in sauce e.g. goulash	500 g	600 W, 12 - 17 min.	Separate the pieces of meat whenstirring.
Fish, e.g. fillets	400 gAmount	600 W, 10 - 15 min.Timeinminutes	You may add water, lemon juiceorwine.NotesMicrowavesettinginwatts
Bakese.g.lasagneandcannelloni450g600W,10-15min.
Sidedishes	250g	600W,3-5min.	Addalittleliquid.
riceandpasta	500g	600W,8-10min.
Vegetablese.g.peas,broccoliandcarrots	300g	600W,8-10min.	Addwatertocoverthebaseofthedish.
	600g	600W,15-20min.
Creamedspinach450g600W,11-16min.Cookwithoutaddingany			water.

Heatingfood

☐Takeready-mademealsoutoftheirpackaging. Theywillheatupmorequicklyandevenlyifyou placetheminmicrowavabledishes.Differentparts ofthemealmayheatupatdifferentrates.
□Whenheatingliquids,alwaysplaceateaspoonin thecontainertostoptheliquidfromboilingover. Whenboilingisdelayed,theliquidcomestothe boilwithoutthecustomarysteambubbles.Evenif thecontaineronlyvibratesalittle,theliquidcan boiloveralotorspatter.Thiscancauseinjuries andscalding.
□Alwayscoverthefood.Ifyoudonothavea suitablelidforyourdish,useaplateorspecial microwavefoil.
☐You should stirorturn the food severaltimes during heating. Monitor the temperature.
Once you have heated up themeals, leavethem to stand for another 2 to 5 minutes that the temperature can stabilize.

	AmountMicrowavesettingsin wattsTimeinminutes		Notes
Menu, platedmeal, ready-mademealsintwoto threeparts		600W,5-8min.
Drinks125ml		1000W, 12 - 112 min.	Placeaspooninthecontainer.Do notoverheatalcoholicdrinks. Checkduringheating.
	200ml	1000W, 112 - 212 min.
	500ml	1000W,3-4min.
	Amount	wattsTimeinminutes	NotesMicrowavesettingsin
Babyfoode.g.baby'sbottles50ml		360W,1⁄2min.	Withoutthelidorteat.Always shakewellafterheating.Youmust checkthetemperature.
	100ml	360W,1⁄2-1min.
	200ml	360W,1-2min.
Soup1bowl	175g	600W,2-3min.
2bowls	350g	600W,3-4min.
Meatinsauce500g600W,8-11min.Separateslicesofmeat.
Stew400g		600W,6-8min.
	800g	600W,8-11min.
Vegetables1portion	150g	600W,2-3min.
2portions	300g	600W,3-5min.

Cooking food

□Alwayscookfoodincovereddishes. You should stirorturnthefoodduringcooking.
☐Theindividualtasteofthefoodisretainedtoa largedegree. Youcanthereforegoeasyonsalt andspices.
☐Foodwhichislaidflatheatsupquickerthanifitis piledhigh.Thereforeitisbesttospreadoutthe foodsothatitiesflatinthecontainer.Ifpossible, youshouldnotplacelayersoffoodontopofeach other.
Once you have cooked themeals, leavethem to stand for another 2 to 5 minutes that the temperature can stabilize.

	AmountMicrowavesettingsinwattsTimeinminutes		Notes
Freshwhole chickenwithout giblets	1.2 kg	600 W, 22 - 25 min.	Turn half way through the cookingtime.
Freshfishfillet	400g600W,7-12min.
Freshvegetables	250g500gAmount	600W,6-10min.600W,10-15min.Timeinminutes	Cutvegetablesintopiecesof equalsize.Add1to2table-spoonsofwaterper100 gof vegetables.NotesMicrowavesettingsinwatts
Sidedishese.g. potatoes	250g	600W,8-10min.	Cutpotatoesintopiecesofequal size.Pourwaterintothe
	500g	600W,12-15min.
	750g	600W,15-22min.	containertoadepthofabout 1 cm,andstir.
Rice	125g	600W,4-6+180W12-15min.	Adddoubletheamountofliquid.
	250g	600W,6-8+180W15-18min.
Sweetse.g. pudding(instant), fruit,compote	500ml	600W,6-8min.	Stirthepuddingthoroughlyusing aneggwhisk2to 3 timesduringthecooking.
	500g	600W,9-12min.

Adviceon microwave operation

Thereisnosetting specifiedfortherespective amountoffood.

Extendorshortenthecookingtimeaccordingtothe followingruleofthumb:

Doubletheamount=doublethetime

Halftheamount=halfthetime

Thefoodhasbeencooked toodry.

Selectashortercookingtimeorlowermicrowave setting.Addmoreliquidandcoverthefood.

Oncompletionofthe cookingtime,thefoodhas notbeendefrosted,heated orcooked.

Selectalongercookingtimeandahighermicrowave settingthanisspecified.Largeamountsoffoodwill takelongertocook.Takeintoconsiderationthedepth ofthefood,as"deep"foodwillalsotakelonger.

Oncompletionofthe cookingtime,thefoodhas beenovercookedonthe edgesyetundercookedon theinside.

Stirthefoodfromtimetotimeandselectalowerheat settingandlongerdurationnexttime.

Grilling

Youcanselectthreedifferentgrilllevels.

Grilllevels

3=high 2=medium 1=low Grilllevel3isselectedifyoupresstheGrillbutton once.Youcanchangethegrilllevelbypassingthe Grillbutton.

Settingprocedure:

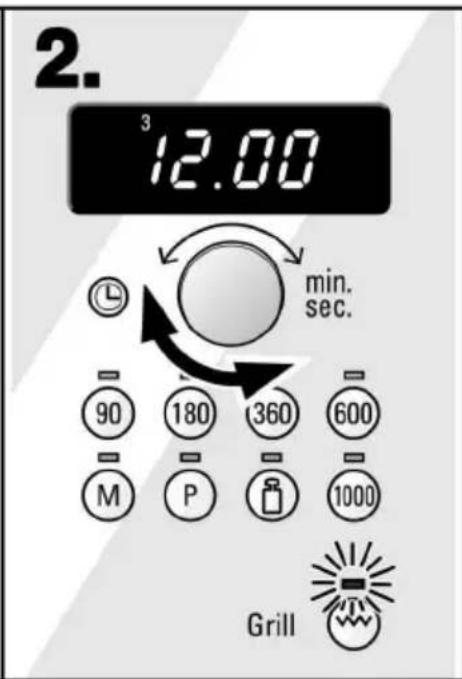

1. PresstheGrillbutton. Grillsetting3appears. YoucannowusetheGrillbutton toselectadifferentgrilllevel.

1. Settheduration using the rotary knob.

3.PresstheStartbutton.

Whenthetimehaselapsed

asignalsounds. OpentheovendoororpresstheStopbutton.The clockreappearsinthedisplay.

Correction

Youcancorrectthegrillleveldurationatanytime.

Cancel

PresstheStopbuttontwiceoropenthedoorand presstheStopbuttononce.

Grilling table

□Alwaysgrillonthewiregrillkeepingtheovendoor closed, anddonotpreheat.
☐ Allthevaluesgivenareguidelineswhichcanvary accordingtothequalityandnatureofthefood.
☐ Rinsethemeatundercoldwaterandpatdrywith kitchenowel. Saltthemeatafterithasbeengrilled.
☐Placethewiregrillontheturntableintheuniversal pantocatchthemeatjuices.
Turnthemeatwithtongs.Ifyoupiercethemeat withafork,itwillloseitsjuicesanddryout.
☐Redmeatsuchasbeefbrownsquickerthanwhite meatsuchasvealorpork.Donotworryaboutthis. Grilledwhitemeatorfishisoftenonlylightly brownedonthesurface.Neverthelessitisdoneon theinsideandisjuicy.

AmountWeightGrillstageTimeinminutesNotes

Steaks2-3piecesapprox.		200 geach	31stside:approx.15minutes	2-3cmthick
			2ndside:approx.10-15 minutes
Necksteaks3-4piecesapprox.		120 geach	31stside:approx.20minutes	1-2cmthick
			2ndside:approx.15minutes
Sausages4-6piecesapprox.		150 geach	31stside:approx.10minutes
			2ndside:approx.10minutes
Fishsteak2-3piecesapprox.		150 geach	31stside:approx.10minutes	Greasethewire grillwithoil beforegrilling.
			2ndside:approx.8 -12minutes
Wholefish e.g.trout	2-3piecesapprox.	150 geach	31stside:approx.10minutes	Greasethewire grillwithoil beforegrilling.
			2ndside:approx.10 -15minutes
Breadfor toasting	2-4slices		31stside:approx.2-3minutes
			2ndside:approx.2- 3minutes.
Cheese on toast	2-4 slices		2/3 Depending on topping: approx. 5 - 9 minutes
Set the first time using the knob. Turn the food and then set the time for the second side.

Combinedmicrowaveandgrill operation

Youcansetthegrillandthemicrowaveatthesame time. The food will be crispy and brown. This saves a lot of time and energy.

Settingprocedure:

1. Pressthebuttonforthemicrowavesetting yourequire.

1. PresstheGrillbutton. Grillsetting3appears. YoucannowusetheGrillbuttontoselecta differentgrilllevel.

1. Settheduration using therotary knob.
2. PresstheStartbutton. Thecookingtimerunsdown.

Whenthetimehaselapsed

asignalsounds.

Oappearsinthedisplay.

If you open the ovendoor or press the Stop button, the clock will be displayed once more.

Pause

☐PresstheStopbuttononceoropentheovendoor. PresstheStartbuttonafterclosingthedoor.

Correction

☐Youcancorrectthegrillleveldurationatanytime.

Cancel

☐PresstheStopbuttontwiceoropenthedoorand presstheStopbuttononce.

Grillcombinedwith themicrowave

□Alwaysplacetheovenwareontheturntableand donotcoverthefood.

□Useadeeptinforroasting. This keepsthe inside of the cookercleaner.

☐ Usealargeflatdishforbakesandgratins.Food takeslongertocookinnarrow,deepdishes,and brownsmoreontop.

☐Checkthatyourovenwarefitsinthecooker.It shouldnotbetoolarge.Theturntablemustbe abletoturn.

□Alwayssetthemaximumcookingtime.Checkthe shortesttimegivenforthefood.
☐Leavethemeattostandforanother5to 10 minutesbeforecarving. Thisallowsthemeat juicestodistributeevenlyandstopsthemrunning outwhenyoucarvethemeat.
☐Bakesandgratinsshouldbelefttocontinue cookingforanother5minuteswiththecooker switchedoff.

	Amount Weight	Microwavesettingsin watts	Grill stage	Duration, min.	Notes
Roastpork,e.g.neckofpork	approx.750g1stside:360W+grill	2	2	15min.	Turnafter
		2ndside:360W+grill		20-25min.	15 minutes.
Meatloaf*max.7cmhigh	approx.750g600W+600W3			15min.3-5min.
Chicken,wholeapprox.1200g360W		315min.		20-25min.	Cookwiththe breastsidedown.Turnafter15 minutes.
		+360W
Chickenpieces,e.g.chickenquarters	approx.800g360W320-25min.Cookwiththeskin				down.Donotturn.
Duckbreastapprox.800g180W325-30min.Cookwiththeskin					down.Donotturn.
Pastabake(usingpre-cooked ingredients)	approx.1000g600W118-23min.Sprinklewithgrated				cheese.
Potatogratin(usingrawpotatoes)	approx.1100g600W120-25min.
Fish,grillingapprox.500g600W310-15min.Defrostfrozenfish					beforecooking.
Quarkpudding*approx.800g360W+360W1				15-20min.8-12min.
* Cook the dishes by microwave first. Then start the Combi function.

Automaticprogramming

Yourmicrowavehas10automaticprogrammes.You needonlyentertheprogrammenumberandthe weight.Everythingelseisdoneelectronically.

Youwillfindthesuitablefoodandaweightrangefor eachprogrammeinthetables.Youcansetany weightwithintheweightrange.

Defrosting programmes

Youcanusethe3defrostprogrammestodefrost meat, poultry, fish, bread and cakes.

Preparingfood

Usefoodwhichhasisthinlycutandproperly portioned,andwhichhasbeenfrozenandstored at-18 °C.

Remove all packaging from the food to be defrosted, and weigh the food. You will need to know the weight in order the set the programme.

Delicateparts, suchasthelegsandwingsofchickens orfishtailscanbecoveredwithsmallpiecesof aluminiumfoil. Thispreventsthefoodfromcooking tooquickly.Ensurethatthefoildoesnottouchthe ovenwalls.

Ovenware

Placethefoodinashallow, microwaveabledish, e.g. aglassorchinaplate. Donotcoverthedish.

Standingtime

Thedefrostedfoodshouldbelefttostandfor 10-30 minutestoallowthetemperaturetostabilise. Largepiecesofmeatneedtostandforlongerthan smallones. Thinlycutpiecesofmeatandmince shouldbeseparatedbeforebeinglefttostand.

The food can then be prepared further, even though thick pieces of meat may still be frozen in the middle. With poultry, the gible tscan beremoved at this point.

Warning!

Liquidwillbeproducedwhendefrostingmeat,poultry orfish.Undernocircumstancesshouldthisliquidbe usedorbeallowedtocomeintocontactwithother foods.

Food	Programme number	Weightrange
Meatandpoultry	P01
-roasts		0.2-2.0 kg
-thinpiecesofmeat		0.2-1.5 kg
-mince		0.2-1.0 kg
-chicken,poularde,duck		0.7-2.0 kg
Fish	P0201-10 kg
wholefish,fillet,steak
Breadandcakes*	P030.2-1.5 kg
-wholeloaf,roundorlong,slicesofbread, spongecakes,yeastcakes,fruitcakes
*Creamgateaux,creamcakesandcakeswithicing,frostingorgelatinearenotsuitable.

Cooking programmes

Youcanusethe4cookingprogrammestocookrice, potatoesandvegetables.

Ovenware

Alwayscookthefoodinamicrowaveabledishwitha lid.Youshouldusealarge,talldishforcookingrice.

Preparingfood

Weighthefood.Youwillneedthisinformationinorder tosettheprogramme.

Rice: Donotuseboil-in-the-bagrice. Add the amount of waters specified in the instructions on the packaging. This is usually twoto threetimes the weight of the rice.

Potatoes: For boiled potatoes, cut the fresh potatoes into small, even pieces. Add atablespoon of water and all its salt per 100 g potatoes. Cook new potatoes without water, while they are still moist from washing. Pier cetheskin severaltimes first.

Freshvegetables:Weighthefresh,washed vegetables.Slicethevegetablesintosmall,even pieces.Addatablespoonofwaterper100 g vegetables. Frozenvegetables:Thisprogrammeisonlysuitable forblanched,andnotpre-cookedvegetables.Add 2-4tablespoonsofwater.Itisnotnecessarytoadd watertospinach.

Signal

Asignalwillsoundpartwaythroughtheprogramme. Stirthefood.

Standingtime

Stirthefoodoncemorewhentheprogrammecomes toanend.Leavethefoodtostandfor5-10minutesto allowthetemperaturetostabilise.

The cooking results depend on the quality and nature of the food.

Food	Programme number	WeightrangeSignal tostir
Rice	P040.1-0.3 kgAfterapproximately
-longgrainrice,wholegrainrice,risottorice basmatirice		2-7 minutes
Potatoes	P050.2-1.0 kgFrom510 g:halfway
-boiledpotatoes,newpotatoes		throughthecooking time
Freshvegetables	P060.2-1.0 kgHalfwaythroughthe
-cauliflower,broccoli,peas,fennel, carrots,kohlrabi,leeks,peppers,courgettes		cookingtime
Frozenvegetables	P070.15-1.0 kgHalfwaythroughthe
-cauliflower,broccoli,peas,carrots,kohlrabi, leeks,peppers,Brusselsprouts,spinach		cookingtime

Combination cooking programmes	Thereare3programmesavailableforcookingandbrowningmeatorpoultry.
Preparingfood	Usefreshgoodswherepossible.Frozenfoodmustfirstbecompletelydefrosted.Weighthefood.Youwillneedthisinformationinordertosettheprogramme.Meatloafshouldbenohigherthan7 cmbefore cooking.Porkjointsshouldfirstbeplacedinthedishfattysidedown,andpoultrybreastdown.TheP09porkjointprogrammeisnotsuitableforfull-sizejoints.
Ovenware	Cookthefoodinanappropriatelysized,heat-resistant,microwaveabledish.Useasshallowadish aspossibleformeatloaf.
Standingtime	Porkjointsandmeatloafshouldbelefttostandforapproximately5-10 minutesaftertheprogrammehasendedtoallowthetemperaturetostabilise.Poultrycanbeservedstraightaway.

Food	Programme number	WeightrangeSignaltoturnthe food
Meatloaf-mixedmince,beefmince,lambmince	P080.5-1.7 kg-
Porkjoints-neck,roasts,gammon,cutletswithoutbonesorskin	P090.8-1.5 kgTwothirdsthroughthecookingtime.
Poultry-chicken,poularde,duck	P100.8-2.0 kgTwothirdsthroughthecookingtime.

Settingprocedure:

1. PressthebuttonP. P01appearsinthedisplay.
2. Usetheknobtosetthe programmerequired.
3. PresstheWeightbutton. Thebasicsettingfortheweight appearsinthedisplay.

1. Usetheknobtosettheweightrequired.
   5.PresstheStartbutton. Thetimefortheprogrammecountsdowninthe display.

Whenthetimehaselapsed

asignalsounds. PresstheStopbuttonoropentheovendoor.

Correction

PresstheStopbuttontwiceandresettheoven.

Cancel

PresstheStopbuttontwice.

□Withsomeprogrammes,asignalwillsoundaftera certainlengthoftime.Opentheovendoorandstir thefood,orturnthemeatorpoultry.Simplypress theStartbuttonagainonceyouhaveclosedthe door.

Memory

Youcanusethememoryfunctiontostoretwo settingswhichyouusefrequently.Thesecanbe calledupatanytime.

MemorylocationsM1 and M2 are available to you. Thememory locations are selected using the M button (M=memory). Pressthebutton once for storagespace M1 and twice for storagespace M2.

Storingsettings

Example: Toheatupabowlofsoupfor2minutes at 600W.

1. PresstheMbutton. The indicatorlightabove thebuttonflashes.M1 appearsinthedisplay. Pressthebuttononcemoretoaccessmemory locationM2.

2. Pressthe600Wmicrowavesettingbutton.

1. Settheduration using therotary knob.

1. PresstheMbuttonagain. The settingissaved. Theclockreappearsinthedisplay.

Notes

☐Youcanonlystoreonemicrowavesetting. You cannot store several powersettings one after another.
☐Youcanstoreamicrowavesetting, grillsettingor combinationcookingsetting.
☐Youcanchangeastoredsettingatanytime.Set asdescribedinpoints1to4.

Startingthe Memoryfunction

Youmayretrievethedishesyouhavestoredatany time.

1. PresstheMbuttononceortwice. Thestorage spaceandthetimestoredappearinthedisplay.

1. PresstheStartbutton. Thememorisedoperationruns.

Whenthetimehaselapsed	asignalsounds.0appearsinthedisplay.IfyouopentheovendoororpresstheStopbutton, theclockwillbedisplayedoncemore.
Pause	PresstheStopbuttononceoropentheovendoor.PresstheStartbuttonafterclosingthedoor.
Changes	Thememorysettingscannotbechanged.Ifyouwish tostoreadifferentsetting,assignnewsettingsto storageareasM1andM2.
Cancel	Ifyoustorenewsettings,theprevioussettingswillbe overwritten.

Changingthesignalduration

Asignalsoundsforoneminuteafterthesetduration hasexpired.

Youcanchangethedurationofthesignalfrom 60secondsto4-5seconds.

Procedure

☐Theappliancemustbeswitchedoff.
☐PresstheStartbuttonfor6secondsuntilyouhearasignal.3appearsinthedisplay.

Thechangehasbeenentered.

Youcanchangethesignaldurationto60secondsin thesameway.

Testdishesinaccordancewith EN60705

These meals are used by testing institution to test the quality and function of microwave appliances.

Cooking with microwave only

Meal	Microwavesetting(watts)and durationinminutes	Notes
Custard600 watts,9 mins+180 watts, 15-20 mins		750 gina25x20 cmPyrexdish
Sponge600 watts,8-10 minsPyrexdish22 cmindiameter
Meatloaf600 watts,23-28 mins28 cmPyrexcaketin
Defrosting with microwave only
Meal	Microwavesetting(watts)and durationinminutes	Notes
Meat180 watts,9 mins+90 watts, 10-12 mins		Microwaveableplasticdish22 cmin diameter. Turnafter9 minutes
Cooking with the microwave and grill
Meal	Microwavesetting(watts),grilllevel, durationinminutes	Notes
Potatogratin600 watts,+grilllevel1,20-25 minsPyrexdish22 cmindiameter
Cake-Not recommended
Chicken	1stside:360 watts+grilllevel3,15 mins 2ndside:360 watts+grilllevel3,20-25 mins	Placeinasuitableglassdish. Turnafter15 mins.

Careandcleaning

Donotunderanycircumstancesuseahighpressure orsteamcleaner.

Donotusecausticorabrasivecleaningagentsor sharpmetalscraperstocleantheovendoorglass. Thesurfacecouldbedamagedwhichmayresultin shatteringoftheglass.Ifanabrasivesubstance comesintocontactwiththefrontage,washitoff immediatelywithwater.

Ovenexterior

Simplywipetheappliancewithadampcloth.Adda fewdropsofwashing-upliquidtothewaterifthedirt ismoredifficulttoremove.Wipeitdrywithadrycloth.

Neverusestrongorabrasivecleaningagentsasthese canleavepartsofthesurfaceslookingdull.Ifyouspill acleaningagentonthecasing,wipeitawaywithwater immediately.

Oveninterior

Wipethecookerwithadampclothwhenithas cooled.Splashesandfoodremainsareeasily removedanddonotgetburntonharderthenexttime thecookerisused.

Useamildcleaningagenttoremovemorestubborn dirt.

Drytheinsideofthecookerthoroughlywithasoft clothtopreventanycorrosionfromforming.

Donotuseovensprayoranyotherharshoven cleanersorscouringagent.Scouringpads,rough spongesandpancleanersareunsuitable.These cleaningagentsscratchthesurface.

Unpleasantsmellssuchasfishareeasilyremoved. Pourafewdropsoflemonjuiceinacupofwater.Put ateaspooninthecontainertopreventdelayedboiling. Heatthewateratfullpowerfor1to2minutesatthe maximummicrowavesetting.

Accessories

Soaktheaccessoriesimmediatelyafteruse.

Remaining dirt can then bee easily removed using a washing-up brush or sponge. The wire grill can also be cleaned with stainless steel cleaning agents or can be placed in dish washer.

Turntable

Cleantheturntableandtherollerringwithwashing-up liquid.Wipetherecessinthecookerwithadamp cloth.Ensurethatwaterdoesnotleakthroughthe turntabledriveintotheinsideoftheappliance.The supportringmustslotintoplaceproperlywhenyou re-insertit.

Troubleshooting

Shouldamalfunctionoccur, itisoftenonlyduetoa minorfault. Pleasereadthefollowinginstructions beforecallingtheafter-salesservice:

Problem	PossiblecauseComments/remedy
TheappliancedoesnotworkPlugnotinsertedPlugintheappliance
	PowerfailureCheckwhetherthekitchenlight switcheson
Themicrowavedoesnot switchon	DoorisnotclosedproperlyCheckwhetherleft-overfoodora foreignobjectistrappedinthedoor.
	TheStartbuttonwasnot pressed	PresstheStartbutton.
Themicrowaveisnotworking. Adurationtimeappearsinthe display.	Therotaryknobwas accidentallypressed	PresstheStopbutton
Thefoodtakeslongerthan usualtoheatup	Themicrowavesetting selectedwastoolow	Selectahighersetting
	Agreateramountthan usualwasplacedinthe microwave	Doubletheamount-almostdoublethe cookingtime
Problem		Comments/remedyPossiblecause
	Thefoodwascolderthan usual	Stirorturnthefoodduringcooking
Theturntablemakesa scrapingorgrindingnoise	Dirtorforeignbodyis presentintheturntable drivearea	Cleantherollerringandtherecess.

Repairsmayonlybecarriedoutbyfullytrained after-salesservicetechnicians.Improperrepairs maycauseseriousinjurytotheuser.

After-salesservice

	Ourafter-salesserviceisthereforyouintheeventthat yourapplianceneedstoberepaired.Youwillfindthe addressandtelephonenumberofyournearest after-salesservicecentreinthephonebook.The after-salesservicecentreslistedwillalsobehappyto adviseyouofaservicepointinyourlocalarea.
EnumerandFDnumber	Whencontactingtheafter-salesservice,always specifytheproductnumber(Eno.)andtheproduction number(FDno.)ofyourappliance.Youwillseetheratingplatecontainingthesenumbersontheright-handsidewhenyouopentheovendoor.Makeanoteofthesenumbersinthespacebelowtosave timeintheeventofyourappliancemalfunctioning.

Eno.FDno.

After-salesservice

Technicaldata

Powersupply:230V,50Hz

Totalconnectedload:2.620W

Microwavesetting:1000W

Grill:1300W

Frequency:2.450MHz

Dimensions(HxWxD)

-appliance31x51x39cm

-cookingcompartment21.5x36x35cm

Weight13kg

VDEtested:Yes

CEmark:Yes

This appliance correspond to the EN55011 Standard or CISPR11.

ItisaproductinGroup2,ClassB.

Group2meansthatthemicrowavecanbeusedto heatfood.

ClassBsignifiesthattheapplianceissuitablefor privatedomesticuse.

Two glass glasses, one with a spoon and the other with a black X symbol (no text or labels)

Illustration of a microwave oven with a circular drain and lid (no text or symbols)

Simple illustration of a round plate with no text or symbols

Lèchefrite

Simple line drawing of a circular metal grate with two legs and a central vertical divider (no text or symbols)

Grille

pourgrillerp.ex.dessteaks,saucisses oudestoasts oucommesurfacesupport,p.ex.pour desplatsàgratins.

Placerlagrillesurleplateautournantou danslalèchefrite.

Front view of a microwave oven with control panel and display (no visible text or symbols)

Remarques

Two glass glasses, one with a spoon and the other with a black X symbol (no text or labels)

Illustration of a microwave oven with a circular lid and ventilation slots (no text or symbols)

Simple illustration of a round rectangular plate with no text or symbols

Simple line drawing of a circular metal grate with two legs and vertical supports (no text or symbols)

Front view of a microwave oven with control panel and buttons (no visible text or symbols on the device itself)

Two glass glasses, one with a spoon and the other with a black X symbol (no text or labels)

Illustration of a microwave oven with a circular vent and lid (no text or symbols)

Simple illustration of a circular plate with a black rim (no text or symbols)

Braadslede

Simple line drawing of a circular metal grate with two legs and vertical supports (no text or symbols)

Rooster

Front view of a microwave oven with control panel and display (no visible text or symbols)

Opmerkingen
