AT-DVI15SRS - Video adapter Atlona - Free user manual and instructions

Product Type	DVI Extender (Transmitter and Receiver Pair)
Brand	Atlona
Model	AT-DVI15SRS
Video Bandwidth	1.65 Gbps (DVI 1.1)
Input Signal (TMDS)	1.2 volts (peak-to-peak)
Input Signal (DDC)	5 volts (peak-to-peak)
DVI Connector	DVI-D (digital only)
RJ-45 Connector	With 2 LED indicators
Transmission Distance (XGA)	Up to 30 m (100 ft) at 1024x768 @60Hz
Transmission Distance (WUXGA)	Up to 15 m (50 ft) at 1920x1200 @60Hz
Supported Resolutions	Up to 1920x1200 (WUXGA) @60Hz
Power Requirement	No external power (passive)
Dimensions (L x W x H)	50 mm x 40 mm x 20 mm (2" x 1.6" x 0.8")
Weight (per unit)	44 g (1.6 oz)
EDID Management	Programmable via optional EDID reader/writer (AT-DVISync)
Cable Type	CAT5e or CAT6 (shielded recommended for long distances)
Compliance	DVI 1.1
Package Contents	2x AT-DVI15SRS units, 1x User Manual
Warranty	10 years (for products purchased on or after June 1, 2013)
Cleaning Instructions	Unplug device, use a damp cloth; avoid cleaning fluids or aerosols
Safety Precautions	Avoid moisture, electrostatic discharge may cause auto-off; unplug and replug if needed
Operating Environment	Indoor use, avoid excessive humidity and temperature extremes

Frequently Asked Questions - AT-DVI15SRS Atlona

What is the maximum transmission distance?

The AT-DVI15SRS can extend DVI signals up to 30 m (100 ft) at XGA (1024x768 @60Hz) and up to 15 m (50 ft) at WUXGA (1920x1200 @60Hz). Actual distance may vary depending on cable quality.

Does the extender require external power?

No, the AT-DVI15SRS is a passive device that does not require any external power supply. It draws power from the DVI source.

What type of cable do I need?

Use a single CAT5e or CAT6 cable. For resolutions above 1280x1024, a CAT6 cable is recommended. Shielded cables can help reduce EMI in long runs.

Can I use the units interchangeably as transmitter or receiver?

Yes, the two included units are identical and can function as either the transmitter or receiver, making installation easy.

What do the LED indicators mean?

The two LEDs on the RJ-45 connector will blink when the connection is successfully established between the transmitter and receiver.

How can I update or modify the EDID?

You can use an EDID Reader/Writer (e.g., AT-DVISync) to read or update the EDID information stored in the AT-DVI15SRS.

What is the warranty period?

Atlona offers a 10-year limited warranty for hardware/electronics purchased on or after June 1, 2013. For older purchases, the warranty is 3 years.

Can I use this extender with shielded CAT cable?

Yes, using shielded CAT5e/CAT6 cables can reduce electromagnetic interference (EMI), especially over longer transmission distances.

What should I do if the LEDs are not blinking?

Ensure the CAT cable is tightly connected and not loose. Check that both the DVI source and monitor are powered on. If the issue persists, try a different cable.

Is the device compatible with analog VGA?

No, the AT-DVI15SRS is designed for digital DVI signals only (DVI-D). It does not support analog VGA or DVI-A.

USER MANUAL AT-DVI15SRS Atlona

DVI over single CAT5e or CAT6 powerless Mini-Extender AT-DVI15SRS

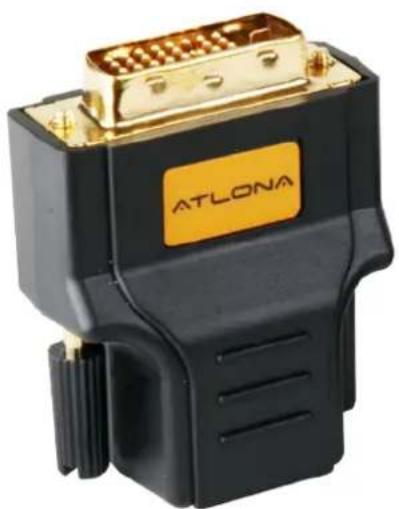

Black and gold ATLONA DTA connector (no visible text or symbols on body)

Black ATLONA wireless router device with visible ports and connectors (no text or symbols on body)

User Manual

TABLE OF CONTENTS

1. Introduction 2
2. Features 2
3. Package Contents 2
4. Specifications 2
5. Connection and Operation 3
6. Notice 3
7. Safety Information 4
8. Warranty 5
9. Atlona Product Registration 6

INTRODUCTION

Atlona AT-DVI15SRS extends your PC DVI transmission distance up to 30m/100ft . With AT-DVI15SRS, users can transmit high quality digital video of PC applications through one cost effective CAT-5/5e to the remote monitor or projector, instead of using short and expensive DVI cables. With embedded EDID inside the extender, your PC will continue to send the digital video even when the monitor is not connected. The user can then disconnects the monitor, place it in a remote location and reconnect it without rebooting the operating system.

Atlona AT-DVI15SRS includes two identical units: transmitting and receiving units. The transmitting unit is connected to your PC DVI output and the receiving unit is connected to the monitor. While successfully connected, the two LED lights on RJ-45 connector will blink. The transmission distance between the sending and receiving units can be up to 30m/100ft at XGA (1024x768 @60Hz) or 15m/50ft at WUXGA (1920x1200@60Hz). With compact size and requiring no power, AT-DVI15SRS is the most cost effective choice for bringing your impressive digital video to the remote display.

FEATURES

• DVI 1.1 compliant
- Handy DVI-D to RJ-45 Adaptor with programmable EDID feature
- Extend the transmission distance from the sources up to 30m/100ft at XGA (1024x768 @60Hz) or 15m/50ft at WUXGA (1920x1200 @60Hz)
- Identical units work at both transmitting and receiving end. Easy to install.
- LED indicators
- Compact size

PACKAGE CONTENT

• 2x AT-DVI15SRS (for both TX: transmitting unit and RX: receiving unit)
  • 1x User manual

SPECIFICATIONS

Video Bandwidth 1.65 Gbps (DVI 1.1)

Input TMDS signal 1.2 volts (peak-to-peak)

Input DDC signal 5 volts (peak-to-peak)

DVI-D Connector digital only

RJ-45 Connector 2 indication LEDs

Dimensions 50mm x 40mm x 20mm / 2"x1.6"x0.8" (L x W x H)

Weight 44g / 1.6oz

1. Connect your transmitting unit to your PC source.
2. Connect your receiving unit to your remote DVI equipped monitor.
3. Make sure your CAT-5/5e/6 cable is tightly connected and not loose.
4. Enjoy your high quality PC video on the screen.

NOTICE

1. If you need to modify EDID content in AT-DVI15SRS, you can use EDID Reader/Writer to update DVI EDID information (AT-DVISync).
2. To reduce the interference among the unshielded twisted pairs of wires in CAT-5/5e/6 cable, you can use shielded CAT-5/5e/6 cables to improve EMI problems, which is worsen in the long transmission.
3. Because the quality of the CAT-5/5e/6 cables has the major effects in how long transmission distance will be made and how good is the received display, the actual transmission length is subject to your CAT-5/5e/6 cables. For resolution greater than 1280x1024, a CAT-6 cable is recommended.

SAFETY INFORMATION

Safeguards

To reduce the risk of electric shock, do not expose this product to rain or moisture void the warranty and safety features. Do not modify the wall plug. Doing so will

If the wall plug does not fit into your local power socket, hire an electrician to replace your obsolete socket. be easily accessible in the case it requires this equipment should be installed near the socket outlet and the device should disconnection.

Precautions

FCC regulations state that any unauthorized changes or modifications to this equipment, not expressly approved by the manufacturer, could void the user's authority to operate this equipment.

Operate this product using only the included external power supply. Use of other power supplies could impair performance, damage the product, or cause fires.

In the event of an electrostatic discharge this device may automatically turn off. If this occurs, unplug the device and plug it back in.

Protect and route power cords so they will not be stepped on or pinched by anything placed on or against them. Be especially careful of plug-ins or cord exit points from this product.

Avoid excessive humidity, sudden temperature changes or temperature extremes.

Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements, fish tanks, and swimming pools.

Use only accessories recommended by Atlona to avoid fire, shock, or other hazards.

Unplug the product before cleaning. Use a damp cloth for cleaning and not cleaning fluid or aerosols.

Such products could enter the unit and cause damage, fire, or electric shock. Some substances may also mar the finish of the product.

Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-DVI15SRS. Opening the product will void the warranty.

Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.

Atlona, Inc. ("Atlona") Limited Product Warranty Policy

Coverage

Atlona warrants its products will substantially perform to their published specifications and will be free from defects in materials and workmanship under normal use, conditions and service.

Under its Limited Product Warranty, Atlona, at its sole discretion, will either:

A) repair or facilitate the repair of defective products within a reasonable period of time, restore products to their proper operating condition and return defective products free of any charge for necessary parts, labor and shipping OR

B) replace and return, free of charge, any defective products with direct replacement or with similar products deemed by Atlona to perform substantially the same function as the original products

OR

C) refund the pro-rated value based on the remaining term of the warranty period, not to exceed MSRP, in cases where products are beyond repair and/or no direct or substantially similar replacement products exist.

Repair, replacement or refund of Atlona's products is the purchaser's exclusive remedy and Atlona's liability does not extend to any other damages, incidental, consequential or otherwise.

This Limited Product Warranty extends to the original end-user purchaser of Atlona's products and is non-transferrable to any subsequent purchaser(s) or owner(s) of these products.

Coverage Periods

Atlona's Limited Product Warranty Period begins on the date of purchase by the end-purchaser. The date contained on the end-purchaser 's sales or delivery receipt is the proof purchase date.

Limited Product Warranty Terms – New Products

• 10 years from proof of purchase date for hardware/electronics products purchased on or after June 1, 2013

• 3 years from proof of purchase date for hardware/electronics products purchased before June 1, 2013

• Lifetime Limited Product Warranty for all cable products

Limited Product Warranty Terms – Refurbished (B-Stock) Products

- 3 years from proof of purchase date for all Refurbished (B-Stock) hardware and electronic products purchased on or after June 1, 2013

Remedy

Atlona recommends that end-purchasers contact their authorized Atlona dealer or reseller from whom they purchased their products. Atlona can also be contacted directly. Visit www.atlona.com for Atlona's contact information and hours of operation. Atlona requires that a dated sales or delivery receipt from an authorized dealer, reseller or end-purchaser is provided before Atlona extends its warranty services. Additionally, a return merchandise authorization (RMA) and/or case number, is required to be obtained from Atlona in advance of returns.

Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408-962-0515 (US/international) or via Atlona's website at www.atlona.com.

Exclusions

This Limited Product Warranty excludes:

- Damage, deterioration or malfunction caused by any alteration, modification, improper use, neglect, improper packing or shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature.

- Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.

- Equipment enclosures, cables, power supplies, batteries, LCD displays, and any accessories used in conjunction with the product(s).

- Products purchased from unauthorized distributors, dealers, resellers, auction websites and similar unauthorized channels of distribution.

Disclaimers

This Limited Product Warranty does not imply that the electronic components contained within Atlona's products will not become obsolete nor does it imply Atlona products or their electronic components will remain compatible with any other current product, technology or any future products or technologies in which Atlona's products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.

Limitation on Liability

The maximum liability of Atlona under this limited product warranty shall not exceed the original Atlona MSRP for its products. To the maximum extent permitted by law, Atlona is not responsible for the direct, special, incidental or consequential damages resulting from any breach of warranty or condition, or under any other legal theory. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

To the maximum extent permitted by law, this limited product warranty and the remedies set forth above are exclusive and in lieu of all other warranties, remedies and conditions, whether oral or written, express or implied. To the maximum extent permitted by law, Atlona specifically disclaims all implied warranties, including, without limitation, warranties of merchantability and fitness for a particular purpose. If Atlona cannot lawfully disclaim or exclude implied warranties under applicable law, then all implied warranties covering its products including warranties of merchantability and fitness for a particular purpose, shall provide to its products under applicable law. If any product to which this limited warranty applies is a “Consumer Product” under the Magnuson-Moss Warranty Act (15 U.S.C.A. §2301, ET SEQ.) or other applicable law, the foregoing disclaimer of implied warranties shall not apply, and all implied warranties on its products, including warranties of merchantability and fitness for the particular purpose, shall apply as provided under applicable law.

Other Conditions

Atlona's Limited Product Warranty offering gives legal rights, and other rights may apply and vary from country to country or state to state. This limited warranty is void if (i) the label bearing the serial number of products have been removed or defaced, (ii) products are not purchased from an authorized Atlona dealer or reseller. A comprehensive list of Atlona's authorized distributors, dealers and resellers can be found at www.atlona.com .

Atlona, Inc Product Registration

Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase.

Registration creates an ownership record if your product is lost or stolen and helps ensure you'll receive notification of performance issues and firmware updates.

At Atlona we respect and protect your privacy, assuring you that your registration information is completely secure. Atlona product registration is completely voluntary and failure to register will not diminish your limited warranty rights.

To register go to: http://www.atlona.com/registration
