Product Type	HDMI Matrix Switch
Brand	Smart-AVI
Model	HDR 4×2-Pro
Video Format	HDMI 1.3b (supports Deep Color, xvYcc)
DVI Compliance	Single-link DVI 1.1
HDCP Compliance	1.0/1.1
Video Bandwidth	340 MHz (10.2 Gbps)
Supported Resolutions	480i, 480p, 720i, 720p, 1080i, 1080p, up to 4K (3840×2260)
Inputs	4× HDMI (7.1ch audio & video)
Outputs	2× HDMI (7.1ch audio & video)
Connector Type	Type A (19-pin female)
Maximum Distance	25 ft (7.6 m)
Control Methods	Front panel tactile switches, optional IR remote
Power Supply	External 100-240 VAC / 5 VDC, 2 A @ 10 W
Dimensions (W × H × D)	6.625" × 1" × 2.875" (168.3 × 25.4 × 73 mm)
Weight	0.8 lbs (0.36 kg)
Approvals	UL, CE, RoHS compliant
Operating Temperature	32–131°F (0–55°C)
Storage Temperature	-4–185°F (-20–85°C)
Humidity	Up to 95%
Rack Mountable	Yes (with optional SmartRack)
Key Features	4×2 non-blocking matrix, individual input selection per output
Maintenance	Keep clean and dry; disconnect power before cleaning.

Frequently Asked Questions - HDR 4×2-Pro Smart-AVI

What is the maximum resolution supported by the HDR 4×2-Pro?

The HDR 4×2-Pro supports resolutions up to 4K (3840×2260), as well as standard HD resolutions like 1080p and 720p.

How many inputs and outputs does this matrix switch have?

It has 4 HDMI inputs and 2 HDMI outputs, allowing any input to be routed to any output.

What HDMI version is supported?

The device supports HDMI 1.3b with Deep Color and xvYcc color space support.

Does the HDR 4×2-Pro support 4K resolution?

Yes, it supports 4K resolution up to 3840×2260.

How do I switch between input sources?

You can switch using the front panel tactile buttons (press Select for each display) or an optional IR remote control.

Can I use an IR remote control?

Yes, an optional IR remote is available for switching inputs. The remote is not included with the unit.

What is the maximum cable length for HDMI connections?

The maximum recommended cable length is 25 feet (7.6 meters) for reliable signal transmission.

Is the HDR 4×2-Pro rack mountable?

Yes, with the optional SmartRack accessory, the unit can be mounted in a standard 19-inch server rack.

What are the power requirements for this device?

It uses an external power adapter: 100-240 VAC input, 5 VDC output at 2A (10W).

What HDCP versions does it support?

It supports HDCP 1.0 and 1.1 for copy-protected content.

USER MANUAL HDR 4×2-Pro Smart-AVI

Technical Specifications

VIDEO
Format HDMI 1.3b [Deep Color, xvYcc color space supported]
DVI Compliance	Single -link DVI D 1.1
HDCP Compliance	1.0/1.1
Video Bandwidth	Single -link 340MHz [10.2Gbps]
Resolution	480i,480p,720i,720p,1080i,1080p
Input Interface	(4) HDMI[7.1ch audio & video]
Output Interface	(2) HDMI[7.1ch audio & video]
Connector	Type A[19 pin female]
Maximum Distance	25 ft.
CONTROL
Front Panel Tact Switch
IR Via Remote Control with IR Type 3
OTHER
Power External 100-240 VAC/SVDC2A @10W
Dimensions 6.625"W x 1"H x 2.875"D
Weight 0.8 lbs.
Approvals UL, CE, ROHS Compliant
Operating Temp.	32-131°F (0-55 °C)
Storage Temp.	-4-185 °F (-20-85 °C)
Humidity	Up to 95%

© Copyright 2011 Smart-AVI, All Rights Reserved

NOTICE

The information contained in this document is subject to change without notice. Smart-AVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for any particular purpose.

Smart-AVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or translated into another language without prior written consent from Smart-AVI.

For more information, visit www.smartavi.com.

Rack Mountable Option

Black server rack with I/O ports and mounting bracket (no visible text or symbols)

Our SmartRack is the perfect solution to allow virtually all SmartAVI devices to be custom mounted in a standard 19" server rack. The SmartRack is fully adjustable and can secure/organize several devices.

Smart-AMI SMART AUDIO VIDEO INNOVATION

SmartAVI, Inc. / Twitter: smartavi 11651 Vanowen St. North Hollywood, CA 91605 Tel: [phone] Fax: [phone] http://www.SmartAVI.com

Smart-AVI SMART AUDIO VIDEO INNOVATION

HDR-4X2-Pro

4K/2K Resolution 4x2 HDMI Matrix Switch

Front view of a black Sony system device with multiple Ethernet ports and indicator lights (no visible text or labels)

Delivers 4K/2K resolution while switching four singals between two displays.

Quick-Start Guide

www.smartavi.com

Introduction

Designed to manage HDTV video installations, the HDR-4X2-Pro can switch four inputs to two outputs. Two outputs give you the choice of routing HD audio and video signals to two displays. The HDR-4X2-Pro eliminates the need to disconnect and reconnect HDMI sources to a single display. Compatible with HD-DVD, computer sources, BlueRay players, gaming consoles, and HDTV set-top boxes. Controlling the switch is simple, via the front tactile buttons or an optional Infrared remote control.

Features

• 4x2 non-blocking, single-link HDMI matrix switch
• Distributes any of the four inputs to any
combination of the two HDMI output displays
• Supports optional IR remote
• HDMI support 1.3c
• HDCP support 1.0/1.1
• Bandwidth 340 MHz (10.2 Gbps)
• Total Transmission Max 25ft
• Resolutions up to 4K (3840x2260)
- Individual tactile buttons for switching HDMI source to each display

Applications

• Home Theater Integration
• Digital Signage Deployment
• Information Kiosks/Displays
• Film/Recording Studios

In HDTV installations, where several sources need to be switched to different displays, SmartAVI's Matrix Switch Series is the perfect solution.

Product - Installation Diagram

Installation

1. Turn off all input devices and displays.
2. Connect the HDMI extension cables to the input devices and to the "IN" ports on the HDR-4X2-Pro.
3. Connect the displays to the "OUT" ports on the HDR-4X2-Pro.
4. Connect the power cord to power-on the HDR-4X2-Pro.
5. Power on the input devices and the displays.
6. Use the front panel buttons to select the desired input port for each display.

Switching Between Ports

Front Panel Control

To switch ports using the front panel, press the Select buttons for each display to cycle through the available ports. The selected port number will be indicated by the LED display.

IR Control (optional)

You may switch ports using an infrared remote control (optional accessory). The selected port number will be indicated by the LED display.

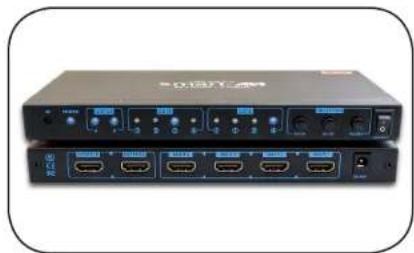

HDR-4X2-Pro Front

HDR-4X2-Pro Rear
