USER MANUAL QB-BKT Impact

Black impact camera mount with adjustable arm against yellow background (no text or symbols on device)

Speed Ring Flash Bracket for QuikBox

INSTRUCTIONS

Introduction

Thank you for choosing the Impact Speed Ring Flash Bracket for Quikbox. This is a replacement bracket for the Impact Quikbox. This bracket can be used to mount an Impact Quikbox softbox to a flash in a variety of configurations. The bracket is adjustable vertically and features a universal shoe that is adjustable horizontally.

This bracket is compatible with nearly all standard flash units, including the Nikon SB-900 and SB-910. It can also be used to install a remote control receiver with the flash and the Quikbox.

For receivers that do not include a bottom shoe connector, the bracket shoe is removable to expose a male 1/4"-20 screw. There are also three plastic washers included in the shoe assembly to accommodate receivers of various sizes.

Contents:

- Impact QB-BKT Speed Ring Flash Bracket with removable shoe

- Three plastic washers

- Adapter ring

-User manual

·One-Year Limited Warranty

Instructions

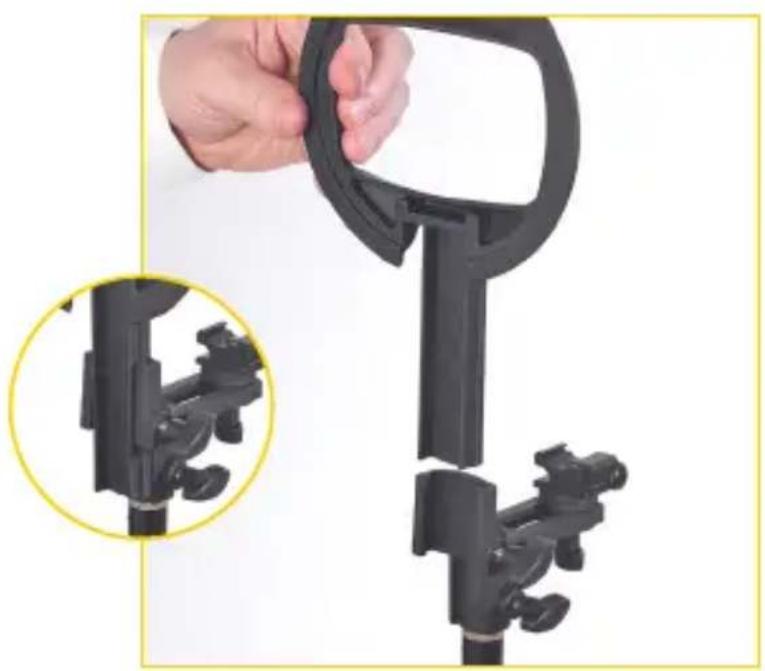

To assemble the Speed Ring Flash Bracket, loosen Thumbscrew C. With the light stand mount (Thumbscrew A) below Thumbscrew C, align the flanges of the bracket with the guide controlled by Thumbscrew C and slide the bracket into the mounting apparatus. Adjust the height to the desired position and tighten Thumbscrew C.

Directions for mounting the Impact Quikbox to the Speed Ring Flash Bracket are included with the Quikbox.

Close-up of a black camera lens mounted on a stand with a hand adjusting the ring (no text or symbols visible)

Compatibility:

- Compatible with the Impact Quikbox 15 × 15" and 24 × 24" softboxes.

Specifications:

·Dimensions – (L × W × H): 4.0 × 5.75 × 10.5" (10 × 14.5 × 27 cm)

·Weight - 8 oz. (227 g)

One-Year Limited Warranty

This IMPACT product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Impact Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Impact along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.impactstudiolighting.com or call Customer Service at 212-594-2353.
