USER MANUAL ANI-QUAD-GRPHX A-NeuVideo

1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference.
2. Follow all instructions printed on unit chassis for proper operation.
3. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid.
4. Make sure power outlets conform to the power requirements listed on the back of the unit. Keep unit protected from rain, water and excessive moisture.
5. Do not attempt to clean the unit with chemical solvents or aerosol cleaners, as this may damage the unit. Dust with a clean dry cloth.
6. Do not use the unit if the electrical power cord is frayed or broken. The power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience receptacles, and the point where they exit from the appliance.
7. Do not force switched or external connections in any way. They should all connect easily, without needing to be forced.
8. Always operate the unit with the AC ground wire connected to the electrical system ground. Precautions should be taken so that the means of grounding of a piece of equipment is not defeated.
9. AC voltage must be correct and the same as that printed on the rear of the unit. Damage caused by connection to improper AC voltage is not covered by any warranty.
10. Turn power off and disconnect unit from AC current before making connections.
11. Never hold a power switch in the "ON" position.
12. This unit should be installed in a cool dry place, away from sources of excessive heat, vibration, dust, moisture and cold. Do not use the unit near stoves, heat registers, radiators, or other heat producing devices.
13. Do not block fan intake or exhaust ports. Do not operate equipment on a surface or in an environment which may impede the normal flow of air around the unit, such as a bed, rug, carpet, or completely enclosed rack. If the unit is used in an extremely dusty or smoky environment, the unit should be periodically "blown free" of foreign dust and matter.
14. To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside. Refer all servicing to qualified service personnel. There are no user serviceable parts inside.
15. When moving the unit, disconnect input ports first, then remove the power cable; finally, disconnect the interconnecting cables to other devices.
16. Do not drive the inputs with a signal level greater than that required to drive equipment to full output.
17. The equipment power cord should be unplugged from the outlet when left unused for a long period of time.
18. Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit, use only the original factory packing.
19. Service Information Equipment should be serviced by qualified service personnel when:
    A. The power supply cord or the plug has been damaged.
    B. Objects have fallen, or liquid has been spilled into the equipment.
    C. The equipment has been exposed to rain.
    D. The equipment does not appear to operate normally, or exhibits a marked change in performance.
    E. The equipment has been dropped, or the enclosure damaged.

CONTENTS

INTRODUCTION&CONTENTS....1

FEATURES&SPECIFICATIONS....2

OPERATIONCONTROLS&FUNCTIONS....3

FRONTPANELCONNECTION....3

BACKPANELCONNECTION....3

REMOTECONTROL....4

IR CODES ....5

OSD MENU 6

RS-232 PROTOCOLS 9

TIMING SUPPORTED 9

RS-232 & TELNET COMMANDS....10

TELNET CONTROL 15

WEB GUI INTERFACE 16

CONNECTION&INSTALLATION....20

DEAR CUSTOMER

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

INTRODUCTION

The ANI-QUAD-GRPHX 4x1 HDMI Seamless Quad PiP Scaler is a high performance, high speed zooming/shrinking system that can be easily configure and controlled for quad or picture-in-picture video processing. Allowing (4) different input sources to be freely selected and arranged on one single display. Supporting output resolutions up to 1080p and audio up to 8CH 192KHz for both inputs and outputs. Screen setting hot keys with IR, RS-232, WebGUI and Telnet allows instant control and switching on the output display. Additionally, this unit features a free logo upload option that will appear on the output display. This product has a 3 year warranty.

PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

• ANI-QUAD-GRPHX 4x1 HDMI Seamless Quad PiP/PoP Scaler
- Remote Control
• 12V/3A DC Power Adaptor
- Rack Ear Sets
- Users Guide

APPLICATIONS

• Broadcasting room and control
  • Surveillance room and control
  • Public advertisement and control
• Digital Presentation

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment:

• Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings or empty slots in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for sufficient space for air to circulate around the unit.

DISCLAIMERS

The information in this manual has been carefully checked and is believed to be accurate. We assume no responsibility for any infringements of patents or other rights of third parties which may result from its use.

We assume no responsibility for any inaccuracies that may be contained in this document. We make no commitment to update or to keep current the information contained in this document.

We reserve the right to make improvements to this document and/or product at any time and without notice.

COPYRIGHT NOTICE

No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or any of its part translated into any language or computer file, in any form or by any means — electronic, mechanical, magnetic, optical, chemical, manual, or otherwise — without the express written permission and consent.

© Copyright 2017. All Rights Reserved.

Version 1.3 SEPT 2017

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be trademarks of the companies with which they are associated.

FEATURES

• Seamless switching between channels and windows
• Zoom and Shrink 4CH input images and/or overlay them
  • Supports PiP, PoP and multi-windows display
  • Supports OSD, RS-232, Telnet, WebGUI, Remote and On-panel controls
• Fade-In-Out, Chromakey, Mirror and Rotation (90° left & right and 180° up & down) functions
  • (8) Screen setting hot keys and an extra (4) customizable favorite screen settings
  • Supports easy individual channel, size and position adjustment
• Supports output image logo display with self-design logo file upload

SYSTEM REQUIREMENTS

- Input source equipment such as DVD/Blu-ray players and PC/NB devices and output HD TV/monitor.

SPECIFICATIONS

• Video Bandwidth: 225MHz/6.75Gbps
- Input Ports: (4) HDMI
• Output Port: (1) HDMI
- Supports Input Resolutions: PC: VGA\~WUXGA, HD: 480i\~1080p
• Supports Output Resolutions: 1080p@60Hz
- HDMI Input Cable Distance: Up to \~50 ft/15M 1080p@12bits
- HDMI Output Cable Distance Up to \~50 ft/15M 1080p@8bits
• Supports Sampling Rates: 32\~192KHz

• ESD Protection Human Body Model:

- ±8kV (air-gap discharge)

• ±4kV (contact-gap discharge)

• Power Supply: 12V/3A DC (US/EU standards, CE/FCC/UL certified)
- Dimensions (WxDxH): 17.2 x 9.7 x 1.7 in (436x246x44mm) (Jack Excluded) / 17.2 x 9.7 x 1.9 in (436x256x49mm) (Jack Included)
• Weight: 6.0 lb (Unit only) / 8.4 lb (Net)
• Chassis Material: Aluminum
- Silkscreen Color: Black
- Operating Temperature: 0°C 40°C / 32°F 104°F
- Storage Temperature: -20°C 60°C / -4°F 140°F
- Relative Humidity: 20\~90% RH (non-condensing)
• Power Consumption: 18W

FRONT PANEL

① IR WINDOW: Accepts IR signals from the device's remote control included in the package
2 POWER: Press this button to power ON the device or set it to standby mode
③ MENU: Press this button to bring up the OSD menu on screen
4 -/+ BUTTONS: Press these buttons to scroll Up /Down the OSD selections
⑤ CHANNEL INPUT 1\~4: Press these buttons to rotate HDMI 1\~4 input sources on each channel to be displayed on screen. All channels can select the same input or a different input for each channel.
6 WINDOW A\~H: Press these hot keys to select the screen setting where A\~D display a full screen of each channel and E\~H are a different combination of a full screen setting of all (4) channels. Windows A\~D channel input selection corresponds to channel inputs No. 1\~4. That is, to change window A's input channel, you must press the channel Input 1 button. Channel Input 2\~4 buttons will not activate under window A's selection. Windows E\~H's sizes are adjustable through the OSD menu setting and only window G is PiP (Picture in Picture) where E, F & H have PoP (Picture out Of picture) settings. Under window E\~H when the size setting is overlapping one another, the channel display sequence is CH4 > CH3 > CH2 >CH1. That is, CH4 will cover CH3 and CH3 will cover CH2 and so on. Under some displays the borderline may have interference, adjusting the display's motion setting may resolve the interference issue.

BACK PANEL

① HDMI IN: Connects with source equipment such as a DVD/Blu-Ray players and/or PC/NB devices
② HDMI OUT: Connects with a HDTV/monitor for output image display at 1080p
3 CONTROL: Connects to an active network for Telnet control
4 USB SERVICE ONLY: This slot is reserved for logo file upload and factory use

LOGO FILE REQUIREMENTS: .bmp files with 256 colors and sizes up to 512x512 pixels

UPLOAD PROCEDURE: Enter into OSD Menu→IO Setup→LOGO Setting→Load New LOGO, now both Window A and CH 1's button LED will illuminate, plug this USB port to your PC/Laptop and wait for USB window to pop up.

Drag and load the logo file into the USB window or into "COPY LOGO" and it will automatically upload. Wait for 1\~2 minutes for the device to reboot itself and the upload to be successful.

5 RS-232: Connects from PC/NB with a D-Sub 15pin cable for RS-232 command sendings
6 DC 12V: Plug the 12V DC power supply into the unit and connect the adaptor to an AC outlet

OUTPUT RESOLUTIONS

1 POWER: Press this button to switch on the device or press it again to set it to standby mode
2 INFO: Press this button to show the device's firmware version
3 INPUT CH 1\~4: Press these buttons to rotate the HDMI 1\~4 Input sources on each channel to be displayed on screen
④ WA\~WH: Press these hot keys to select the screen setting where WA\~WD display a full screen of each channel and WE\~WH display a different combination of a full screen setting for all (4) channels.
⑤ MUTE: Press this button to mute the audio from the HDMI output port
6 ▲▼▶◀ & OK BUTTONS: Press these buttons to scroll through the OSD selection and press OK to enter and confirm the setting
⑦ MENU: Press this button to enter into the OSD menu
8 EXIT: Press this button to exit the OSD menu or the OSD settings
9 FADE-IN-OUT*: Press this button to switch On or Off the Fade-In-Out function
10 CHROMAKEY*: Press this button to enter into the Chroma function where CH 1 is the background and CH 2 is the top image
11 MIRROR*: Press this button to display the screen in mirror image
12 ROTATION*: Press this button to rotate the image 90° left and right or 180° upside down
⑬ AUDIO 1\~4: Press these buttons to select audio from HDMI Input sources 1\~4
14 FAV. 1\~4: Press these buttons to bring up the customized screen settings

IR CODES

CUSTOM CODE: 807F

POWER TOGGLE: 807F 82 CHANNELS:

INFO: 807F 86 CH1: 807F 8A

MUTE: 807F C2 CH2: 807F 8E

UP: 807F 9A CH3: 807F 92

DOWN: 807F 9E CH4: 807F C6

LEFT: 807F 9C

RIGHT: 807F 98 AUDIO SETTINGS:

OK: 807F 9D

EXIT: 807F D8

MENU: 807F 84

FADE IN-OUT: 807F 8F

CHROMEKEY: 807F CC

MIRROR: 807F CD

ROTATION: 807F CE

AUDIO1: 807F 87

AUDIO2: 807F C4

AUDIO3: 807F C5

AUDIO4: 807F D9

FAVORITE SETTINGS:

FAV.1: 807F 97

FAV.2: 807F D4

FAV.3: 807F D5

FAV.4: 807F D6

SCREEN SETTINGS:

WA: 807F 88

WE: 807F 89

WB: 807F 8C

WF: 807F 8D

WC: 807F 90

WG: 807F 91

WD: 807F 85

WH: 807F 95

OSD MENU

NOTE: Bold or Italic fonts and ( ) figures are the factory default setting.

MAIN MENU 1ST LAYER 2ND LAYER 3RD LAYER
Image Adjust	Image Still Adjust	CH1 On/Off
		CH2 On/Off
		CH3 On/Off
		CH4 On/Off
		All Channel On/Off
		Menu Exit
	Image Swap	CH 1 CH 2 Swap
		CH 1 CH 3 Swap
		CH 1 CH 4 Swap
		CH 2 CH 3 Swap
		CH 2 CH 4 Swap
		CH 3 CH 4 Swap
Window Setup	Channel 1/2/3/4 Select	Size Wxxx Hxxx	Width Unit
			Width Ten
			Width Hundred
			Height Unit
			Height Ten
			Height Hundred
			Value Rest
			Menu Exit
		Position Wxxx Hxxx	Height Unit
			Height Ten
			Height Hundred
			Value Rest
			Menu Exit
		Image Output On/Off
		Priority 1~4
		Window Reset
		Menu Exit
	Label Select	Video 1 Rename up to 9 characters
		Video 2 Rename up to 9 characters
		Video 3 Rename up to 9 characters
		Video 4 Rename up to 9 characters
		Menu Exit
	Store Favorites	FAV 1 Store On/Off
		FAV 2 Store On/Off
		FAV 3 Store On/Off
		FAV 4 Store On/Off
		Menu Exit

OSD MENU

MAIN MENU 1ST LAYER 2ND LAYER 3RD LAYER
Window Convert	Channel 1/2/3/4 Convert	Mirror On/Off
		Fade In-Out	Off/1.0/1.1/1.2/1.3/1.4/1.5/1.6/1.7/1.8/1.9/2.0/2.1/2.2/2.3/2.4/2.5/2.6/2.7/2.8/2.9/3.0
		Rotation L90/R90/180/Off
		Window Reset
		Menu Exit
Chromakey Setup*	User 1	Minimum for R/G/B 000~255 (0)
		Maximum for R/G/B 222~255 (255)
	User 2	Minimum for R/G/B 000~255 (0)
		Maximum for R/G/B 222~255 (255)
	White	Minimum for R/G/B 000~255 (233)
		Maximum for R/G/B 222~255 (255)
	Yellow	Minimum for R/G/B 000~255 (233/233/0)
		Maximum for R/G/B 222~255 (255/255/16)
	Cyan	Minimum for R/G/B 000~255 (233/0/233)
		Maximum for R/G/B 222~255 (255/16/255)
	Green	Minimum for R/G/B 000~255 (233/0/0)
		Maximum for R/G/B 222~255 (255/16/16)
	Magenta	Minimum for R/G/B 000~255 (0/233/233)
		Maximum for R/G/B 222~255 (16/255/255)
	Red	Minimum for R/G/B 000~255 (0/233/0)
		Maximum for R/G/B 222~255 (0/233/0)
	Blue	Minimum for R/G/B 000~255 (0/0/232)
		Maximum for R/G/B 222~255 (16/16/255)
	Black	Minimum for R/G/B 000~255 (0)
		Maximum for R/G/B 222~255 (16)
	Switch On/Off
	Exit
Ethernet Setup	IP Mode Static/DHCP
	Static Set IP/Mask/Gate
	Byte1 High 192
	Byte2 168
	Byte3 1
	Byte4 Low 50
	Time Out OFF/10/20/30/40/50/60min
	Re-Link	No/Yes
	Exit
	Static/DHCP IP	LINKED/NOT LINKED
	IP	IP/Mask/Gate
	Mask	xxx. xxx. xxx. xxx
	Gate	xxx. xxx. xxx. xxx
	Mac	xxx. xxx. xxx. xxx
	Sink HDMI/DVI

OSD MENU

MAIN MENU 1ST LAYER 2ND LAYER 3RD LAYER
Audio Setup Audio Source Mute/CH1/2/3/4
Sys Reset On/Off
Information	Screen HDMI
	Native xxxxxx
	F/W version vx.xx
	F/W Upgrade
	Menu Exit
Menu Exit

* Chromakey Setup works only under CH1& CH2 where CH1 is the background and CH2 is the top layer. This special function is designed for pictures overlapping video such as in news reports, weather forecasts or educational videos. CH2, the top layer's background color is usually a single color, which can be easily removed. The RGB settings for CH2 video are such that the minimum setting figures cannot be greater than the maximum figures and the maximum figures cannot be lower than the minimum setting figures. When Input 1 or 2 does not have a source connection, a warning message will appear on the OSD.

TIMING SUPPORTED

INPUT TIMING SUPPORTED OU	TIMING SUPPORTED
640x480@60,72,75,85 1024x768@60,70,75,85 V@60
800x600@56,60,72,75,85 1280x800@60
1024x768@60,70,75,85 1280x1024@60,75 V@60
1360x768@60 1366x768@60
1280x768@60,75 1440x900@60
1280x1024@60,75 1600x900@60
1366x768@60 1600x1200@60
1600x1200@60 480p60
1920x1200@60 576p50
480i60 720p50
576i50 720p60
480p60 1080p24
576p50 1080p25
720p50 1080p30
720p60 1080p50
1080i50 1080p60
1080i60
1080p24
1080p50
1080p60

RS-232 PROTOCOLS

ANI-QUAD-GRPHX REMO
PIN ASSIGNMENT
1	NC
2	Tx
3	Rx
4	NC
5	GND 5
6	NC
7	NC
8	NC
9	NC

PIN ASSIGNMENT
1	NC
2	Rx
3	Tx
4	NC
6	NC
7	NC
8	NC
9	NC

Baud Rate: 115200bps

Data Bit: 8bits

Parity: None

Flow Control: None

Stop Bit: 1

RS-232 & TELNET COMMANDS

COMMAND CODE DESCRIPTION PARAMETER
? PRINTS ALL AVAILABLE RS-232/TELNET COMMANDS TO THE SCREEN
HELP PRINTS ALL AVAILABLE RS-232/TELNET COMMANDS TO THE SCREEN
SPOW 0/1 SETS THE UNIT POWER ON/OFF 0=OFF, 1=ON
RPOW SHOWS CURRENT POWER STATE
SRES 0~18 SETS OUTPUT RESOLUTION (0) 480p 60Hz		(1) 576p 50Hz(2) 720p 50Hz(3) 720p 60Hz(4) 1080p 24Hz(5) 1080p 25Hz(6) 1080p 30Hz(7) 1080p 50Hz(8) 1080p 60Hz(9) 1024x768 60Hz(10) 1280x800 60Hz(11) 1280x1024 60Hz(12) 1366x768 60Hz(13) 1440x900 60Hz(14) 1600x900 60Hz(15) 1600x1200 60Hz(16) 1680x1050 60Hz(17) 1920x1200 60Hz(18) Native
RRES SHOWS CURRENT OUTPUT RESOLUTION
SIOSDD 0/1 ENABLE/DISABLE ONSCREEN INFORMATION DISPLAY 0=OFF, 1=ON (0)
RIOSDD SHOWS INFORMATION OSD DISPLAY CURRENT STATE
SOSDH 0~20	SETS OSD HORIZONTAL POSITION	0~20 (5)
ROSDH	SHOWS OSD HORIZONTAL POSITION CURRENT
SOSDV 0~20	SETS OSD VERTICAL POSITION	0~20 (5)
ROSDV	SHOWS OSD VERTICAL POSITION CURRENT
SOSDT 0, 5~50	SETS OSD DISPLAY TIME	0=OSD OFFOSDTIME (5~50 sec)DEFAULT=10sec
ROSDT	SHOWS OSD DISPLAY CURRENT TIME
SOSDG 0~10	SETS OSD TRANSPARENT VALUE	0~10 (5)
ROSDG	SHOWS OSD TRANSPARENT CURRENT VALUE
SBRI N M	SETS BRIGHTNESS VALUE FOR INPUT CHANNEL	N=0/All, 1~4/CHANNELM=0~100 (50)
RBRI	SHOWS BRIGHTNESS CURRENT VALUE FOR INPUT CHANNEL	0=All, 1~4
RCON	SHOWS CONTRAST CURRENT VALUE	0=All, 1~4
SSAT N M	SETS SATURATION VALUE FOR INPUT CHANNEL	N=0/All, 1~4/CHANNELM=0~100 (50)
RSAT SHOWS SATURATION CURRENT VALUE 0=All, 1~4
SHUE N M	SETS HUE VALUE FOR INPUT CHANNEL	N=0/All, 1~4/CHANNELM=0~100 (50)
RHUE	SHOWS HUE CURRENT VALUE	0=All, 1~4
SSTILL N M	SETS IMAGE STILL	N=0/All, 1~4/CHANNELM=0/OFF, 1/ON (0)
RSTILL	SHOWS IMAGE CURRENT STILL STATUS	0=All, 1~4
COMMAND CODE DESCRIPTION SYNTAX
SSWAP (0~5) SETS OUTPUT IMAGE SWAP 0=CH1 CH2 SWAP		1=CH1 CH3 SWAP2=CH1 CH4 SWAP3=CH2 CH3 SWAP4=CH2 CH4 SWAP5=CH3 CH4 SWAP
RSWAP SHOWS IMAGE	CURRENT INPUT SOURCE 0=CH1 CH2 CURRENT	INPUT SOURCE1=CH1 CH3 CURRENTINPUT SOURCE2=CH1 CH4 CURRENTINPUT SOURCE3=CH2 CH3 CURRENTINPUT SOURCE4=CH2CH4 CURRENTINPUT SOURCE5=CH3 CH4 CURRENTINPUT SOURCE
SPIRE RESETS BRIGHTNESS, CONTRAST, SATURATION, HUE. ALL CHANNEL VALUE TO DEFAULT
SIMRE 1~4 RESETS BRIGHTNESS, CONTRAST, SATURATION or HUE, VALUE TO DEFAULT		1=BRIGHTNESS2=CONTRAST3=SATURATION4=HUE
SHSIZE N M SETS IMAGE	HORIZONTAL SIZE N=1~4	M=0~X HORIZONTALSIZE FOR CURRENTRESOLUTION
RHSIZE SHOWS IMAGE	HORIZONTAL SIZE CURRENT VALUE 1~4 CHANNEL	HORIZONTAL SIZE
SVSIZE N M	SETS IMAGE VERTICAL SIZE N=1~4	M=0~X VERTICALPIXEL FOR CURRENTRESOLUTION
RVSIZE	SHOWS IMAGE VERTICAL SIZE CURRENT VALUE	1~4 CHANNELVERTICAL SIZE
SHPOS N M	SETS HORIZONTAL POSITION OF SPECIFIED CHANNEL	N=1~4M=0~X HORIZONTALPIXEL FOR CURRENTRESOLUTION
RHPOS	SHOWS IMAGE HORIZONTAL POSITION CURRENT VALUE	1~4 CHANNELHORIZONTALPOSITION
SVPOS N M	SETS VERTICAL POSITION OF SPECIFIED CHANNEL N=1~4	M=0~X VERTICALPIXEL FOR CURRENTRESOLUTION
RVPOS	SHOWS IMAGE VERTICAL POSITION CURRENT VALUE	1~4 CHANNELVERTICAL POSITION
SIMAGE N M	SETS OUTPUT CHANNEL IMAGE ON/OFF	N=1~4 M=0/OFF, 1/ON
RIMAGE	SHOWS OUTPUT CHANNEL IMAGE CURRENT	(0)=ALL CHANNEL(1~4)=CHANNEL 1~4
SPRI N M	SETS WINDOWS PRIORITY	N= CHANNEL 1~4M= PRIORITY 1~4
RPRI	SHOWS WINDOWS PRIORITY	0=ALL CHANNEL1~4=CHANNEL 1~4
SLABEL N M ASSIGNS A	PRESET NAME N= CHANNEL 1~4	M= A~Z/0~9....
RLABEL SHOWS PRESET	NAME TO SCREEN 0=ALL CHANNEL	1~4=CHANNEL 1~4
SSTORE 1~4 SAVES THE CURRENT WINDOW TO FAV1~FAV4 1~4= FAV1~FAV4
SRECALL 1~12 SETS A	OUTPUT WINDOWS TO WINDOWS A~WINDOWS FAV4 (1) WA	(2) WB(3) WC(4) WD(5) WE(6) WF(7) WG(8) WH(9) FAV1(10) FAV2(11) FAV3(12) FAV4
SMIRROR 0/1 SETS ENABLE/DISABLE MIRROR EFFECT 0=OFF, 1=ON
RMIRROR	SHOWS MIRROR CURRENT TO SCREEN
SFADE 0~21 SETS FADE	IN-OUT TIME (0) OFF	(1) 1.0 s(2) 1.1s(3) 1.2s(4) 1.3s(5) 1.4s(6) 1.5s(7) 1.6s(8) 1.7s(9) 1.8s(10) 1.9s(11) 2.0s(12) 2.1s(13) 2.2s(14) 2.3s(15) 2.4s(16) 2.5s(17) 2.6s(18) 2.7s(19) 2.8s(20) 2.9s(21) 3.0s (0)
RFADE	SHOWS FADE IN-OUT CURRENT TO SCREEN
SROTATE 0~3	SETS VIDEO ROTATION VIDEO TO PRESET POSITIONS	0=ROTATE OFF1=R902=1803=L90 (0)
RROTATE	SETS CHROMAKEY COLOR FOR CHROMA KEY
SCHRKS 0~9	SETS OUTPUT CHANNEL IMAGE ON/OFF	(0) USER1(1) USER2(2) White(3) Yellow(4) Cyan(5) Green(6) Magenta(7) Red(8) Blue(9) Black (0)
RCHRKS	SHOWS CHROMAKEY KEY COLOR CURRENT TO SCREEN
SCHRC N M SETS THE R,G,B COLOR RANGE FOR THE CHROMA KEY N=0~11		(0) USER1 G MAX(1) USER1 G MIN(2) USER1 R MAX(3) USER1 R MIN(4) USER1 B MAX(5) USER2 B MIN(6) USER2 G MAX(7) USER2 G MIN(8) USER2 B MAX(9) USER2 B MIN(10) USER2 R MAX(11) USER2 R MINM= VALUE 0~255
RCHRC 0~9 SHOWS CHROMAKEY CURRENT TO SCREEN (0) USER1		(1) USER2(2) White(3) Yellow(4) Cyan(5) Green(6) Magenta(7) Red(8) Blue(9) Black
SCHRSW 0/1 SETS ENABLE/DISABLE CHROMAKEY EFFECT 0=OFF, 1=ON (0)
RCHRSW SHOWS CHROMAKEY EFFECT CURRENT TO SCREEN
SIPM 0/1 SETS IP MODE TO DHCP OR STATI 0=0DHCP, 1=STATIC (1)
RIPM SHOWS CURRENT IP MODE TO SCREEN
SIPADD N SETS STATIC IP ADDRESS N=0~255
RIPADD	SHOWS STATIC CURRENT IP ADDRESS TO SCREEN
SMAADD N	SETS STATIC SUBNET ADDRESS	N=0~255
RMAADD	SHOWS STATIC CURRENT SUBNET ADDRESS TO SCREEN
SGAADD N	SETS STATIC GATEWAY ADDRESS	N=0~255
RGAADD	SHOWS STATIC CURRENT GATEWAY ADDRESS TO SCREEN
SETHT 0~6	SETS ETHERNET TIMEOUT	(0) OFF(1) 10 MINUTE(2) 20 MINUTE(3) 30 MINUTE(4) 40 MINUTE(5) 50 MINUTE(6) 60 MINUTE (0)
RETHT	SHOWS ETHERNET TIMEOUT CURRENT TO SCREEN
RELINK	RELINKS THE UNIT IN 2 SECONDS
SMAC 0~9, A~F	SETS MAC ADDRESS	0~9, A~F
RMAC	SHOWS CURRENT MAC ADDRESS TO SCREEN
IPCONFIG	SHOWS ETHERNET ADDRESS TO SCREEN
DEFAULT	RESETS THE UNIT TO FACTORY DEFAULTS
SVICH N M	SETS OUTPUT VIDEO CHANNEL TO SPECIFIED SOURCE	N=0~40=ALL CHANNEL1~4=OUTPUTCHANNELM=1~4 VIDEO SOURCE
RVICH	SHOWS OUTPUT CHANNEL THE VIDEO SOURCE
SMUTE 0/1 SETS MUTE	AUDIO 0=MUTE	1= UNMUTED (1)
RMUTE SHOWS CURRENT	MUTE TO SCREEN
SAUDIO 1~4 SETS OUTPUT	AUDIO TO SPECIFIED SOURCE 1~4=INPUT AUDIO
RAUDIO SHOWS OUTPUT	AUDIO SOURCE TO SCREEN
SCHRE 0~4 RESETS THE	WINDOWS E ~ WINDOWS FAV4CH1~CH4 SETTINGS TO FACTORY DEFAULTS	0=RESET ALL CHANNEL1~4=RESET CHANNEL1~4
SWICORE RESETS THE	WINDOWS A ~ D SETTINGS TO FACTORY DEFAULTS
RBIOS SHOWS BIOS VERSION	VERSION TO SCREEN
RLOGOD SHOWS DISPLAY	AAY LOGO CURRENT STATE
SLOGOD 0/1 ENABLE/DIS	SABLE DISPLAY LOGO	0=OFF, 1=ON
RLOGOH SHOWS LOGO	HORIZONTAL POSITION CURRENT
SLOGOH N	SETS LOGO HORIZONTAL POSITION	N=HORIZONTAL PIXEL FOR CURRENT RESOLUTION
RLOGOV	SHOWS LOGO VERTICAL POSITION CURRENT	0=OFF, 1=ON (0)
SLOGOV N	SETS LOGO VERTICAL POSITION	N=VERTICAL PIXEL FOR CURRENT RESOLUTION
SDEFLOGO	LOADS DEFAULT LOGO
SNEWLOGO	LOADS NEW LOGO

Before attempting to use the Telnet control, please ensure that both the Scaler (via the 'CONTROL' port) and the PC/Laptop are connected to the active networks.

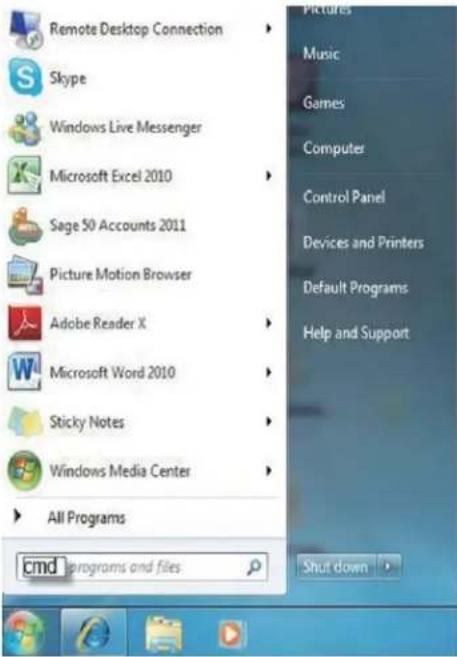

To access the Telnet control in Windows 7, click on the 'Start' menu and type "cmd" in the search field then press ENTER.

In Windows XP go to the 'Start' menu and click on "Run", type "cmd" then press ENTER.

In Mac OS X, go to Go→Applications→Utilities→Terminal See above for reference.

Once in the command line interface (CLI) type "Telnet", then the IP address of the unit and hit ENTER.

NOTE: The IP address of the Scaler can be found under "Ethernet Setup" on the device's OSD menu.

Microsoft Windows [Version 6.1.7601] Copyright (c) 2009 Microsoft Corporation. All rights reserved. C:\Users\Administrator>telnet 192.168.5.80 23

This will bring us into the device which we wish to control. Type “?” to lists all the available commands.

Type "IPCONFIG" to show all IP configurations. To reset the IP, type "IPMODE" to set static IP/DHCP.

Command List	STILL	RCHRSV
HELP	RSTILL	SIPM
SPOW	SSVAP	RIPM
RPOW	HESVAP	SIPADD
SRES	SPIRE	RIPADD
PRES	SIMRE	SMARDD
SIOSDD	SHSIZE	RMAADD
RIOSDD	RHSIZE	RGAADD
COSDH	SUSIZE	RGAADD
ROSDH	RUSIZE	SETHT
SOSDV	SHPOS	BRETHT
ROSDU	RNPOS	PRELINK
SOSDT	SVPOS	SRMAC
ROSDT	RUPOS	RMAC
SOSDG	SIMAGE	IIPCONFIG
ROSDG	RIMAGE	DEFAULT
SLOGOD	SPRI	SVICH
SLOGOD	RPRI	BUICH
SLOGOD	SLABEL	SMUTE
SLOGON	RLABEL	RIMUTE
SLOGON	GSTORE	SAUDIO
SLOGOU	SRECALL	BAUDIO
SLOGOU	SMIRROR	SCHRE
SDEFLOCO	RMIIRROR	SVICORE
SNEVILOGO	SFADE	RBLOS
SBRI	RFADE
SBRI	SROTATE
SCON	UROTATE
SCON	SCHRKS
SSAT	RCHRKS
SSAT	SCHRC
SHUE	RCHRC
SHUE	SCHRSV

NOTE: All the commands will be not executed unless followed by a carriage return. Commands ARE case-insensitive. If the IP is changed then the IP Address required for Telnet access will also need to be change accordingly. A power relink is also required for every IP change.

On a PC/Laptop that is connected to an active network as the Scaler, open a web browser and type device's IP address on the web address entry bar. The browser will display the device's Image Adjust, Output Resolution... etc.

Click on the 'Image Adjust' tab to control Power, Window Mode and the Windows Settings.

Click on 'Image Swap' to swap the output channel's image display instantly.

NOTE: This function is only available under window E\~H.

Click on the 'Output Resolution' tab to set the output display resolution.

Clicking on the 'Windows Setup' tab to set the output display format.

NOTE: This function is only available under window E\~H.

Clicking on the 'OSD/LOGO Settings' tab to set the OSD & LOGO's function and position. Load and Upload logo can also be done under this page. For the upload procedure please refer to the rear panel description of USB SERVICE ONLY port.

Clicking on the 'Window Convert' tab to set the output display angle.

NOTE: This function is only available under window A\~D.

Clicking on the 'Chromakey Setup' tab to set the output display color.

NOTE: This function is only available under window A\~D.

Clicking on the 'Ethernet' tab to reset the IP configuration. The system will ask for a reboot of the device every time when any of the settings are changed. The IP address needed to access the WebGUI control will also need to be changed accordingly on the web address entry bar.

1	2
3	4

Window E (POP)

1	4
2
3

Window F (POP)

Window G (PIP)

Window H (POP)

PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE "PRODUCT"). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product's packing label at your expense. A-NeuVideo, Inc. may modify these Terms and Conditions at anytime, without notice to you.

RESTRICTIONS ON USE OF THE PRODUCT

It is your responsibility to read and understand the installation and operation instructions, both verbal and in writing, provided to you with respect to the Product. You are authorized to use the Product solely in connection with such instructions. Any use of the Product not in accordance with such instructions shall void any warranty pertaining to the Product. Any and all damages that may occur in the use of the Product that is not strictly in accordance with such instructions shall be borne by you and you agree to indemnify and hold harmless A-NeuVideo, Inc. from and against any such damage.

The Product is protected by certain intellectual property rights owned by or licensed to A-NeuVideo. Any intellectual property rights pertaining to the Product are licensed to you by A-NeuVideo, Inc. and/or its affiliates, including any manufacturers or distributors of the Product (collectively, "A-NeuVideo") for your personal use only, provided that you do not change or delete any proprietary notices that may be provided with respect to the Product.

The Product is sold to you and any use of any associated intellectual property is deemed to be licensed to you by A-NeuVideo for your personal use only. A-NeuVideo does not transfer either the title or the intellectual property rights to the Product and A-NeuVideo retains full and complete title to the intellectual property rights therein. All trademarks and logos are owned by A-NeuVideo or its licensors and providers of the Product, and you may not copy or use them in any manner without the prior written consent of A-NeuVideo, which consent may be withheld at the sole discretion of A-NeuVideo.

The functionality and usability of the Product is controlled by A-NeuVideo, Inc. from its offices within the State of Texas, United States of America. A-NeuVideo makes no representation that materials pertaining to the Product are appropriate or available for use in other locations other than the shipping address you provided with respect thereto. You are advised that the Product may be subject to U.S. export controls.

DISCLAIMERS AND LIMITATION OF LIABILITY

A-NeuVideo may change or modify the Product at any time, from time to time.

THE PRODUCT IS PROVIDED "AS IS" AND WITHOUT WARRANTIES OF ANY KIND EITHER EXPRESS OR IMPLIED. A-NEUVIDEO DOES NOT WARRANT OR MAKE ANY REPRESENTATIONS REGARDING THE USE OR THE RESULTS OF THE USE OF THE PRODUCT'S CORRECTNESS, ACCURACY, RELIABILITY, OR OTHERWISE.

A-NeuVideo has no duty or policy to update any information or statements pertaining to the Product and, therefore, such information or statements should not be relied upon as being current as of the date you use the Product. Moreover, any portion of the materials pertaining to the Product may include technical inaccuracies or typographical errors. Changes may be made from time to time without notice with respect to the Product.

TO THE FULLEST EXTENT PERMISSIBLE PURSUANT TO APPLICABLE LAW, A-NEUVIDEO DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT. A-NEUVIDEO DOES NOT WARRANT THE ACCURACY, COMPLETENESS OR USEFULNESS OF ANY INFORMATION WITH RESPECT TO THE PRODUCT. A-NEUVIDEO DOES NOT WARRANT THAT THE FUNCTIONS PERTAINING TO THE PRODUCT WILL BE ERROR-FREE, THAT DEFECTS WITH RESPECT TO THE PRODUCT WILL BE CORRECTED, OR THAT THE MATERIALS PERTAINING THERETO ARE FREE OF DEFECTS OR OTHER HARMFUL COMPONENTS. A-NEUVIDEO WILL USE ITS REASONABLE EFFORTS TO CORRECT ANY DEFECTS IN THE PRODUCT UPON TIMELY WRITTEN NOTICE FROM YOU NOT TO EXCEED 10 BUSINESS DAYS AFTER RECEIPT BY YOU OF THE PRODUCT, BUT YOU (AND NOT A-NEUVIDEO) ASSUME THE ENTIRE COST OF ALL NECESSARY SERVICING, REPAIR AND CORRECTION THAT WAS CAUSED BY YOU UNLESS OTHERWISE AGREED TO IN A SEPARATE WRITING BY A-NEUVIDEO.

UNDER NO CIRCUMSTANCES, INCLUDING, BUT NOT LIMITED TO, NEGLIGENCE, SHALL A-NEUVIDEO BE LIABLE FOR ANY SPECIAL OR CONSEQUENTIAL DAMAGES THAT RESULT FROM THE USE OF, OR THE INABILITY TO USE THE PRODUCT IN ACCORDANCE WITH ITS SPECIFICATIONS, EVEN IF A-NEUVIDEO OR ITS REPRESENTATIVES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL A-NEUVIDEO'S TOTAL LIABILITY TO YOU FROM ALL DAMAGES, LOSSES, AND CAUSES OF ACTION (WHETHER IN CONTRACT, OR OTHERWISE) EXCEED THE AMOUNT YOU PAID TO A-NEUVIDEO, IF ANY, FOR THE PRODUCT.
