Product Type	Premium Thin Client Mount
Brand	Rocstor
Model	Y10N024-B1
VESA Compatibility	50x50, 75x75, 100x100 mm
Package Contents	Mounting brackets, screws (M4x12, M5x25, ST4.8x16), washers, spacers
Required Tools	Phillips screwdriver (not included)
Installation Options	Pole mount, under desk mount, VESA mount
Safety Warning	Stored energy risk: arm lifts when equipment detached; ensure arm is at highest position before detachment
Mounting Surface Requirement	Must be sufficiently robust to support the installed product and equipment
Warranty	5-year limited factory warranty from purchase date (original purchaser only)
Warranty Exclusions	Accident, negligence, misapplication, unauthorized repair, improper installation, tampering with serial number
Customer Support	Phone: [phone], Email: [e-mail]
Manufacturer	Rocstor, 12979 Arroyo Ave, San Fernando, CA 91340, USA

Frequently Asked Questions - Y10N024-B1 Rocstor

What VESA patterns does the Rocstor Y10N024-B1 mount support?

The mount supports VESA patterns 50x50 mm, 75x75 mm, and 100x100 mm.

What tools are required for installation?

A Phillips screwdriver is required. All necessary screws and hardware are included in the package.

Can this mount be installed on a desk or a pole?

Yes, the mount supports multiple installation options: pole mount, under desk mount, and VESA mount.

Is there any safety precaution I should be aware of?

Yes, the arm mechanism is under tension. Never detach the equipment unless the arm is at its highest position to avoid injury or damage.

How do I ensure my mounting surface is suitable?

Verify that the mounting surface is sufficiently robust to support the combined weight of the mount and the equipment.

What is the warranty period for this product?

Rocstor provides a 5-year limited factory warranty from the date of purchase, covering defects in materials and workmanship.

Does the warranty cover accidental damage?

No, the warranty does not cover damage from accident, negligence, misapplication, unauthorized modification, or improper installation.

How can I register my product for warranty?

Register your product online at https://rocstor.com/customer-support/warranty-registration.

What should I do if I encounter installation issues?

Refer to the user manual for detailed installation steps. For further assistance, contact Rocstor technical support at [phone] or [e-mail].

How do I clean and maintain the mount?

Wipe with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure all screws remain tight periodically.

USER MANUAL Y10N024-B1 Rocstor

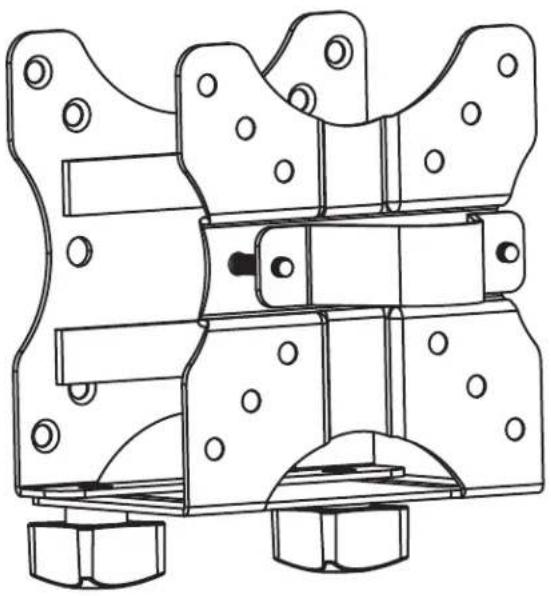

Premium Thin Client Mount

MULTIFUNCTIONAL THIN CLIENT MOUNT

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

User Manual

Y10N024-B1

VESA Compatible

50x50 75x75 100x00

Package Content

1xA	x1B	x1C
x3D	x4-ST4.8x16E	x2-M5x25F
x8-M4x12G	x4H	x4I

The following tools are required for proper installation:

Phillips Screwdriver

1

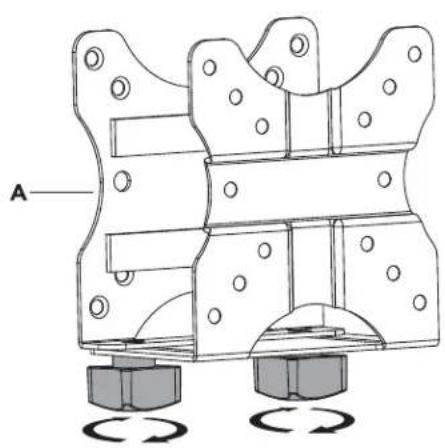

Pole Installation

Technical diagram of a mechanical assembly with two bolted components and circular motion indicators (no text or symbols)

Technical line drawing of two mechanical bracket components with mounting holes and mounting flanges (no text or symbols)

2

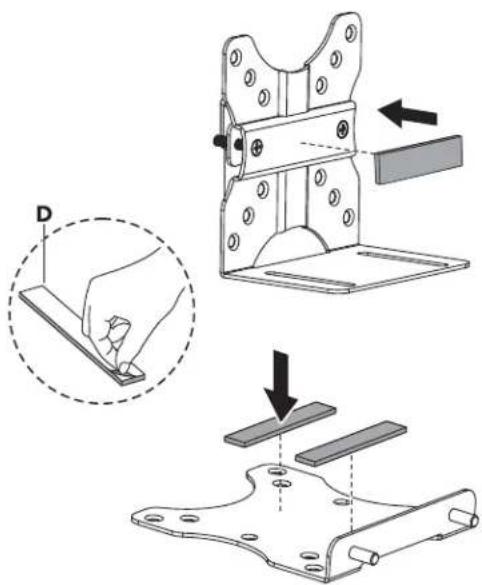

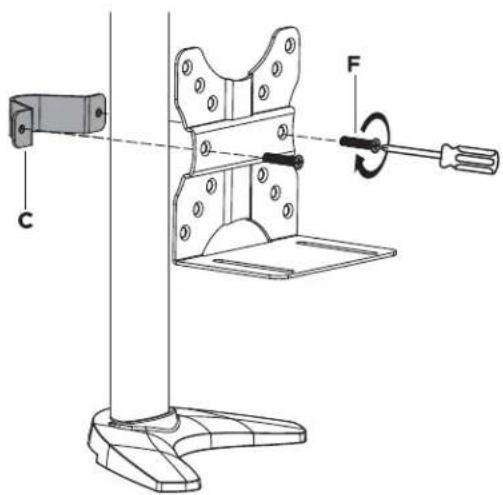

Pole Installation

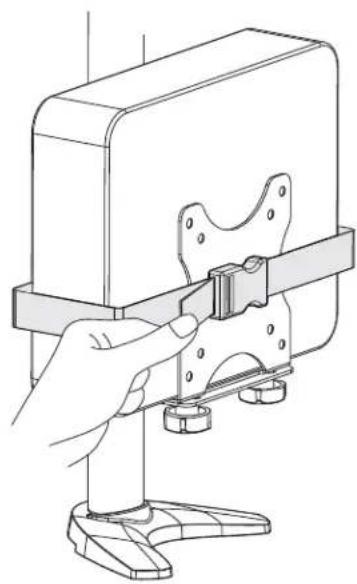

3

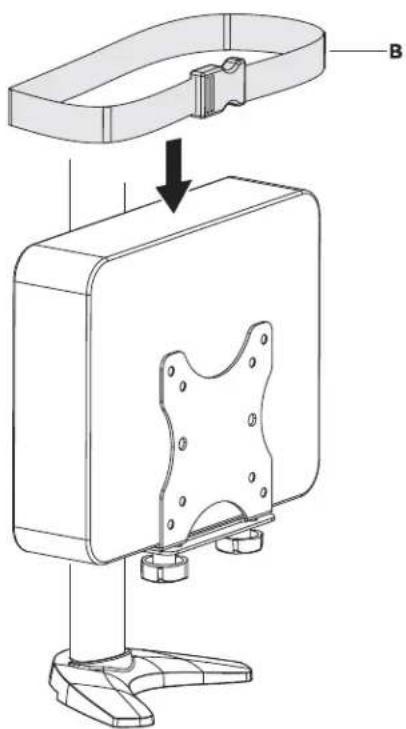

Pole Installation

Technical line drawing of a mechanical clamp or bracket assembly with mounting holes and two circular components below (no text or symbols)

Technical line drawing of a mechanical assembly with a downward arrow indicating force or movement (no text or symbols present)

4

Pole Installation

Line drawing of a hand using a clamp to adjust or install a mechanical component (no text or symbols present)

1

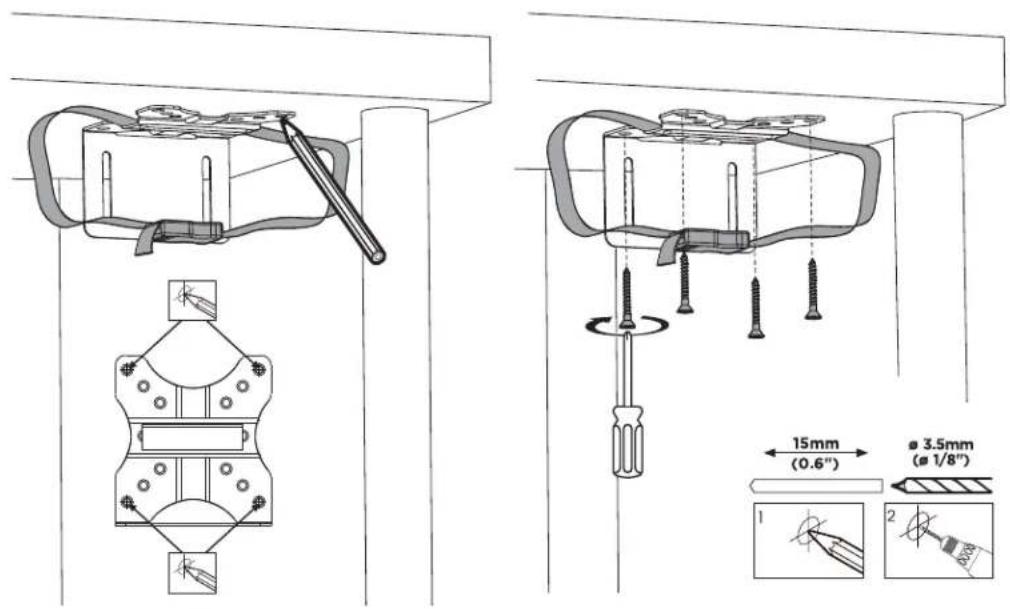

Under Desk Installation

Technical illustration of a mechanical bracket assembly with an inset showing hand positioning (no text or symbols)

2

Under Desk Installation

3

Under Desk Installation

Technical line drawing of a mechanical assembly with gears and shafts, no text or symbols present

4

Under Desk Installation

Diagram showing a mechanical assembly with an inset close-up of a hand interacting with a component (no text or symbols present)

1

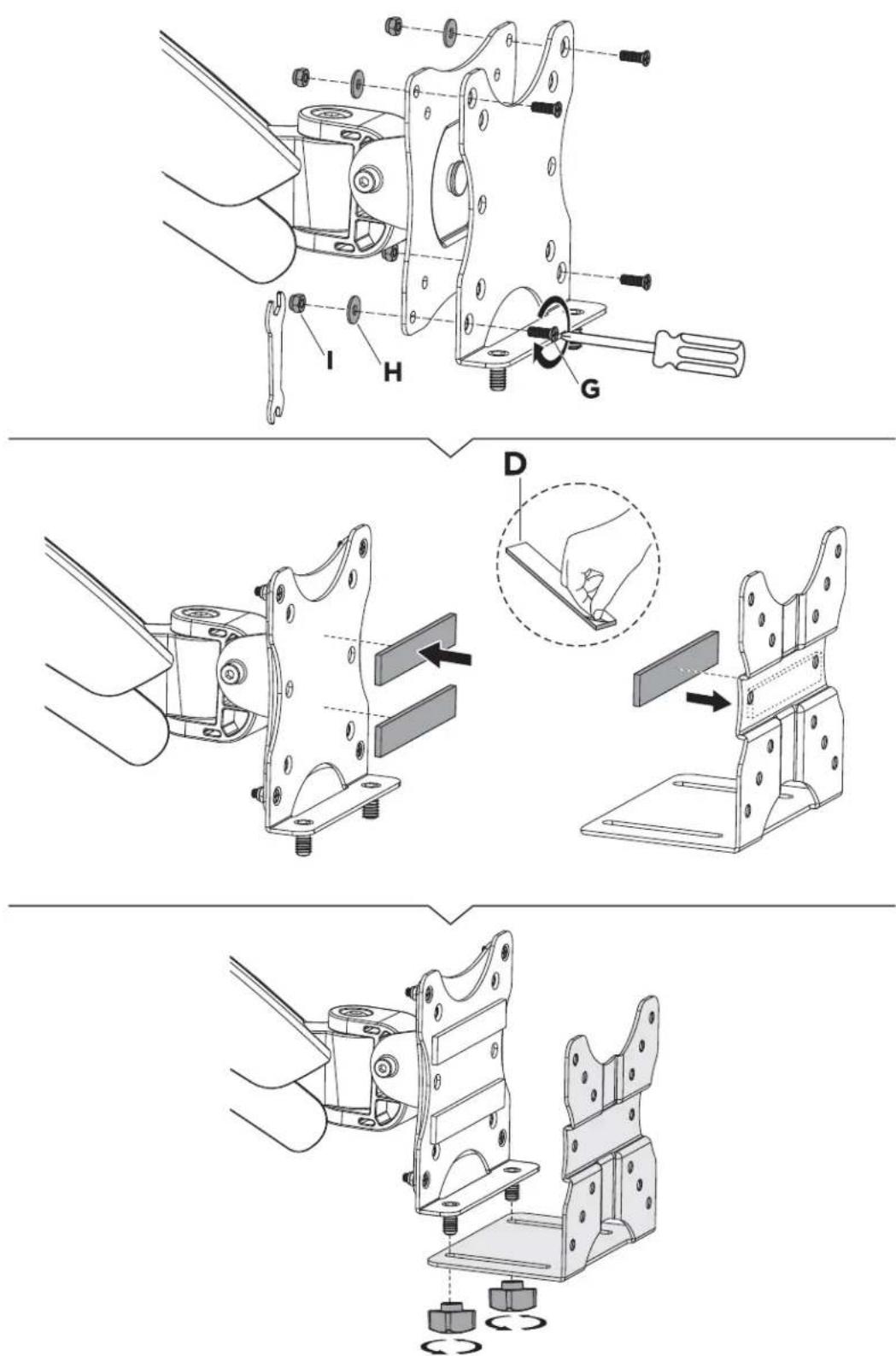

VESA Installation

2

VESA Installation

Safety Seguridad Sécurité Sicurezza Sicherheit Veiligheid

EN

WARNING: Given the potential variability of mounting surface materials, it is crucial to verify that the mounting surface is sufficiently robust to support the installed product and equipment.

WARNING! Stored Energy Risk. The arm mechanism is under tension and will autonomously elevate when attached equipment is detached. Consequently, NEVER disengage equipment unless the arm has reached its utmost position! Neglecting this directive could lead to severe personal injury and/or equipment damage.

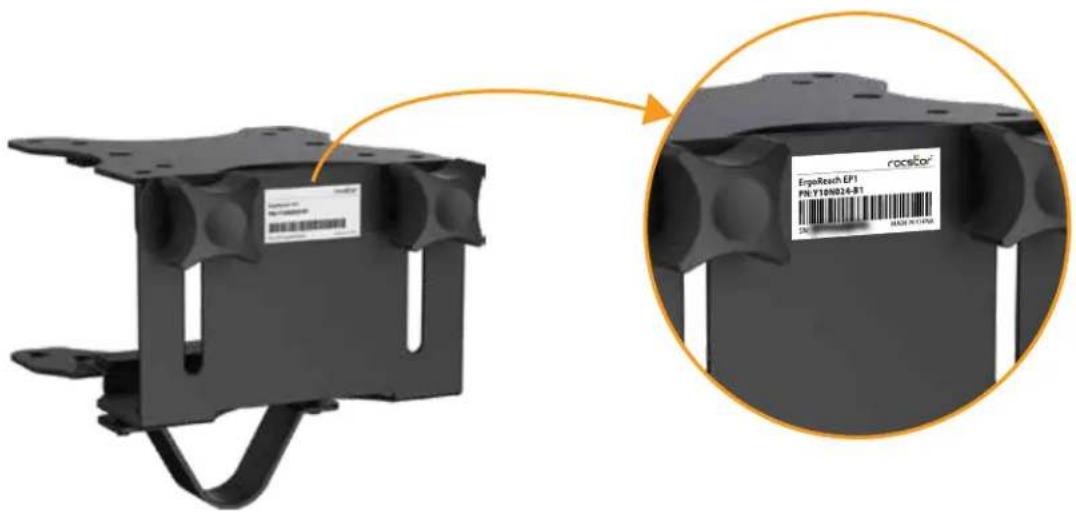

Note: For support and warranty information, when contacting Rocstor customer service, please reference the serial number.

ES Nota: Para obtener información de soporte y garantía, al contactar con el servicio de atención al cliente de Rocstor, por favor, mencione el número de serie.
FR Note: Pour obtenir des informations sur le support et la garantie, lors de la prise de contact avec le service client de Rocstor, veuillez mentionner le numéro de série.
DE Hinweis: Für Informationen zum Support und zur Garantie, geben Sie bitte bei der Kontaktaufnahme mit dem Rocstor-Kundenservice die Seriennummer an.
JA 注意: サポートおよび保証情報については、Rocstorカスタマーサービスに連絡する際に、シリアル番号をご参照ください。
ZH **注意:**如需支持和保修信息,请在联系Rocstor客户服务时提供序列号。
NL Let op: Voor ondersteuning en garantie-informatie, vermeld bij contact met de klantenservice van Rocstor alstublieft het serienummer.
IT Nota: Per informazioni sul supporto e sulla garanzia, quando contattate il servizio clienti Rocstor, vi preghiamo di fare riferimento al numero di serie.
TR Not: Destek ve garanti bilgileri için Rocstor müşteri hizmetleriyle iletişime geçerken lütfen seri numarasını belirtiniz.

Five-Year Factory Warranty

Rocstor provides a Limited Factory Warranty which applies to products you have purchased for commercial Household use in the ordinary course of your business.

Terms of warranty

Rocstor warrants its ErgoReach and ErgoCenter product series to be free from defects in materials and workmanship for a period of five years from the date of purchase. Rocstor's obligation under this warranty coverage is limited to repairing or replacing, at its sole discretion, any such defective products. This warranty does not apply to equipment that has been damaged by accident, negligence, or misapplication or has been altered or modified in any way. In the event Rocstor repairs or provide a replacement of a defective product or part, the warranty does not extend the original warranty period. Rocstor reserves the right to repair or replace any parts under warranty as new or factory re manufactured.

Non-transferable warranty

This warranty extends only to the original purchaser who must have properly registered the product. The product may be registered at the Rocstor Web site, https://rocstor.com/customer-support/warranty registration.

Exclusions

If Rocstor tests or examines the alleged defect in the product and finds that the damages or defects do not exist or were caused by a third party or an end user's misuse, improper installation or testing, or negligence, then Rocstor shall not be liable under the warranty. Furthermore, unauthorized attempts to repair or modify the product by wrong or inadequate electrical connection or voltage, inadequate or inappropriate site operation conditions, repair, installation corrosive area or atmosphere, a change in location or operating conditions or use, repair by non-Rocstor designated personnel, exposure to the elements, fire, Acts of God, theft, or equipment installation not recommended or contrary to Rocstor's specifications or recommendations. Warranties will be void and Rocstor will not be liable if the product serial number is tampered with, altered, removed, defaced or any other cause beyond the range of intended use.
