MRRB12W - Food Container MORPHY RICHARDS - Free user manual and instructions

Product Type	Auto Rice Dispenser
Brand	Morphy Richards
Model	MRRB12W
Colour	White
Construction Material	ABS & PP Plastic
Maximum Capacity	12 kg
Product Dimensions (L x W x H)	397 x 185 x 430 mm
Net Weight	4.15 kg
Timer Battery Type	3V button cell
Timer Battery Lifespan	2 years
Timer Memory	21 days
Dispensing Mechanism	Press dial button for approx. 150 g (1-2 cups) per press
Moisture Drying Box	Included, food-grade material for herbs or drying agents
Power Source	Battery (timer) + manual operation
Cleaning Instructions	Use soft damp cloth; do not immerse in water or use in dishwasher/microwave
Safety Features	Locked dial when tray removed; button battery warning; child supervision required
Intended Use	Domestic storage of rice, cereals, and other food
Operating Temperature Range	Do not exceed 60°C ambient
Warranty	Refer to warranty card in box; contact customer care for details
Customer Care Contact (AU)	1300 556 816
Customer Care Contact (NZ)	0800 666 2824

Frequently Asked Questions - MRRB12W MORPHY RICHARDS

How does the timer work?

The timer counts days from first power-on. It starts at 01 and records each day. After 21 days, it beeps three times and the display flashes. Press and hold the switch button for 2 seconds to reset.

How do I replace the timer battery?

Remove the timer from the circular groove using a tool. Release the safety clip, lift the rear cover, replace the 3V button battery, and reassemble. Ensure the button faces down when reinstalling.

What is the maximum capacity of the rice dispenser?

The maximum capacity is 12 kg of rice or other dry food.

How much rice is dispensed per press?

Each press of the dial button dispenses approximately 150 g of rice, which is about 1-2 cups.

Can I store other foods besides rice?

Yes, this product is designed for storing rice, cereals, and other dry food items.

How do I clean the rice dispenser?

Use a clean, soft wet cloth to wipe the inner barrel, rice outlet tray, moisture drying box, and outer surface. Dry with a clean cloth. Do not use abrasive cleaners or immerse in water. Do not clean in a dishwasher or microwave.

Why is the dial button locked?

The dial button locks when the rice outlet tray is not in place. This prevents accidental dispensing. Ensure the tray is properly inserted before pressing the dial.

How do I use the moisture drying box?

Open the drying box and add edible moisture-absorbing items (e.g., herbs or drying agents). Close the box and place it inside the rice dispenser to help remove moisture and prevent insects.

Is the rice dispenser safe for children?

The appliance contains a 3V button battery which can be dangerous if swallowed. Keep batteries out of reach of children and supervise use. If you suspect a child has swallowed a battery, call the Poisons Information Centre immediately.

What should I do if the rice dispenser malfunctions?

Do not attempt to repair it yourself. Contact the Customer Care Centre at 1300 556 816 (Australia) or 0800 666 2824 (New Zealand) for advice or service.

USER MANUAL MRRB12W MORPHY RICHARDS

smart ideas for your home

Auto Rice Dispenser

INSTRUCTION MANUAL

Model: MRRB12W

Read these instructions carefully before using this appliance for the first time.

STORE THESE INSTRUCTIONS CAREFULLY

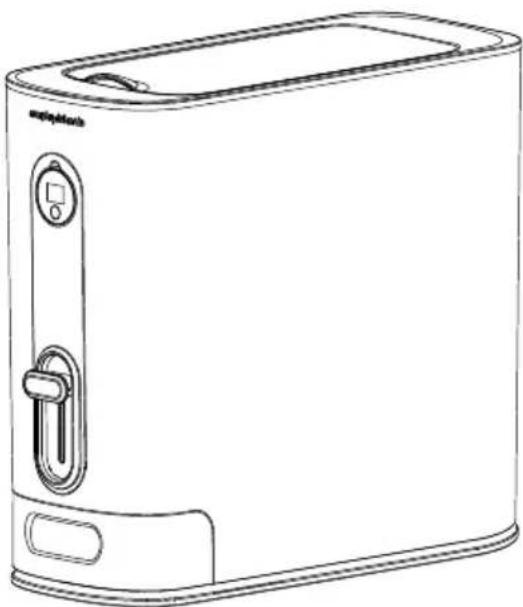

Line drawing of a rectangular electronic device with a handle and control panel (no text or symbols)

For product hints and tips plus more join us at

www.morphyrichards.com.au

facebook.com/MorphyRichardsAUS instagram.com/morphyrichardsau

• Before using this product, please read this manual carefully.
• This product is intended for domestic use.
• This product should not be placed on or beside high temperature gas or electric stoves.
• Discarded electrical products and devices should be taken to a recycling station.
• This product should only be used for storing rice, cereals and other food.
• Do not use abrasive cleaning items to wipe the product surface.
• Use warm water, neutral detergent and wipe with a clean cloth.
• Children should be supervised to ensure that they do not play with the appliance.
• Appliances can not be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way.
• In the absence of supervision, the cleaning and maintenance work should not be done by children.
• Do not use this product if any parts are missing or damaged.
• Do not attempt to repair or adjust any mechanical functions of this appliance. If the appliance is damaged, please contact the Customer Care Centre number located at the end of this manual.
• This appliance must not be immersed in water or other liquids.

• Do not disassemble, squeeze, puncture or submerge the product in water.

• Do not keep this appliance in an environment with a temperature higher than 60 °C.

• This product is suitable for home use, do not use it for other purposes.
• Do not put any part of this product into a dishwasher, microwave oven, disinfection cabinet or hot water over 60 °C for cleaning or disinfection. Do not use other equipment for heating to avoid deformation or damage of parts.
• Please use a clean and soft wet cloth to wipe the inner barrel, rice outlet tray, moisture drying box and the surface of the product evenly, and then dry it with a dry cloth.
• Do not use toxic cleaning solutions to clean this appliance.

WARNING: KEEP BATTERIES OUT OF REACH OF CHILDREN

• This appliance contains a 3V button battery. Swallowing may lead to serious injury or death in as little as 2 hours due to chemical burns or perforation of the oesophagus.
• If you suspect a child has swallowed or inserted a button battery, immediately call the 24 hour Poisons Information Centre on 13 11 26 (Australia) or 0800 764 766 (New Zealand) for fast, expert advice.
• Examine devices and make sure the battery compartment is correctly secured, e.g. that the screw or other fastener is tightened. Do not use if the compartment is not secure.
• Dispose of used button batteries immediately and safely. Flat batteries can still be dangerous.

INTRODUCTION

Thank you for purchasing a Morphy Richards Auto Rice Dispenser. Please take some time to familiarise yourself with your new appliance. This manual explains what you need to do before first use as well as explaining some hints and tips to keep your product operating correctly.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

SPECIFICATIONS

Model: MRRB12W
Colour: White
Construction Material: ABS & PP Plastic
Timer Battery Rated Voltage: 3V
Timer Battery Lifespan: 2 years
Timer Memory: 21 days
Maximum Capacity: 12kg
Product Dimensions (L x W x H): 397 x 185 x 430mm
Net Weight: 4.15kg

Before first use, please take a few minutes to read this manual and find a place to keep it handy for future reference. Please pay particular attention to the safety instructions.

1. Unpack the appliance and check that all items are included.
2. Remove the rice dispenser cover and pour rice into the cavity (the maximum capacity of this product is 12kg). Close the rice dispenser cover.

Line drawing of a rectangular electronic device with a lid and handle, no text or symbols present

1. When the appliance leaves the factory, it is in an off state. Press the switch button to start the machine and it will start to calculate the days. The first power on starts from 01 days, and the timer records each day. When it reaches 21, the timer sounds three times, and the display starts to flash. Until the user presses the switch button, (long press for two seconds) the timer will reset. If the number of days is not reset, the display continues to flash and will continue to record the number of days.

2. Press the dial button down. After releasing the button, the dial button will rebound automatically, and approximately 150g rice (1-2 cups) will drop into the rice outlet tray.

Diagram of a device with a lock and handle, showing a close-up of the handle (no text or symbols present)

1. Remove the rice outlet tray.

Line drawing of a device with a handle and lid, showing a red arrow indicating direction (no text or symbols)

WARNING: When the rice outlet tray is not in the appliance, the dial button is in a locked position, and rice can not be dispensed. Do not press the dial button with excessive force.

BATTERY REPLACEMENT

1. Use a tool to remove the timer from the circular groove as shown in the diagram.

Line drawing of a rectangular electronic device with a close-up inset showing a red-handled knob (no text or symbols)

1. Remove the timer.

Line drawing of a rectangular electronic device with a handle and control panel (no text or symbols)

1. Release the safety clip of the timer button and lift upwards to remove the rear cover.
2. Remove the 3V button battery and replace with a new battery.
3. Replace the rear cover, which should be aligned with the two holes of the timer cover and close the cover.

1. The timer is installed in the viewing window, ensure the button is installed facing down.

WARNING: This appliance contains a 3V button battery. Keep batteries out of the reach of children. If you suspect a child has swallowed a button battery, immediately call the 24 hour Poisons Information Centre on 13 11 26 (Australia) or 0800 764 766 (New Zealand) for fast, expert advice.

MOISTURE DRYING BOX

This appliance is supplied with a drying box, which is food grade material and can have herbs or drying agents added to remove moisture and prevent insects from your rice supply.

Line drawing of a computer mouse with no visible text or symbols

Open the drying box and add edible moisture and insect proof items. Close the drying box and put into the rice dispenser.

MAINTENANCE

If the unit fails to operate efficiently, is broken or other problems arise, do not operate.

Ask for advice by calling your local after sales service agent or the Customer Care Centre on 1300 556 816 (AU) / 0800 666 2824 (NZ).

WARRANTY

Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below.

Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 8 Lakeview Drive, 38 Harris Road, East Tamaki, Scoresby 3179, Victoria Auckland 2013

Australia New Zealand Ph: 1300 556 816 Ph: 0800 666 2824

NOTES

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Recycling: Do not dispose of electrical appliances as unsorted municipal waste. Use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the ground water, polluting the food chain and damaging health and wellbeing.
