ZDSKVW1 - Loudspeaker PHOENIX GOLD - Free user manual and instructions

Brand	Phoenix Gold
Model	ZDSKVW1
Product Type	Car Audio Coaxial Speaker
Size	6.5 inches (165 mm)
Impedance	4 ohms
Power Handling (RMS)	60 watts
Power Handling (Peak)	180 watts
Sensitivity	90 dB
Frequency Response	60 Hz – 20 kHz
Mounting Depth	2.5 inches (63.5 mm)
Cutout Diameter	5.5 inches (140 mm)
Tweeter Type	Silk Dome
Magnet Type	Ferrite
Voice Coil	1-inch copper
Protection Grille	Included
Certifications	CE, RoHS
Warranty	1 year limited

Frequently Asked Questions - ZDSKVW1 PHOENIX GOLD

What is the power handling of the ZDSKVW1?

The Phoenix Gold ZDSKVW1 speaker has an RMS power handling of 60 watts and a peak power handling of 180 watts.

What is the impedance of this speaker?

The speaker impedance is 4 ohms, which is standard for most car audio systems.

What size is the Phoenix Gold ZDSKVW1?

It is a 6.5-inch coaxial speaker, with a mounting depth of 2.5 inches.

Does the speaker come with a grille?

Yes, the ZDSKVW1 includes a protection grille for installation.

What is the sensitivity rating?

The sensitivity is 90 dB, meaning it produces good volume with moderate power.

Is the ZDSKVW1 compatible with my car?

It fits most vehicles with a 6.5-inch speaker opening. Check your car's speaker size and mounting depth.

How do I clean the speakers?

Gently dust the grille and cone with a soft brush. Avoid using liquids or abrasive cleaners.

What is the frequency response?

The frequency response ranges from 60 Hz to 20 kHz, covering bass to high treble.

Can I use these speakers in a home audio system?

Yes, but they are designed for car audio. For home use, you need a suitable amplifier with 4-ohm output.

What is the warranty period?

The Phoenix Gold ZDSKVW1 comes with a 1-year limited warranty against defects.

USER MANUAL ZDSKVW1 PHOENIX GOLD

ZDSKVW1

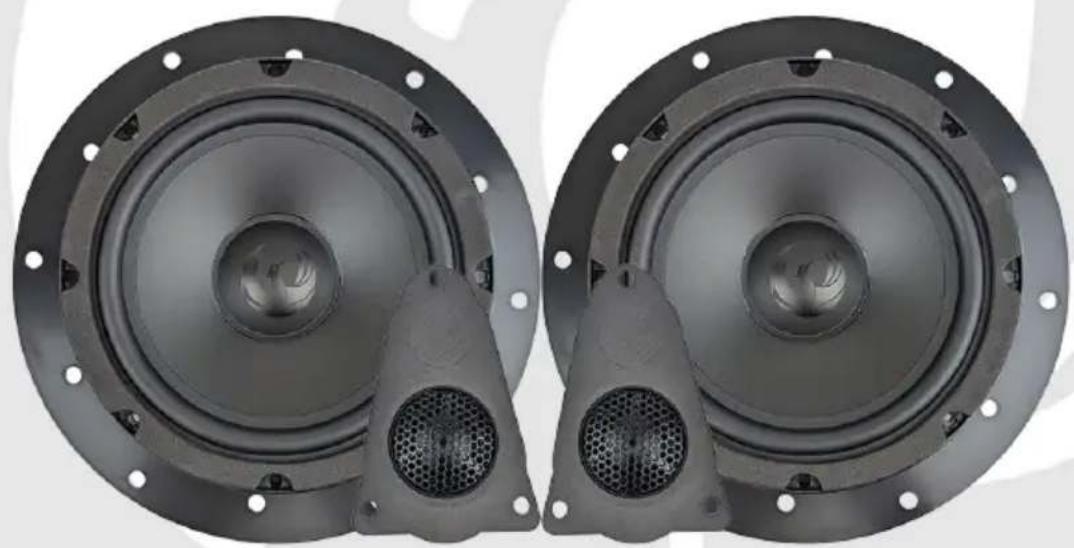

Plug & Play 2-Way Speaker Upgrade Kit

160W MAX POWER

80W RMS

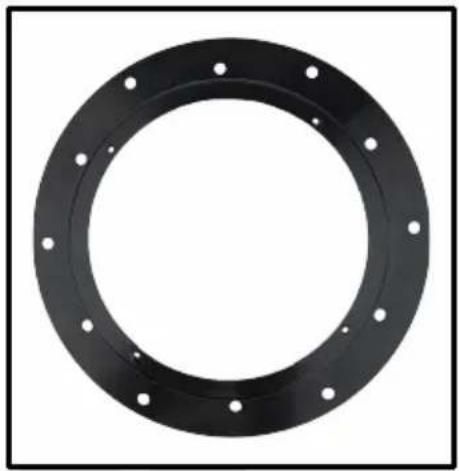

2x Speakers 2x Adapter Rings 2x Tweeters

2x Tweeter Adapters

2x Speaker Harness 2x

2x Tweeter Harness

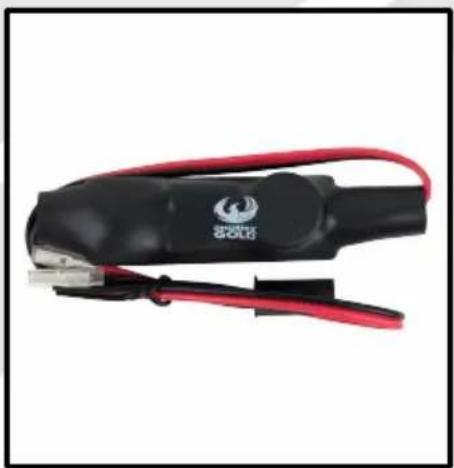

2x ZZF-LP4000 2x ZZF-HP4000-6

Quick Start Guide

1

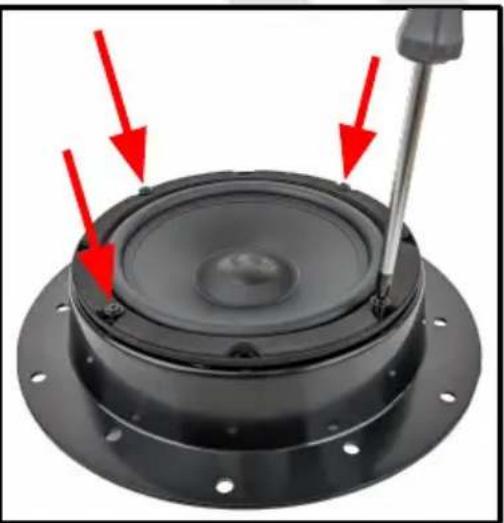

Screw the speaker into the speaker adapter.

2

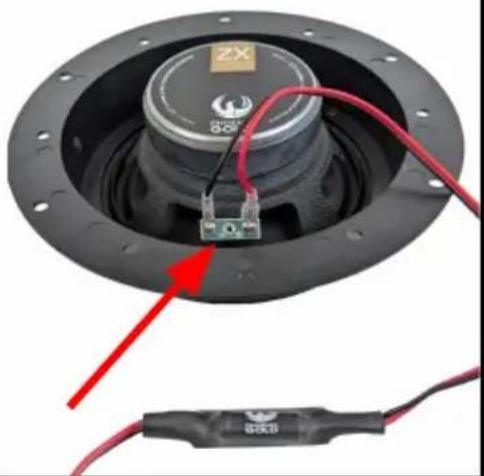

Connect the ZZF-LP4000 filter to the speaker.

3

Connect the speaker harness to ZZF-LP4000.

Quick Start Guide

4

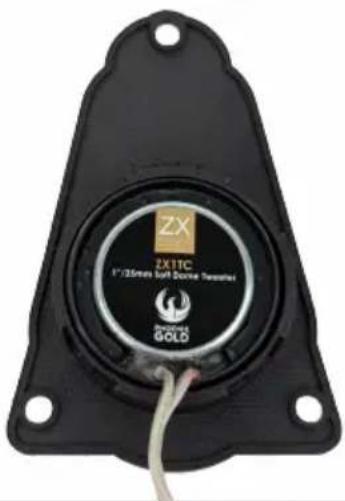

Put the tweeter into the tweeter adapter.

5

Attach the bottom plate to the back of the tweeter adapter.

6

Connect the ZZF-HP4000-6 filter to the tweeter.

Connect the tweeter harness to the ZZF-HP4000-6 filter.

Specifications

Speaker Type: 2-Way Speaker Kit

Speaker Size: 6.5” (165mm) / 1” (25mm)

Frequency Response: 60Hz - 20kHz

Power Handling (RMS): 80W

Power Handling (MAX): 160W

Impedance: 4Ω

Sensitivity: 89dB (1W/1m)

Fs: 62Hz

Qts: 0.593

Crossover: Inline Crossovers

1” (25mm) Voice Coil

Polypropylene cone with rubber surround

Fitment List

Make Model Year Fitment
Volkswagen Caravelle 2003 - 20		10 (T5) Front Doors
Volkswagen Caravelle 2010 - 20		15 (T5) (Facelift) Front Doors
Volkswagen Multivan 2003 - 20		10 (T5) Front Doors
Volkswagen Multivan 2010 - 20		15 (T5) (Facelift) Front Doors
Volkswagen Transporter 2003 -		2010 (T5) Front Doors
Volkswagen Transporter 2010 -		2015 (T5) (Facelift) Front Doors

Disclaimer

Always ensure the speaker is securely attached. Phoenix Gold accepts no responsibility for damage or injury in relation to inappropriate securing of this product.

Phoenix Gold Product Warranty

LIMITED WARRANTY ON SPEAKERS

Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold or it's Country distributor / reseller will (at its discretion) repair or replace the defective product with new or re-manufactured product at no charge. Damage caused by the following is not covered under warranty: accident, misuse, abuse, product modification or neglect, failure to follow installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty.
