KATHM8WNCHC - Wine cabinet Kogan - Free user manual and instructions

Product Type	Wine Cooler
Brand	Kogan
Model	KATHM8WNCHC
Capacity	8 standard wine bottles
Temperature Range	5°C to 18°C (41°F to 64°F)
Cooling System	Compressor cooling with vibration-free operation
Dimensions (H x W x D)	450 x 350 x 450 mm
Net Weight	8 kg
Power Supply	AC 220-240V, 50Hz
Power Consumption	85 W (typical)
Noise Level	< 40 dB
Shelving Material	Chrome wire shelves
Interior Light	LED lighting with on/off switch
Door Type	Reversible glass door with UV protection
Control Type	Digital touch panel with temperature display
Temperature Display	Yes, in °C/°F selectable
Additional Features	Adjustable shelves, auto-defrost, lock (optional)
Maintenance	Clean interior with warm water and mild detergent; defrost when ice build-up exceeds 3 mm
Safety	Use a grounded outlet; do not install near heat sources; level appliance before use
Spare Parts Availability	Shelves, door gasket, and control board available from Kogan support
Repairability	Modular design; compressor and electronics replaceable by qualified technician
General Information	Freestanding wine cooler for home use; suitable for red, white, and sparkling wines

Frequently Asked Questions - KATHM8WNCHC Kogan

What is the ideal temperature for storing red wine in this cooler?

For red wine, set the temperature between 12°C and 18°C (54°F to 64°F). The cooler’s range is 5°C to 18°C, so you can easily adjust.

How many bottles can the Kogan KATHM8WNCHC hold?

It holds up to 8 standard 750ml wine bottles. Larger bottles or Champagne may reduce capacity.

How do I change the temperature display from Celsius to Fahrenheit?

Press and hold the +/SET button for 3 seconds until the display flashes. Then use the +/- buttons to toggle between °C and °F. Press SET to confirm.

Does the wine cooler have a lock?

Yes, the model includes a key lock on the door. Use the supplied key to secure the cabinet.

How often should I defrost the cooler?

Defrost when the frost layer exceeds 3 mm (1/8 inch). Typically every 2-3 months depending on humidity. The cooler has auto-defrost but manual assistance may be needed.

Can I install the wine cooler in a cabinet or built-in?

No, this model is freestanding only. Leave at least 10 cm (4 inches) of clearance on all sides for proper ventilation.

Why is my wine cooler not cooling properly?

Check if the door is fully closed, the set temperature is within range, and the ambient temperature is below 32°C (90°F). Also ensure the condenser coils are clean. If problem persists, contact Kogan support.

How do I clean the interior of the wine cooler?

Unplug the unit. Remove shelves and hand wash with warm water and mild soap. Wipe interior with a damp cloth and dry thoroughly. Do not use abrasive cleaners.

Is the wine cooler loud?

The compressor operates at less than 40 dB, which is whisper-quiet. Some gentle humming is normal during cooling cycles.

Where can I find replacement shelves?

Replacement shelves can be ordered from Kogan support or their website. Provide product model KATHM8WNCHC when ordering.

USER MANUAL KATHM8WNCHC Kogan

Black and white photo of a modern kitchen refrigerator with red wine bottles on the glass doors (no visible text or symbols)

KOGAN 8 BOTTLE WINE COOLER

KATHM8WNCHC

SAFETY & WARNINGS

• Read all instructions in this guide before using this product. Retain this guide for future reference.
• When positioning the appliance, ensure the power cord is not trapped or damaged.
• Do not place multiple socket-outlets or portable power supplies at the rear of the appliance.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of any obstructions. Ensure there is 20cm of space on all sides of the cooler.
• Keep the cooler is in a well-ventilated room. Poor ventilation can cause the inside PCB to be broken easily and reduce the life of the cooler.
• Do not use any mechanical devices or other means to accelerate the defrosting process, other than those outlined in this guide.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance.
• This appliance is only intended for domestic use.
• Do not place this cooler near fire or combustible substances.
• Do not install this cooler in a damp place, such as a laundry.
• Position this cooler in such a way that the plug is accessible.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance should not be performed by children without supervision.
• To ensure a stable power supply, ensure the electrical outlet used has the appropriate protection measures, such as grounding.
• If the power cord shows any sign of damage, cease use immediately and contact help.Kogan.com for support.
• This cooler utilises flammable refrigerant and foaming agent. Only dispose of it in a safe matter at a suitable disposal centre.
• Keep this cooler out of direct sunlight and away from heat generating appliances.
• Do not place the cooler directly on the ground. Provide a suitable stand.

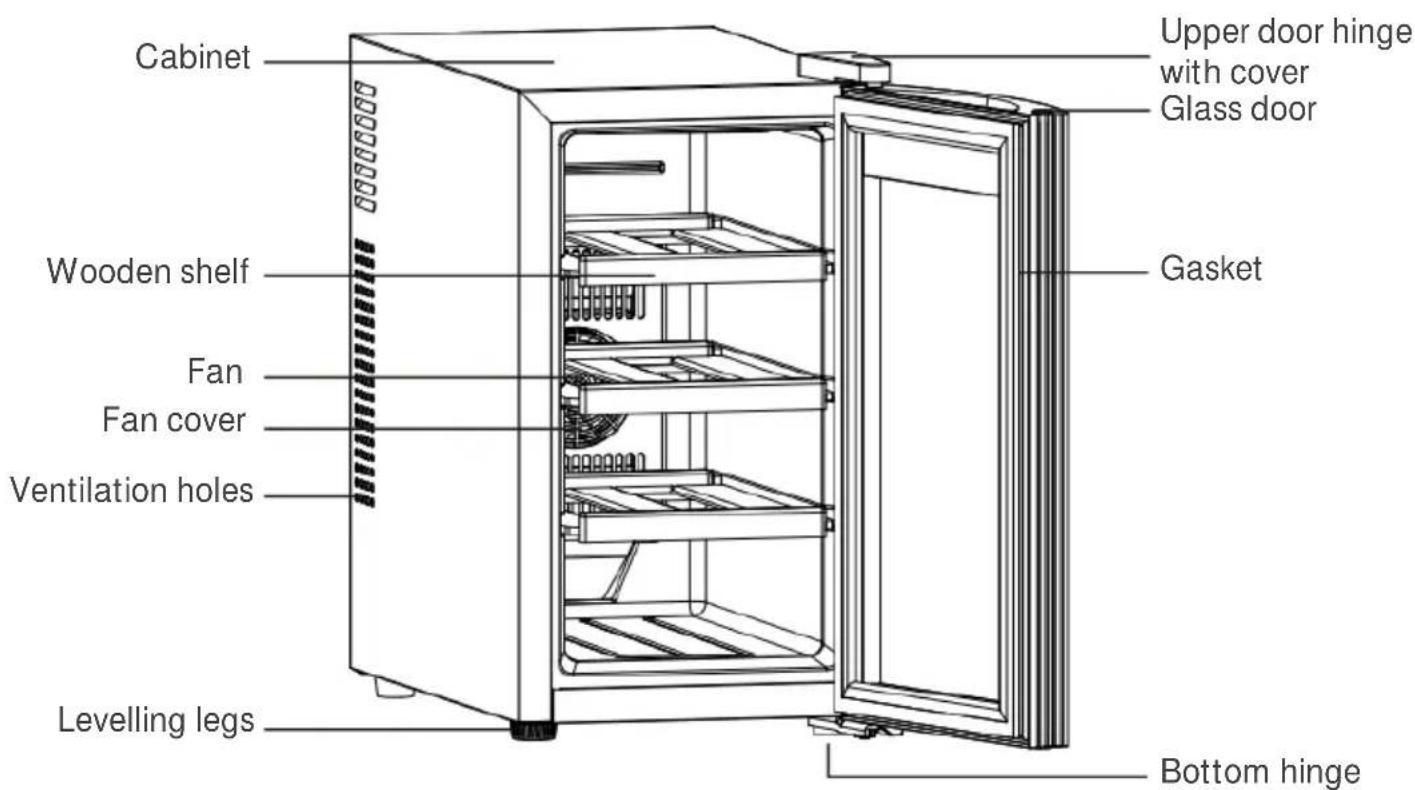

OVERVIEW

OPERATION

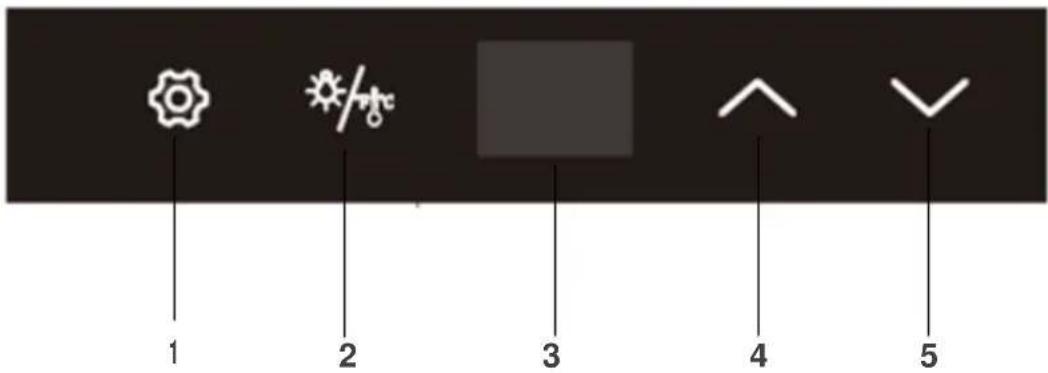

Control Panel

1	Unlock	Press and hold for 3 seconds to unlock the up and down buttons. The control panel will beep when it is unlocked.
2	Light/Temp	Press to turn the light on or off.Press and hold for 3 seconds to switch between Fahrenheit and Celsius.
3	Screen	Displays the temperature inside the cooler.
4	Up	Increase temperature.
5	Down	Decrease temperature.

Temperature Range

• The internal temperature of this wine cooler ranges from 8-18°C/46-64°F.
• It is recommended you install the cooler in a place where the ambient temperature is between 23°C-26°C/73°F-79°F.
• If the ambient temperature is above or below the recommended temperatures, the performance of the cooler may be affected.
• Placing the cooler in extreme cold or hot conditions may cause interior temperatures to fluctuate.
• Do not place the cooler in a temperature range of 8^ - 18^ / 46^ - 64^ .

Recommended Temperatures for Wine Cooling

Red wines	14-18°C	57-64°F
White wines	9-14°C	48-57°F
Rose wines	10-11°C	50-52°F
Sparkling wines	5-9°C	41-48°F

Note:

When you use the wine cooler for the first time or restart the wine cooler after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the screen. This is normal and it is due to the length of the activation time. Once the wine cooler is kept running for a few hours, it will return to normal.

Storage Capacity

This cooler can store 8 standard bottles.

Note:

Wine bottles may differ in size and dimensions, so the actual number of bottles you can store may vary.

Automatic Locking Function

If there is no user input for 12 seconds, the up and down buttons will automatically lock and cannot be operated. The unlock button and the Light/Temp buttons will both operate normally.

Auto Light Off Function

If there is no user input for 10 minutes, the light will automatically turn off.

Automatic Defrosting

This cooler uses a thermoelectric cooling system that defrosts the wine so there is no need to defrost it manually.

Note:

Allow the cooler to cool for 2-3 hours before placing beverages inside.

SPECIFICATIONS

Net capacity (litres)	25
Voltage (V)	220-240V
Frequency (Hz)	50/60
Rated power (W)	65
Dimension (mm)	252 x 500 x 450
Packing (mm)	322 x 572 x 516
Net weight (kg)	9.5
Gross weight (kg)	11.5
Approval	CB/CE/ROHS

TROUBLESHOOTING

Problem	Possible Cause	Solution
The cooler will not power on.	There is no power.	Check the cooler is plugged in and switched on.
	There is leakage.	Immediately unplug the wine cooler, ventilate the room thoroughly and contact help.Kogan.com for support.
	The PCB is broken.	Contact help.Kogan.com for support.
	The fan is broken.
	The cooling module is broken.
Poor cooling performance.	High ambient temperature.	Ensure the cooler is not in direct sunlight or close to another source of heat.
	The glass door is opened too often.	Ensure the glass door hasn't been left open for an extended period.
	Poor ventilation.	Ensure there is 20cm of space on all sides of the cooler.
	Damaged gasket.	Contact help.Kogan.com for support.
	Damaged silicone.
The cooler is noisy.	Dust.	Contact help.Kogan.com for support.
	The fan is broken.
	The heat pump is broken.
There is frost or ice inside the cooler.	Defrost function is broken.	Unplug the cooler for at least one hour before using again.
	Low ambient temperature	Increase the temperature of the room.
An unpleasant smell is coming from the cooler.	There is leakage.	Immediately unplug the wine cooler, ventilate the room thoroughly and contact help.Kogan.com for support.

Disposal

This marking indicates that this appliance should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

NOTES

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a fill-in-the-blank placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, continuous horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a fill-in-the-blank placeholder. Therefore, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, continuous horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The OCR content provided is "", which consists of no characters. Since the OCR output correctly ignores the background/stylistic line and produces no actual text, it complies with the “Stylistic/Background Lines (Ignore)” rule. Therefore, the OCR result is consistent with the Ground Truth.
[Non-Text]
[Non-Text]
[EMPTY]
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, continuous horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a fill-in-the-blank placeholder. Since the OCR output incorrectly rendered a stylistic line as underscores (which should be ignored), this violates the rule. Therefore, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
[Non-Text]
[EMPTY]
[Non-Text]
[Non-Text]
[NO TEXT]
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, continuous horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a fill-in-the-blank placeholder. Therefore, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, continuous horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a fill-in-the-blank placeholder. Therefore, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, continuous horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a fill-in-the-blank placeholder. Therefore, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, solid horizontal line, which is a stylistic or background element (like a ruled paper line or separator), not a placeholder for text. According to Rule 2, such stylistic/background lines must be ignored by the OCR result. The OCR content provided is "", which consists of no characters. This correctly represents the absence of any textual content in the GT and correctly matches the visual line as a stylistic element. Therefore, the OCR output should have been empty or omitted this line entirely.
[Non-Text]
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, continuous horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a fill-in-the-blank placeholder. Therefore, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a fill-in-the-blank placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

[Non-Text]

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com

kogan.com
