RGT6 - Range hood ARC - Free user manual and instructions

Product Type	Range Hood
Brand	ARC
Model	RGT6
Mounting Type	Under-cabinet / Wall-mounted
Width	60 cm (23.6 in)
Depth	50 cm (19.7 in)
Height	15 cm (5.9 in) (excluding chimney)
Net Weight	Approx. 15 kg (33.1 lbs)
Power Supply	220-240 V, 50 Hz, 10 A
Motor Power	200 W
Lighting	2 x LED, 3 W each
Fan Speeds	3 mechanical push-button
Max Airflow	650 m³/h (according to model variant)
Noise Level	Max 65 dB(A)
Grease Filter	Aluminum mesh, washable
Duct Diameter	150 mm (6 in)
Exhaust Outlet Position	Top rear
Control Type	Push buttons
Energy Efficiency Class	B (approx.)
Maintenance	Clean grease filter every 2 months; replace charcoal filter if recirculating
Safety Features	Automatic shut-off if overheating; child lock not present
Spare Parts Available	ARC official service: replacement filters, LED lamps, motor, buttons
Repairability Index	7.5 / 10 (based on user rating)
Documentation	User manual (PDF) available at notice-facile.com

Frequently Asked Questions - RGT6 ARC

How do I install the ARC RGT6 range hood?

Installation should be carried out by a qualified electrician. Ensure the hood is mounted at least 65 cm above electric cooking hobs and 75 cm above gas hobs. Follow the detailed steps in the user manual, including fixing the wall bracket, connecting the duct, and wiring the electrical supply.

How often should I clean the grease filter?

The aluminum grease filter should be cleaned every 2 months under normal usage. It can be washed by hand with mild detergent or in the dishwasher (low temperature). Ensure it is completely dry before reinstalling.

Does the RGT6 run in recirculation mode?

Yes, the hood can be used in recirculation mode with optional charcoal filters. If you do not have an external exhaust, purchase charcoal filters for ARC model RGT6 and install them behind the grease filters.

What type of lighting does the hood use?

The hood is equipped with two LED lamps of 3 W each. These are energy-saving and long-lasting. If replacement is needed, order genuine ARC LED lamp modules compatible with the RGT6.

My range hood is making a loud noise. What could be the cause?

Check if the grease filter is properly installed and clean. A dirty filter can cause vibration. Also, ensure the ductwork is not blocked or kinked. Loose screws on the motor may require tightening. If noise persists, contact ARC service.

What are the dimensions of the ARC RGT6?

The main body of the hood measures approximately 60 cm wide, 50 cm deep, and 15 cm high. The total height depends on the chimney extension. Refer to the manual for exact installation clearance.

Can I control the fan speed?

Yes, the RGT6 features 3 fan speeds controlled by push buttons on the front panel. Button 1 is low, 2 is medium, and 3 is high. There is also a separate light button.

Where can I find spare parts for my ARC range hood?

Spare parts such as filters, lamps, and motor components are available from ARC official service centers or authorized dealers. You can also check online through the brand's website using the model number RGT6.

How do I reset the filter alarm?

Some models have a filter saturation indicator. After cleaning the grease filter, press and hold the ‘-‘ or light button (refer to manual) for 3 seconds until the indicator turns off. If your model does not have this feature, ignore.

Is the ARC RGT6 energy efficient?

The hood has an estimated energy efficiency class B, typical for standard range hoods. It consumes about 200 W motor power plus 6 W for lighting. Using the hood at low speed saves energy.

USER MANUAL RGT6 ARC

PRODUCT SERVICE NUMBER

1800 805 300

WEB - [e-mail]

600mm & 900mm Canopy Rangehoods

600MM MODELS:	AAS6SE3	Pyramid, s/steel
	CP6BLS	Pyramid, s/steel
	CF6BLS	Flat, s/steel
	CG6BLS	Curved glass & s/steel
	AAG6SE1	Curved glass & s/steel
	RGT6	Curved glass & s/steel
	RFT6	Flat, s/steel
900MM MODELS:	AAS9SE3	Pyramid, s/steel
	CP9BLS	Pyramid, s/steel
	CP9BLB	Pyramid, black
	CF9BLS	Flat, s/steel
	CG9BLS	Curved glass & s/steel
	AAG9SE3	Curved glass & s/steel
	IAF9SE3	Flat, s/steel
	RGT9	Curved glass & s/steel
	RFT9	Flat, s/steel

HOME APPLIANCES

distributors of

Euromaid

IAG

FAGOR

HOME APPLIANCES

distributors of

Euromaid

IAG

FAGOR

INSTALLATION AND OPERATION MANUAL

Dear Customer,

We thank you for choosing this quality appliance and hope you enjoy many years of reliable service.

Please ensure this manual is read carefully before installation and use. Keep this manual in a safe and accessible location should future reference be required.

Regards

Home Appliances

CONTENT

2 Notice

3 Caution

4 ...... Feature

5-8 ...... Installation

9 Notice of installation

10 Safety Warning

11-16 Use

17 Maintenance

18 Light Replacing

19 Abnormity and Solution

NOTICE

1. Thank you for choosing our canopy rangehood. Please read the instruction manual carefully before use.
2. The installation work must be undertaken by a qualified and competent fitter.
3. The manufacturer disclaims all liability for any damage or injury caused as a result of not following instructions for installation contained in the following text.

The cooker hood is used on 220/240v, 50Hz.

SAFETY WARNINGS

• Installation of this Integrated Canopy Rangehood must be carried by a qualified and competent installer.
• The manufacturer disclaims and liability for any damage or injury caused as a result of not following instruction of installation contained in this instruction manual.
• This Integrated Canopy Rangehood is not intended for use by young children or infirm persons without supervision.
• Young children should be supervised to ensure they do not play with this Integrated Canopy Rangehood.
• To avoid possible electric shock this Integrated Canopy Rangehood should be unplugged before any maintenance or cleaning is carried out.
• This Integrated Canopy Rangehood cannot be installed in an external environment.
• The Grease Filters should be cleaned at least once a month to avoid the risk of fire.
• Flambe cooking cannot be carried out under the Integrated Canopy Rangehood and is not recommended for use over Barbeques.
• Ducting must be independent from any other form of ducting of other household heating sources.
• Ducting into wall cavities is prohibited unless the cavity has been designed for this purpose
• Lit gas burner should never remain uncovered or on when there is no pan present due to the risk of fire.
• Adequate ventilation of the room is required when the cooker hood is used at the same time as appliances burning gas or other fuels.

- CAUTION: Accessible parts may become hot when used with cooking appliances.

(2)FEATURE

1. The cooker hood uses high quality materials, and is made with a streamlined design.
2. Equipped with a large power low noise electric motor and centrifugal leaf, it produces strong suction, low noise, non stick grease filter and easy to clean.
3. With the isolated low voltage circuit board control, 12vAC input, the lights are therefore safer.
4. Special wind tunnel construction and oil collector design, free dirt will be absorbed in a second.

(3). Installation

If the model without Glass:

3.1 The cooker hood shall be placed at a distance of 65-75cm (26-30inch) from the cooking surface. See Pic 1.

3.2 Install the hook on a suitable place once the installation height is fixed, and keep it in line. The fixed position of the inside chimney bracket is the place of chimney. See Pic 2.

3.3 Fix one-way valve on the hood and connect the extensible pipe to the one-way valve. See Pic 3.

3.4 Put the cooker hood on the hook. See Pic 4.

3.5 Use clamp to fix the T-piece valve on the extensible pipe. See Pic 5.

3.6 Fix plate on the outer chimney, and be sure that the inside chimney can be adjusted the height in it freely, See Pic 6.

3.7 Install the chimney and screw the T-piece metal outlet to the inside chimney, See Pic 7 and 8.

3.8 Adjust the height of the inside chimney to the position of the inside chimney bracket and fix on it by screw, after adjusting the position, fix the body with safety screw. See Pic 9.

Note: The two safety vents are positioned on the back casing, with diameter of 6mm.

Pic1

Pic 2

Pic 3

Diagram showing a brick wall and a conical lamp with a cylindrical component, no text or symbols present.

Pic 4

Technical line drawing of a conical mechanical component with a base and top (no text or symbols)

Pic 5

Pic 6

Line drawing of a conical exhaust hood with downward arrows indicating airflow or ventilation (no text or symbols)

Pic 7

Technical line drawing of a mechanical assembly with a conical base and internal spring (no text or symbols)

Pic 8

Pic 9

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards

If the model with Glass:

3.1 The cooker hood shall be placed at a distance of 65-75cm (26-30inch) from the cooking surface. See Pic 1.

3.2 Install the hook on a suitable place once the installation height is fixed, and keep it in line. The fixed position of the inside chimney bracket is the place of chimney. See Pic 2.

3.3 Fix one-way valve on the hood and connect the extensible pipe to the one-way valve. See Pic 3.

3.4 Put the cooker hood on the hook. See Pic 4.

Pic1

3.5 Put the glass according to the lead direction and way on the cooker hood, and then use the screws to fix the glass. See Pic 5.

3.6 Use clamp to fix the T-piece valve on the extensible pipe. See Pic 5.

3.7 Fix plate on the outer chimney, and be sure that the inside chimney can be adjusted the height in it freely, See Pic 6.

3.8 Install the chimney and screw the T-piece metal outlet to the inside chimney, See Pic 7 and 8.

3.9 Adjust the height of the inside chimney to the position of the inside chimney bracket and fix on it by screw, after adjusting the position, fix the body with safety screw. See Pic 9.

Note: The two safety vents are positioned on the back casing, with diameter of 6mm.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards

(4) NOTICE OF INSTALLATION

1. Before installation, please ensure the area is clean to avoid suction of the remaining bits of broken wood and dust.
2. It cannot share the same air ventilation tube with other appliance such as gas tube, warmer tube, and hot wind tube.
3. The bending of ventilation tube should be≥120°, parallel or above the start point and should be connected to the external wall.
4. After installation, make sure that the extractor is level to avoid grease collection at one end.

Pic5

(5) SAFETY WARNING

✿ Keep your children from using the cooker hood.
Your cooker hood is for domestic use only, not suitable for barbecue, roast shop and other commercial use.
Any installation work must be carried out by a qualified electrician or competent person.
The cooker hood and its filter mesh should be cleaned regularly in order to keep in good working order.
Before cleaning, always ensure that you have switched your cooker hood off.
Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
✿ No fire for drying your cooker hood.
If there is any fault with your cooker hood, please call the service department appointed by agent for servicing.
Please keep the room draughty when your cooker hood and gas hob are working.
Do not exhaust the gas from cooker hood through the same heated flue which is for the gas from gas hob and other kitchen appliances.
Before installation and usage, read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on your cooker hood are exactly the same as the voltage (V) and the frequency (Hz) in your home.
In order to get the most out of your cooker hood, please read the instruction manual before installing & using, and keep it in a safe place.
- Ensure that you could get our guarantee for your cooker hood, please provide the warranty card and purchase receipt, or the guarantee will not be offered.

(6) USE

Electronic Button

1. Turn on the power; the buzzer will buzz five times. The sound shows that the appliance is powered.
2. Push the low button, the indicating light 1 on, the buzzer will buzz once, and the motor runs at low speed. Push it again and the motor will stop.
3. Push the middle button, the indicating light 2 on, the buzzer will buzz once, and the motor runs at mid speed. Push it again and the motor will stop
4. Push the high button, the indicating light 3 on, the buzzer will buzz once, and motor runs on high speed. Push it again and the motor will stop
5. Push the light button; the indicating light 4 on, and the two lighting lamps will come on. Push it again and the lamps will turn off, with every push the buzzer will buzz one time.

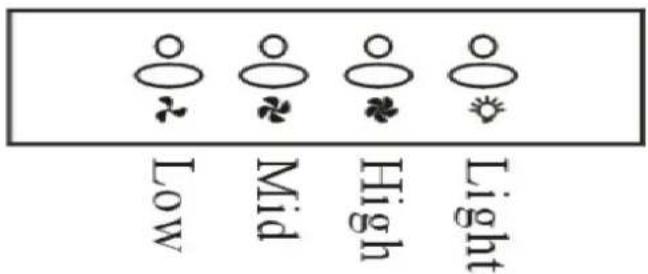

Indicatorlight ① ② ③ ④

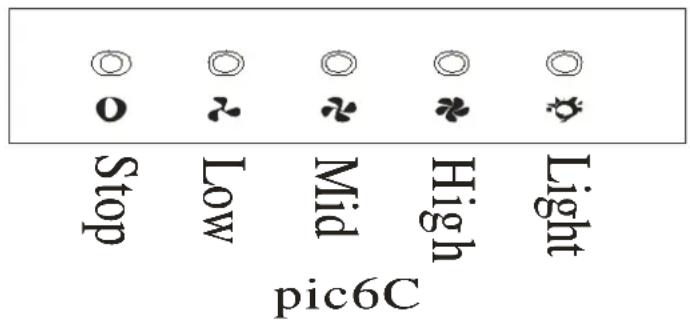

Pic6A

Push button

1. Push stop button, and the motor will stop.
2. Push the Low button, the buzzer will buzz once, and the motor runs at low speed.
3. Push the Mid button, the buzzer will buzz once, and the motor runs at mid speed.
4. Push the High button, the buzzer will buzz once, and the motor runs at high speed.
5. Push the light button and the two lights will come on. Push it again and the light will turn off.

Touch control

Pic 7

1. Power on: Connect the power, and then the machine enters standby status.
2. Press "light" key. The lights are on. And press it again. The lights are off.
3. Press "Add" key. The motor runs at the low speed. Press it the second time. The motor runs at the mid speed. Press it the third time. The motor runs at the high speed.
4. Press "Dec" key. The running motor slows down to the mid speed. Press it the second time. The motor runs at the low speed. Press it the third time. The motor stops.
5. When the motor or light is still on, press "Timer" key, and then the machine will stop and enter standby status in 10 minutes.

LCD Touch control

Pic 8

1. Power on: Switch on the power supply, and the backlight is lit, displaying "24-hour system". The output is then blocked up, and the soot machine enters standby status. The backlight disappear automatically 30 seconds later under the condition of none operation.
2. Press "Indicator" key: Press the indicator key once, the indicator is lit, and Ⓐ on the LCD screen is lit. Press it for a second time, Ⓐ of the indicator and the LCD screen will distinguish and it will be repeated again and again.

3. Power on position and increase key +, the motor is provided with three positions, i.e. low, medium and high.

4. Press + key once, the ■ is displayed on the display screen, and the motor starts operation. The ■ is the low position (power on position.)

5. Press + key once more at the low position, the □ is the medium position.
6. Press + key once more at the medium position, the is displayed on the display screen, and the is the high position.

7. Go on pressing + key at the high position, the is still displayed on the display screen, and the motor works normally. It is still at high position at this time.

8. Power on position and decrease key “—”

9. Press “—” key once, the motor is adjusted to a lower position, and the LCD screen displays that position in the meantime; If it is decreased continuously to none position, then, it is the power off position (namely, the motor stops operation.)

10. Timer key “ Ⓞ”:

11. The timer key is the timer setting key if the timer key doesn't work at both the position and indicator.

① Long press timer key ⬆ for 2-3 seconds, time segment 88:88, and the first two hour bit segment flash, use + key for the digit increase, and use — key for the digit decrease. Namely: The variable is 01 each time it is

pressed; the hour segment is with the largest digit of 23. If it exceeds 23, +key is null and void. If it is equal to 00, then, the —key is null and void.

② Press the timer key for the 2^nd time segment, and the last two minute bit segment flash, use + key for the digit increase, and use — key for the digit decrease. Namely: The variable is 01 each time it is pressed; the minute segment is with the largest digit of 59. If it exceeds 59, + key is null and void. If it is equal to 00, then, the — key is null and void.
③ Press the timer key ⏻ for the 3^rd time, and it is the time setting exit and confirm key.
④ Long press timer key Ⓞ for 2-3 seconds under this operation mode, and it is for the hour setting; Press it for the 2^nd time: Setting for the minute; Press it for the 3^rd time: For the time setting exit and confirm, and it will be repeated again and again (if the 1^st time pressing doesn't exceed 2 seconds, then it can't run this operating procedure.)

1. The timer key is the timer if the timer key works at either the position or the indicator.

① It is provided with three kinds of time segment, and they are 5min/15min/30min/timer cancel in sequence, and the 1 ^st time is 5min, the 2 ^nd time is 15min, the 3 ^rd time is 30min, the 4 ^th time is timer cancel, the 5 ^th time is 5min, and the 6 ^th time is 15min ..., and it will be repeated again and again.
② Example: Let the setting time be 15min, the display is 00:15, 00:14, ...00:1, with 0:00 displays per minute, and once “00:00” appears, the motor position and the indicator power supply will be cut off automatically, (the display screen displays “24-hour system”, the output is blocked up, and the soot machine enters standby status, and the backlight will be put out automatically 30 seconds later.)
③ Time segment change over, 5 seconds later, it starts to decrease gradually (example: 15min is changed over to 30min, with a delay of 5 seconds, and 00:30 on the display screen starts to decrease gradually).

(7) MAINTENANCE

7.1 The cleaning of the carbon grease filter mesh

The filter mesh is made of high-density stainless steel. Please do not use the corrosive detergent on it. Keeping this filter clean will keep the appliance running correctly. Please strictly follow the guidelines below.

Method 1: Put the mesh into 40-50 c clean water, pour on detergent, and soak for 2-3 mins. Wear gloves and clean with a soft brush. Please do not apply too much pressure, as the mesh is delicate and will damage easy.

Method 2: If instructed to do so, it can be put into a dishwasher, set the temperature at around 60 degrees.

7.2 Notice of cleaning cooker hood

A. To protect the main body from corrosion over a long period of time, the cooker hood should be cleaned with hot water plus non corrosive detergent every one month.

B. Please do not use abrasive detergent for it will damage the body.

C. Keep the motor and other spare parts free from water, as this will cause damage to the appliance.

D. Before cleaning the appliance please remember to turn off power

E. The carbon filter shouldn't be exposed to heat.

F. Please don't tear open the fixed bar around the carbon filter

G. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

(8) LIGHT REPLACING

8.1 Halogen light:

Use a small flat blade screwdriver to remove the inner stainless steel ring (when removing the inner ring, do so carefully so not to damage the range hood, as the glass lens could easily fall out of the inner ring); and remove carefully the halogen globe with a new one.

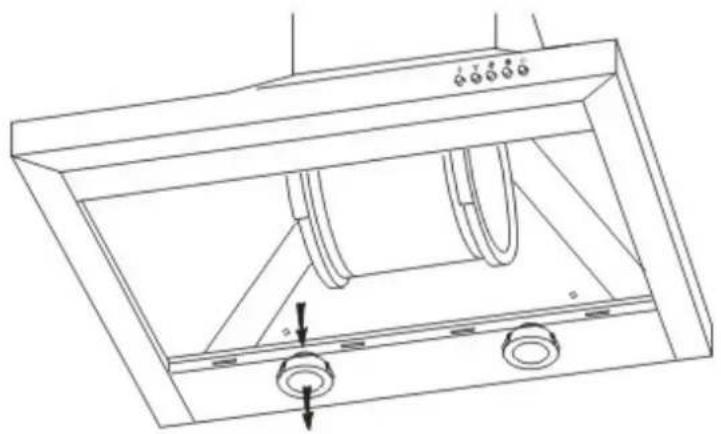

8.2 LED light:

Remove the filters, and push the light downwards, and unplug the wiring connector.

Technical line drawing of a ceiling-mounted appliance with internal components and mounting holes (no text or symbols)

(9) Abnormity and Solution

Fault	Cause		Solution
Light on, but motor does not work	The leaf blocked		Get rid of the blocking
	The capacitor damaged		Replace capacitor
	The motor jammed bearing damaged		Replace motor
	The internal with of motor off or a bad smell from the motor		Replace motor
Light does not work, motor does not work	Beside the above mentioned, check the following:
	Light damaged	Replace lights
	Power cord looses	Connect the wires as per the electric diagram
Oil leakage	One way valve and the air ventilation entrance are not tightly sealed	Take down the one way valve and seal with glue
	Leakage from the connection of U-shaped section and cover	Take U-shaped section down and seal with soap or paint
Shake of the body	The leaf damaged and causes shaking	Replace the leaf
	The motor is not tightly hanged	Lock the motor tightly
	The body is not tightly hanged	Fixed the body tightly
Insufficient suction	The distance between the body and the gas top too long	Readjust the distance
	Too much ventilation from open doors or windows	Choose a new place and resemble the machine
The machine inclines	The fixing screw not tight enough	Tighten the hanging screw and make it horizontal
	The hanging screw not tight enough	Tighten the hanging screw and make it horizontal
