SC-268AU7TM - Refrigerator Seiki - Free user manual and instructions

Product Type	Top Mount Refrigerator with Freezer
Total Gross Volume	268 Litres
Refrigerator Storage Volume	201 Litres
Freezer Storage Volume	67 Litres
Dimensions (W x D x H)	545 mm x 623 mm x 1657 mm
Net Weight	53 kg
Gross Weight	58 kg
Power Supply	220-240V ~ 50Hz
Rated Current	0.7 A
Energy Consumption	425 kWh/year
Climate Class	T (Tropical)
Refrigerant Type	R600a (Isobutane), 45g
Insulation Blowing Gas	Cyclopentane
Temperature Control	5 settings (1-5), thermostat dial
Interior Light	LED, 2W (not user replaceable)
Door Reversibility	Yes, left or right opening
Shelves	Glass shelves in fridge, glass shelf in freezer
Crisper	Fruit and vegetable crisper
Door Storage	Bottle shelves and compartment box
Defrost Power	160W
Installation Requirements	Freestanding, 10cm back, 5cm sides clearance
Safety Features	Flammable refrigerant warnings, child safety

Frequently Asked Questions - SC-268AU7TM Seiki

How do I set the temperature on my Seiki SC-268AU7TM refrigerator?

The temperature is controlled by a thermostat dial inside the fridge compartment. There are 5 settings: 1 (coldest) to 5 (coldest). For normal use, start with setting 3 and adjust as needed.

Can I reverse the door opening direction?

Yes, the door can be reversed to open from either the left or right side. Follow the step-by-step instructions in the manual. You'll need a screwdriver and spanner. For reliable operation, contact an authorized service agent.

What type of refrigerant does this refrigerator use?

It uses R600a (isobutane), which is environmentally friendly but flammable. The quantity is 45g. Ensure good ventilation and avoid damage to the refrigerant circuit.

Why is my refrigerator making noise?

Normal noises include gurgling from refrigerant flow, rattling from contraction/expansion, or compressor sounds. If vibrations occur, check if the appliance is level. Adjust the levelling legs if needed.

How much space should I leave around the refrigerator?

Allow at least 10 cm clearance at the back and 5 cm on each side for proper ventilation. The appliance should be placed on a level, solid floor away from heat sources and direct sunlight.

What do I do if the refrigerator doesn't start?

Check that it's properly plugged into a working power outlet, the circuit breaker hasn't tripped, and there is no power outage. Ensure the thermostat is set to a cooling position (1-5).

How do I clean the interior?

Unplug the refrigerator before cleaning. Use a soft cloth with mild detergent and warm water. Avoid abrasive cleaners or solvents. Dry thoroughly before plugging back in.

Can I store flammable substances inside?

No, do not store explosive substances like aerosol cans with flammable propellants inside the refrigerator. This could cause a fire or explosion.

What are the dimensions and weight?

Dimensions (WxDxH): 545 x 623 x 1657 mm. Net weight 53 kg, gross weight 58 kg. Ensure the floor can support the weight when fully loaded.

How do I defrost the freezer?

This refrigerator has an automatic defrost system for the fridge compartment, but the freezer may need manual defrosting. Do not use mechanical devices to accelerate defrosting; follow the manufacturer's instructions.

USER MANUAL SC-268AU7TM Seiki

INSTRUCTION MANUAL

Please read this manual carefully before using, and keep it for future reference.

CONTENTS

General	Safety
Product	Overview		8
Installation		9
Operation		10
Reversing	the	Door
Troubleshooting			15
Specifications			16
Customer	Helpline		20

4

IMPORTANT INFORMATION

Read this manual thoroughly before you start using the Top Mount Refrigerator.

The safety precautions instructions reduce the risk of fire, electric shock and injury when correctly complied to.

Please follow all instructions and take notice of all warnings.

Pay close attention to messages that follow this safety alert symbol or the words DANGER, WARNING or CAUTION. These words will be used to alert you of potential hazards that and injure you and others. Following these instruction will tell you how to reduce the chance of injury and the possible dangers if instructions aren't followed.

This symbol alerts you to take care as the appliance contains flammable materials: isobutane as refrigerant and cyclopentane as insulation blowing gas. Do not expose it to high heat, sparks and open flames.

The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a gas with a high level of environmental compatibility, which is flammable. During transportation and installation of the appliance, make sure that none of the components of the refrigerant circuit become damaged.

WARNING: Never use an appliance with a damaged refrigerant circuit. If the refrigerant circuit becomes damaged, avoid proximity to open fires and all types of heat and ignition sources. Thoroughly ventilate the room in which the appliance is located.

It is dangerous for anyone other than an authorised service person to work on this appliance. In Queensland, the authorised service person MUST hold a Gas Work Authorisation for hydrocarbon refrigerants to carry out servicing or repairs which involve the removal of covers.

The room for installing the appliance must be at least 1m³ per 8g of refrigerant. The amount and type of refrigerant in the appliance can be found in the Technical Specifications at the back of the manual and on the appliance rating label.

GENERAL SAFETY INSTRUCTIONS (Cont.)

This appliance is intended to be used in household and similar applications such as: - staff areas in shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications

R600A WARNINGS

NOTE: This model uses 0.045Kg of R600a flammable refrigerant in its sealed system. The following must be observed for your safety:

R600A Refrigerant Warning

• This appliance contains a small quantity of R600A refrigerant which is environmentally friendly, but flammable. It does not damage the ozone layer, nor does it increase the greenhouse effect.
• During transportation and installation, ensure that the tubing of the refrigerant circuit is not damaged.
• Leaking refrigerant can ignite and may damage the eyes.
• In the event any damage does occur, avoid exposure to open fires and any device which creates a spark. Disconnect the appliance from the mains power.
• Thoroughly ventilate the room in which the appliance is located for several minutes.
• Notify Customer Service for necessary action and advice.
• The room for installing the appliance must be at least 1 cubic metre per 8 grams of refrigerant. The refrigerant quantity contained in this appliance is listed above in grams; it is also noted on the Rating Plate of the appliance.

It is hazardous for anyone other than an Authorised Service Person to carry out servicing or repairs to this appliance. In Queensland the authorized person must hold a Gas Work Authorisation for hydrocarbon refrigerants, before carrying out servicing or repairs which involve the removal of covers.

WARNING

1. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
2. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
3. Do not damage the refrigerant circuit.
4. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
5. Do not store explosive substances such as aerosol cans with a flammable propellant in the appliance.

The environment and personal safety must be considered when disposing of this appliance. Please ensure the appliance is taken to a recycle center for safe recycling. DO NOT dispose of the appliance in land fill as the insulation and refrigerant gas contained in these appliances are flammable.

GENERAL SAFETY INSTRUCTIONS (Cont.)

To reduce risk of fire, electric shock or injury, always follow these basic precautions and accident prevention measures when using this appliance, including the below:

INSTALLATION

• Heavy: The product is heavy, be careful when moving it. To avoid back or other injury, have 2 people lift or mechanical aid when installing.
• Damage: When unnoxing, thoroughly inspect the appliance carefully for any damage. If there is any damage, do not install the appliance. Contact our support centre on 1300 296 699 for advice.
• Protection from moisture: Make sure the appliance is installed in an indoor area away from wind, rain, water spray or drips.
• Protect from heat: Do not place the appliance next to an oven, grill or other source of high heat, or where it will be exposed to direct sunlight for long periods of time.
• WARNING: Ventilation: Make sure to have enough ventilation, keep any ventilation openings, in the appliance enclosure or in the built-in structure, clear all obstructions. Make sure plenty of air circulation around the appliance to prevent overheating.
• Level: Install appliance level in order for proper operation.

ELECTRICAL SAFETY

• Voltage: Plug the appliance to a 220-240V, 50Hz, properly earthed power outlet, it must be in good working order.
• Power connection: Do not use an adaptor or an extension cord.
  Plug the power plug directly into a separate power point that cannot be accidentally turned off, and that is easily accessible so you can switch it off if needed.
• Power cord: Do not kink or damage the power supply cord. Make sure it is behind the appliance so no one can step on or place anything on the power supply cord or against it. A damaged power plug may overheat and cause a fire.
• Damaged cord: Do not use a cord that shows cracks or abrasion damage. Any damage to the cord may cause a short circuit, fire and/or electric shock. Contact our support centre on 1300 296 699 for advice
• WARNING! The light supplied with this appliance cannot be replaced by the user. Contact the authorised service agent for replacement or service.
• Disconnection: Never pull the powercord to unplug appliance. Grip the plug and pull straight out from the power point.
• Electrical work: If the installation of this appliance requires any electrical work, make sure it is carried out by an electrician.

GENERAL SAFETY INSTRUCTIONS (Cont.)

USAGE CONDITIONS AND RESTRICTIONS

• Children: Supervision over children is to ensure that they do not play with the appliance. Never allow them to use, play with or crawl inside the appliance. Cleaning and maintenance must not be done by children.
• Usage restrictions: The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• Indoor domestic use only: Only for indoor domestic use only, such as in households, kitchen areas in shops, offices and in other working environments, use by clients in hotels, motels, bed and breakfast establishments and in catering and similar non-retail applications. It is not to be used for industrial or commercial use.
• Intended purpose: Do not use this product for anything other than its intended purpose, and only use it as described in this manual. Do not attempt to alter or modify this appliance.
• WARNING! Do not use any electrical or electronic appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

CLEANING AND MAINTENANCE

• Flames: Do not allow open flames or ignition sources enter the appliance.
• Disconnect: Make sure to unplug appliance before cleaning or servicing. Failure to do so can result in electric shock, injury or death. Do not connect or disconnect the plug when your hands are wet.
• Flammable/explosive substances: Do not store flammable or explosive substances such as aerosol cans with flammable propellant in this appliance.
• Solvents: Do not use solvent based cleaning products or abrasives on the interior.
• WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer
• Service: Never try to repair, modify or replace any part of the appliance, unless this manual says you can do so. All other servicing is to be done by a qualified technician, or contact our support centre on 1300 296 699 for advice.

REPONSIBLE DISPOSAL

- Do not throw this appliance out with your household rubbish. Observe any local regulations regarding the disposal of electrical consumer goods and dispose of it appropriately.

PRODUCT OVERVIEW

( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.)

1. Cabinet
2. Panel of freezing air duct
3. Freezing glass door shelf
4. Knob of freezing ventilation door
5. Chill Compartment
6. Panel of refrigeration duct
7. Refrigeration control panel
8. LED Light
9. Glass Shelf
10. Glass Shelf

11. Fruit and Vegetable Crisper

12. Freezer Door

13. Top bottle shelves
14. Middle hinge
15. Fridge Door
16. Compartment box
17. Small bottle shelf
18. Large bottle shelf
19. Bottom Hinge

INSTALLATION

• Safety first: Before installing your new bar fridge, read all safety instructions in this manual, especially the sections on electrical safety and installation.
• Do not tilt the appliance more than 45° from upright when moving.
• This appliance is designed to be freestanding only and is not be recessed or built in.
• Do not apply force to any part such as the condenser or door.
• Place the bar fridge on a strong, level floor that is solid enough to support the unit when it is fully loaded.
• To fix the balance, Adjust the levelling legs at the bottom of the appliance.
• Ensure there is nothing that could prevent the door from closing.

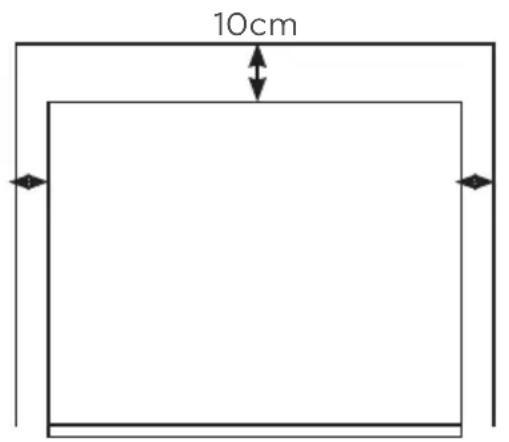

• SPACING: Allow 10cm clear space between the back and 5cm on the sides of the appliance and your wall or anything else to make sure there is enough air circulation, which is needed to allow for the cooling of the compressor and condenser.
• If you have to position the refrigerator on carpet, use a plastic carpet protector underneath the appliance.

SIDE VIEWTOP VIEW

BE SURE TO PLACE APPLIANCE:

• Away from direct sunlight.
• Away from sources of heat (may increase power consumption).
• An area without excessive moisture and high humidity.

WARNING: Before you plug in the appliance, let it stand upright for 2 hours.

This will allow the refrigerant gases to settle into the compressor and reduce the possibility of a malfunction in the cooling system from transportation.

OPERATION

1. For first time use, Please make sure to set the thermostat dial to 3, then leave it powered on for 2-3 hours. Then set the thermostat to desired settings and place foods in the appliance.

FRIDGE COMPARTMENT TEMPERATURE SETTING

The internal temperature is controlled by a sensor.

There are 5 settings: 1 - 5.

1 - Cold (weakest) settings.

5 - The Coldest (strongest) setting.

REVERSING THE DOOR

This appliance has the capability of opening the door from either the left or right side. The appliance is delivered to you with the door opening from the left side. To change the opening direction, please follow the below instructions. Be sure to unplug the appliance to change the door.

WARNING: To ensure correct reliable operation of the refrigerator, contact an authorised service agent to reverse the door for you. Incorrect installation of the door may result in damage and excessive wear on refrigerant components.

To reverse the door, you will need a straight screw driver, cross screwdriver, spanner and components in the poly bag:

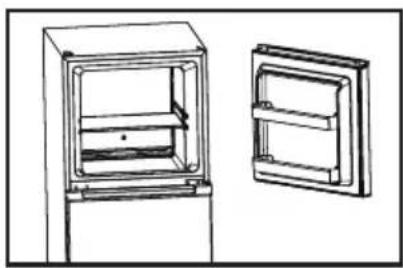

Step 1 Remove the top hinge cover.

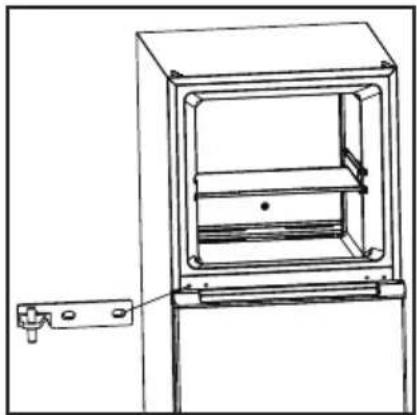

Step 2 Remove the top hinge with a screwdriver.

Step 3 Remove the Freezer Door.

Step 4 Remove the middle hinge with a screwdriver.

REVERSING THE DOOR (Cont.)

Step 5 Remove the refrigerator door.

Step 6 Remove the lower hinge with a screwdriver.

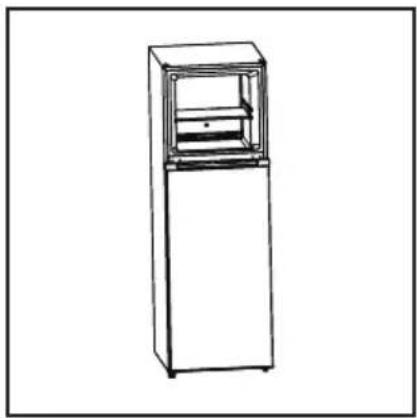

Step 7 Remove the hinge shaft cover, middle beam hole cover, and the adjustable feet.

Step 8 Install the adjustable feet to the right side in front of the refrigerator; mount the lower hinge subassembly to the left.

REVERSING THE DOOR (Cont.)

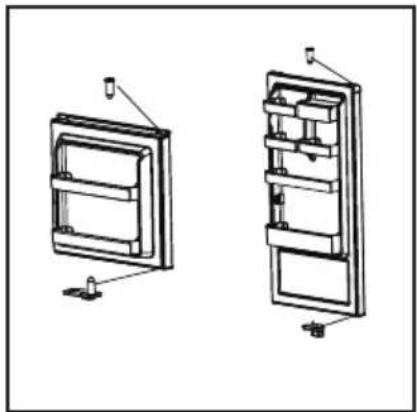

Step 9 Remove the hinge brushing and door stop of the Refrigerator Door and the Freezer door with screwdriver, and install them to the other side of the doors.

Step 10 Remove the hinge brushing and door stop of the Refrigerator Door and the Freezer door with screwdriver, and install them to the other side of the doors.

Step 11 Use a screwdriver to mount the middle hinge to the left side of the middle beam in front of the refrigerator

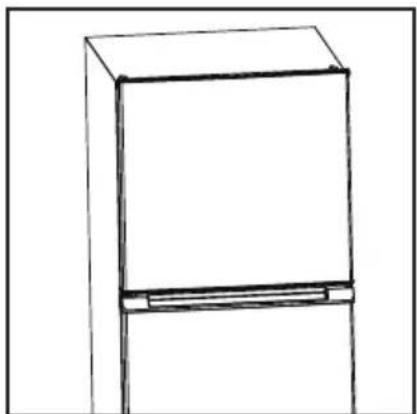

Step 12 Install the Freezer door onto the middle hinge.

REVERSING THE DOOR (Cont.)

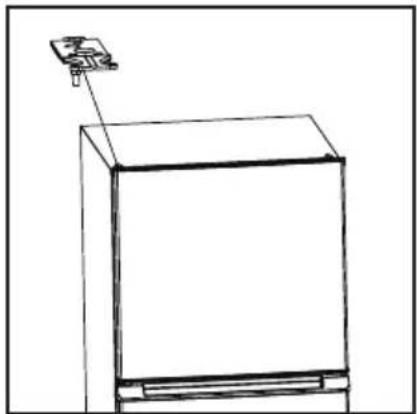

Step 13 Use a screwdriver to mount the top hinge to the left side at the top of the refrigerator.

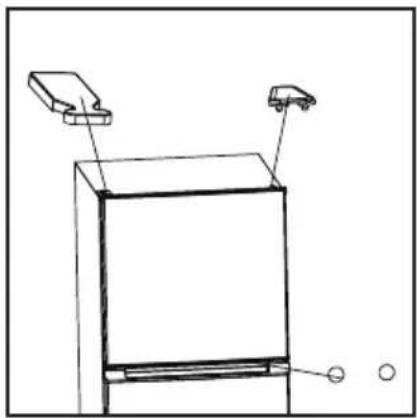

Step 14 Mount the top hinge cover to the top hinge; mount the hinge shaft cover to the top right of the refrigerator; mount the middle beam hole cover to the right side hole of the middle beam.

TROUBLSHOOTING

Problem Possible Cause
The appliance does not operate	It is not plugged in. Make sure it is properly plugged in and there is power at the socketThe circuit breaker tripped or has blown a fuse.A general power outage has cut power to your home.
The fridge turns on and off frequently.	The room temperature is higher then usualToo much food is within the fridge.Door is open too oftenDoor not closedTemperature set incorrectly.
There are vibrations • Appliance is not level.
The fridge seems to make too much noise.	A rattling noise may come from the flow of the refrigerant, which is standard.You may hear gurgling sounds caused by the flow of refrigerant.Contraction and expansion of the internal walls may cause popping and crackling noises.
The door will not close properly.	Not LevelThe door was reversed and not installed correctly.The gasket is dirty or bent.The shelves, bins or baskets are out of position.
Moisture forms on the inside or outside walls of the bar fridge.	Hot and humid weather increases the rate of frost build-up.Open the door less often
Excessive frost and ice has built up.	Door has been left open.Something is preventing the door from closing.The door gasket is dirty or damaged.
The compressor runs continuously.	Select a lower setting.The door is open or not closed properly.Too much food is within the fridge.

SPECIFICATIONS

Total Gross Volume 268 Litres
Total Refrigerator Storage 201 Litres
Total Freezer Storage 67 Litres
Climate Class T
Rated Current 0.7 A
Power Supply 220-240V ~ 50Hz
Rated Power of Lamp 2W
Defrost Power 160W
Energy Consumption 425 kW.h/y
Refrigerant R600a(45g)
Insulation Blowing Gas Cyclopentane
Weights Net: 53 kg / Gross: 58 kg
Dimensions 545 (w) x 623 (d) x 1657 (h) mm

SEIKI

CUSTOMER HELPLINE:

1300 296 699

DISTRIBUTED BY:

Ayonz Pty Ltd
