RK-DVX2U-RX8S - Switch Smart-AVI - Free user manual and instructions

Product Type	16-Port Dual DVI-D and USB 1.1 Extender over STP (Receiver Unit)
Brand	Smart-AVI
Model	RK-DVX2U-RX8S
Video Format	DVI-D Single Link
Maximum Resolution	1920 x 1200 @ 60Hz (WUXGA)
Maximum Pixel Clock	165 MHz
Video Input Interface (TX)	16 x (2) DVI-D 29-pin female
Video Output Interface (RX)	(2) DVI-D 29-pin female
USB Signal Type	USB 1.1 (Fully Transparent)
USB Input Interface (TX)	16 x (1) USB Type B (Female)
USB Output Interface (RX)	(4) USB Type A (Female) - Integrated 4-port hub
Maximum Distance	275 feet (84 m) over three CAT6 STP cables
Power Supply	Internal 110-240 VAC
Dimensions (W x H x D)	17 in x 8.5 in x 3.25 in (432 mm x 216 mm x 83 mm)
Weight	10 lb (4.5 kg)
Operating Temperature	0-55 °C (32-131°F)
Storage Temperature	-20 to 85 °C (-4 to 185°F)
Humidity	Up to 95%
Compatibility	Mac, PC, Linux; compatible with all major KVM switches
Rack Mountable	Yes (standard 19-inch rack, 1U)
Key Features	Zero pixel loss with TMDS correction; DDC from internal table; supports USB 1.1 keyboard and mouse; plug-and-play
Cleaning and Maintenance	Disconnect power before cleaning; use a dry, soft cloth; avoid liquids and abrasive cleaners
Safety and Compliance	FCC, CE; not for outdoor use; no user-serviceable parts inside
Spare Parts and Repairability	Contact Smart-AVI for replacement parts; no user-repairable components; warranty information at www.smartavi.com

Frequently Asked Questions - RK-DVX2U-RX8S Smart-AVI

What is the maximum distance the RK-DVX2U-RX8S can extend signals?

The RK-DVX2U can extend dual DVI-D and USB 1.1 signals up to 275 feet (84 meters) over three CAT6 STP cables.

What video resolutions are supported?

It supports resolutions up to 1920x1200 @60Hz (WUXGA) with DVI-D single link.

Is the RK-DVX2U compatible with USB keyboards and mice?

Yes, it supports USB 1.1 devices transparently, including keyboards and mice. The receiver has an integrated 4-port USB hub.

How do I connect the transmitter and receiver?

Connect the RK-DVX2U-TX to the DVX2U-RX using three STP (Shielded Twisted Pair) cables via the front ports labeled 1, 2, and 3.

Can I use this extender with a KVM switch?

Yes, it is compatible with all major KVM switches.

What is the power requirement?

The unit uses an internal 110-240 VAC power supply. Connect the power cord to the port labeled POWER.

How many computers can be connected to one receiver?

The RK-DVX2U supports up to 16 computer sources (dual DVI-D and USB) using the transmitter unit (RK-DVX2U-TX16S).

What type of cabling is recommended?

Use three CAT6 STP (Shielded Twisted Pair) cables with RJ-45 connectors. Follow the wiring standard: Pair 1 (1&2), Pair 2 (3&6), Pair 3 (4&5), Pair 4 (7&8).

Does it support DDC for monitor detection?

Yes, it uses DDC from an internal table for Mac/PC compatibility, ensuring proper EDID communication.

How do I clean the device?

Disconnect power before cleaning. Use a dry, soft cloth to wipe surfaces. Do not use liquids, aerosols, or abrasive cleaners.

USER MANUAL RK-DVX2U-RX8S Smart-AVI

PART NO. QTY DESCRIPTION
RK-DVX2U-TX45 Powered	Rack/Chassis with DVI/USB CAT6Transmitter, 4 Card Package. Includes: [RK-DVX2U-TX4 and CCPWR06]
RK-DVX2U-TX85 Powered	Rack/Chassis with DVI/USB CAT6Transmitter, 8 Card Package. Includes: [RK-DVX2U-TX8 and CCPWR06]
RK-DVX2U-TX16S Powered	Rack/Chassis with DVI/USB CAT6Transmitter, 16 Card Package. Includes: [RK-DVX2U-TX16 and CCPWR06]
User Manual 1

Technical Specifications*

VIDEO
Format DVI-D Single Line
Maximum Pixel Clock 165 MHz
Input Interface (TX) 16 x (2) DVI-D 29-pin female
Output Interface (RX) (2) DVI-D 29-pin female
Resolution Up to 1920 x 1200 @60Hz
DDC 5 volts p-p(TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.

USB
Signal Type	USB 1.1 (Fully Transparent)
Input Interface (TX)	16 x (1) USB Type B (Female)
Output Interface (RX)	(4) USB Type A (Female)

OTHER
Power	Internal 110-240 VAC
Dimensions	17 in W x 8.5 in H x 3.25 in D
Weight	10 lb
Operating Temp.	0-55 °C (32-131°F)
Storage Temp.	-20-85 °C (-4-185 °F)
Humidity	Up to 95%

*specifications shown are for 16-Port option

© Copyright 2011 Smart-AVI, All Rights Reserved

NOTICE

The information contained in this document is subject to change without notice. Smart-AVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for any particular purpose.

Smart-AVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or translated into another language without prior written consent from Smart-AVI.

For more information, visit www.smartavi.com.

SmartAVI, Inc. / Twitter: smartavi 11651 Vanowen St. North Hollywood, CA 91605 Tel: [phone] Fax: [phone] http://www.SmartAVI.com

Smart-AVI SMART AUDIO VIDEO INNOVATION

Installation Manual

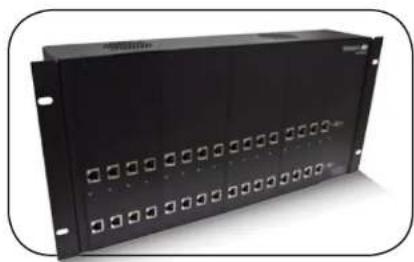

RK-DVX2U 16-Port Dual DVI-D and USB 1.1 Extender over STP

16-Port Dual DVI-D and USB 1.1 Extender up to 275 feet over STP Cable

www.smartavi.com

Introduction

The RK-DVX2U is the perfect solution for extending dual DVI-D displays and USB 1.1 devices to a remote location up to 275 feet away. It is the ideal way to consolidate up to 16 workstation computers into one location. The RK-DVX2U features dual DVI-D extension up to 275 feet over STP. It is fully compatible with MAC, PC and LINUX DVI standards.

The RK-DVX2U also features transparent USB 1.1 signal extension, with full support for all USB 1.1 devices and an integrated 4-port hub in the receiver. Flash Drives, Printers, Cameras, Scanners, etc. may all be used with the RK-DVX2U.

Features

• Supports up to 2 DVI-D single-link sources
• Supports Mac, PC, and Linux DVI
• Supports High Resolution 1920x1200 60Hz WUXGA
• Distance: 275 feet with three CAT6 STP cables
• Uses universal DVI Single Link connectors
• Zero pixel loss with TMDS signal correction
• DDC from internal table for Mac/PC
• Supports all USB 1.1 Devices Transparently (Flash Drives, Printers, etc.)
- Supports USB 1.1 keyboard and mouse - Compatible with all operating systems
• Compatible with all major KVM switches
• Rack Mountable Solution
• Data recovery for digital video
• Supports 1.5 and 12Mbps data rates
- Plug-and-play

Applications

• Medical Applications
• Industrial Work Areas
• Home Theater Integration
• Digital Signage Deployment
• Information Kiosks/Displays
• Film/Recording Studios

Connecting the RK-DVX2U

1. Power off all devices.
2. Connect two DVI-D sources (computer) to each of the 16 DVI-D ports on the rear of the RK-DVX2U-TX labeled 1 and 2.
3. Connect two USB sources to each of the 16 USB ports on the rear of the the RK-DVX2U-TX labeled
4. Connect the RK-DVX2U-TX to the the DVX2U-RX with three STP (Sheilded Twisted Pair) cables using each the front ports labeled ·1·2 and ·3 .
5. Connect a DVI monitor to the ports on the rear of the DVX2U-RX labeled 1 and 2.

6. Connect up to 4 USB 1.1 devices to the ports on the DVX2U-RX labeled

7. Connect the power to the ports labeled POWER 110-240V on the RK-DVX2U-TX and ⊕●)⊖ on the DVX2U-RX.

8. Power on the computers, displays and USB 1.1 devices.

The following is the wiring standard for terminating UTP/STP cable using RJ-45 connector:

Pair 1 Pins 1 & 2
Pair 2 Pins 3 & 6
Pair 3 Pins 4 & 5
Pair 4 Pins 7 & 8

Connectors: RJ-45

Capacitance: 14 pf/ft (46.2 pf/m)

Conductor Gauge: 24 AWG

Impedance: 100 +/- 15 ohms
