Product Type	Countertop Hot Dog Roller Grill
Brand	Nemco
Model	80435-36-SLT
Number of Rollers	36
Roller Material	Stainless Steel
Temperature Control	Adjustable Thermostat
Power Supply	120 V, 60 Hz
Wattage	1500 W
Dimensions (W x D x H)	28 x 16 x 12 in
Weight	40 lb
Drip Pan	Removable, Stainless Steel
Safety Features	Cool-touch Handles, Stable Non-Skid Feet
Cleaning	Removable Drip Tray, Wipe Rollers with Damp Cloth
Spare Parts Availability	Rollers, Thermostat, Heating Elements, Drip Pan
Certifications	ETL, NSF

Frequently Asked Questions - 80435-36-SLT Nemco

How do I clean the rollers?

Turn off and unplug the unit. Allow rollers to cool completely. Wipe with a damp, non-abrasive cloth. For stubborn residue, use a mild detergent. Do not submerge in water.

Can I use the roller grill for foods other than hot dogs?

Yes, you can cook sausages, bratwurst, or similar cylindrical foods. Ensure they are evenly sized for consistent cooking.

How do I adjust the temperature?

Turn the thermostat knob to the desired setting. Typical hot dog cooking temperature is between 250°F and 300°F. Allow 15 minutes to preheat.

What should I do if the rollers stop turning?

First, check power supply and ensure the unit is plugged in. If the motor is jammed, turn off and unplug, then manually rotate rollers to free any obstruction. If problem persists, contact Nemco service.

Is it safe to leave the grill unattended while operating?

No, never leave the appliance unattended while it is plugged in or in use. Monitor cooking to prevent overheating or fire hazards.

Where can I find replacement parts?

Replacement parts such as rollers, heating elements, and drip pans are available through Nemco authorized dealers or their website. Refer to the manual for part numbers.

How do I install the dividers?

Place the bracket on the front of the grill. Insert divider into bracket slots, then lower the back so it rests on the roller grill. Ensure it does not rest on the drip pan. Repeat for additional dividers.

What is the warranty coverage?

Nemco typically offers a limited warranty covering defects in materials and workmanship. Check your product manual or contact Nemco for specific terms and duration.

How long does it take to preheat?

Preheating takes approximately 15-20 minutes depending on the temperature setting. The indicator light (if equipped) will turn off when ready.

What type of hot dogs work best?

Standard-sized hot dogs (about 6 inches) work best. Avoid oversized or irregularly shaped sausages that may not rotate evenly.

USER MANUAL 80435-36-SLT Nemco

80435- ( ) Divider Kit Instruction Sheet

1.) Put bracket on the front of the grill as shown.

2.) Insert divider into the front bracket slots as shown.

3.) Lower the back of the divider so that it rests on the back on the rollergrill. IMPORTANT: Be sure that the divider is not resting on the drip pan.

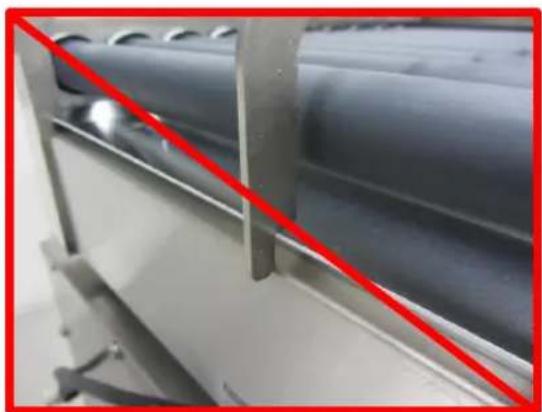

INCORRECT!

4.) Repeat steps 2 & 3 until all the dividers are installed.
