X10D - Media box Newline - Free user manual and instructions

Product Type	Android Box / Media Player
Model	X10D
Brand	Newline
Processor	Rockchip RK3368 Octa Core up to 1.5 GHz (Cortex-A53 64-bit)
GPU	Imagination SGX6110, supports 4K H.265/H.264
Memory	2GB DDR3
Internal Storage	16GB eMMC
Operating System	Android 6.0.1
Network	Dual-band Wi-Fi (IEEE 802.11 a/b/g/n/ac) and Gigabit Ethernet (10/100/1000 Mbps)
Power Supply	DC 5V, 2A
HDMI Output	1x HDMI supporting 4K@60fps and HD Audio (7.1 CH)
USB Ports	1x USB 2.0, 1x USB 2.0 OTG
Micro SD Card Slot	Supports up to 32GB
CVBS Output	1x CVBS
Optical Audio Output	1x SPDIF (2CH, 5.1CH)
Dimensions (W x D x H)	108 mm x 108 mm x 21 mm
Weight	300 g
Compliance	FCC Part 15 Class B
OTA Update	Supported
Google Play Store	Built-in

Frequently Asked Questions - X10D Newline

How do I connect the X10D to an IFPD?

Connect the X10D to the IFPD using an HDMI cable and a USB cable. Then plug the AC adapter into a power outlet and connect it to the X10D's power input port.

How do I start the X10D?

The X10D has no power button. It automatically powers on when connected to a power source. Ensure the IFPD is set to the correct HDMI input.

How do I put the X10D into standby mode?

Press the volume icon in the bottom toolbar. Alternatively, you can set a standby timer in System Setting under Power Management.

How do I wake the X10D from standby?

Tap the IFPD screen at the signal source the X10D is connected to, or move a connected mouse. If screen lock is enabled, you may need to swipe and enter the key.

How do I use the file viewer?

From the home screen, click the File viewer icon. You can browse files on internal storage, USB drives, or Micro SD cards. Use the filter bar to sort by type (video, music, etc.) and the menu bar for operations like copy, paste, delete.

How do I add shortcuts to the home screen?

On the home screen, click the + icon in the main toolbar. Then select your favorite applications from the settings page. You can add up to 11 shortcuts.

How do I install apps from Google Play?

Click the Google Play icon on the home screen. You need a Google account to download and install apps. Navigate to the desired app and follow the on-screen instructions.

How do I access system settings?

Click the Settings icon on the home screen or go to All Apps and select Settings. From there you can configure Wi-Fi, display, sound, security, and more.

What are the key specifications of the X10D?

The X10D features a Rockchip RK3368 Octa Core processor, 2GB DDR3 RAM, 16GB eMMC storage, Android 6.0.1, dual-band Wi-Fi, Gigabit Ethernet, 4K HDMI output, USB 2.0 ports, Micro SD card slot (up to 32GB), and SPDIF optical audio output.

Where can I find more information or support for the X10D?

Visit the official website at www.newline-interactive.com or email support at [e-mail] for assistance.

USER MANUAL X10D Newline

Safety Instruction 01

1. Overview 04

2. Installation 05

Before installation 05

Installation 05

1. Get Started 06

Start X10D 06

Standby mode 06

Wake Up 06

1. Operating X10D 07

Home screen overview 07

Main toolbar 07

Main toolbar overview 07

Browser 08

File viewer 08

Shortcut 10

Application list 11

Google Play 11

Setting 11

Floating toolbar 12

Bottom toolbar 12

1. System Setting 14

2. Specifications 16

3. More information 17

Welcome to the world of Newline.

Thank you for choosing Newline Android box X10D. Please use this document to get the most out of the product.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

The symbol of the crossed out wheeled bin indicates this product should not be placed in municipal waste. Instead, dispose of waste equipment by taking it to a designated collection point for electrical and electronic equipment recycling.

Symbol of a trash bin with crossed lines indicating no waste or plastic, and a solid black rectangle below (no text or labels)

About This Document

This document describes multiple functions, instructions, and notes about the product. Symbols are used in this document to indicate operations that need particular attention. The symbols are defined as follows:

NOTE	Provides additional information to supplement operation in the main text.
CAUTION	Indicates a potentially hazardous situation that, if not avoided, cou result in equipment damage, data loss, performance deterioration, or unanticipated results.
WARNING	Indicates a hazard with risk that, if not avoided, could result in death or injury.

Safety Instruction

For your safety, please read the following instruction before you use the product. Serious injury or property damage may be caused by improper operations. Do not try to repair the product on your own.

WARNING
	Disconnect the product from power supply immediately if major failures occur.Major failures include the following:Smoke, peculiar smell or abnormal sound is discharged from the product.No image or sound is displayed, or the image error occurs.In the preceding scenarios, do not continue to use the product. Disconnect power supply immediately and contact professional staff for troubleshooting.
	Do not drop liquid, metal or anything combustible into the product.If any liquid or metal is dropped into the product, power off the product and disconnect power supply, then contact professional staff for solutions.Pay attention to children when they are close to the product.
	Put the product on a stable surface.An unstable surface includes and does not limited to an inclined plane, a shaky stand, desk or platform, which might cause turnover and damage.
	Do not open the cover or change the product on your own.High voltage components are installed in the product. When you open the cover, high voltage, electric shock, or other dangerous situations may occur.If inspection, adjustment, or maintenance is required, contact the local distributor for help.
	Use the specified power supply.To prevent the product from being damaged, do not use any cables or AC adapters other than the one provided with the product.Pull out the power plug or AC adapter from the socket if the product is not used for a long period.
	Clean the dust and metal on the power plug regularly.Fire or electric shock may be caused if the product is powered on, when you are cleaning.Pull out the power plug or AC adapter before cleaning it with a dried cloth.
	Do not put items on the top of the product.Do not put items, such as a container for liquid (a vase, flowerpot, cosmetics or liquid medicine) on the top of the product.If any water or liquid is spilled on the product, a short circuit may occur and cause fire or electric shock.
	Do not install the product in an improper place.Do not install the product in humid places, such as the bathroom, the shower room, near windows, or outdoor environments that experience rain, snow or other harsh weather. Avoid installation near hot spring vapor. The preceding environments may cause faults in the product or electric shock under extreme conditions.Do not put exposed fire source, such as an ignited candle, on the product.
	Pull out the power plug during thunderstorms.Do not touch the product during a lighting storm to avoid electric shock.Install or place components that supply high enough voltage to cause personal injury out of the reach of children.
	Do not touch the power cable or AC adater with wet hands.
CAUTION
	Do not install the product in high temperature environments.Do not install the product near a heat source, such as a radiator, a heat reservoir, a stove or other heating products.Do not expose the product to direct sunlight, which may cause high temperatures and subsequent faults in the product.
	For transport.Pack the product for transport or maintenance by using the cartons and cushioning material provided with the product.Before you move the product, disconnect all external connections and separate all toppling preventing products. Move the product carefully to prevent it from being hit or squeezed.
	Do not cover or block up any vents on the product.Any overheated components may cause fire, damage the product, and shorten the service life.Do not lay the product down where the venting surface will be covered.Do not install the product on a carpet or cloth.Do not use a cloth such as table cloth to cover the product.
	Do not damage the power cable.Do not damage, change, twist, bend, or forcibly drag the power cable or AC adapter.Do not put weights (such as the product itself) on the power cable or AC adapter.Do not forcibly drag the cable when you pull out the power plug or AC adapter. If the power cable or AC adapter is damaged, please contact the local distributor to repair or replace it.The power cable or AC adapter in the accessory box is for this product only. Do not use it on other products.
	Keep away from the product when you use a radio.The product complies with the international EMI standard to prevent radio interference. However, interference may still exist and causes noise in the radio. If noise occurs in the radio, try the following solutions.Adjust the direction of the radio antenna to avoid the interference from the product.Keep the radio away from the product.

No.	Part Function Description
1 USB		For connecting USB devices such as mouse, keyboard and USB flash memory. (FAT32).
2 USB/OTG		For connecting USB devices such as mouse, keyboard and USB flash memory. (FAT32).
3 Micro SD card slot Support 1 GB/ 2 GB/ 4 GB/ 8 GB/ 16 GB/ 32 GB.
4 DC/5V For connecting AC adapter or power cable.
5 CVBS For connecting external speakers.
6 LAN For connecting local area network.
7 HDMI For connecting IFPD.
8 Optical (SPDIF) For connecting external speakers.
9 Indicator		Blue: Working state.
		Red: Stand by state.

Before installation

Safety precautions

Installation

Step 1. Connect X10D to IFPD with a HDMI cable.
Step 2. Connect X10D to IFPD with a USB cable.
Step 3. Plug the AC adapter to the 110-240 V power outlet fully and plug the connector into X10D power input port or plug the power code to power output port on Newline IFPD and the other end to X10D power input port.

Start X10D

Step 1. Make sure that IFPD and X10D are connected properly.
Step 2. At the signal source selection of the devices such as IFPD, chose the signal source X10D is connected.

Note

X10D has no power button. It is powered on upon power connection.

Standby mode

Press 🔊 icon in the bottom toolbar X10D will go into the standby mode. (Please also see the section "Bottom toolbar".)

Or use may set the time to standby mode at Power Management in System Setting.

Wake Up

When the Android box is in standby mode, tap the IFPD screen at the signal source X10D is connected and X10D wakes up.

When mouse is connected, move the mouse and it will wake X10D up.

- If screen lock is active in X10D, swipe up the screen and enter the key. After entering the correct key, it goes to the last page before getting in to the standby mode.

For setting screen lock, go to Security in system setting, Users may set the lock method, lock time, and power button lock.

- If screen lock is off, tap the IFPD screen and X10D directly goes to the last page shown before going to standby mode.

Home screen overview

No.	Part No. Part
1	Logo (Shortcut to Logo & Wallpaper Setting)	4 Floating toolbar
2	Date & time (Shortcut to Date&time setting)	5 Main toolbar
3	Indicators 6 Bottom toolbar

Main toolbar

- Main toolbar overview

No.	Part No. Part
1	Browser 5 Application list
2	File viewer 6 Google Play
3	Shortcut slot 7 Setting
4	Add shortcut

- Browser

Click the browser icon to access the browser and surf on the Internet.

◆ File viewer

X10D supports connection to USB flash memory and Micro SD card. Enter the File Viewer application, you can preview all files in the internal storage and external storage devices connected via USB ports and select, copy, paste, delete and search for files.

File viewer Page

No.	Part No. Part
1	Device list 3 Menu bar
2	Filter bar 4 File list

Device List

Click left side of the screen and the device list will be shown as in the figure below. The device list includes internal storage, external storage such as USB flash memory and Micro SD card, network SMB, and network NFS.

Filter Bar

Click 🗑 and filter bar will be shown as in the figure below. You can filter files by types such as video, music, picture, and application files.

Menu Bar

Click right side of the screen and Menu bar will be shown as in the figure below. The menu bar contains basic functions for file operation, including multi-select, copy, paste, delete, cut, favorite, refresh, rename, new, view, and setting.

- Shortcut

Users can add up to 11 shortcuts of their favorite applications to the home page by the following steps.

Step 1. On the home page, click + and open the setting page.

Step 2. Click and add check mark to favorite applications to add shortcuts.

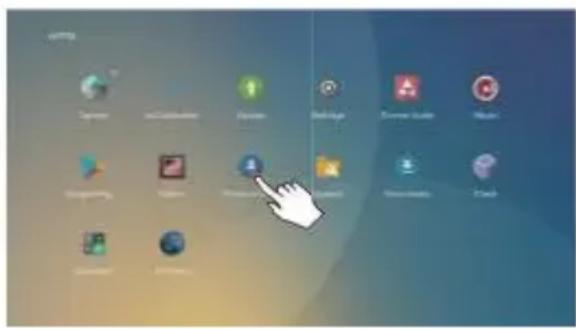

- Application list

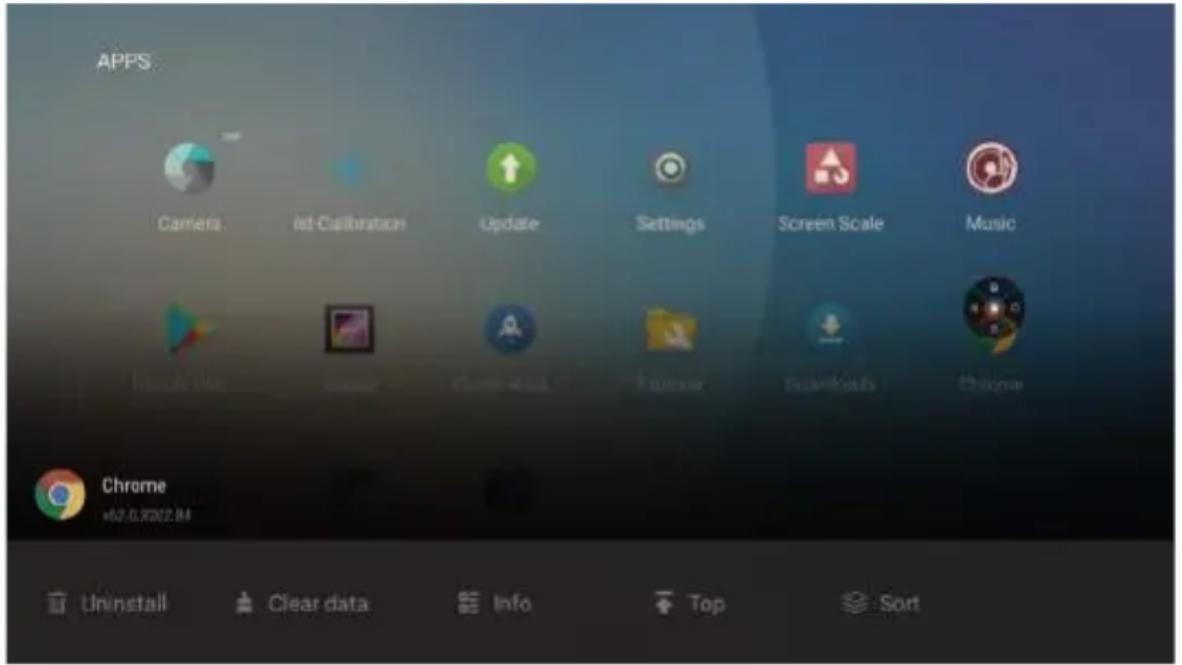

Click All Apps icon and the application list will be shown. The application list contains default apps and the apps users installed.

Click the icon to activate the app or press and hold for other menu including Uninstall, Clear data, Info, Top and Sort.

• Uninstall: Uninstall the application.
• Clear data: Clear historic data of applications.
• Info: View information related to applications.
• Top: Place the application icons to the top of the page.
• Sort: Users may sort the applications by alphabetical order, installed time or usage frequency.

♦ Google Play

Click icon and access Google Play to download and install favorite apps.

Note

It requires Google account to download apps from Google Play.

Setting

Click Setting and users can access to system setting. For more detail, please also see System Setting chapter.

Floating toolbar

Floating toolbar provides various shortcut introduced below.

Floating toolbar Icon Function
		Return to previous menu/Exit.
		Manage currently running applications.
		Return to the main page.
		Browse all applications.
		Minimize/Maximize the floating toolbar.

Enabling and disabling the floating toolbar: Click the 📄 icon on the home page to access the Application List submenu.

• If the floating bar is not activated, click 🔒 to open Floate windows app and then click Open.
• If users want to disable the floating toolbar, click ▲ to open Floate windows app and then click Close.

Bottom toolbar

Bottom toolbar appears by swiping up from the bottom of the screen, as in the following figure.

You may click the 📋 icon to hide it or it will be automatically hidden if there is no access for 5 seconds.

Icon	Function Icon Function
	Hide the toolbar. Return to the H e screen.
	Decrease the sound volume. Ma e currently running applications.
	Increase the sound volume. Tak s screenshot.
	Return to the last menu/exit.		Press: Go into the standby mode.Press and hold: Reboot the Android box.

Enter the System setting page using one of the following methods:

• Click 🙏 on the home screen.
• Click at All apps.

Item Function
Wi-Fi Enter	Wi-Fi submenu, and users can connect to Wi-Fi.
Ethernet	Enter Ethernet submenu, turn on Ethernet setting and X10D can automatically obtain the LAN IP address or set static IP address according to requirements.
Display Enter	Display submenu to set font size, logo, and wallpaper.
Apps	Enter Apps submenu to view downloaded applications by type, or disable/uninstall/force stop apps.
Memory	Enter Memory submenu to view the total memory of devices, average memory used, and memory used by different running applications.
HDMI Enter	HDMI submenu to set resolutions and zoom in/out screen.
Sound & notification Enter	Sound & notification submenu to set sound and notification.
Storage & USB	Enter Storage & USB submenu to view space allocation of the internal and external storage.
Users	Enter Users submenu to create new users or profiles. Users can have their own apps and content.
Screenshot Setting	Enter Screenshot setting submenu to set delay time to capture the screen and location to save the screenshot.
Location Enter	Location submenu to use Wi-Fi to determine the location.
Accounts Enter	Accounts submenu to add accounts such as Google account.
Language & input	Enter Language & Input submenu to set language and input method.
Security	Enter Security submenu to set screen lock method and time, device administration etc.
Google Enter	Google submenu to view Google account information etc.
Backup & reset	Enter Backup & reset submenu to back up user data and reset a network to restore to factory setting.
Date & time	Enter Date & time submenu to set the date and time and time format.
Accessible information	Enter Accessible information submenu to set up accessibility.
About X10D	Enter About X10D submenu to view various status including network status, firmware version and system version. Users can also update the firmware or do factory reset.
Power management	Enter Power management submenu to set the time to standby mode.
Model X10D
Processor	CPU: Rockchip, RK3368 Octa Core up to 1.5 GHz (Cortex-A53 64 bit)GPU: SG X 6110; support 4 K x 2 K H.265/ H.264.
Memory 2 GB DDR3.
Internal Storage 16 GB eMMC.
Operating System Android 6.0.1, Built in Google Play Store, Support OTA function.
Network connectivity	IEEE 802.11 a/ b/ g/ n, 802.11 AC, 4.900 GHz ~ 5.845 GHz (5.0 GHz ISM Band) AP6335 dual-band WIFI.RJ-45 Ethernet Jack (10/ 100/ 1000 Mbps).
Power DC 5 V/ 2 A.
I/ O ports	HDMI output port: Support 4 K@60 fps/ HD Audio(7.1 CH).Micro SD card slot x 1: Support 1 GB/ 2 GB/ 4 GB/ 8 GB/ 16 GB/ 32 GB.USB 2.0 port x 1.USB 2.0 OTG port x 1.CVBS port x 1.S/SPDIF x 1: 2 CH, 5.1 CH.External power needed if USB connects to over 1 TB mobile HDD.
Weight 300 g.
Dimension 108 mm x	108 mm x 21 mm.

For more information

Please visit our website (www.newline-interactive.com)

Contact Us for Support

Please email us at [e-mail].

Our company is devoted to product innovation and technology enhancement. Therefore, we may change product spec and information without notice. Product pictures in the manual are for reference only, please refer to actual products.
