Brand	Milwaukee
Model	48-22-4262
Product Type	Pipe Cutter
Cutting Capacity (Max Pipe OD)	1-5/8 in (41 mm)
Material Compatibility	Copper, PVC, CPVC, PEX, and aluminum
Blade Material	High-carbon steel
Blade Type	Replaceable wheel
Overall Length	7.5 in (19 cm)
Weight	0.5 lb (0.23 kg)
Handle Material	Overmolded rubber for ergonomic grip
Locking Mechanism	Quick-release lock for blade change
Safety Feature	Blade guard and locking latch
Cutting Action	Ratchet-style for one-handed operation
Deburring Tool	Integrated reamer for pipe ends
Maintenance	Clean with dry cloth; lubricate pivot points periodically
Warranty	Lifetime warranty
Replacement Blade	Milwaukee 48-22-4262B (sold separately)
Country of Origin	China
Certifications	ANSI, OSHA compliant
Packaging	Blister card with hanging hook

Frequently Asked Questions - 48-22-4262 MILWAUKEE

What is the maximum pipe diameter this cutter can handle?

The Milwaukee 48-22-4262 can cut pipe with an outer diameter up to 1-5/8 inches (41 mm).

What materials can this pipe cutter cut?

It is designed for copper, PVC, CPVC, PEX, and aluminum pipes. Do not use on steel or cast iron.

Can I replace the blade?

Yes, the cutting wheel is replaceable. Use Milwaukee replacement blade 48-22-4262B.

Is the cutter suitable for one-handed use?

Yes, it features a ratchet mechanism that allows one-handed operation with minimal effort.

How do I maintain the pipe cutter?

After each use, wipe clean with a dry cloth. Periodically lubricate the pivot points with light machine oil.

Does it have a deburring tool?

Yes, it has an integrated reamer for deburring the inside and outside of pipe ends after cutting.

What safety features are included?

It includes a blade guard and a locking latch to keep the blade retracted when not in use.

Can I cut multiple pipes at once?

No, the cutter is designed for single pipe cutting only. Do not attempt to cut multiple pipes simultaneously.

What is the warranty on this tool?

Milwaukee offers a lifetime warranty against defects in materials and workmanship.

Is the cutter compatible with right-angle cuts?

Yes, it produces clean, square cuts when used properly. Ensure the pipe is marked and the cutter is aligned.

USER MANUAL 48-22-4262 MILWAUKEE

CATALOG NO. 48-22-4260 1/2" Close Quarter Copper Tubing Cutter

48-22-4261 3/4" Close Quarter Copper Tubing Cutter

48-22-4262 1" Close Quarter Copper Tubing Cutter

For48-22-4260

1/2" CLOSE QUARTER COPPER TUBING CUTTER

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

1 Spring (1)

2---- Roller Pin (2)

3 Roller (2)

4 Blade Pin (1)

5 Pan Head Phillips Screw (2)

6 14-46-4266 Spring/Roller/Pin Service Kit (1)

7 48-22-4266 Replacement Cutter Wheel (Set of 2) (Accessory) (1)

For48-22-4261

3/4" CLOSE QUARTER COPPER TUBING CUTTER

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

1 Spring (1)

2 ---- Roller Pin (2)

3 Roller (2)

4 Blade Pin (1)

5 Pan Head Phillips Screw (2)

6 14-46-4267 Spring/Roller/Pin Service Kit (1)

7 48-22-4266 Replacement Cutter Wheel (Set of 2) (Accessory) (1)

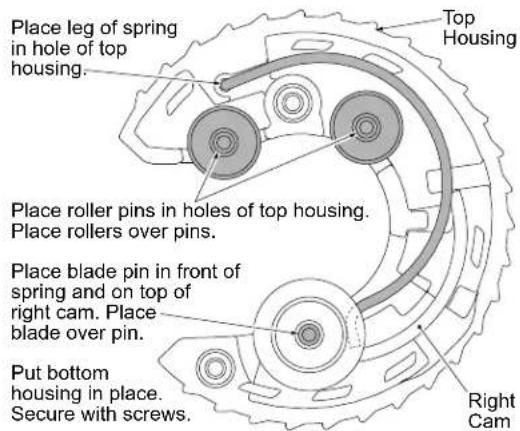

For 48-22-4262

1" CLOSE QUARTER COPPER TUBING CUTTER

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

1 Spring (1)

2---- Roller Pin (2)

3 ____ Roller (2)

4 Blade Pin (1)

5 Pan Head Phillips Screw (2)

6 14-46-4268 Spring/Roller/Pin Service Kit (1)

7 48-22-4266 Replacement Cutter Wheel (Set of 2) (Accessory) (1)
