Product Type	Car Installation Kit
Brand	Metra
Model	99-5809
Compatible Radio Size	Double DIN and Single DIN (with included trim)
Material	High-grade ABS plastic, painted to match OEM finish
Dimensions (L x W x H)	Approx. 150 x 80 x 20 mm
Weight	Approx. 0.2 kg (0.44 lbs)
Color	Matte black
Primary Function	Mount aftermarket stereo securely into vehicle dashboard
Installation Type	Dash kit - screws and clips into factory openings
Included Components	Mounting brackets, trim rim, screws, instruction manual
Tools Required	Screwdriver, panel removal tool (not included)
Installation Difficulty	Moderate - basic mechanical skill recommended
Maintenance	Wipe with dry, soft cloth; avoid solvents
Safety Features	Secure fit prevents rattling; no sharp edges
Warranty	1 year limited against defects
Replacement Parts Availability	Contact Metra customer service for brackets or trim

Frequently Asked Questions - 99-5809 Metra

Which vehicles is the Metra 99-5809 compatible with?

The 99-5809 is designed for select vehicles. Check the Metra website or the included fit guide for your specific make, model, and year.

Does the kit include a wiring harness?

No, the 99-5809 is a dash kit only. It does not include a wiring harness. You may need a separate adaptor (e.g., Metra 70-series) for your vehicle.

Can I install a single DIN radio using this kit?

Yes, the kit includes a trim ring and adapters to fit both single DIN and double DIN radios.

What tools do I need for installation?

You will need a screwdriver set (Phillips and flathead), a panel removal tool to avoid damaging the dashboard, and possibly a socket set for factory bolts.

How do I remove the factory radio before installation?

Refer to your vehicle's manual. Typically, you need to pry off trim panels, unscrew the factory brackets, and disconnect wiring. The Metra instructions provide general guidance.

The kit doesn't fit perfectly. What should I do?

Ensure you have the correct version for your car. Check all screws are tight and that the brackets are aligned. If issues persist, contact Metra support for assistance.

Is the kit painted to match my dashboard?

The kit comes in a matte black finish that matches most factory dashboards. For non-black interiors, you may need to paint it.

Can I reuse the kit if I sell my car?

Yes, the kit is removable. Carefully uninstall it and reinstall the factory radio. However, the brackets may not fit a different vehicle.

What is the warranty on the Metra 99-5809?

Metra offers a 1-year limited warranty against manufacturing defects. Keep your receipt for claims.

How do I clean the kit?

Use a dry, soft cloth to wipe the plastic. Avoid abrasive cleaners or solvents that could damage the finish.

USER MANUAL 99-5809 Metra

INSTALLATION INSTRUCTIONS FOR PART 99-5809

APPLICATIONS

Lincoln Continental 1998-2002 99 -5809

KIT FEATURES

• DIN head unit provision with pocket
• ISO DIN head unit provision with pocket

KIT COMPONENTS

• A) Radio housing • B) ISO brackets • C) ISO trim plate

A

B

C

WIRING & ANTENNA CONNECTIONS (sold separately)

WiringHarness:

• 70-1771 - Ford harness 1998-up
• 70-5519 - Ford premium sound harness 1998-up
Antenna Adapter:
- Not required

TOOLS REQUIRED

- Small flat blade screwdriver • Socket wrench

METRA. THE WORLD'S BEST KITS.™

1-800-221-0932

metraonline.com

© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION

Table of Contents

Dash Disassembly

– Lincoln Continental 1998-2002....3

Kit Assembly

– DIN head unit provision with pocket....4
- ISO DIN head unit provision with pocket....5

CAUTION: Metra recommends disconnecting the negative battery terminal before beginning any installation. All accessories, switches, and especially air bag indicator lights must be plugged in before reconnecting the battery or cycling the ignition.

Note: Refer to the instructions included with the aftermarket radio.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians

Lincoln Continental 1998-2002

1. Remove (3) 9/32" screws from bottom edge of panel below steering wheel then unclip and remove panel. (Figure A)
2. Remove (1) 9/32" screw from left side of panel surrounding radio/climate controls then unclip and remove entire panel. (Figure B)
3. Remove (4) 9/32" screw securing radio. (Figure C)

Continue to kit assembly

(Figure A)

(Figure B)

(Figure C)

DIN head unit provision with pocket

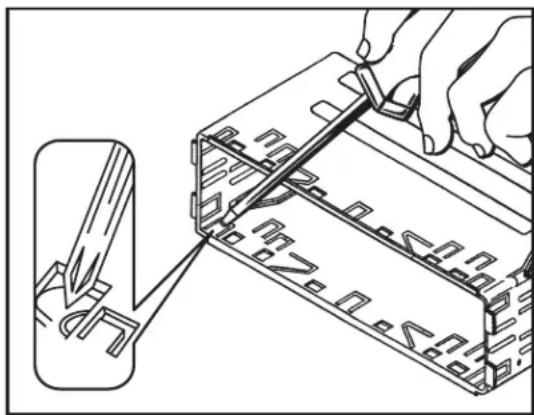

1. Slide the DIN cage into the radio housing and secure by bending the metal locking tabs down. (Figure A)
2. Slide the after-market head unit into the cage and secure.
3. Snap the trim plate into the radio housing.
4. Locate the factory wiring harness and antenna plug in the dash. Metra recommends using the proper mating adapters from Metra and/or AXXESS.
5. Reassemble dash in reverse order of disassembly.

(Figure A)

ISO DIN head unit provision with pocket

1. Mount the ISO brackets to the head unit with the screws supplied with the unit. (Figure A)
2. Slide the head unit into the radio opening until the side clips engage.
3. Snap the trim plate into the radio housing.
4. Locate the factory wiring harness and antenna plug in the dash. Metra recommends using the proper mating adapters from Metra and/or AXXESS.
5. Reassemble dash in reverse order of disassembly.

(Figure A)
