99-8241 - Car kit Metra - Free user manual and instructions

Product Type	Vehicle radio installation kit
Brand	Metra
Model	99-8241
Compatible Vehicles	Select 1995-2002 GM full-size trucks and SUVs
Dimensions (Kit)	Approx. 7.5 x 4.5 x 2 inches
Weight	0.5 lbs
Material	ABS plastic, painted matte black
Mounting Type	DIN or ISO slot with included brackets
Included Components	Dash kit, wiring harness, antenna adapter, ISO brackets, screws
Main Functions	Enables installation of aftermarket single-DIN or double-DIN receiver
Power Requirements	N/A (passive kit, no power needed)
Care Instructions	Wipe clean with dry cloth; avoid solvents
Safety	Disconnect vehicle battery before installation
Spare Parts Availability	Contact Metra for replacement brackets or harnesses
Repairability	Kit is not user-serviceable; replace if damaged
Certifications	Designed to meet OEM fit and finish standards
Warranty	1 year limited warranty

Frequently Asked Questions - 99-8241 Metra

What vehicles is the Metra 99-8241 compatible with?

The Metra 99-8241 is designed for select 1995-2002 GM full-size trucks and SUVs, including Chevrolet Silverado, GMC Sierra, Suburban, Tahoe, Yukon, and similar models. Check Metra's website for exact compatibility.

Does the 99-8241 kit include a wiring harness?

Yes, the kit includes a color-coded wiring harness that connects the aftermarket radio to the vehicle's factory wiring. It also comes with an antenna adapter.

Can I install a double-DIN radio with this kit?

Yes, the Metra 99-8241 supports both single-DIN and double-DIN aftermarket receivers. The kit includes mounting brackets for both sizes.

What tools are needed for installation?

You'll need a panel removal tool, screwdrivers (Phillips and flathead), socket set for the vehicle's factory bolts, and wire strippers/crimpers if custom wiring is required.

How do I remove the factory radio before installing the kit?

Refer to your vehicle's manual for radio removal. Typically, you'll need to pry off the dash trim, unscrew the factory radio, disconnect its wiring, and slide it out. The 99-8241 kit then mounts directly into the opening.

Does the kit include instructions?

Yes, the Metra 99-8241 comes with detailed installation instructions. A PDF manual is also available on Metra's website or through notice-facile.com.

Is the antenna adapter included?

Yes, the kit includes an antenna adapter that allows aftermarket radios to connect to the vehicle's factory antenna.

What should I do if the kit doesn't fit my vehicle?

Double-check your vehicle's model year and trim. The 99-8241 is specific to certain GM vehicles. If it's wrong, contact Metra support for a compatible kit.

Can I reuse the kit if I change radios later?

Yes, the kit is reusable as long as it's undamaged. You can swap aftermarket radios without replacing the dash kit.

Is technical support available?

Metra offers technical support by phone and online. They can help with installation questions or compatibility issues. You can also ask questions on the notice-facile.com page for this product.

USER MANUAL 99-8241 Metra

INSTALLATION INSTRUCTIONS FOR PART 99-8241

APPLICATIONS

Toyota Highlander 2013 99-8241

KIT FEATURES

• DIN radio provision with pocket
• ISO DIN radio provision with pocket

Interior view of a car dashboard with steering wheel and display screen (no visible text or symbols)

KIT COMPONENTS

• A) Radio housing • B) Radio housing brackets • C) ISO Brackets • D) ISO Trim plate

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • 70-1761 Toyota Harness 1987 • TYTO-01 Toyota amp interface 2003

Antenna Adapter: • 40-LX11

TOOLS REQUIRED

- Panel removal tool - Phillips screwdriver - Socket Wrench

Table of Contents

Dash Disassembly

- Toyota Highlander 2013 2

Kit Preparation 2

Kit Assembly

• DIN radio provision with pocket 3
• ISO DIN radio provision with pocket.... 3

CAUTION: Metra recommends disconnecting the negative battery terminal before beginning any installation. All accessories, switches, and especially air bag indicator lights must be plugged in before reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the aftermarket radio.

99-8241

Dash Disassembly Kit Preparation

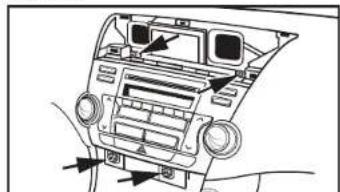

1. Unclip and remove the A/C vent panel. (Figure A)
2. Unclip and remove the trim panel containing the A/C control and pocket. (Figure B)
3. Remove (4) 10 mm bolts securing the radio assembly. (Figure C)
4. Remove the (4) Phillips screws securing the clock/display then remove the clock/display from the radio assembly. (Figure D)

Continue to kit assembly

Top-down view of a car dashboard with air traffic indicators (no text or symbols)

(Figure A)

Mechanical assembly diagram showing a valve mechanism with no visible text or symbols

(Figure B)

Diagram of a car front panel with arrows indicating airflow or traffic direction (no text or symbols)

(Figure C)

(Figure D)

1. Attach the corresponding bracket to the radio housing. (Figure A)
2. Attach the clock/display to the brackets/radio housing assembly using the factory hardware. (Figure B)
3. Attach the corresponding bracket to the radio housing. (Figure A)
4. Attach the clock/display to the brackets/radio housing assembly using the factory hardware. (Figure B)

Technical line drawing of mechanical components including a housing, bracket, and mounting bracket (no text or symbols)

(Figure A)

(Figure B)

99-8241

Kit Assembly

DIN radio provision with pocket

1. Slide the DIN cage into the radio housing and secure by bending the metal locking tabs down. (Figure A)
2. Slide the aftermarket radio into the cage and secure. (Figure B)
3. Locate the factory wiring harness and antenna plug in the dash. Metra recommends using the proper mating adapters from Metra and/or AXXESS.
4. Reassemble dash in reverse order of disassembly.

(Figure A) (Figure A)

Technical line drawing of an electronic device with ports and connectors (no text or symbols)

(Figure B) (Figure B)

ISO DIN radio provision with pocket

1. Mount the ISO brackets to the radio with the screws supplied with the radio. (Figure A)
2. Slide the radio into the radio opening until the side clips engage. (Figure B)
3. Snap the trim plate into the radio housing. (Figure B)
4. Locate the factory wiring harness and antenna plug in the dash. Metra recommends using the proper mating adapters from Metra and/or AXXESS.
5. Reassemble dash in reverse order of disassembly.

Technical line drawing of a mechanical device with ports and control panel (no text or symbols)

Technical line drawing of an electronic device with ports and connectors (no text or symbols)
