HTT 101C - Turntable CALIBER - Free user manual and instructions

Product Type	Turntable (Record Player)
Model	HTT 101C
Brand	Caliber
Drive System	Belt Drive
Turntable Speeds	33⅓ and 45 RPM
Tonearm Type	Straight, with counterweight
Cartridge	Magnetic cartridge (MM)
Output Connectors	RCA Line Out
Power Supply	AC 100-240V, 50/60Hz (external adapter)
Dimensions (W x D x H)	420 mm x 360 mm x 100 mm
Weight	3.5 kg
Platter Material	Aluminum
Speed Selection	Electronic switch
Anti-Skating	Adjustable
Stylus	Replaceable, diamond tip
Cleaning	Wipe with dry cloth; use stylus cleaner for needle
Safety Features	Automatic stop at end of record
Repairability	Replaceable belt and stylus; other parts may require professional service
Accessories Included	Power adapter, RCA cable, 45 RPM adapter, dust cover
Intended Use	Home audio, vinyl playback

Frequently Asked Questions - HTT 101C CALIBER

How do I set up the Caliber HTT 101C turntable?

Unpack the turntable and place it on a level surface. Install the platter, belt, and slip mat. Attach the tonearm counterweight and set the tracking force (usually around 2-3 grams). Connect the RCA cables to your amplifier or speakers, and plug in the power adapter.

How do I switch between 33 and 45 RPM?

Use the speed selector switch located near the platter or on the front panel. For 45 RPM records, you may also need to use the included 45 RPM adapter for larger center holes.

Why is there no sound coming from the speakers?

Ensure the turntable is properly connected to a powered amplifier or active speakers via the RCA cables. Check that the amplifier is set to the correct input. Also verify that the stylus needle is not damaged and that the cartridge is securely attached.

How often should I replace the stylus (needle)?

Replace the stylus after approximately 500-1000 hours of playback, or when you notice a decrease in sound quality or increased record wear. The HTT 101C uses a standard magnetic cartridge; replacement styluses are widely available.

Can I connect the turntable directly to passive speakers?

No, the HTT 101C requires an external phono preamp or an amplifier with a phono input. If your amplifier does not have a phono input, you will need a separate phono preamp between the turntable and the amplifier.

How do I clean the turntable and records?

Clean the dust cover and exterior with a soft, dry cloth. Use a carbon fiber brush or antistatic cloth to clean records before playing. For the stylus, use a specialized stylus brush or cleaning gel, cleaning gently from back to front.

What should I do if the turntable is skipping?

Check that the turntable is level and on a stable surface. Ensure the tracking force is correctly set (typically 2-3 grams). Verify that the anti-skating is adjusted accordingly. Also inspect the stylus for wear or debris, and clean it if necessary.

How do I replace the belt?

Turn off and unplug the turntable. Remove the platter and slip mat. Carefully slip the old belt off the platter and motor pulley. Stretch the new belt around the motor pulley first, then loop it around the platter. Reinstall the platter and mat.

Is the turntable automatic or manual?

The Caliber HTT 101C is a semi-automatic turntable: it features automatic stop at the end of the record, but you must manually place the tonearm at the start and lift it at the end.

What is the recommended maintenance schedule?

Regularly clean records and stylus before each use. Every few months, check the belt for wear and replace if stretched. Lubricate the motor spindle only if specified in the manual. Store the turntable with the dust cover when not in use.

USER MANUAL HTT 101C CALIBER

The HTT 101C cardridge package contains:

2 x saphire stylus for HTT 101 turntable

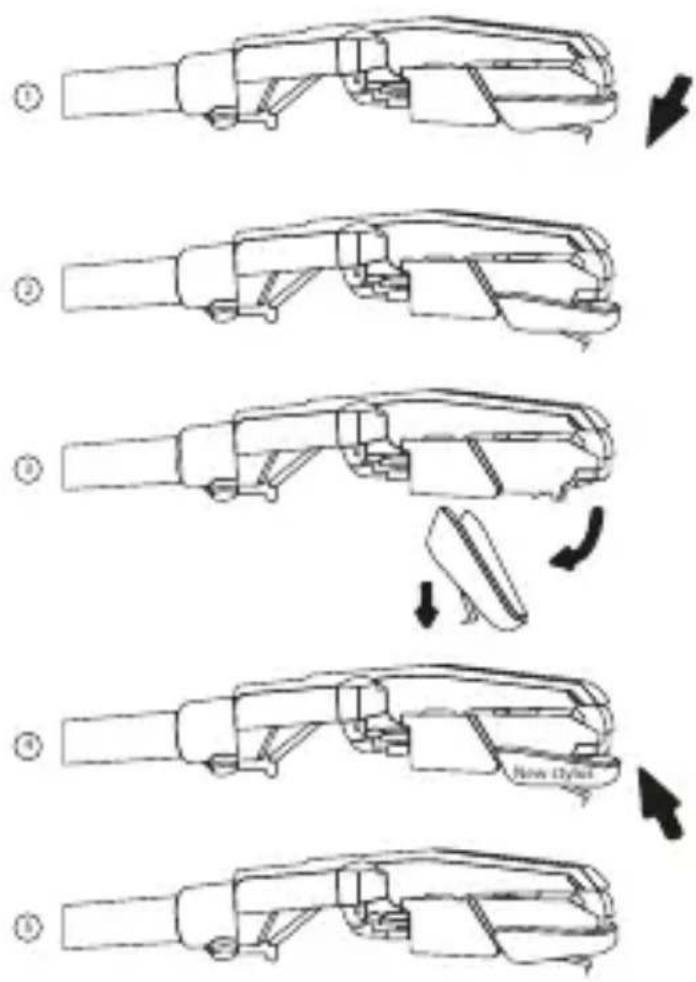

Replacing the stylus (needle)

• Lift the tone arm off the tone arm rest.
• At the front end of the tone arm, place the tip of your fingernail between the red stylus holder and the black cartridge housing as shown, press down on the red stylus holder until it separates form the cartridge housing.
  • Completely remove the red stylus holder with worn stylus and discard it.
• Place the new red stylus holder with stylus under the cartridge housing. First, press upward on the back side of the stylus holder, and then press up on the front edge of the stylus holder until it snaps into place on the cartridge housing.

2 x saphire stylus for HTT 101 turntable
2x stylet en saphir pour platine disque HTT 101
2x Saphir Stift für HTT 101 Plattenspieler
2x stilo in zaffiro per giradischi HTT 101
2x aguja de zafiro para la placa giratoria HTT 101
Caneta safira 2x para placa giratória HTT 101
2x safirpenna för HTT 101-skivspelare
2x sapphire rysik do gramofonu HTT 101
2x γραφίδα ζαφείρι για πικάπ HTT 101
2x zafírový stylus pre gramofón HTT 101
NL 2x Sapphire stylus voor HTT 101 draaitafel
