Product Type	Ultra Short Throw LCD Video Projector
Model	Hitachi CP-A302WNM
Display Technology	3 x 0.63" p-Si TFT LCD panels
Resolution	XGA (1024 x 768)
Brightness (Normal Mode)	3000 ANSI Lumens
Brightness (Eco Mode)	2000 ANSI Lumens
Contrast Ratio	4000:1
Throw Ratio	0.3:1 (fixed)
Projection Size	60" to 100" diagonal
Lamp Wattage	215 W
Lamp Life (Normal / Eco)	3000 h / 5000 h
Filter Cleaning Cycle	4000 hours (Hybrid filter)
Built-in Speaker	10 W mono
Connectivity	HDMI, 2x VGA, composite video, S-Video, audio in/out, RS-232, USB, RJ-45, optional wireless
Network Features	Web control, SNMP, PJLink, AMX Discovery, network bridge, iOS connectivity
Security Features	PIN lock, MyScreen password, transition detector, key lock, Kensington slot, security bar
Dimensions (W x H x D)	345 x 85 x 303 mm (excluding feet and mirror)
Weight	3.8 kg
Power Consumption (Normal / Standby)	310 W / <0.35 W (220-240V)
Noise Level (Normal / Eco)	34 dB / 28 dB
Operating Temperature	0°C to 40°C
Included Accessories	Wall mount (HAS-K250), remote with batteries, RGB cable, power cord, cable cover, user manual, CD
Optional Spare Parts	Replacement lamp DT01381, table top stand TT-251, USB wireless adapter USB-WL-11N
Lamp Replacement	Easy top-access lamp replacement

Frequently Asked Questions - CP-A302WNM HITACHI

What is the native resolution of the Hitachi CP-A302WNM?

The native resolution is XGA (1024 x 768).

How bright is this projector?

It delivers 3000 ANSI lumens in Normal mode and 2000 ANSI lumens in Eco mode.

What is the throw distance for a 80-inch image?

Approximately 50 cm (0.5 m) from the center of the mirror to the screen.

How long does the lamp last?

Lamp life is 3000 hours in Normal mode and 5000 hours in Eco mode.

Does the projector include a wall mount?

Yes, the wall mount (HAS-K250) is included in the box.

What security features are available?

Security features include PIN lock, MyScreen password, transition detector, key lock, Kensington slot, and a security bar.

Can I control the projector over a network?

Yes, via wired RJ-45 or optional wireless adapter, using web browser, SNMP, PJLink, or Crestron RoomView.

How often should the air filter be cleaned?

The hybrid filter has a cleaning cycle of 4000 hours.

What are the optional accessories?

Optional accessories include replacement lamp (DT01381), table top stand (TT-251), and USB wireless adapter (USB-WL-11N).

Is the projector suitable for interactive whiteboards?

Yes, with the optional wireless tablet (TB-1) and the built-in drawing function, it can be used interactively.

USER MANUAL CP-A302WNM HITACHI

Exterior view of a white projector with visible internal components and ventilation grilles (no text or symbols)

ULTIMATE SHORT THROW XGA LCD PROJECTOR

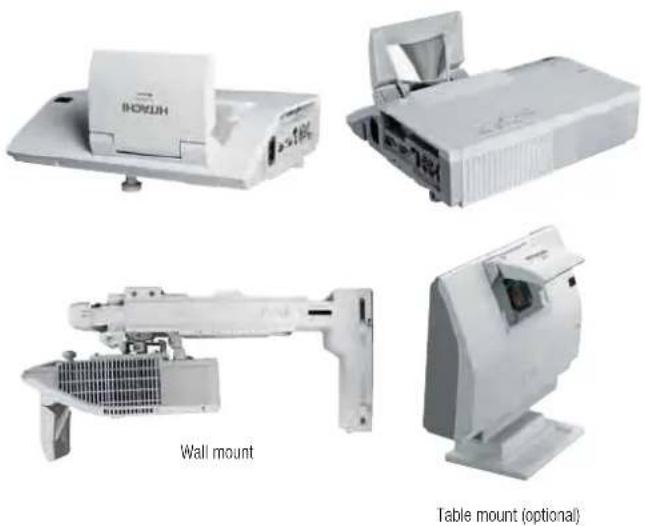

The light weight and compact CP-A302WNM Ultimate Short Throw projector offers the highest quality images with a compelling design and low cost of ownership. With the bundled wall mount and optional table top kit you can project onto any existing whiteboard, wall or table top. Easy to install and flexible to use with optional wireless networking making the CP-A302WNM the ideal solution for any education or corporate environment.

Performance

• XGA resolution (1024 x 768)
- 80" (2m) image from only 50cm*
• 3000 ANSI Lumens (Normal Mode)
• Full connectivity including HDMI
- Perfect Fit – adjust all four corners and sides of the image individually to achieve a square image
- Input Source Naming
- My Button
- Table top mount facility
• 10W speaker
• Anti theft features including:

- PIN-Lock

MyScreen Lock
- Transition Detector
- Security bar

Cost of ownership

• Extended Hybrid Filter life: 4000hr cleaning cycle
  • Extended lamp life: 5000hrs (Eco Mode)
  • Virtually maintenance free
• Easy set up and installation - New on screen installation guide
  • Power Saving Mode (ImageCare™)
  • Wall mount included in the box

Advanced Network Features

• Full connectivity including 1 x RJ-45
• Optional wireless networking
- Configure and control projector via network with a web browser
- Projector management via SNMP
- Content via LAN
• AMIX Device Discovery
- Messenger
- Cloning function
- PJ Link ^TM
• Network Bridge
- iOS Connectivity

Environment

• The extended Hybrid Filter life means reduced electronic waste and reduced maintenance visits, resulting in an overall reduction in carbon footprint
• ImageCare™ - The combination of Eco and Saver Modes conserve energy

Hitachi have formulated an "Environmental Vision" to contribute towards building a sustainable society through business and product development.

Our goal is to develop life-enhancing technology that will contribute to and realise a truly sustainable society for current and future generations.

*From centre of mirror to screen.

†Wireless is optional on this model (USB wireless adapter sold separately).

HDMI ^TM

CP-A302WNM

Technical Specifications

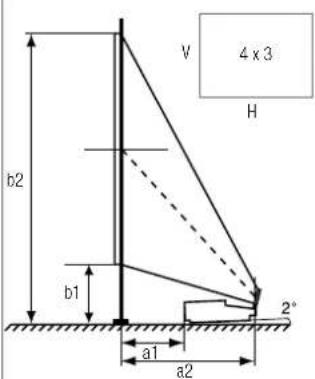

Throw distance (from the top of the lens)

Screen size H x V (diagonal)	a1 a2 b1 b2
	(m)	(m)	(m)	(m)	(m)	(m)
60" (1.5m)	1.2	0.9	0.096	0.373	0.281	1.196
70" (1.8m)	1.4	1.1	0.161	0.437	0.317	1.384
80" (2.0m)	1.6	1.2	0.225	0.501	0.352	1.571
90" (2.3m)	1.8	1.4	0.289	0.566	0.387	1.759
100" (2.5m)	2.0	1.5	0.353	0.630	0.423	1.947

HDMI

OPTICAL

LCD panel 0.63" (1.6cm) P-Si TFT x3

Resolution XGA (1024 x 768)

Light output (brightness) 3000 ANSI Lumens (Normal Mode)/2000 ANSI Lumens (Eco Mode)

Colour light output (colour brightness) 3000 ANSI Lumens (Normal Mode)/2000 ANSI Lumens (Eco Mode)

Contrast ratio 4000:1

Lens Free shaped lens and motorised free shaped mirror

Lamp Wattage 215 W

Lamp life 3000 Hours (Normal Mode)/5000 Hours (Eco Mode)*

Focus distance 0.4m\~0.7m (from mirror top to screen plane)

Distance to width ratio (:1) 0.3:1 (fixed)

Diagonal display size 60\~100" (152\~254cm)

Number of colours 8 Bit/colour, 16.7M colours

Keystone Fixed, 6.1:-1 upward shift, Normal at +71.1° projection angle

COMPATIBILITY

Computer compatibility	IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA (compressed), MAC 16"
Composite/S-Video	NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43
Component Video	525i(480i), 525p(480p), 625i(576i), 1125i(1080i@50/60), 1125p(1080p@50/60), 750p(720p@50/60)
HDMI	1125i(1080i@50/60), 750p(720p@50/60), 1125p(1080p@50/60)
Plug & Play	DOC2B

FEATURES

Speakers	16W x 1 Mono
Basic functions	Freeze, Magnifying, Blank, Auto adjustment, Mirror reverse image, Up-side down image, Auto signal search
Picture adjustments Digital Zoom x 1.35, Equalising Digital Gamma Correction, 2-3 pull down for NTSC, Progressive Scan, Noise reduction, Aspect selection 4:3/16:9/16:10/14:9/Native - dependant on source, Equalising colour temperature adjustment, Perfect Fit
Digital keystone	Horizontal ± 5^ , Vertical ± 5^
Advanced features	Drawing function (optional wireless tablet TB-1 required), My Screen, My Memory, My Button by remote control, My Source, My Text, Picture mode (8 modes), Source naming (English), Resolution setting, Template, Saving mode, Audio pass through, Cloning, Audio sound mixing, Audio out (standby) and monitor out/selectable source with menu, Eco Mode (Normal, Eco, Intelligent Eco, Saver), Filter timer/selectable interval time, PC-less Presentation (JPEG, PNG, BMP, GIF, AVI, MOV), Stand-by Audio, On screen installation guide, iOS Connectivity
Outward	Easy Lamp replace from Top, Rear intake air filter
Power on & off	Direct on, Auto off, Auto eco mode
Security systems	PIN Security Lock, Myscreen Password Lock, Transition Detector, My Text Password Lock, Key Lock (key pad, remote control), Kensington slot, Security bar, Lens door lock
Network	Configure and control projector via web browser, Failure and warning alerts via e-mail, Scheduling, My Image (still image transfer display), Displaying text data transferred via the network, Command Control via network, Crestron RoomView ^® (not accessible through wireless adapter), AMX Device Discovery, Projector management via SNMP, PJ Link ^TM , Network Bridge, Network Presentation (PC still picture transter), MAC address on side, USB Display
OSD languages options	33, including: English, French, German, Spanish, Italian, Norwegian, Dutch, Japanese, Portuguese, Swedish, Russian, Finnish, Polish, Turkey, Arabic, Czech, Danish, Hungarian, Romanian, Slovenian, Croatian, Greek, Lithuanian, Estonian, Latvian

CONNECTIONS

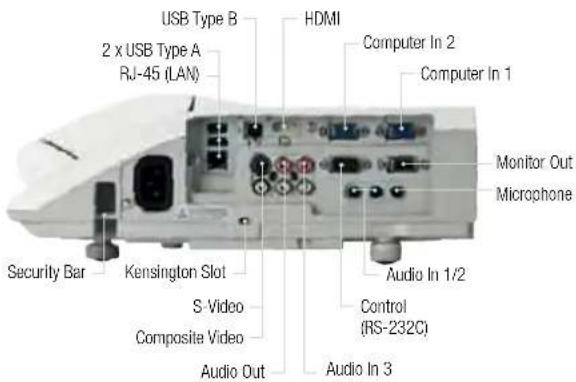

Digital input	1 x HDMI (HDCP compatible)
Computer input 2 x 15-pin Mini D-sub
Monitor output	1 x 15-pin Mini D-sub
Video input	1 x RCA Jack (for composite), 1 x S-Video Jack,2 x Component D-sub (shared with analogue computer in 1/2)
Audio input	2 x Stereo Mini Jack, 1 x pair RCA (L/R), 1 x Microphone Jack
Audio output	1 x pair RCA (L/R)
Control	1 x 9-pin D-sub for RS232 control
USB	2 x USB type A, 1 x USB type B
Wired network	1 x RJ-45
Wireless network	Option, IEEE801.11b/g/n ready (optional wireless adapter required)

POWER

Power supply	AC100-120V/220-240V, auto switching
Power consumption/standby	310W (AC220-240V)/<0.35W

PHYSICAL

Dimensions (W x H x D)	345 x 85 x 303mm (excluding feet and extrusions when mirror is closed)
Weight	3.8Kg
Noise level	34dB (Normal Mode)/28dB (Eco Mode)
Ambient temperature	Operating 0°C~40°C, Storage -20°C~60°C
Air filter	Hybrid

MISCELLANEOUS

Lamp indicator light, power light, ceiling mount image, rear projection image, serial number label on side, Tabletop use (optional stand is required)

CERTIFICATION

UL60950-1/ cUL, FCC Part15 subpart B class B, CE Marking: EN61000-3-2, EN61000-3-3, EN55022(class B), EN55024(EMC directive), EN60950-1 (Low voltage directive), WEEE/RoHS,/ErP(lot6) compliant, c-tick class B (Australia/New Zealand), GOST-R (Russia)

ACCESSORIES SUPPLIED

Remote control with batteries, RGB cable, power cord, cable cover, security label, user manual (detail & concise), Application CD, Wall mount (HAS-K250), Adapter cover

OPTIONAL ACCESSORIES

Replacement lamp	DT01381
Table top stand	TT-251
USB wireless adapter	USB-WL-11N

WARRANTY

Projector warranty	3 Years
Lamp warranty	6 months/5000 Hours**
