Product Type	Interface Bracket for Projector Mounts
Model	SSB249
Brand	Chief (Milestone AV Technologies)
Compatibility	Chief Series Projector Mounts (SSM-249, SLB-249, SLM-249)
Mounting Hole Pattern	Compatible with standard projector threaded inserts
Included Hardware	1 bracket, 3 M4x10mm screws, 1 M4x20mm screw, 4 10-24 thumb nuts (for SLB/SSB), 3 M4 washers, 1 all-points security kit, 1 security hex key (5/32")
Installation Orientation	Triangle on bracket points toward front of projector
Security Feature	All-Points Security Kit included (allows use of security screws)
Material	Metal (likely steel or aluminum)
Dimensions (Estimated)	Approximately 5 x 3 x 0.5 inches (127 x 76 x 13 mm)
Weight (Estimated)	Approximately 0.5 lb (0.23 kg)
Power Supply	None (passive mechanical bracket)
Maintenance	Wipe clean with a dry cloth; avoid solvents
Safety Warnings	Do not substitute hardware; use only supplied parts; avoid over-tightening
Spare Parts / Repairability	Contact Chief Customer Service for replacements; no user-serviceable parts
Warranty & Support	See manual or contact Chief Manufacturing (800.582.6480)

Frequently Asked Questions - SSB249 Chief

What is the Chief SSB249?

The Chief SSB249 is an interface bracket designed for use with Chief Series Projector Mounts. It allows secure attachment of a projector to the mount.

Is the SSB249 compatible with all projectors?

The bracket is compatible with projectors that have threaded inserts matching the M4 screw pattern and spacing. It is designed for use with Chief mounts.

What hardware is included with the SSB249?

The kit includes the interface bracket, three M4x10mm pan head screws, one M4x20mm flat head screw, four 10-24 thumb nuts (for SLB/SSB brackets), three M4 washers, an all-points security kit, and a 5/32" security hex key.

How do I install the SSB249?

Place the projector upside down. Align the bracket with the projector's threaded inserts, ensuring the triangle points forward. Secure with M4 screws: use the M4x10mm screws in the side tabs and M4x20mm screw in the center. Tighten all fasteners. For SLB/SSB brackets, first screw thumb nuts onto 10-24 screws.

What is the triangle on the bracket for?

The triangle on the bracket indicates the front of the projector. It helps ensure correct orientation during installation.

Can I use security screws with this bracket?

Yes. The included All-Points Security Kit allows you to substitute standard screws with security screws for tamper-resistant installation. Follow the instructions in the kit.

What is the difference between SSB and SSM brackets?

SSB-style brackets use thumb nuts and are typically for specific mounts. SSM-style brackets do not require thumb nuts. The manual notes connections for both styles.

Can I use screws not provided by Chief?

No. Using unapproved hardware can lead to equipment falling and cause serious injury. Always use the supplied screws.

How do I clean the bracket?

Wipe the bracket with a dry, lint-free cloth. Do not use liquid cleaners or solvents that could damage the finish.

Who do I contact for support?

For support, contact Chief Customer Service at 800.582.6480 or 952.894.6280. Hours and additional contact info can be found on the official website.

USER MANUAL SSB249 Chief

INSTALLATION INSTRUCTIONS

SSB-249, SSM-249, SLB-249 and SLM-249 Interface Brackets

SSB-249, SSM-249, SLB-249 and SLM-249 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the specific installation instructions provided with the mount for additional installation information.

Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.

WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!

(1) Interface Bracket (3) Screw, Phillips Pan Head, Machine, M4 x 10mm
(4) 10-24 Thumb Nuts ** (1) Screw, Phillips Flat Head, Machine, M4 x 20mm
(1) All-Points Security Kit (3) Washer, M4
(1) 5/32" Security Hex Key

Note: SSB-style interface bracket connections are circled.

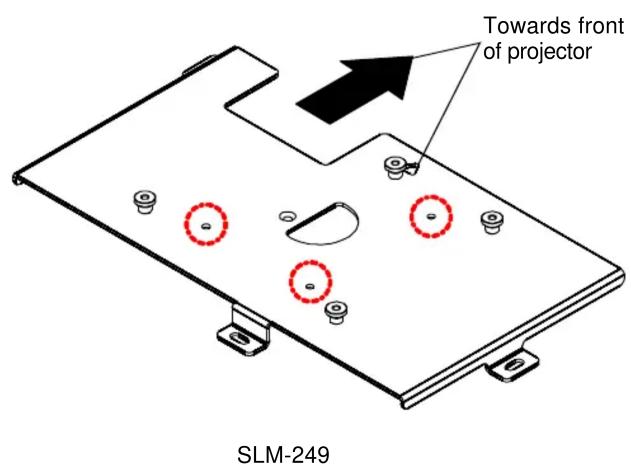

Note: SSM-style interface bracket connections are circled.

**Only used when installing SLB/SSB interface brackets.

Installation Instructions

WARNING: OVER TIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND DAMAGE TO EQUIPMENT! DO NOT over tighten screws when installing interface brackets.

NOTE: Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.

1. Screw thumb screws onto 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.
2. Turn projector upside down on a flat surface.
3. Place the interface bracket onto the bottom of the projector, aligning the mounting holes in the bracket with the threaded inserts in the bottom of the projector and ensuring that triangle in bracket points towards front of projector.
4. Position M4 x 10mm mounting screws with M4 flat washers into the threaded inserts and three bracket side tabs. Place the M4 x 20mm screw into the threaded insert and mounting hole at center of interface bracket. Tighten all fasteners at this time, securing the bracket to the projector.

NOTE: Security screws can be substituted when mounting Interface bracket to projector by using the parts and installation instructions in the All-Points Security Kit.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.

Milestone AV Technologies, and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

CHIEF®

Our Mounts. Your Vision.

Chief Manufacturing, a products division of Milestone AV Technologies

8401 Eagle Creek Parkway, Savage, MN 55378

• P: 800.582.6480 / 952.894.6280 • F:877.894.6918 / 952.894.6918

8802-002039 Rev00
