X086 - Smartphone Micromax - Free user manual and instructions

Product Type	Smartphone
Brand	Micromax
Model	X086
Dimensions (H x W x D)	145 x 72 x 9.5 mm
Weight	150 g
Display Size	5.0 inches
Display Resolution	480 x 854 pixels
Operating System	Android 6.0 (Marshmallow)
Processor	Quad-core 1.3 GHz
RAM	1 GB
Internal Storage	8 GB
Expandable Storage	microSD up to 32 GB
Battery Capacity	2000 mAh, removable
Charging Port	Micro USB
Main Camera	5 MP with LED flash
Front Camera	2 MP
SIM Card	Dual SIM (Micro-SIM, dual stand-by)
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0, GPS
Sensor	Accelerometer, Proximity
Power Supply	Li-Ion 2000 mAh battery, 5V/1A charger
Main Functions	Calling, texting, internet browsing, camera, music, video playback
Maintenance & Cleaning	Wipe with dry cloth; avoid liquids and solvents
Safety	Do not disassemble; keep away from water and heat; use only approved chargers
Spare Parts & Repairability	Battery and back cover replaceable; screen repair by authorized service
General Information	User manual available in PDF; supports multiple languages

Frequently Asked Questions - X086 Micromax

How do I insert the SIM and microSD cards?

Remove the back cover and battery. Insert the SIM cards into the two slots with gold contacts facing down. Insert the microSD card into the dedicated slot. Replace the battery and back cover.

How can I set up the phone for the first time?

Press and hold the power button to turn on. Follow the on-screen setup wizard: select language, connect to Wi-Fi, sign in to Google account, and set date/time.

What should I do if the battery is not charging?

Check the charger and cable for damage. Try a different outlet. Remove the battery and clean contacts. If problem persists, try a replacement battery.

How do I take a screenshot?

Press and hold the Power button and Volume Down button simultaneously until the screen flashes. Screenshots are saved in the Gallery app.

Why is the touch screen not responding?

Remove any screen protector. Clean the screen with a dry cloth. Restart the phone by holding the power button. If still unresponsive, perform a factory reset (backup data first).

How can I free up storage space?

Go to Settings > Storage. Clear cache for apps, uninstall unused apps, move apps to SD card if supported, and delete old files or photos.

Can I use the phone with only one SIM?

Yes, the phone supports dual SIM but can work with a single SIM inserted in either slot. Leave the other slot empty.

How do I update the software?

Go to Settings > About phone > System updates. If an update is available, download and install it over Wi-Fi. Ensure battery is above 50%.

What is the default password for Wi-Fi hotspot?

When creating a hotspot, you can set a custom password in Settings > Tethering & portable hotspot. The default may be blank, but it is recommended to set a strong password.

How do I perform a factory reset?

Go to Settings > Backup & reset > Factory data reset. Alternatively, turn off phone, press and hold Volume Up + Power buttons, select 'wipe data/factory reset' using volume keys and confirm with power button.

USER MANUAL X086 Micromax

Congratulaons on your purchase of Micromax X086 handset. This handset oers you the following features:

Digital Camera
FM Radio
LED Torch
Music Player
Sound Recorder
Dual SIM
1.8 inch screen
Bluetooth
■ Memory Card Support (expandable up to 8 GB)
Hindi Language support

Contents

WELCOME....1

PHONE LAYOUT....4

GETTING STARTED 5

Insert SIM....5

Insert Memory Card 6

Charging the Baery....7

HOW TO USE YOUR PHONE....8

Switch On/OFF 8

Lock/Unlock the phone....8

Make a Call....9

Answer/Reject a call....10

Make a Conference Call ....10

Make an Internaonal call....11

Send Messages....11

Add Contacts to Phonebook 12

Use Mulmedia Features ....12

FM Radio 12

Music Player ....13

NOTABLE FEATURES....14

Torch Light....14

Bluetooth ....14

Auto Redial....14

Call Time Reminder ....14

Phone Language ....15

Phone Security ....15

Auto Call Recorder....15

Camera 15

File Manager....16

Answer Mode....16

USEFUL TIPS....16

SAFETY PRECAUTIONS....17

TAKING CARE OF YOUR DEVICE....18

DISCLAIMERS ......19

COPYRIGHT 20

Phone Layout

Geng Started

Insert SIM

To insert SIM card:

1. Switch o the mobile phone and remove the rear cover and baery, as illustrated below:

Illustration of two mobile phones with a hand holding the phone, one showing a scroll and the other a hand inserting a card (no text or symbols present)

1. Insert the SIM card(s) correctly in the card slot(s), as shown in the following image:

Illustration of a mobile phone with visible keypad, buttons, and internal screen (no text or symbols)

1. Finally, insert the baery and place the rear cover of the mobile phone.

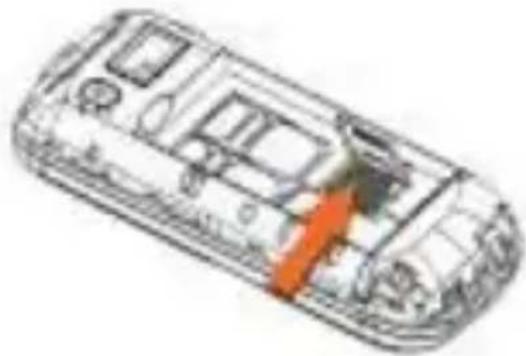

Insert Memory Card

To insert memory card:

1. Switch o the phone and remove the rear cover and the baery.
2. Insert the memory card in the card slot, as shown in the following image.

Technical line drawing of a car interior with no visible text or symbols

1. Place back the baery and the rear cover of the mobile phone.

	The Memory Card gives you extra storage capacity for content such as pictures, music, and video clips.
	Do not remove the memory card while reading or wring to the card. Doing so may cause data corrupon on the card or on the phone.
	Use only compatible memory cards approved by Micromax. Incompatible cards may damage the slot or corrupt the data stored in the card.

Charging the Baery

You can charge your phone baery via charger or the USB cable supplied with this phone.

To charge your phone:

1. Connect the charger to the charger jack (USB) on the phone.

Diagram showing connections between a laptop, USB cable, and a mobile phone with a plug (no text or symbols present)

1. Connect the charger to a power socket or connect the USB jack of the cable with your PC or laptop.

A charging icon is displayed in an animated state while the phone is charging. When the charging icon becomes stac, it indicates that the baery is full.

X086 7

Disconnect the charger from the power socket and the phone aer charging.

Please charge the baery before you use the newly purchased phone. We suggest you to charge the baery for at least 4 hours connuously for the rst me.

How to Use Your Phone

Switch On/OFF

Long press the End/Power key to switch on and o your phone.

Silhouette of a hand holding a mobile phone with a black screen (no visible text or symbols)

Lock/Unlock the phone

From the home screen press Le key and then immediately press * to lock/unlock the phone, as shown in the following image:

X086 8

Two identical mobile phones with black screens and control buttons, each holding a rounded object against a white background (no text or symbols visible)

Make a Call

■ Dial a number and press the call key to make a call.
- You can also call a number from the phonebook or call log in the same way.
To change the in call volume, press the navigaon key up or down as illustrated in the following image:

Illustration of a hand holding a mobile phone with a keypad (no text or symbols visible)

X086 9

Answer/Reject a call

To answer, press the call key as shown below:

Black and white photo of a mobile phone with a curved screen and a leaf-shaped cover (no visible text or symbols)

To reject a call, press End/Power key as shown below:

Hand holding a flip phone with a black LCD screen (no visible text or symbols)

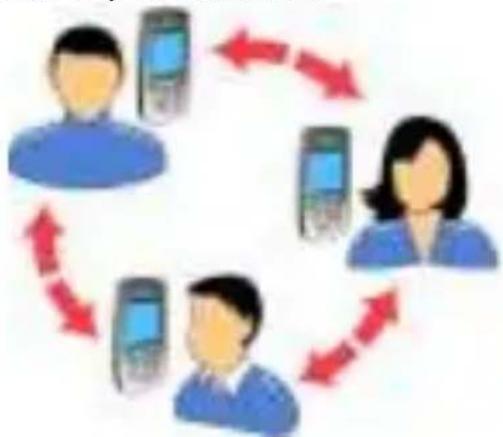

Make a Conference Call

To make a conference call:

1. While on a call, make another call by pressing the le key to view

X086 10

opons and then select the phonebook or new call opon. The rst call is put on hold.

1. When on the other call, press Opons → Conference.

Please contact your service provider in case Call Conference feature is not acvated in your SIM.

Make an Internaonal call

From the home screen, long press the * key ll + displays on screen. Enter the desired internaonal code and the phone number and then press the call key to make the call.

Send Messages

Menu → Messages

You can compose a new message or reply to exisng messages in the list.

X086 11

Add Contacts to Phonebook

Menu → Phonebook → Add new contact

You can add contacts in your phonebook at anymore. You can also save contacts through call logs, messages, and dial pad.

Use Mulmedia Features

Menu → Mulmedia

You can use Camera, Image viewer, Video recorder, Video player, Sound recorder and Music player.

FM Radio

Menu → FM radio

You can listen to your favorite FM channels using the inbuilt FM receiver of your phone.

You need to insert the Earphone to listen to the radio. You can insert the earphone as shown in the following image:

Illustration of a mobile phone connected to earphones and a handheld device (no text or symbols visible)

Use the navigaon keys and OK key to use various features in the FM radio interface.

Music Player

Menu → Mulmedia → Music Player

The phone comes with an inbuilt music player that plays all your favorite songs stored in the memory card. Now store and listen to your favorite songs any me with your X086. X086 comes with an easy-to-use interface. You can operate the music player with the player keys, as required.

■ Press the Le key to view the list of songs.
■ Play/Stop: Press OK Key.
■ Shi Music: Press le and right navigaon keys.
- Adjust Volume: Press * and # keys.

X086 13

Notable Features

Torch Light

Long press the 0 key to turn the torch on/o or you can go to Menu → Organizer → Torch to turn the torch on/o.

Bluetooth

Menu → Bluetooth

Turn on Bluetooth to exchange data with other Bluetooth enabled devices. You can search for Bluetooth acve devices from My device, change your device name from Device name, and acvate/deacvate your device visibility on other Bluetooth devices from Visibility.

Auto Redial

Menu → Sengs → Call sengs → Advanced sengs → Auto redial

Switching this feature on will automacally redial a number if a dialed call goes unanswered in the rst aempt.

Call Time Reminder

Menu → Sengs → Call sengs → Advanced sengs → Call me reminder

You can acvate or deacvate call me reminder. This can be on a single or

X086 14

periodic basis. If acvated, the phone beeps at the me interval you have set, during a call.

Phone Language

Menu → Sengs → Phone Sengs → Language

You can change the phone language according to your preference. Your X086 supports Hindi and English language.

Phone Security

Menu → Sengs → Security sengs → Phone security

You can set the password to unlock the phone. Default password is 0000.

Auto Call Recorder

Menu → Sengs → Call sengs → Advanced sengs → Auto call record

You can use this feature to automacally record all your calls.

Camera

Menu → Mulmedia → Camera

Press the le key in camera mode to choose various sengs. Press the OK key to take photos.

File Manager

Menu → File manager

Allows you to view and manage les available in your phone or memory card.

Warning: All exisng les in the memory card will be deleted aer you format the memory card.

Answer Mode

Menu → Sengs → Call sengs → Advanced sengs → Answer mode

This feature lets you automacally answer call when any key is pressed or when headset is inserted.

Useful Tips

Tips	Descripon
IMEI Number	You can nd the IMEI Number of your phone by pressing *#06#.
SAR Value	You can nd the SAR values by pressing *#07# (applicable to India users only).

Safety Precauons

Please read these simple guidelines. Not following them may be dangerous or illegal.

Safe Driving

• Do not use the phone while driving. When you have to use the phone, please use the personal hands-free kit.
• Please put the phone safely in the phone stand. Do not put it onto any passenger seat or any place from which it may fall down in case of vehicular collision or emergency braking.

During Right

- Flight is inuenced by interference caused by the phone. It is illegal to use a phone on the airplane. Please turn o your phone during a ight.

In Hospitals

• Your Phone's radio waves may interfere with the funcon of inadequately shielded medical devices. Consult a physician or the manufacturer of the medical device to determine whether they are adequately shielded from external RF energy. Switch o your device when regulaons posted instruct you to do so.
• To avoid potenal interference with implanted medical devices such as a pacemaker or cardioverter debrillator:
  • Always keep your phone at least 15.3 cenmeters (6 inches) from the medical device.
• Do not carry the wireless device in a breast pocket.
  • Turn o the phone if there is any reason to suspect that interference is taking place.
  • Follow the manufacturer direcons for the implanted medical device.
• If you have any quesons about using your wireless device with an implanted medical device, consult your health care provider.

Unsafe Areas

- Please turn o your phone when you are close to a gas staon or in the vicinity of any place where fuel and chemical preparaons, or any other dangerous goods are stored.

Taking Care of Your Device

• Your device is a product of superior design and crasmanship and should be handled with care: The following suggestions will help you protect your phone:
• Keep the device dry. Precipitaon, humidity, and all types of liquids or moisture can contain minerals that will rust electronic circuits. If your device does get wet, remove the baery without turning on the device, wipe it with a dry cloth and take it the service center.
• Do not store the device in high or cold temperature. High temperatures can shorten the life of electronic devices and damage baeries.
• Do not use or store the device in dusty, dirty areas. Its moving parts and electronic components can be damaged.
• Do not aempt to open the device other than as instructed in this guide. Repairing this phone by yourself other than our authorized service agents/centers goes against the warranty rules.
• Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and ne mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device. Only use a so, clean, dry cloth to clean the surface of the device.
• Do not store your device near magnec elds or allow your device to come in contact with magnec elds for extended period of me.
• Locaon: The socket-outlet shall be installed near the equipment and shall be easily accessible.

Battery Recommendations

- Please put the baery in a cool and well-venlated place out of direct sunlight. We recommend you to charge the baery at room temperature range.

• Baeries have life cycles. If the me that the baery powers equipment becomes much shorter than usual, the baery life is at an end. Replace the baery with a new baery of the same make and specicaon.
• Use manufacturer approved baeries, chargers, accessories and supplies. Micromax will not be held responsible for user's safety when using unapproved accessories or supplies.
• Do not discard the baery with household trash. Please dispose of used baery according to your local environmental laws and guidelines.

- Warnings on Baery:

- Please use appointed baery in case of explosion risk.

- Please dispose of lifeless baery under guidance.

Recycle Your Phone

The WEEE logo (shown at the le) appears on the product (baery, handset, and charger) to indicate that this product must not be disposed o or dumped with your other household wastes. You are liable to dispose of all your electronic or electrical waste equipment by relocang over to the specied collecon point for recycling of such hazardous waste.

Collecon and proper recovery of your electronic waste equipments at the me of disposal will allow us to help preserve the environment. Recycling of the electronic waste equipment will ensure safety of human health and environment. For more informaon on best pracces for disposal of electronic and electrical waste, please visit to our web site: www.micromaxinfo.com/weee.php.

Disclaimers

• The colors and specicaons shown/menoned in the user manual may dier from the actual product. Images shown are for representaon purpose only. Other product logos and company names menoned herein may be trademarks or trade names of their respective owners.
• Specicaons are subject to change without prior noce.
• The funcons explained or listed in this manual may dier from the actual funcons appearing in the mobile phone. In such a case, the laer shall govern. We do not guarantee the absolute accuracy of the User Guide Vis-a vis the actual handset. Micromax keeps the right to make modicaons to the content in this user guide

without any prior noce.

• Upon rst use of your device, your device will send informaon related to your mobile number, IMEI numbers, locaon details and other soware details through SMS automacally*. This informaon may be used as further specied in Micromax privacy policy**.
• Talk and standby mes are aected by network preferences, type of SIM cards, connected accessories and individual usage paerns. Services and some features may be dependent on the network, service/content providers, SIM cards, compatibility of the devices used and the content formats supported.

*Operator tari shall be applicable for SMS.

**Micromax privacy policy is available at www.micromaxinfo.com.

Copyright

All rights reserved. Reproducon, transfer, distribuon or storage of part or all of the contents in this document in any form without the prior written permission of Micromax is strictly prohibited.
