Frequently Asked Questions - EVC-G2122CY(OR) Elba

How do I clean the filter?

Turn off and unplug the vacuum. Remove the dust container, then take out the HEPA filter. Rinse it under running water until clean. Let it dry completely for 24 hours before reassembling.

The vacuum loses suction. What should I check?

Check if the dust container is full or the filter is clogged. Also inspect the hose and brush roll for blockages. Clean or replace as needed.

Can I use this vacuum on hardwood floors?

Yes, the vacuum has a hard floor setting or you can turn off the brush roll to prevent scratching. Use the appropriate attachment.

How often should I replace the filter?

The HEPA filter should be replaced every 6 months or when damaged. Rinse it monthly to extend its life.

The brush roll stops spinning. What could be wrong?

It may be jammed by hair or debris. Turn off and unplug, then remove the brush roll and clean it. Also check the belt for damage.

How do I store the vacuum?

Store in an upright position in a dry place. Wrap the cord loosely around the hooks. Keep away from heat sources.

The vacuum overheats and shuts off. What should I do?

This is due to blocked airflow. Unplug and let cool for 30 minutes. Clean the dust container, filter, and hose before restarting.

Can I wash the dust container?

Yes, the dust container is washable. Empty it, then rinse with water. Dry thoroughly before reattaching. Do not use detergents.

How do I change the belt?

Turn off and unplug. Remove the brush roll cover, take out the old belt, and loop the new belt around the motor shaft and brush roll. Reassemble.

Where can I buy spare parts?

Spare parts like filters, brush rolls, and belts are available on the Elba website or from authorized dealers. Use only genuine parts.

USER MANUAL EVC-G2122CY(OR) Elba

Line drawing of a mechanical device with wheels and a handle (no text or symbols)

ELBA

MULTI-CYCLONE VACUUM CLEANER

MODEL: EVC-G2122CY(OR)

Owner's Manual

Please read this manual carefully before operating your set.

Retain it for future reference.

Record model number and serial number of the set.

See the label attached on the set and quote this information to your dealer when you require service.

IMPORTANT SAFEGUARDS

When using this appliance, basic precautions should always be followed, including the following:

1. Read all instructions in this booklet carefully.
2. Do not operate the appliance with damaged power cord or plug, after the appliance malfunctions, or if it was dropped or damaged in any manner. Kindly return the appliance to the nearest authorized dealer or after-sales service centre for examinations, repairs, electrical or mechanical adjustments.
3. Always operate the product from a power source of the same voltage, frequency and rating as indicated on the product identification marking.
4. Do not unplug by pulling the power cord. To unplug, grasp the plug firmly.
5. Do not handle the plug or any other parts of the appliance with wet hands.
6. Do not leave the appliance unattended while operating. Ensure the appliance is powered off before carrying out any cleaning or maintenance operations.
7. Never use methylated spirits or other solvents to clean the appliance.
8. Do not put any objects into the hose inlet. Keep it free from dust, lint, hair and anything that may reduce airflow.
9. Turn off all controls before unplugging the appliance.
10. Take extreme care when cleaning on stairs.
11. Do not use the appliance to suck flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
12. Do not use the appliance to suck anything that is burning or smoking, such as cigarettes, matches or hot ashes.
13. Hold plug when rewinding onto cord reel. Do not allow the plug to whip freely when rewinding.
14. Unplug the appliance before connecting the hose.
15. Do not use without filter in place.
16. Never use any accessories or parts other than ELBA's.
17. Close supervision is necessary when the appliance is operating near children or infirm persons. Keep the appliance out of reach of children.
18. This appliance is for domestic use only and not for commercial applications.
19. Do not use this vacuum cleaner outdoor.
20. Do not operate it for purposes other than its intended use.
21. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the usage of this appliance by a person responsible for their safety.
22. Save these instructions for future reference.

PRECAUTIONARY MEASURES

If the floor brush, nozzle or the hose are blocked, disconnect the blocked item(s) immediately.

1	2	3
4	5	6

1. Do not operate the appliance near heat generators like radiators, cigarette butts etc.
2. Do not use the main wire to carry the appliance and pull the main wire over sharp edges.
3. Do not use the appliance to suck anything that is burning or smoking, such as burning cigarette butts, lighted matches or hot ashes.
4. Do not use the appliance to suck liquids.
5. Before operating the appliance, ensure that the air intake or outlet vent is not obstructed by objects on the floor to prevent the filter from being blocked or damaged.
6. Do not use the appliance to suck sharp objects of any size, such as needles, pins etc to prevent the filter from being damaged.

PRODUCT DESCRIPTION

A. Hose Handle	F. Hose Connector
B. Flexible Hose	G. Dust Reservoir
C. Wind Force Adjuster	H. Power Cord Rewind Button
D. Extension Tube	I. Power Button
E. Adjustable Floor Brush

ASSEMBLE THE VACUUM CLEANER

*Note: Always remove the plug from the wall outlet before fitting or removing the accessories.

Fitting the flexible hose

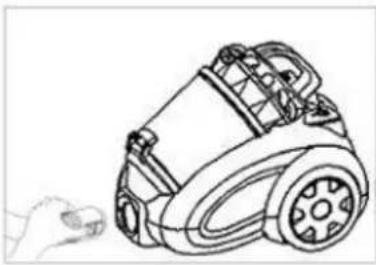

- Insert the flexible hose into the hose inlet of the appliance body. Press until it clicks into position firmly.

- To remove the flexible hose, press the clip position down of the hose (where the hose is connected to the air inlet duct) and pull the hose firmly from the air inlet duct.

Line drawing of a hand operating a small robotic vacuum cleaner (no text or symbols)

Fitting the extension tube and accessories

- Connect the extension tube to the flexible hose by holding the handle.

Illustration of a hand holding a tool with an arrow indicating motion (no text or symbols)

- To extend the tube, push the part shown below position down of the tube until desired length. Release thereafter to maintain the extension length.

Illustration of two hands holding a tool with a handle, no text or symbols present

- Fitting the floor brush to the extension tube.

Line drawing of a hand using a tool to apply a sample into a device (no text or symbols present)

USING THE CLEANING ACCESSORIES

Dual-purpose Adjustable Floor Brush.

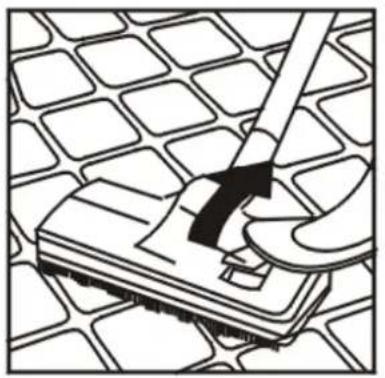

- Style 1: Extended bristles. Best suited for floor cleaning.

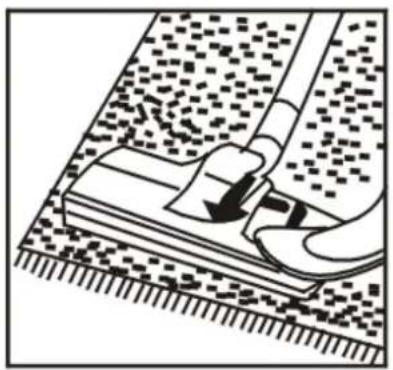

- Style 2: Retracted bristles. carpets Best suited for carpet cleaning.

Diagram showing a tool interacting with a textured surface, no text or symbols present

Illustration of a person using a tool to lift a shoe on a tiled floor (no text or symbols)

Crevice Nozzle

Best suited for cleaning corners, edges, cushions etc.

Illustration of a tool interacting with vertical bars, no text or symbols present

Small Brush

Best suited for cleaning curtains, cupboards, furniture, lamps etc.

Simple line drawing of a person using a handheld device to interact with another person (no text or symbols present)

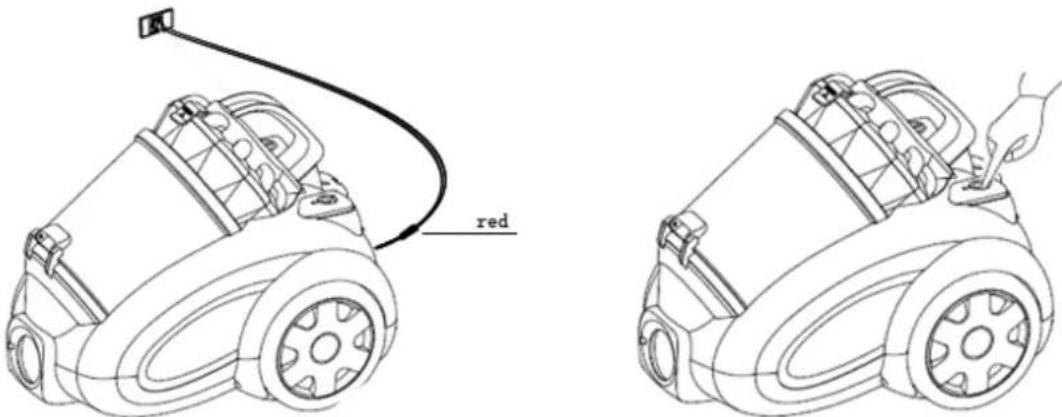

Caution: Before operating, unwind a sufficient length of power cord and insert the plug into the wall outlet. DO NOT extend the power cord beyond the RED mark.

Power on the appliance

Insert the power plug to the wall outlet and power on. Press the power button on the product body. The appliance is now ready for use.

Power cord rewind button

To rewind the power cord, press the rewind button on the product body with one hand, and guide the cable with the other hand to prevent cable from whipping.

Line drawing of a hand using a vacuum cleaner to clean the engine (no text or symbols present)

CLEANING AND MAINTENANCE

To remove dust from the dust tank

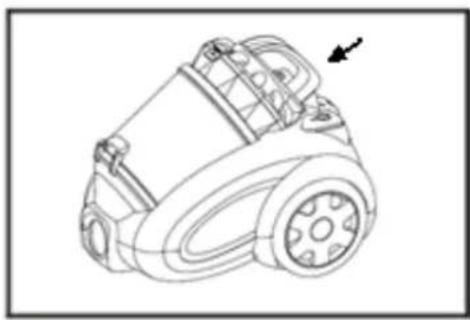

- Press the dust tank release button by the end of the dust tank handle. Pull out the dust cup by holding the dust tank handle.

Line drawing of a vacuum cleaner with a mounted device and arrow indicating direction (no text or symbols)

- Press the dust cup (bottom) release button, then the collected dust will drop off from the bottom of the dust cup.

Line drawing of a mechanical device with no visible text or symbols

- Remove the filter assembly from the dust cup and clean the filter by using a soft brush or wipe using a soft damp cloth.

Before storing the filter assembly, make sure it is dry and clean.

To clean the filter foam

• After removing the filter assembly by pressing the release button, take out the filter foam.

- Clean the filter foam by using soft brush and rinse it under clean tap water.

Ensure it is completely dry before using it again.

- This is a washable filter, therefore it is recommended to clean the filter consistently to ensure optimal suction power.

Line drawing of a trash bin with an open lid and handle, showing a left-side arrow (no text or symbols)

Line drawing of hands washing in a basin with a faucet (no text or symbols)

MAIN SPECIFICATION

Model No. : EVC-G2122CY(OR)

Power : 1200W

Rated Voltage : 220-240V

Rated Frequency : 50-60Hz

Noise Level : <80dB

Dust Capacity : 2.0L

Cable Length : 4.5m

NOTICE

This product must not be disposed together with domestic waste. It has to be disposed at an authorized place for recycling of electrical and electronic appliances. By collecting and recycling waste, you help to save natural resources and make sure the product is disposed in an environmentally friendly and healthy way.
