Product Type	Split System Wine Cooling Unit (Ceiling Mount)
Model	S-WKCM8000-115-2
Brand	WhisperKOOL
Cooling Capacity	5,245 BTU/h at 85°F condenser air
Recommended Cellar Size	Up to 2,000 cu. ft. (properly insulated)
Evaporator Dimensions	35.75" L x 14.5" W x 12.75" H
Condensing Unit Dimensions	16.08" L x 16.23" W x 12.61" H
Evaporator Weight	90 lbs
Condensing Unit Weight	60 lbs
Power Requirements	Evaporator: 115V, 15A dedicated circuit; Condenser: 115V, 20A dedicated circuit
Refrigerant	R-134a
Compressor HP	1/3+
Line Set Sizing	Liquid: 1/4"; Suction: 1/2" (<50 ft) or 5/8" (≥50 ft)
Maximum Line Set Length	100 ft
Temperature Setpoint Range	50°F to 70°F (factory preset 55°F)
Maximum Ambient Temperature	110°F for condenser intake
Thermostat Type	Digital display with liquid bottle probe (50-ft cables)
Condensate Drain	Built-in condensate pump; 1/4" ID clear tubing
Special Features	Pump down cycle, anti-frost cycle, anti-short cycle, low ambient control
Maintenance	Clean coils monthly; check drain quarterly; annual inspection. Do not use GFI.
Warranty	2-year limited (parts and labor)
Installation Requirements	Must be installed by certified HVAC-R technician; insulation blanket mandatory

Frequently Asked Questions - S-WKCM8000-115-2 WhisperKOOL

How do I set the temperature on my WhisperKOOL S-WKCM8000-115-2?

Press the SET button until 'SEt' appears, then press SET again. Use the UP/DOWN arrows to adjust between 50°F and 70°F. Press ESC to confirm. The display must be unlocked by holding any button for 1 second first.

What does alarm code E1 mean?

E1 indicates the bottle probe is not connected or faulty. Check the probe connection at the circular connector and ensure it is securely plugged into the CPB/PB1 terminal on the circuit board. If the probe is defective, replace it.

How often should I clean the coils?

Clean the evaporator and condenser coils monthly using a vacuum with a brush attachment. Be careful not to damage the fins. Quarterly, a deeper cleaning with a mild detergent may be needed.

What is the pump down cycle?

The pump down cycle stores most refrigerant in the condensing unit and receiver when cooling stops. A solenoid valve closes, stopping liquid flow, and the compressor runs until suction pressure drops, then the low-pressure switch shuts it off. This eliminates the need for wiring between units.

Can I install this unit myself?

No. WhisperKOOL requires installation by a certified HVAC-R technician (NATE or equivalent). Improper installation voids the warranty and can cause damage. The unit must be brazed, evacuated, and charged properly.

What is the bottle probe for?

The bottle probe measures liquid temperature (simulating wine) rather than air temperature. Place it in a 75% full water bottle in the cellar. This allows the system to run 75-80% of the time, maintaining more stable humidity and temperature.

How do I adjust the TXV?

Remove the cap from the TXV superheat adjustment port with a 5/32" hex key. Turn clockwise to increase superheat, counterclockwise to decrease. Aim for a superheat of 20-30°F at the suction line service valve.

What is covered under the 2-year warranty?

WhisperKOOL covers parts and labor for defects in material and workmanship for 2 years. Labor reimbursement up to $250. Freight for replacement parts if defect is manufacturer’s fault. Does not cover installation errors, improper voltage, or misuse.

How should I route the drain line?

Use 1/4" ID clear tubing (not provided). Connect to the barbed coupling on the condensate pump. Route to a proper discharge location, ensuring a downward slope and that the line end is above the water level to prevent mold. Maximum vertical lift is 15 ft.

What is the anti-frost cycle?

When the evaporator probe senses 26°F for one minute, the compressor shuts off and the fan runs to melt frost. 'dEF' displays. The compressor restarts when the coil reaches 40°F or after one hour. This prevents ice buildup on the coil.

USER MANUAL S-WKCM8000-115-2 WhisperKOOL

Conforms to ANSI/UL Std 427

Certified to CAN/CSA Std C22.2 No. 120

We manufacture, test and certify 100% of our wine cooling units in the USA. By sourcing the best components and closely controlling our manufacturing processes, we can assure the highest-quality, lowest defect manufacturing rates in the industry.

Copyright © 2019. WhisperKOOL. All rights reserved.

WhisperKOOL copyrights this manual, the product design, and the design concepts, with all rights reserved. Your rights with regard to the hardware and manual are subject to the restrictions and limitations imposed by the copyright laws of the USA. Under copyright laws, this manual may not be copied, reproduced, translated, transmitted, or reduced to any printed or electronic medium or to any machine-readable form, for any purpose, in whole or in part, without the written consent of WhisperKOOL.

Every effort has been made to ensure that the information in this manual is accurate. WhisperKOOL is not responsible for printing or clerical errors.

WhisperKOOL reserves the right to make corrections or improvements to the information provided and to the related hardware at any time, without notice.

Vinothèque and WhisperKOOL are registered trademarks, and ECE is a trademark of WhisperKOOL. All rights reserved.

Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recommendation. WhisperKOOL assumes no liability with regard to the performance or use of these products.

TABLE OF CONTENTS

Introduction 3

Quick Start Guide.... 4

Before You Start 5

Receiving & Inspecting the System 6

Quick Reference Guide

Knockout Locations.... 8

Display Layout & Unit Specifications.... 9

Evaporator Unit Installation

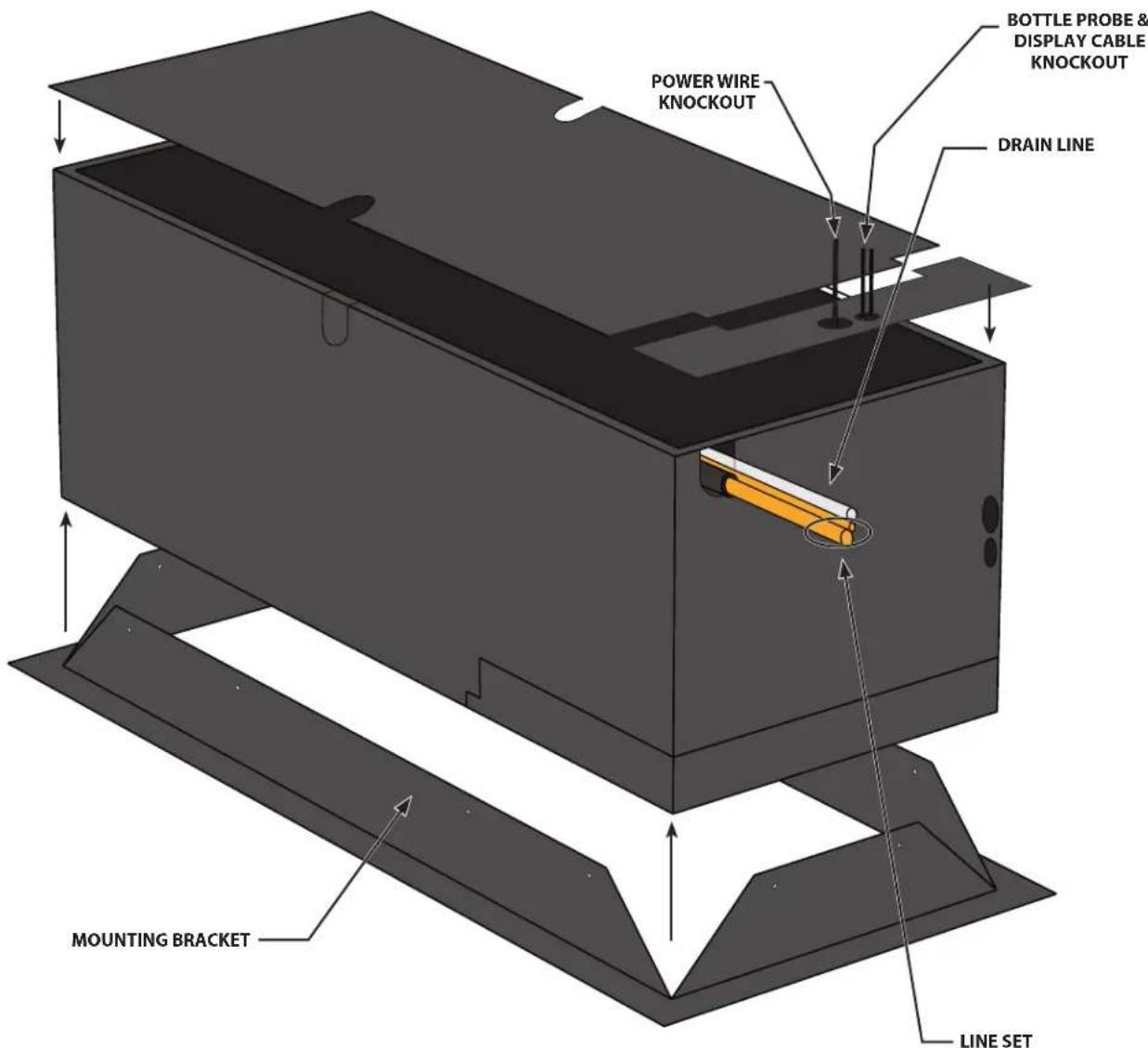

Items to Route before Installing the Evaporator Unit 12

Selecting Mounting Option 13

Mounting the Evaporator Unit 14

Evaporator Unit Preparation.... 15

Installing the Evaporator Unit 16

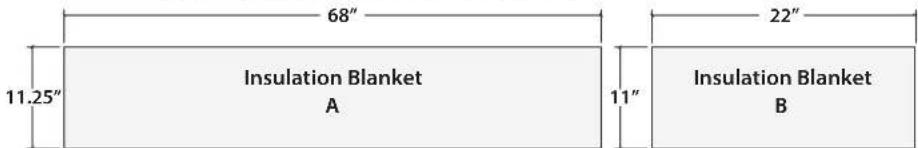

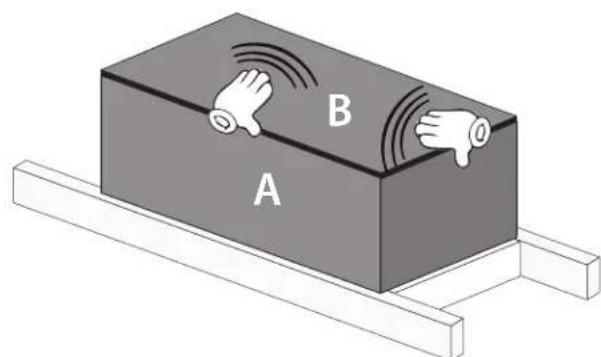

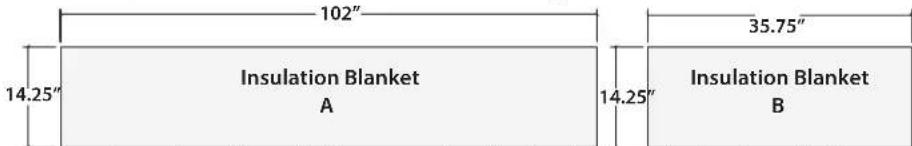

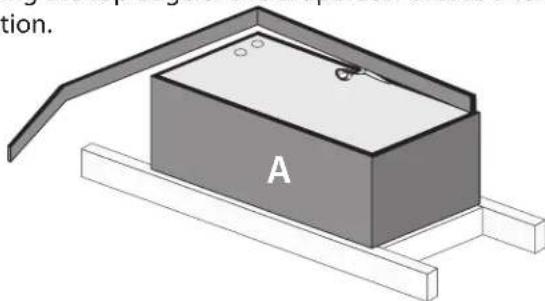

Insulation Blanket Installation.... 18

Drain Line.... 20

Liquid-Measuring Thermostat (Bottle Probe) 21

Remote Display Installation 22

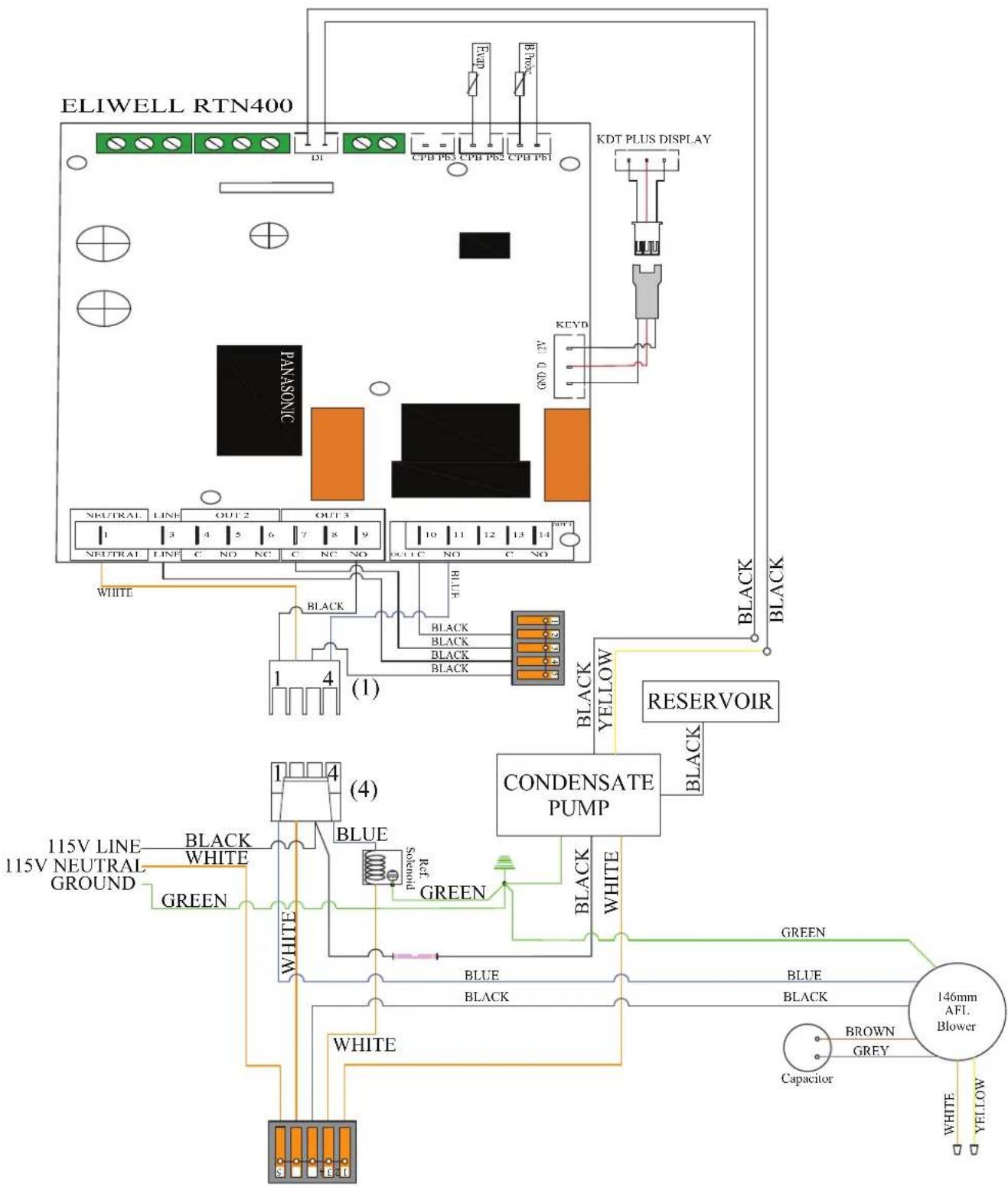

Wiring Diagrams

Ceiling Mount 28

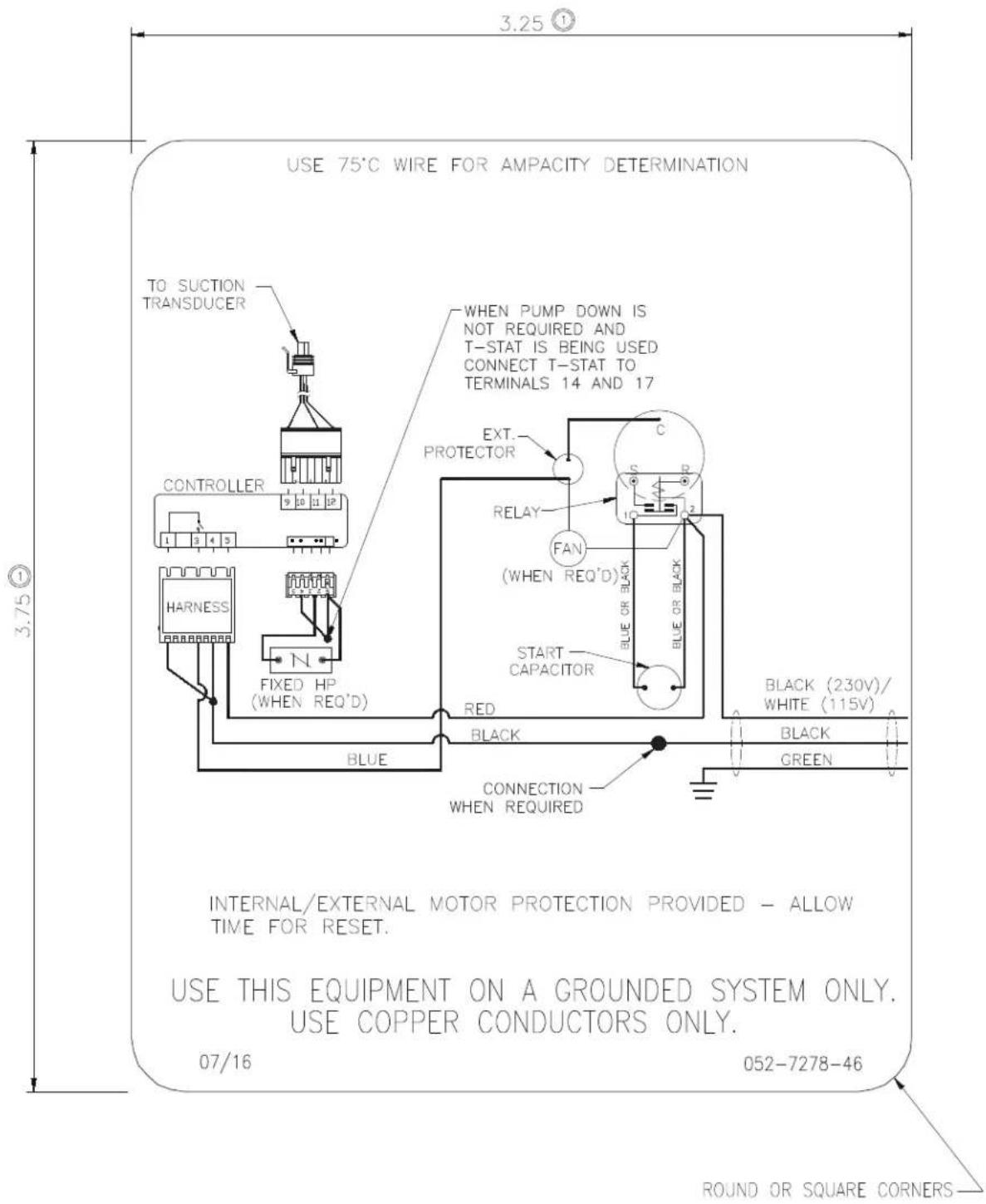

Ceiling Mount 4000/8000 Condensing Unit.... 29

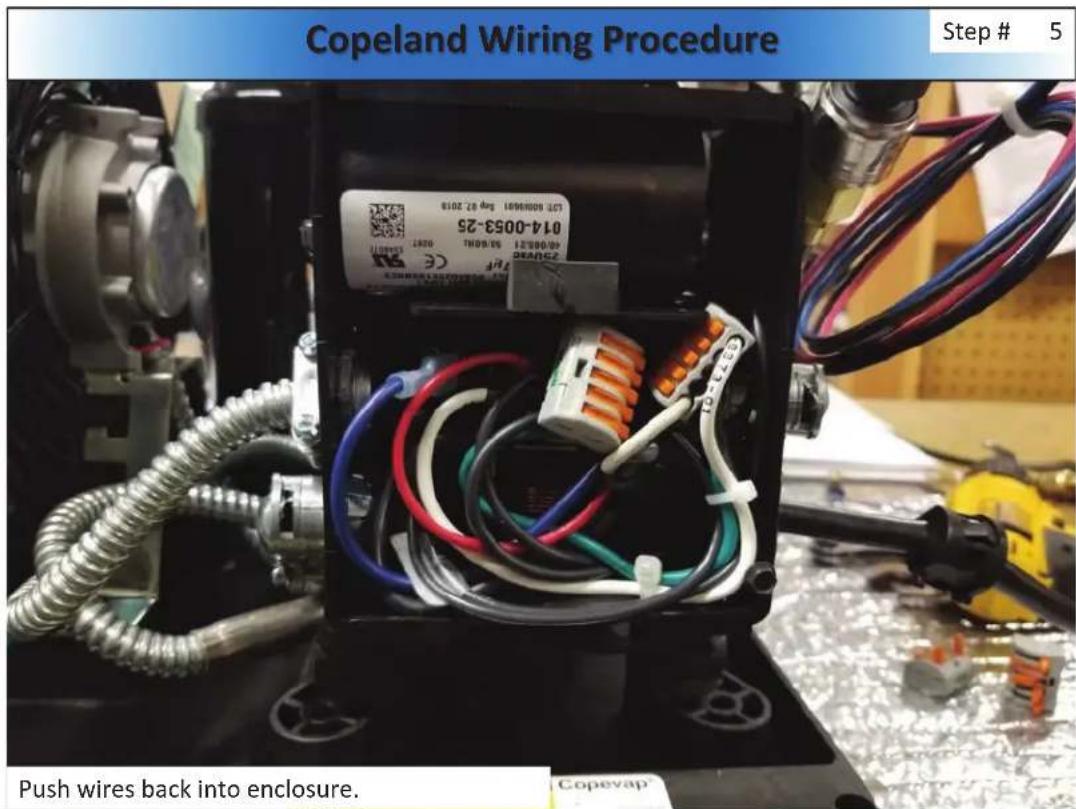

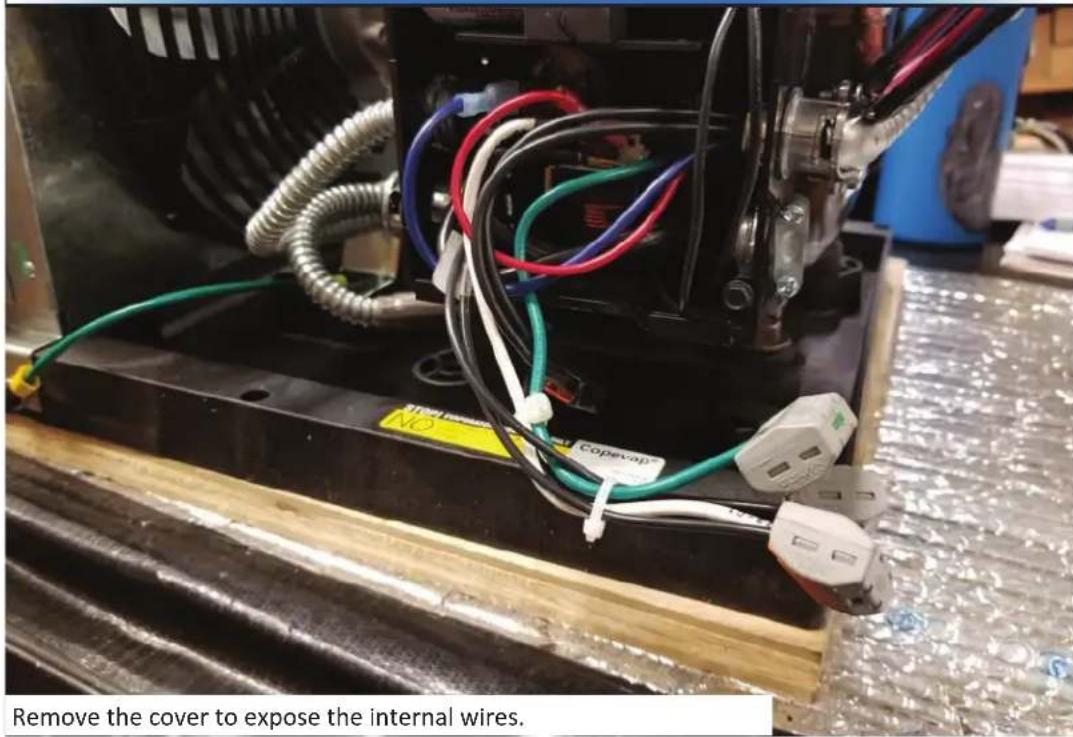

Copeland Cold Weather Start Kit 30

Preparing the Condensing Unit.... 31

Installing the Condensing Unit 33

Line Set Piping Diagrams 37

System Operation.... 40

Controller Functions.... 42

WhisperKOOL Troubleshooting Guide.... 48

Maintenance Schedule 50

Bypass Test Procedure 52

Technical Assistance & Accessories 53

Installation Terms and Conditions 54

WARNING

The evaporator unit (fan coil unit) must be insulated using the insulation blanket provided in accordance with this manual. Refer to the insulation blanket installation instructions.

Failure to follow the instructions provided will result in a poor vapor barrier, water damage, rust, and system corrosion which will void the warranty on your unit.

The evaporator unit (fan coil unit) must be insulated using fiberglass insulation (R19 or higher) in addition to the provided insulation blanket. This includes the cavity between the ceiling joists. A warm attic environment will reduce the capacity of the cooling system, as the system will absorb heat from the attic in addition to the heat load from the wine cellar. This, in effect, will significantly reduce the cooling system's ability to cool the wine cellar.

Failure to properly insulate the evaporator unit may cause condensation to form on the surface of the housing and water damage to the surrounding structure, the cooling unit, and possibly the wine cellar.

To avoid these issues, install the insulation kit and insulate the surface of the evaporator unit that is located outside of the wine cellar using fiberglass insulation.

*Additional insulation is required!

INTRODUCTION

Customer Service

Thank you for purchasing a WhisperKOOL cooling system. We strive to provide the highest-quality products and the best possible customer service. If you have any questions about your system, please call us at 1-800-343-9463 or visit WhisperKOOL.com.

Using the Manual

This manual is intended to assist in the proper maintenance of the cooling system. In order to ensure the longevity of your cooling unit, the equipment should be installed as outlined in the technician's manual. It is also vital to establish a proper care and maintenance schedule. Please read and review this manual carefully and keep it for future reference.

What is the WhisperKOOL Cooling System?

The WhisperKOOL cooling system is a specialized refrigeration system designed for one purpose only: to maintain the optimal temperature and humidity levels conducive to the proper storage and aging of fine wines. This system produces minimal in-cellar noise and has the most lenient exhaust requirements. An exterior housing is required for outdoor condensing unit installations.

How Does the Cooling System Work?

Similar to the air conditioning systems used for homes, the evaporator unit and condensing units are installed in separate locations and are connected by a refrigerant line set. The evaporator portion is commonly installed in the wine cellar, with the condensing unit is located either outside or in a remote indoor location that is ventilated. An exterior housing is required for outdoor condensing unit installations.

Temperature Setting

The system is designed to maintain a cellar temperature of 55° F as long as the ambient temperature does not exceed 110° F.

WARRANTY REGISTRATION

In order to activate the warranty of your system, the verification and operational documentation must be completed by the certified refrigeration technician installing your system and submitted via mail, fax, or e-mail.

Mail to:

WhisperKOOL

ATTN: Warranty Registration

1738 E. Alpine Avenue

Stockton, CA 95205-2505

USA

Fax to:

209-466-4606

Scan and email to:

[e-mail]

QUICK START GUIDE*

Pump Down Cycle

WhisperKOOL's split systems operate on a pump down cycle different from traditional air conditioners. As such, there is no wiring between the condensing unit and evaporator unit.

WhisperKOOL units utilize a solenoid valve on the liquid line and a low-pressure switch on the suction line. When the thermostat calls for cooling, the solenoid valve opens, permitting the flow of refrigerant. The low-pressure switch then signals the compressor to cycle on.

When the cellar reaches the desired temperature and the thermostat is satisfied, the solenoid will close, stopping the liquid refrigerant flow to the TXV valve. The compressor will continue to operate until most of the refrigerant on the low side boils off and is pumped through the compressor into the condenser coil and receiver. As the suction pressure falls below the pressure control setting, the low-pressure switch will signal the compressor to cycle off. Most of the refrigerant is now stored between the condensing unit and receiver.

WARNING: Do not utilize a ground fault interrupter, as it will prevent the unit from drawing the necessary amperage to start the unit.

TXV Adjustments

A. A TXV adjustment may be necessary based on ambient temperatures in the cellar and at the condensing unit.
B. Adjust the TXV until the total superheat measured at the suction line valve is 20-30°F.
C. Under normal operation, with the wine cellar at 55° F and the ambient temperature at 85° F, the low side pressure should be between 28-32 PSI and the high side should be between 145-155 PSI.

TXV

The TXV is preadjusted at the factory. If the superheat is not within 20-30° at the service valve, the TXV will need to be adjusted.

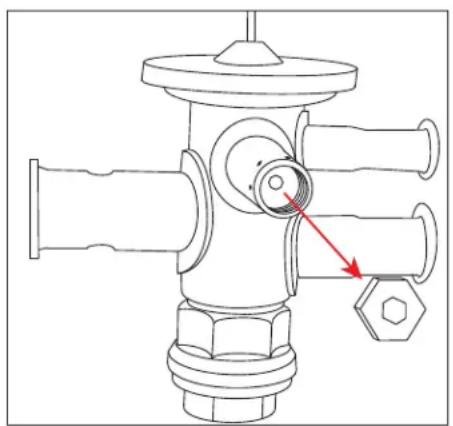

ADJUSTING THE TXV

Use a 5/32 " hex key to remove the cap from the TXV superheat adjustment port. With the cap removed, insert the hex key into the superheat adjustment port. Increase superheat by turning the hex key clockwise. Decrease superheat by turning the hex key counterclockwise.

Liquid Line King Valve

This location is used to charge the system with liquid refrigerant and identify the high side pressure of the system.

Calculating Subcooling

To determine the subcooling of the system, calculate the difference between the high side pressure of the system (converted to

temperature) and the temperature of the liquid line. The temperature of the liquid line will be taken at the outlet of the receiver.

*Saturation temp — liquid line temp

4-6°F SUBCOOLING REQUIRED FOR WARRANTY APPROVAL

*Further system operation information is available on page 40.

BEFORE YOU START

1-800-343-9463

1. Inspect all components prior to installation. If damage is found, please contact your distributor or WhisperKOOL Customer Service at 1-800-343-9463.
2. The evaporator unit requires a dedicated 115V, 15-amp circuit. The 4000 condenser requires a dedicated 115V, 15-amp circuit. The 8000 condenser requires a dedicated 115V, 20-amp circuit. Use a surge protector with the unit. Do not use a GFI (ground fault interrupter) line.
3. No communication cable is required between the evaporator and condensing unit.
4. You are REQUIRED to install a drain line to remove condensation from the evaporator unit.
5. The warranty is not active until a warranty checklist has been received, reviewed, and approved.
6. The system is intended for use in properly designed and constructed wine cellars. Hire a professional wine storage consultant with a valid contractor's license to build your wine cellar.
7. WhisperKOOL requires that all split systems be installed by a certified HVAC-R technician only. NATE or equivalent is recommended.

If you encounter a problem with your WhisperKOOL system, please refer to the Troubleshooting Guide. If you have any further questions or concerns, or need assistance, please contact WhisperKOOL's Customer Service at 1-800-343-9463. Please be sure all testing has been completed prior to contacting Customer Service. Please have your results ready for your representative.

RECEIVING & INSPECTING THE SYSTEM

• Use caution when lifting and check package for damage.
• Lift only at the designated hand-hold locations on the shipping container, or fully support the unit from underneath. A shipment may include one or more boxes containing accessories.
  • Before opening the container, inspect the packaging for any obvious signs of damage or mishandling.
• Write any discrepancy or visual damage on the bill of lading before signing.
• Allow the condensing unit to sit for 24 hours prior to start-up. The condensing unit can be placed in the installation location, piped and evacuated during this time.

Note: WhisperKOOL units are manufactured in the USA and tested prior to shipment.

• Review the packing slip to verify contents.
• Check the model number to ensure it is correct.
• Check that all factory options ordered are listed.

If any items listed on the packing slip do not match your order information, contact WhisperKOOL Customer Service immediately.

Check all shipped boxes for the following contents:

Evaporator Unit Box Condensing Unit Box

(1) Ceiling Mount evaporator unit

Documentation bag:

• Ceiling Mount Version 2 owner's manual
• Ceiling Mount Version 2 technician's manual
  • R-134a split system warranty checklist

Accessory kit bag:

• Stainless steel probe (50 feet)
• KDT Plus display cable (50 feet)
• KDT Plus wall mount bracket assembly
• KDT Plus flush mount bracket assembly
• KDT Plus display assembly
- Flush mount template
• Evaporator installation hardware bag
• KDT Plus hardware bag

Ceiling Mount insulation blanket bag:

• Ceiling Mount insulation blanket

Single-piece mounting bracket

(1) Ceiling Mount condensing unit

Evaporator installation hardware bag:

• (12) 2½" Phillips wood screws
• (12) #8 3/8" Phillips pan-head screws
• (1) Bypass plug
• (1) 1/4 " barbed coupling
• (2) 13/16 " L 1/2 " conduit connectors

KDT Plus hardware bag:

• (1) 1/16 " OD grommet
• (2) 1/2 " nylon hole plug
• (4) #6 x 1" Phillips zinc Type A screw
• (4) 8-10 x 7/8" blue plastic screw anchor

Condensing unit accessory kit:

• (1) Filter drier
• (1) Sight glass

Please leave the unit in its original box until you are ready for installation. This will allow you to move the product safely without damaging it. When you are ready to remove the product from the box, refer to the installation instructions.

TIP: Save your box and all packaging materials. They provide the only safe means of transporting/shipping the unit.

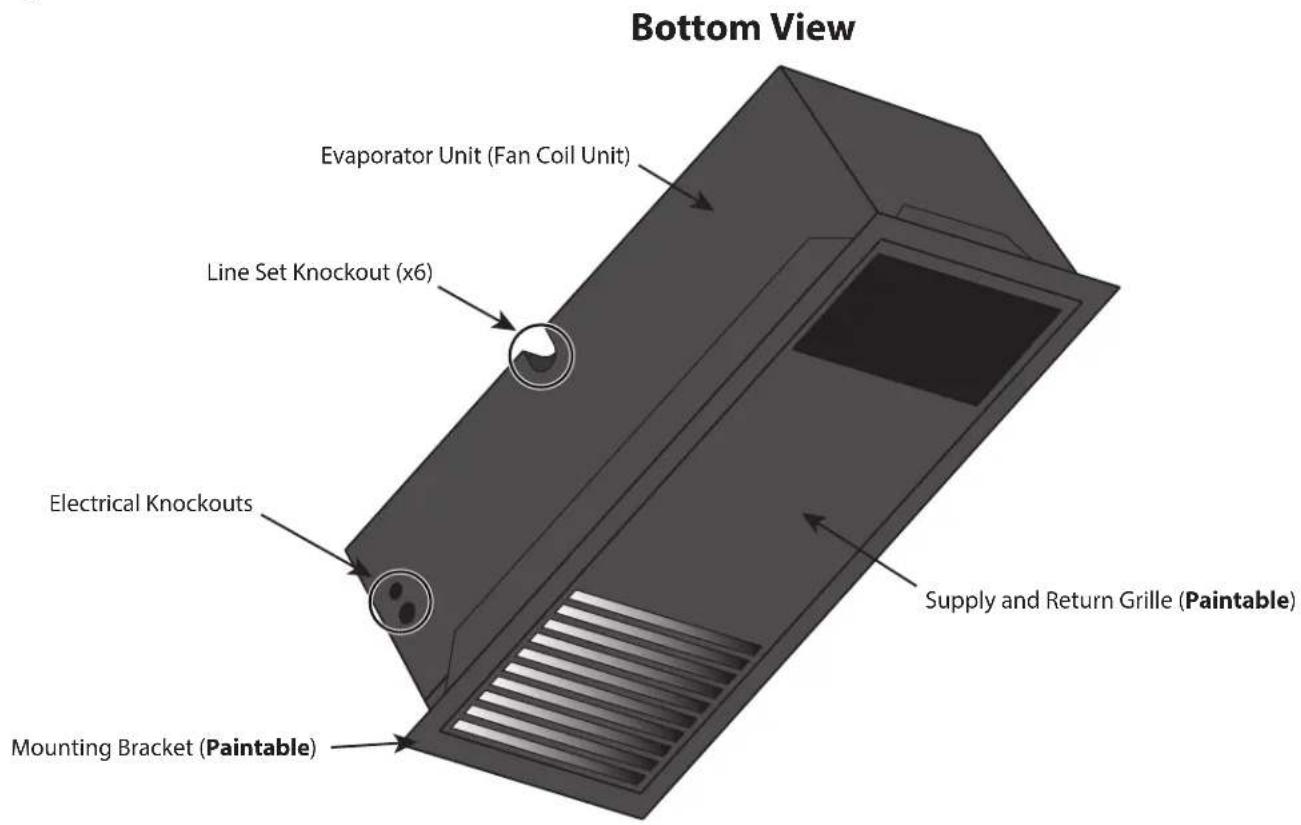

QUICK REFERENCE GUIDE

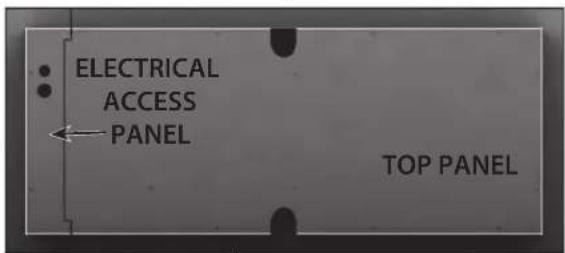

Top View

Note: The unit comes in black. The mounting bracket and front grille are paintable, enabling you to match your desired color.

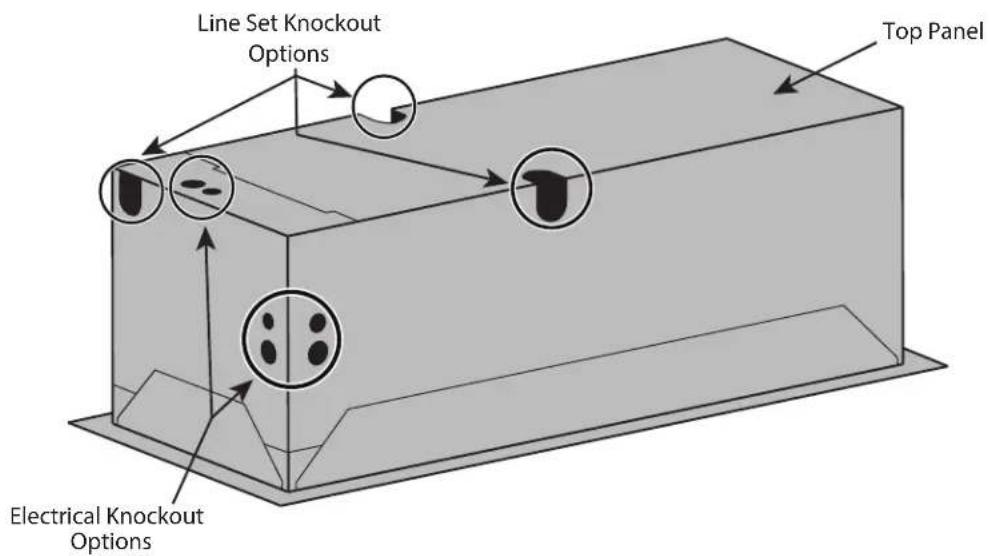

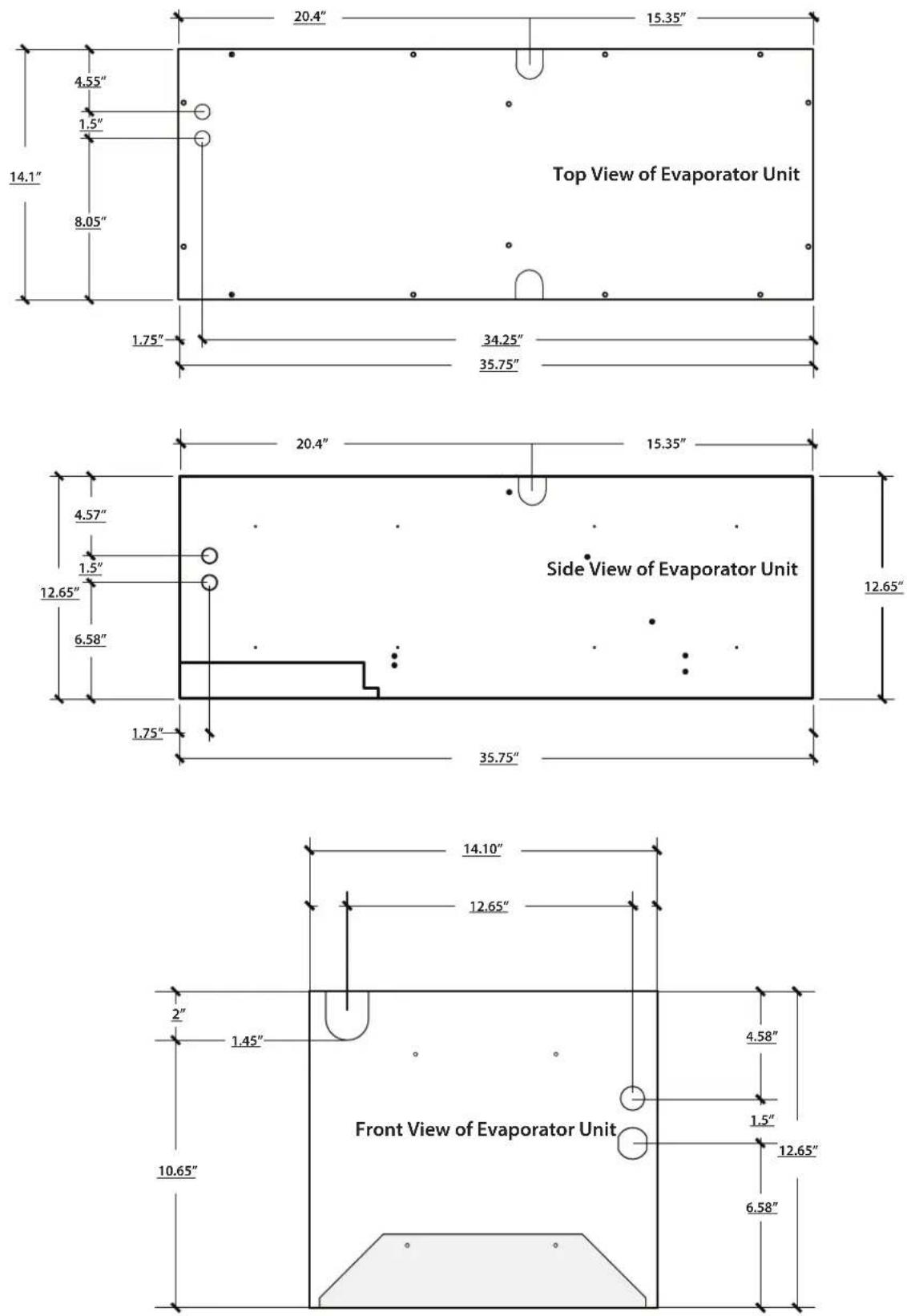

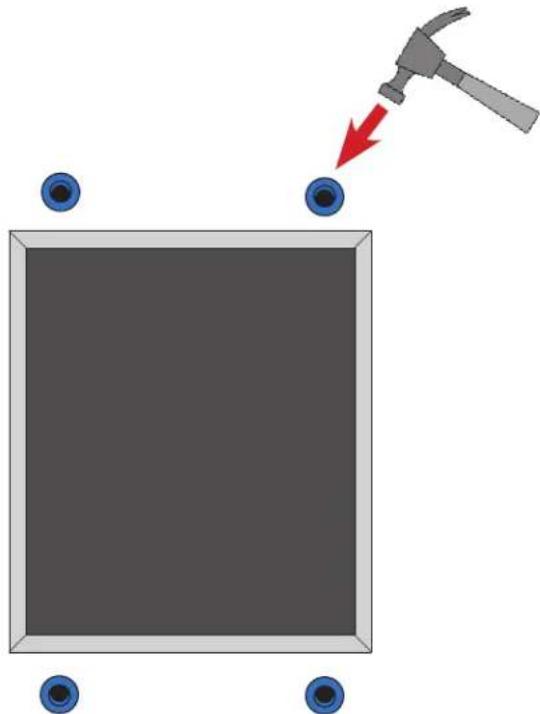

KNOCKOUT LOCATIONS

QUICK REFERENCE GUIDE

CEILING MOUNT 4000 SPECIFICATIONS

Model	4000 Evaporator(Fan Coil Unit)	4000 Condenser(Air-Cooled Condensing Unit)
Cellar Size Approx. 1000 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier*
BTU/h w/85°F air entering condenser coil	4000
Dimensions 35.75"L x 14.5"W x 12.75"H 16.08"L x 16.23"W x 12.61" H
Refrigerant R-134a
HP 1/3
Voltage Rating 115V (15-amp dedicated circuit required) 115V (15-amp dedicated circuit required)
Weight (lbs) 90 60
Amps Evaporator: 1 (running amps), compressor: LRA 43, RLA 8
Line Set Liquid line: 1⁄4" liquid line; suction line 1⁄2" (less than 50 ft.), 5⁄8" (more than 50 ft.)
Drain Line 1⁄4" ID clear plastic tubing (not provided)
Installation	Evaporator is installed in the cellar. Condensing unit can be installed up to 100 line feet from evaporator unit.
Thermostat	Advanced digital display (50-ft. cable), liquid-temperature-measuring bottle probe (50-ft. cable)
Temp. Delta	Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature
Warranty	Two-year limited warranty (parts and labor)

CEILING MOUNT 8000 SPECIFICATIONS

Model	8000 Evaporator(Fan Coil Unit)	8000 Condenser(Air-Cooled Condensing Unit)
Cellar Size Approx. 2000 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier*
BTU/h w/85°F air entering condenser coil	5245
Dimensions 35.75"L x 14.5"W x 12.75"H 16.08" L x 16.23" W x 12.61" H
Refrigerant R-134a
HP 1/3+
Voltage Rating 115V (15-amp dedicated circuit required) 115V (15-amp dedicated circuit required)
Weight (lbs) 90 60
Amps Evaporator: 1 (running amps), compressor: LRA 50, RLA 9.3
Line Set Liquid line: 1⁄4" liquid line; suction line 1⁄2" (less than 50 ft.), 5⁄8" (more than 50 ft.)
Drain Line 1⁄4" ID clear plastic tubing (not provided)
Installation	Evaporator is installed in the cellar. Condensing unit can be installed up to 100 line feet from evaporator unit.
Thermostat Advanced digital display (50-ft. cable), liquid-temperature-measuring bottle probe (50-ft. cable)
Temp. Delta	Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature
Warranty	Two-year limited warranty (parts and labor)

* Sizing the Unit to the Room

The specification chart will provide information on the unit's cooling capacity. There are circumstances in which a cellar design may require a larger unit due to preexisting design restrictions. Certain building materials such as glass, stone, or concrete may seem adequate but do not offer the insulation capacity required to maintain the optimum temperature for storing wine. We recommend purchasing a unit with a larger capacity to compensate for these design limitations. Undersized cooling units can lead to premature failure and/or prevent the system from reaching the desired set temperature. As a result, they are not covered under warranty.

SPLIT SYSTEM CHECKLIST

In order to activate the warranty for this product, the information here must be complete and accurate. Any incorrect or omitted information will result in a return trip by the installing technician at their cost.

DATA RECORDINGS

Note: All readings need to be taken while the compressor is running.

Line Set Information

A. Line set length:
B. Suction line OD:
C. Liquid Line OD:

Bottle Probe

A. Install probe in bottle of warm water to keep system operating.

Charging the System

A. Fill system until bubbles dissipate from sight glass. NOTE: Be careful not to overcharge the system.

Temperature Differential at the Evaporator

A. Measure return air and supply air temperatures at the evaporator to ensure adequate cooling of air in cellar.

Sub Cooling

A. Measure head pressure at liquid line king valve. Convert pressure to temp using conversion chart.
B. Temp of liquid line at king valve:
C. Complete sub cooling calculation: A - B =

Superheat

A. Measure suction pressure at the suction line service valve, convert to temp.
B. Measure the temperature of the suction line at the outlet of the evaporator.
C. Complete superheat calculation: A - B =
NOTE: There may be a need to adjust the TXV to get the correct superheat levels.

Compressor Temperature

A. Measure temperature at bottom of compressor. NOTE: Cool temp may indicate liquid in the compressor.

Voltage and Amp Draw

A. Measure voltage to compressor and amp draw.

Condensation Drain Test

A. Pour water into the drain pan to assure it drains properly.

ITEMS TO ROUTE BEFORE INSTALLING THE EVAPORATOR UNIT

1. Route the line set from the condensing unit to the desired evaporator unit installation location.
2. Route the display cable from the desired location to the evaporator installation location (see page 22 for more display information).
3. Route the bottle probe cable from the desired thermostat bottle location to the evaporator unit installation location (see page 21 for more bottle probe information).
4. Route the drain line from a proper discharge location to the evaporator unit installation location (see page 20 for more drain line information).
5. Route the power cable wiring to the evaporator unit installation location.

SELECTING MOUNTING OPTION

Minimum Tools Needed:

screwdriver

1. Locate the desired installation location. Using a stud finder, locate the ceiling joists on either side of the center point. Cut and frame an opening in the ceiling measuring 14.5" x 36". Make sure the framing is sufficient to support the weight of the cooling unit. Use only the mounting locations provided. These locations ensure that the installer will not drill into any critical components within the system.
2. Determine which orientation the evaporator unit will be installed in (inside the cellar or with attic access). Mounting options are listed below:

1

2

Choose a mounting option suitable – for the installation location.

3

4

MOÛNTING THE EVAPORATOR UNIT

NOTE: If installing the unit without attic access, perform steps 5-23 prior to steps 3-4.

1. Secure the mounting bracket to the unit using the twelve (12) supplied 3/8 " Phillips pan-head screws.

NOTE: You are REQUIRED to use only the mounting locations provided. These locations ensure that the installer will not drill into any copper or electrical wiring within the system.

1. Secure the unit's mounting bracket to the opening using the twelve (12) supplied 2½" Phillips-head screws.

EVAPORATOR UNIT PREPARATION

1. Unscrew the twenty-two (22) screws and remove the top and electrical access panels.

Figure 1

1. Remove the knockout(s) that you will be using to route the line set, power wires, display cable, bottle probe, and drain line. For ease of installation, see Figure 2 for recommended orientation (with attic access).

1. Locate the white zip tie securing the drain line tube to the suction line and cut it. Direct the end of the drain line away from refrigerant lines.

CUT THIS ZIP TIE DO NOT CUT

1. Pull tubing out of housing to allow room for brazing. Make sure tubing protrudes out of the housing and the drain line is moved out of the way as shown.

NOTE: If installing the unit with attic access, perform steps 5-8 after the unit has been mounted.

INSTALLING THE EVAPORATOR UNIT

1. Remove the protective caps from the liquid and suction line connection tubes.

2. Using copper tubing per line set sizing chart, route the liquid and suction lines to the tubing coming from the unit.

3. Place a wet rag around the suction and liquid lines approximately 4" from the braze joints. This will prevent excess heat from damaging components.

4. To prevent oxidation, purge the system with nitrogen.

5. Braze the copper tubing to the connections on the evaporator unit.

6. Insulate the suction line using Armaflex or similar insulation.

7. Route the drain line out of the evaporator unit with the line set. Connect using the supplied 1/4" barb coupling.

8. Route the power wire, bottle probe, and display cable through the knockouts in the electrical panel as shown below.

NOTE: You are REQUIRED to use only the mounting locations provided. These locations ensure that the installer will not drill into any copper or electrical wiring within the system.

INSTALLING THE EVAPORATOR UNIT WITH ATTIC ACCESS

1. Slide the electrical panel up and out of the unit.
2. Connect the green wire to the green wire, the black wire to the black wire, and the white wire to the white wire.
3. Connect the end of the straight black bottle probe cable to the circular connector on the exterior of the electrical box.

1. Connect the end of the display cable labeled "UNIT" to the wire labeled "UNIT" coming from the electrical box.

1. Slide the electrical panel back down into the unit.

2. Reinstall the top access panel and fasten the twenty-two (22) screws into place.

3. Install the supplied three-inch pieces of cork tape around the display cable, bottle probe cable, and power wires.

NOTE: The unit comes in black. The mounting bracket and front grille are paintable, enabling you to match your desired color.

WhisperKOOL™

INSULATION BLANKET INSTALLATION

*Tools required: spray adhesive, utility knife, cork tape, foil tape

Mini Ceiling Mount blanket dimensions

Ceiling Mount blanket dimensions

1. Once mounting bracket location has been selected and installed, proceed to the insulation blanket installation.

2. Spray adhesive onto the sides of the portions of the evaporator unit and mounting bracket which protrude into the attic. See spray adhesive directions for proper tack time before proceeding to step 3 (see illustration).

1. Wrap insulation piece (A) around the sides of the evaporator unit. Make sure the bottom edge of the insulation is flush with the top edge of the mounting bracket (see illustration).

If needed, trim excess insulation around all edges.

1. Set insulation in place by pressing firmly on all surfaces of the insulation that come in contact with the sides of the evaporator unit (see illustration).
2. Using a utility knife, cut holes in the insulation for the line set, wiring, and drain line if needed.
3. If necessary, cut the insulation to size using the top edge of the evaporator unit as a template. Remove excess insulation. Proceed to piece (B) installation.

INSULATION BLANKET INSTALLATION, CONTINUED

1. Spray the top of the evaporator unit with spray adhesive. (See spray adhesive directions for proper tack time before proceeding to step 8.)

1. Set piece (B) in place by pressing firmly on all surfaces of the insulation that come in contact with the top of the evaporator unit (see illustration).

1. Using a utility knife, cut holes in the insulation for line set, wiring, and drain line if needed.

If needed, trim excess insulation around all edges.

1. Once insulation is installed, apply foil tape to all seams, covering them completely.
2. Inspect insulation for damage/defects. If damaged, repair with foil tape.
3. Apply cork tape or equivalent to areas where the line set, wiring, and drain line enter the unit.

DRAIN LINE

Condensation Drain Line

The condensation drain line tube is used to remove excess condensation from the unit to a proper discharge location. It is important that the drain line tube is properly connected.

Failure to use the condensation drain line tube will void the warranty on the unit.

Drain Line

The Ceiling Mount evaporator unit features a drain line pump system that removes excessive condensate build up in the drain pan. During operation, the drain pan collects water that drips from the coil. The drain line pump system will prevent overflow and leaking by allowing for discharge of the additional condensate.

Connecting the Drain Line

Route the drain line to an appropriate discharge location and connect the opposite end to the tubing that was routed out with the line set using the provided barbed coupler side of the condensate pump. Do not route the drain line more than 15 vertical ft.

WRONG: Drain line is under water.
To prevent mold from growing, allow the drain line to hang above the water line.

LIQUID-MEASURING THERMOSTAT SYSTEM (BOTTLE PROBE)

WhisperKOOL cooling units come with a liquid-temperature-measuring thermostat. The self-calibrating probe contains a sensor chip, which communicates back and forth with the thermostat. This results in a consistent temperature setting and accuracy. Wine should be kept at a very precise, controlled temperature and humidity. By measuring the liquid temperature rather than air, the unit will operate 75–80% of the time.

Setting up the Bottle Probe:

1. Locate an empty wine bottle.
2. Fill it 75% full with room-temperature tap water.
3. Place bottle probe securely into bottle as seen in Figure 1.
4. Place the wine bottle in your wine cellar. Ensure sensor tip is fully submerged.
5. To ensure a consistent temperature, place bottle probe approximately three (3) feet away from the air output and not in the flow of the air.

It is recommended that the bottle be placed in a central location of your wine cellar. Avoid pulling too much on the probe cord. It may become disconnected resulting in limited functionality of the unit.

Note: The thermostat can be set between 50–70°F.

Remember: The unit operates based on the temperature of the water.

Do not be misled by thermostats reading air temperature. The air temperature in the cellar will be cooler than the liquid temperature of the wine while it is reaching the optimum balanced temperature.

REMOTE DISPLAY: INSTALLATION AND CONFIGURATION*

Tools needed: 5/16 " drill bit, 3/16 " drill bit, drywall saw, level, pencil

What's included: Display panel, wall mount bracket, flush mount bracket, flush mount template

Display panel Wall mount bracket Flush mount bracket

Flush mount template

WALL MOUNT BRACKET INSTALLATION

1. Place the bracket on the wall. Use a level to ensure that the bracket is level. Using a pencil, mark the four screw holes in the rear of the bracket.

NOTE: Cut hole in the location shown for routing the display cable.

* The display can be mounted on any wall (inside or outside the wine cellar), up to 50 feet from the cooling unit.

WALL MOUNT BRACKET INSTALLATION, CONTINUED

1. Using a drill with a 3/16 bit, drill four holes in the drywall for the screws. Insert the four (4) provided drywall anchors into the drywall, then tap them in with a hammer until they are flush with the wall.

1. Place bracket against wall, aligning screw holes with drywall anchors. Insert the four supplied Phillips-head screws into the drywall anchors. Tighten the screws to secure the bracket to the wall.

WALL MOUNT BRACKET INSTALLATION, CONTINUED

NOTE: Before you continue to Step 4, locate the area where the display will be mounted. You may route the display wire into the housing one of three ways: either through the wall or through one of the holes on the top or bottom edges of the wall mount bracket. If you'd like to route the display cable through one of these holes, place a rubber grommet into the hole and then route the display cable through the grommet and into the wall mount bracket.

1. Connect the end of the display cable labeled "DISPLAY" to the JST connector on the back of the display.

1. Place the display on the wall mount bracket as shown, attaching the back of the display panel to the magnets on the mounting bracket. Make sure that the alignment tab on the back of the display panel sits in the notch on the bottom of the bracket.

FLUSH MOUNT BRACKET INSTALLATION

1. Square the flush mount template on the wall using a level. Then draw a 3" line along the bottom edge of the template.

2. Peel the backing off the template and stick it to the wall, aligning the bottom edge with the line drawn in Step 1.

1. Use a 5/16 " drill bit to drill a hole in the center of each cross (+).

2. Cut along the perforated lines. When finished, remove template from wall.

FLUSH MOUNT BRACKET INSTALLATION, CONTINUED

1. Remove the backing from the double-sided tape on the flush mount bracket.

1. Align magnets with previously drilled holes. Make sure the cut-out portion of the bracket (circled below) is on the bottom. Press the bracket firmly against the wall.

FLUSH MOUNT BRACKET INSTALLATION, CONTINUED

1. Connect the end of the display cable to the JST connector on the display panel.

BRACKET

1. Place the display on the flush mount bracket as shown, attaching the back of the display panel to the magnets on the mounting bracket. Make sure that the alignment tab on the back of the display panel sits in the notch on the bottom of the bracket.

CEILING MOUNT WIRING DIAGRAM

CEILING MOUNT 4000/8000 CONDENSING UNIT WIRING DIAGRAM

COPELAND COLD WEATHER START KIT WIRING DIAGRAM

For systems manufactured after October 31, 2018

PREPARING THE CONDENSING UNIT

Electrical Needs

The 4000 condensing unit requires a dedicated 115V, 15-amp circuit.

The 8000 condensing unit requires a dedicated 115V, 20-amp circuit.

The unit draws a large inrush current for about 1 second the instant the compressor starts. With a dedicated circuit and circuit breaker, the condensing unit will have sufficient power for effective operation. (The compressor is controlled by a low-pressure transducer mounted on the condensing unit. This feature eliminates the need for wiring between the evaporator unit/fan coil unit and the condensing unit.)

• Ensure the voltage supplied matches the rating specified on the unit spec label.
• Provide a non-GFI dedicated circuit and an appropriate outlet for the evaporator unit.
• Provide a dedicated circuit and circuit breaker for the condensing unit.
• Provide a weatherproof disconnect for the condensing unit if it is located outside.

Power surges and spikes can damage sensitive electrical equipment. WhisperKOOL recommends plugging the unit into a surge protector or power conditioner in order to protect your system. As outlined in our terms and conditions, power surges and spikes are not covered under warranty.

WE RECOMMEND THAT YOU DO NOT USE A GROUND FAULT INTERRUPTER (GFI) WITH THIS PRODUCT.

In case the system should lose power, check the home/main circuit breaker. If the system does not respond properly, refer to the Troubleshooting Guide on page 48.

PREPARING THE CONDENSING UNIT (continued)

The condensing unit can be installed inside a well-ventilated area of the home, but is typically installed outside. Exterior applications will require the use of a protective housing. The amount of sun exposure should be considered when selecting the placement of the condensing unit. The 4000 condensing unit requires a dedicated 15-amp circuit (non-GFI). The 8000 condensing unit requires a dedicated 20-amp circuit (non-GFI). Make sure there is a minimum of three (3) feet of horizontal clearance in every direction around the unit (five feet is ideal). The unit may either be hard-wired or plug-in, depending on local electrical codes.

Indoor condensing unit installations: Inside installations require special consideration, as there must be adequate ventilation to remove the heat created during normal operations. An exhaust port with fan may need to be installed to ensure that heat is effectively removed from the utility room. There must be a return grille or provision for 500-600 CFM of cool air to enter the room to replace the exhausted air. Unobstructed airflow to and from the unit is a critical factor in the unit's overall performance. Make sure there is a minimum of three (3) feet of horizontal clearance in every direction around the unit (five feet is ideal). This will assure that the unit can move the air around the room in an efficient manner.

Outdoor condensing unit installations: You must utilize the exterior condensing unit housing for outdoor installations. Place the condensing unit on a solid foundation in a location with adequate ventilation. Make sure there is a minimum of three (3) feet of horizontal clearance in every direction around the unit (five feet is ideal). The unit should be elevated 18 inches in order to avoid any possible flooding or damage by animals, and should be clear of leaves, dirt, and other debris.

INSTALLING THE CONDENSING UNIT

Wiring Procedures (Ceiling Mount)

1. Locate or install an electrical outlet near the condensing unit.
2. Follow the instructions listed below to wire the condensing unit.
3. Leave the circuit breaker off until the unit is ready to charge.

Note: Do not apply power to a system without refrigerant.

Use a 1/4 " nut driver to remove the screw securing the cover to the compressor electrical compartment.

Copeland Wiring Procedure

Step # 1

Copeland Wiring Procedure

Step # 2

Route the required 115V power wires into the open clamp on the enclosure.

Copeland Wiring Procedure

Step # 3

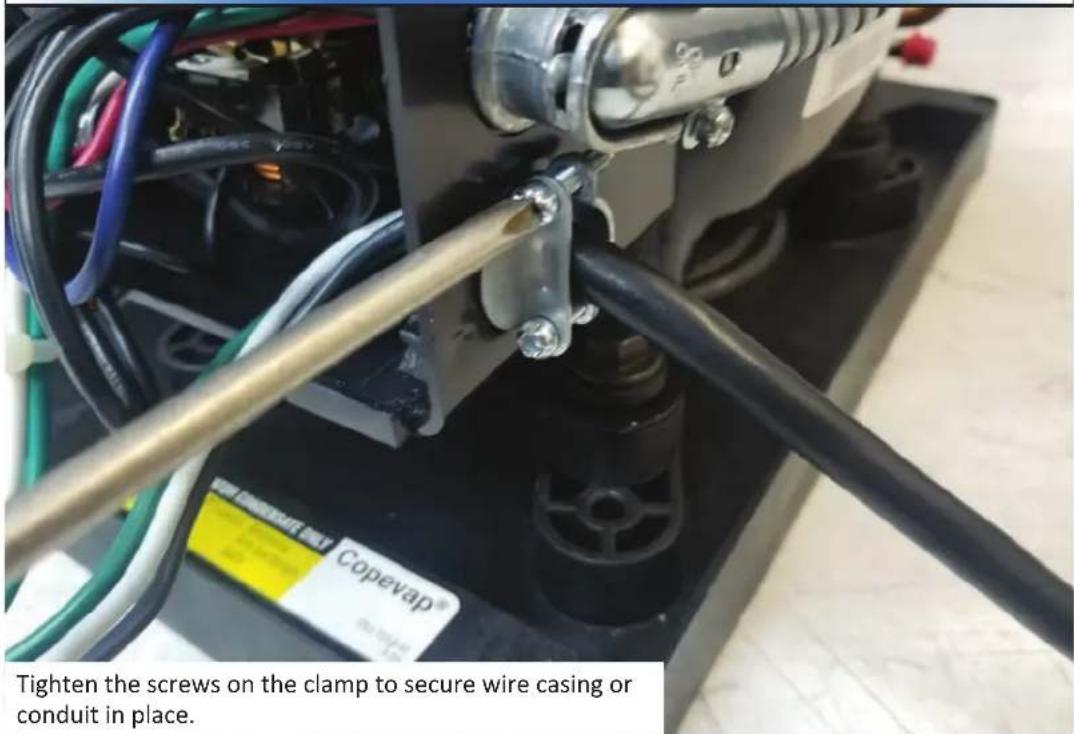

Tighten the screws on the clamp to secure wire casing or conduit in place.

Copeland Wiring Procedure

Step # 4

Perform the following wire connections:

• Insert the Line 115V wire into the "H" lever connector
• Insert the Neutral 115V wire into the "N" lever connector
• Insert the Ground wire into the "G" lever connector

LINE SET PIPING DIAGRAMS

These are two options for running the line set from the coil to the condensing unit. Option 1 applies when the system is installed with the condensing unit below or leveled to the coil. Option 2 applies when the system is installed with the condensing unit at a higher elevation than the coil.

	LEGEND
LLS Liquid Line Solenoid
TXV Thermal Expansion Valve
COMP Compressor
REC Receiver
EVAP.Evaporator
O.D. Outer Diameter

NOTE: If the condensing unit is located above the fan coil unit, a P-trap must be used on the suction line at the base of the vertical lift and an inverted P-trap must be used at the top of the vertical lift to ensure proper oil return for the compressor.

It is required to size the suction line tubing according to this chart.

Ceiling Mount 4000/8000	Line Set Length <25ft	26-50ft 50-100ft
	Vertical Rise 15ft <3ft	3-10ft >10ft <3ft 3-10ft >10ft
Suction Line	Horizontal Tubing 1⁄2"	5⁄8"
	Vertical Rise	1⁄2"				1⁄2"
Liquid Line	Horizontal Tubing	1⁄4"
	Vertical Rise	1⁄4"

INSTALLING THE CONDENSING UNIT

DO NOT BLOCK airflow through the exterior housing. This will restrict airflow and void the warranty.

Refrigerant Piping Overview

• Using the charts and illustrations found above, route the line set between the evaporator unit and condensing unit. Be sure to reference the chart for correct line set sizing. All horizontal suction piping should be pitched toward the condensing unit half an inch for every 10 feet of pipe. When installing and routing the line set, cap both ends of each tube to prevent debris from entering the tubing.

• Prior to connecting the piping to the evaporator and condensing units, loosely connect a refrigerant manifold to the suction and liquid line service valves.

• Purge the hoses with dry nitrogen and tighten the hose connections.

• Remove the service valve caps and turn the valve stem clockwise half a turn to unseat the valve and open the service port. Keep the piping ports sealed until ready to braze.

• Purge the fittings with dry nitrogen at a slow rate to prevent formation of highly abrasive copper oxide.

• Perform all brazes.
  • Pressure test the system and check for leaks.
• Insulate the suction line using wall cellular insulation or equivalent. Seal all seams with Armaflex 520 foam insulation adhesive or equivalent. Wrap each seam using line set tape.

Liquid Line Piping Procedure

• Refer to the line set piping chart for liquid line size requirements.
- Braze a short piece of copper tubing to the liquid line service valve.
- Connect the supplied refrigerant drier to the tubing.
- Downstream from the drier, connect the moisture-indicating sight glass in an easily visible location.
- Run the tubing to the evaporator unit and attach to the liquid line connection on the evaporator unit.

Suction Piping Procedure

• Connect an appropriately sized suction line to the suction line service valve on the condensing unit.
• Run the pre-insulated suction line to the evaporator unit and attach to the suction line connection on the evaporator unit.

Brazing Procedure

• Connect the bottle probe to the evaporator unit.
• Fill a wine bottle 75% full of room-temperature water. Insert the bottle probe into the neck of the bottle as far as possible. It is important that the bottle probe stopper be compressed by the neck of the bottle to ensure water will not leak.
• Energize the evaporator unit and set the controller to call for cooling.
• Verify that the setpoint on the control is set low enough to allow the unit to run for the entire length of the brazing, evacuation, and charging procedure.
• Remove the valve depressors from the gauge hoses on a four-valve manifold.
• Connect the manifold to the low-pressure service valve port on the condensing unit and a nitrogen tank.
• Open the suction line service valve and purge the system with nitrogen.
• Braze all connections and cool off quickly.
• Connect the high-pressure hose from the manifold to the liquid line service valve port.
  • Pressure test the system at 150 psi for 20 minutes.
• Check all braze joints with leak detector or soap bubbles.
• Release the nitrogen once it is confirmed that there are no leaks.

INSTALLING THE CONDENSING UNIT (continued)

Evacuation

- Remove the nitrogen tank from the manifold and attach the manifold to the refrigerant tank.

• Mid-seat both service valves.

• Install service caps on the valves.

• Energize the liquid line solenoid valve.

• After confirming that there is fresh oil in the vacuum pump, connect the 3/8 " hose from the manifold to the pump.

- Start the pump and run it until the micron gauge on the evaporator unit reads 500 microns or less.

- Disconnect the vacuum pump from the system.

- Break the vacuum by pressurizing the system to approximately 5 PSI with R-134a refrigerant.

- Remove the micron gauge from the access valve.

Charging

- With the power off to the condensing unit, admit liquid refrigerant through the liquid line service valve until the refrigerant stops flowing.

- Turn on the circuit breaker for the condensing unit. The compressor should turn on if the pressure in the suction line is above 20 psi.

- Add refrigerant (in vapor form) to the low side of the system through the suction line service port.

- Observe the sight glass. If bubbles are present, add more refrigerant (in vapor form) to the low side.

- Once the sight glass is clear, check the superheat at the outlet of the evaporator unit. Adjust the TXV until the superheat is between 20-30°F degrees.

• Under normal operation, with the wine cellar at 55° F and the ambient temperature at 85° F, the low side pressure should be between 28-32 PSI and the high side should be between 145-155 PSI.

Finalizing the Installation

- Confirm that the entire suction line from the TXV to the suction line service valve is insulated using cellular insulation or equivalent. Seal all seams with Armaflex 520 foam insulation adhesive or equivalent.

- Confirm that the control is displaying the correct temperature and that no alarms are present. Refer to page 44 for corrective action if alarms are present.

FINALIZING THE INSTALLATION

1. Push the grille back into place. This will attach the grille to the ball studs.

2. Screw in the eight screws to secure the front access panel.

SYSTEM OPERATION

Initial Start-Up

When the unit is plugged in and power is sent to the controller, a beep will sound, confirming that the controller is getting power. All LEDs on the display will blink three times. Three dashes will then appear on the screen. All display LEDs will then blink three times. Once the controller has gone through the initial startup process, and all LEDs have cycled, the home screen will be displayed.

Setpoint

The setpoint is preset at the factory to 55°F. It can be adjusted by the customer between 50–70°F in one-degree increments.

Indoor Fan Operation

The indoor fan will run when the controller is calling for cooling and turn off once the cooling cycle has ended. During the cooling cycle, the system will remove some relative humidity from the cellar. Some of the humidity that was removed can be reintroduced into the cellar by adjusting the "fan on" and "fan off" functions. (The cooling system is not equipped with a humidifier and does not add humidity.)

The FOF cycle should be shortened first. This will reduce the amount of time that the fan remains off following a cooling cycle. When the unit has completed a cooling cycle, the compressor and the condenser fan will turn off, but the indoor fan will continue to run for whatever length of time the customer has set. The Fon function may then be lengthened to allow the fan to run longer and reintroduce moisture from the evaporator coil back into the wine cellar.

For more information about fan settings, refer to the User Menu on page 45.

Anti-Short Cycle

The Anti-Short Cycle ensures that the unit will remain off for a period of five minutes after the unit has reached the setpoint. This allows the pressure in the refrigeration system to equalize prior to starting the compressor.

Once the solenoid relay is de-energized, the controller must wait five minutes before reenergizing the relay. This prevents the compressor from repeatedly turning off and on. If the unit is calling for cooling during this time, the compressor icon will blink, indicating that cooling is needed but the controller is waiting for the Anti-Short Cycle delay.

Anti-Frost Cycle

When the evaporator probe senses a temperature of 26° F for a duration of one minute, an Anti-Frost Cycle will be initiated. This will shut down the compressor, allowing the evaporator fan to run and melt any frost accumulation on the coil. While the Anti-Frost Cycle is running, "dEF" will be displayed on the screen. The compressor will remain off until the evaporator coil reaches 40° F, or for a maximum of one hour. The unit will then return to normal operation.

Operation in Low Ambient Temperatures

The condensing unit comes equipped with a LAC (Low Ambient Control). The LAC is a three-way modulating valve that responds to discharge pressure. When the discharge pressure falls below the valve's dome pressure, the valve modulates open to the discharge port which allows discharge gas to bypass the condenser. Mixing the discharge gas with the liquid creates high pressure at the condenser outlet, reducing the flow and causing liquid to backup in the condenser. Flooding the condenser reduces the area available for condensing. This reduction in condenser surface area results in a rise in condensing pressure during cold ambient conditions.

The condensing unit controller comes preset from the factory with the cut-in pressure at 25psi and the cut-out pressure at 15psi. During low ambient temperatures (40°F or below), it will be necessary to adjust the cut-in pressure to 10-15psi (15psi preferred) and the cut-out to 5psi to ensure compressor startup. See page 46 for instructions on adjusting the cut-in and cut-out pressures of the condensing unit.

Digital Display

The display is designed to give the user the ability to adjust the setpoint, Fon/FOF parameters, and other settings. (See User Menu on page 45 for more details.) The bottle probe temperature is displayed by default. "dEF" will be displayed during an Anti-Frost Cycle. The bottle probe and evaporator probe temperatures can be accessed by pushing the SET button and scrolling through "Pb1" (bottle probe) and "Pb2" (evaporator probe). The light button may be used as an unlock button.

Safety Features

In the event of a faulty bottle probe, the compressor will cycle off for 10 minutes and on for 40 minutes. "E1" will be displayed on the screen.

The evaporator unit comes equipped with a condensate pump to remove the condensation produced by the evaporator coil. The reservoir is mounted in the internal drip tray and will kill power to the unit if the condensate level rises too high.

If the drain line is obstructed or the pump fails for some reason, and the water level in the drip tray gets too high, the unit will not operate until the water in the internal drip tray drops back below the proper level.

In this event the controller will send an alarm to the display. (The alarm message, EA, can be viewed in the User Menu's ALr folder.)

Alarms

See "Alarm Codes" in the Controller Functions chart.

DISPLAY LAYOUT

CONTROLLER FUNCTIONS

Button Normal Functions
INITIAL STARTUP	When the unit is plugged in and power is sent to the controller, a beep will sound, confirming that the controller is getting power. All LEDs on the display will blink three times. Three dashes will then appear on the screen. All display LEDs will then blink three times. Once the controller has gone through the initial startup process, and all LEDs have cycled, the home screen will be displayed.
UNLOCKING THE DISPLAY	Press and hold any button for one second to unlock the display. (A white LED will appear in the top left corner of the button being pressed.) A beep will sound, signifying that the display is unlocked. NOTE: The display must be unlocked before any button functions become available.
ON/OFF	To turn the unit ON, press and hold the ON/OFF button until the red LED turns OFF.To turn the unit OFF, press and hold the ON/OFF button until the red LED turns ON.
UP/DOWN	The up and down arrows are used to navigate through menus and adjust parameters such as setpoint, Fon/FOF, etc.
SET	• To change the setpoint, press the SET button. When “SEt” is displayed on the screen, press the SET button once more. Use the UP and DOWN ARROW buttons in order to change the value until the desired setpoint is reached.
	• The SET button allows you to view the setpoint, evaporator temperature, bottle temperature, alarms, and the hidden menu.• Press the SET button once. “SEt” will be displayed. Press the UP or DOWN ARROW buttons to scroll through ALr, Pb1, or Pb2.
	Set SetpointAlr Alarm folderPb1 Liquid (bottle probe) temperaturePb2 Evaporator coil temperature• Press the SET button again to view any of these values.
	• Hold the SET button for approximately 5 seconds to enter the User Menu. (More information about the User Menu is available on page 45.)• Other parameters in the User Menu which are not available for adjustment include: idF, rEL, and LAn.
ESC	This button confirms changes made to parameters such as the setpoint and returns you to the previous menu.
LIGHT	The light function is not in use. However, this button can still be used to unlock the display.

ICON GLOSSARY

Icon Meaning
SNOWFLAKE	Blinking: The unit is calling for cooling, but must wait five minutes before restarting the compressor. This five-minute delay serves as an Anti-Short Cycle for the compressor's protection.Constant: The unit is in cooling mode and the condensing unit is running.
DRIPPING SNOWFLAKE	The unit is undergoing an Anti-Frost Cycle. While the Anti-Frost Cycle is running, “dEF” will be displayed on the screen. See System Operation page for further details.
FAN	The evaporator fan is running.
ALARM	The alarm icon is shown when the unit encounters an issue that needs attention. Alarm codes are explained on the following page. All temperature-related alarms are blocked for the first 10 hours after the unit is plugged in to allow the system to stabilize and acclimate to the new environment.

WHISPERKOOL CONTROLLER ALARM CODES

Code Cause Solution
The following alarm codes will be displayed on the screen along with the alarm icon. (●)
E1	Bottle probe is not connected Attach bottle probe to circular connector
	Faulty bottle probe connection Locate faulty bottle probe connection by inspecting all wiring connections between the bottle probe and the circuit board. The two-pin connector for the bottle probe should be connected to the CPB/PB1 terminal on the circuit board. If it is not connected, plug it in. If a faulty connection has been identified, correct the issue or contact customer service for further assistance.NOTE: The E1 code will not appear in the alarms menu. It will be permanently displayed on the screen.
	Defective bottle probe Replace the bottle probe
E2	Faulty evaporator probe connection	Locate faulty evaporator probe connection by inspecting evaporator probe wire. The two-pin connector for the evaporator probe should be connected to the CPB/PB2 terminal on the circuit board. If it is not connected, plug it in.
	Defective evaporator probe Replace the evaporator probe
E7	No communication between keypad and circuit board for 60 seconds	Verify that the display cable is connected to the keypad and the circuit board and is not damaged, frayed, or kinked. If problem persists, contact Customer Service for troubleshooting information.
E10	Clock battery is dead Replace batteryNOTE: A dead clock battery will not affect the operation of your cooling unit.
The following alarm codes will not be displayed on the home screen. However, the alarm icon will be displayed in the event of an alarm. The alarms can be viewed in the Set Menu's ALr folder. (●)
EA	Unit is not draining properly 1. Check to see that the unit is level; if not, level it2. Verify that the drain line is not clogged; if so, clear obstruction3. Ensure that the condensate pump is operating4. Verify wire connection at D.I. port of circuit boardNOTE: If the drain line is obstructed or the pump fails for some reason, and the water level in the drip tray gets too high, the unit will not operate until the water in the internal drip tray drops back below the proper level.NOTE: If the unit loses power (due to a power outage or being manually unplugged), the condensate pump may need to be reset. To do this, disconnect and reconnect the black cables on the condensate pump.
AH1	The bottle probe is sensing a temperature that is 4°F above the setpoint	1. Allow time for the wine to reach the desired temperature2. Ensure that the cellar is sealed properly3. Verify that the bottle probe is calibrated correctly (refer to the User Menu on the following page)4. Verify that the unit is sized correctly for the cellar
AL1	The bottle probe is sensing a temperature that is 4°F below the setpoint	1. Make sure the unit is not in cooling mode (the snowflake icon will not be illuminated)2. Add heat to the room until the wine reaches the desired temp3. Verify that the bottle probe is calibrated correctly (refer to the User Menu on the following page)
Ad2	The Anti-Frost Cycle ended on time-out	1. Check the evaporator coil for ice buildup. Unplug the unit and allow the coil to thaw before restarting.2. Make sure the room to which the unit is exhausting is not below 60°F3. If the unit repeatedly goes into Anti-Frost Cycles (one per minute), call Customer Service for more troubleshooting information

USER MENU

The User Menu is accessed by pressing and holding the SET button for 3 seconds. Use the UP and DOWN ARROW buttons to navigate to desired parameters. Press the SET button again to view these parameters. Press the UP and DOWN ARROW buttons to adjust a parameter.

The following parameters are available in the menu:

Parameter Description
Fdc - humidity enhancement This parameter	is measured in minutes, and is preset at the factory to 1. An increase in this parameter will increase the humidity enhancement of your cellar. This parameter should not be adjusted to zero. Adjustments should be made in increments of 5, with a maximum of 15 and a minimum of 1. After making any adjustments to humidity enhancement,you should wait a minimum of 3 days before making any additional adjustments. This will allow sufficient time for the cellar to acclimate to the new setting.
FOF - “fan off” This setting controls how long	the fan stays off after the setpoint has been reached. It is preset to 15 minutes. This setting should not be adjusted, as most properly constructed wine cellars retain an ample amount of humidity during the “fan off” cycle. If, however, you wish to decrease the duration of the “fan off” cycle (in order to increase the wine cellar’s relative humidity), you can adjust this setting in the User Menu.
Fon - “fan on” The “fan on” time is preset to	zero minutes. This keeps the relative humidity of the wine cellar at a stable level. If, however, you wish to raise the relative humidity of your wine cellar, you can increase the duration of the “fan on” cycle in increments of five (5, 10, or 15 minutes). After making any adjustment to the “fan on” cycle,you should wait a minimum of 3 days before making any additional adjustments. This will allow sufficient time for the cellar to acclimate to the new setting.
CA1 - bottle probe (Pb1) calibration	CA1 - bottle probe (Pb1) calibration:You may use this parameter to calibrate the bottle probe to a known temperature. This parameter can be adjusted between -12°F and 12°F. For example, if the bottle probe temperature is 58°F, and the known temperature is 55°F, you can set the CA1 parameter to -3°F to match the known temperature.
PA2 - installer menu This menu is only accessible using a password and is not available for adjustment.
dOA - digital input This setting determines	which of the unit’s components will be activated or deactivated when a certain electrical relay is activated or deactivated in response to an alarm. The controller comes pre-programmed with a factory setting of 2.2 = activates the compressor and fans5 = disables the compressor and fansNOTE:Setting the dOA to any number other than 2 or 5 will prevent the unit from operating properly.

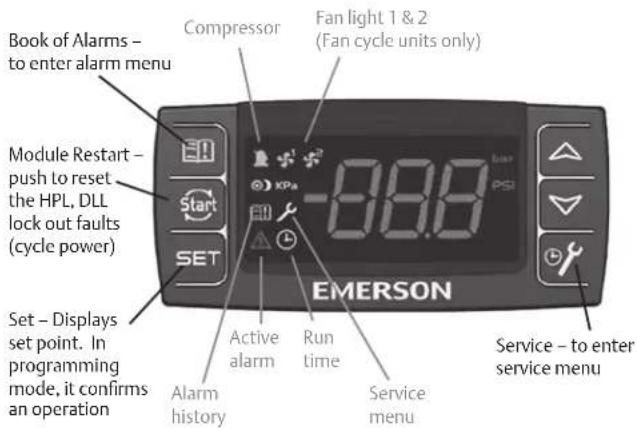

Emerson™ Electronic Unit Controller

Quick setup and troubleshooting guide

Adjusting Low Pressure Settings

Hold DOWN and SET simultaneously for 3 seconds to enter menu (PSI light will flash)	+	SET
Cycle through menu options – UP/DOWN
Select function – SET	SET
Adjust value – UP/DOWN
Store function - SET	SET
Exit menu - UP and SET		+ SET

Accessing Alarm Code Information

Press and release ALARM
Cycle through menu options – UP/DOWN
Press SET to see number of alarms	SET
Press SET again to return to menu options	SET
Exit menu - UP and SET	+ SET

AlarmDescription

PoF Keypad locked

Pon Keypad unlocked

P1 Suction probe failure

P2 Condenser probe failure

P3 DLT probe failure

HA High condenser temperature alarm

dLt DLT temperature alarm

DLL DLT lock alarm

HP High pressure trip alarm

HPL High pressure trip lock-out alarm

EE Module Failure

LOC Number of lock-outs

Note: After 15 seconds of inactivity the controller will revert to the default display.

When light is on, feature or component is on or active

Accessing Service Menu

Hold SERVICE for 3 seconds
Cycle through menu options – UP/DOWN
Press SET to see number of alarms	SET
Press SET again to return to menu options	SET
Exit menu - UP and SET	+ SET

CodeDescription

StH CompressorStarts -1000 -999999

StL Compressor Starts -0 -999

CHH CompressorHours -1000 -999999

CHL Compressor Hours -0 -999

F1H Fan 1 Hours -1000 -999999

F1L Fan 1 Hours-0 -999

F2H Fan 2 Hours -1000 -999999

F2L Fand 2 Hours -0 -999

Example: If StH=12 and StL=500, the total number of compressor starts=12,500

For more information visit

EmersonClimate.com/ElectronicUnitController

or call 1-888-367-9950

EMERSON.

Climate Technologies

Display Likely Causes Other Possible Causes
Controller display remains blank after applying power	Unit power not properly applied - check for proper applied voltagePower cable harness not plugged in properly or securely into the back of the controller - check connections	Power cable miswired - inspect cable, replace if neededElectrical assembly miswired - trace wiring diagrams
Controller displays correctly, but the green compressor light is off and the compressor is not running	Jumper cable not plugged in properly or securely into the back of the controller - check connectionsController is currently above the cut-in setting - check cut-in and cut-out settings	Jumper cable miswired - inspect cable, replace if needed
Controller displays correctly and the green compressor light is on and the compressor is not running	Power cable harness not plugged in properly or securely into the back of the controller - check connections	Power cable not wired to the contactor or compressor correctly, check wiringPower cable miswired - inspect cable, replace if needed
Controller fl ashes "135" or "P1"	Current system pressure is above 135 PSIG - wait for system to pull downGreen harness not plugged in properly or securely into the back of the controller - check connectionsCable not connected properly with the pressure transducer - check connections	Transducer cable miswired - inspect cable, replace if neededDamaged transducer - inspect transducer, replace if needed
Controller fl ashes "P2" on a unit with fan cycling	Green harness not plugged in properly or securely into the back of the controller - check connections	Transducer cable miswired - inspect cable, replace if neededCheck condenser temperature sensor resistance values against table in AE-1376, Section 8
Controller fl ashes "P2" on a unit without fan cycling after replacing a controller	Controller not programmed properly - check parameters in the advanced menu
Controller fl ashes "P3" on a unit with DLT	Jumper cable not plugged in properly or securely into the back of the controller - check connections	Jumper cable miswired - inspect cable, replace if neededFaulty DLT temperature sensor - check the discharge line temperature sensor resistance values against table in AE-1376, Section 8
Controller fl ashes "P3" on a unit without DLT after replacing a controller	Controller not programmed properly - check parameters in the advanced menu
Fans not running on a fan cycling unit and the fan lights are not on	Condensing temperature is currently below the fan cut-inCondensing temperature sensor not properly installed - check installation	Transducer cable miswired - inspect cable, replace if neededFaulty temperature sensor - check condenser temperature sensor resistance values against table in AE-1376, Section 8
Fans not running on a fan cycling unit and the fan lights are on	Power cable harness not plugged in properly or securely into the back of the controller - check connections	Power cable miswired - inspect cable, replace if neededElectrical assembly miswired - trace wiring diagrams
Controller fl ashes "HP" at power-up	Jumper cable not plugged in properly or securely into the back of the controller - check connectionsHigh pressure switch is seeing above the cut-out pressureFor a replacing an -00 controller, ensure that the jumper cable is the latest revision. It should have a blue wire in the harness. See replacement instructions for more details	Jumper cable miswired - inspect cable, replace if neededFaulty fixed Hp switch - inspect switch, replace if needed
Controller fl ashes "HP" or "HPL"	System operation causing high discharge pressures, check system operations	Bad high pressure switch, verify system pressure when the pressure switch trips.See AE-1376, Section 7.2 for more details
Controller fl ashes "DLT" or "DLL"	System operation causing high discharge line temperatures, check system operations	Faulty temperature sensor - check DLT sensor values against table in section 8See AE-1376, Section 7.1 for more details
Controller fl ashing "HPL" or "DLL"	System operation causing high discharge pressures (HPL) or high discharge line temperatures (DLL) repeatedly, check system operationsTo clear an "HPL" or "DLL" lockout, you can hold the Restart button for 3 seconds twice, or cycle power to the unit. If using the reset button, the alarm condition will have to clear (DLT temperature drops or Hp switch resets), and any minimum off time will need to complete (5 minutes for the fixed Hp switch)

EmersonClimate.com/ElectronicUnitController

2013 ECT-46 (9/13) Emerson is a trademark of Emerson Electric Co. ©2013 Emerson Climate Technologies, Inc. All rights reserved.

EMERSON. CONSIDER IT SOLVED.

WHISPERKOOL TROUBLESHOOTING GUIDE

Unit has ice forming on the evaporator unit
Possible cause Solution
Evaporator filter or coil is dirty Remove the filter and wash it, then clean	the coil with a vacuum.If coil is very dirty, use a spray bottle with a small amount of liquid dish detergent or coil cleaner. Spray coil, let set for five minutes, then flush with fresh water.
There is something blocking the supply and/or return air	Remove blockage
The evaporator fan is not turning on Call a service tech to troubleshoot
The evaporator unit has not gone through an Anti-Frost Cycle yet	Check the coil for surface ice. Melt with blow drier until coil is warm to the touch. Soak up water with a towel.
If evaporator unit continues to ice	Observe ice formation pattern. If only part way up the coil face, the system could be low on refrigerant. If all the way up, the coil may be dirty or airflow is blocked.
Unit does not run/power up
Possible cause Solution
Evaporator Unit is not plugged in Make sure the unit is plugged into an outlet	outlet
Power switch not on Turn unit on by pressing the power button on the control	control
Line voltage rating is incorrect for the system Check line voltage to make sure there is 110V-120V
Bottle at setpoint Lower setpoint
Thermostat not calling for cooling	Lower setpoint
Faulty thermostat or wiring Call Customer Service at 1-800-343-9463
Cellar temperature is too warm
Possible cause Solution
The temperature of the room to which the condensing unit exhausts exceeds 110°F	Intake temperature needs to drop below 110°F
The system is undersized for the cellar Order correct size system
There is something blocking the supply and/or return air on the evaporator unit or the condensing unit	Remove air flow obstruction
Evaporator unit is mounted too low in the cellar Relocate unit so the distance from the ceiling and top of the unit is no more than 18"
One or more of the fans is not turning on	Please contact the installing technician to troubleshoot
Compressor is not turning on	Please contact the installing technician to troubleshoot
Compressor keeps cycling on overload	Make sure all fans are working and there is no airflow obstruction
Poor seal around door or other areas requiring a seal (around the unit, wall joints, etc.)	Make sure there are no air gaps around the door. If door seal is damaged, replace it.
Setpoint too high	Lower the setpoint
Evaporator coil is frosted or iced up Observe ice formation pattern. If only part way up the coil face,evaporator unit could be low on refrigerant. If so, contact your installing technician to assist with troubleshooting.
System runs constantly
Possible cause Solution
Leaky door seal or poorly insulated cellar	Fix leaky door seal and insulate cellar
Unit leaks water
Possible cause Solution
Evaporator unit is not level Evaporator unit should be level on the wall	to prevent leaking
Drain line clogged or kinked Check drain line to make sure water can flow freely
Drain is clogged, preventing water from escaping Disconnect drain and clear it out; check drain for blockage
Drain line does not have a downward slope Fix drain line so there is a downward slope from the unit to the drain
Coil is iced, causing drain pan to freeze and water to overflow Melt ice with blow drier. Soak up with a towel.
Condensate pump needs to be reset Disconnect and reconnect the black cables attached to the pump
Unit runs but does not cool
Possible cause Solution
Lack of air flow Make sure fan is unobstructed and that the evaporator filter, evaporator coil, and condenser coil are clean and free of debris
System undersized Contact Customer Service at 1-800-343-9463
Compressor is overheating Shut system off for 1 hour to allow compressor to cool. Turn back on and check for cooler air flow out. If compressor runs, check for and clean condenser coil as possible cause of compressor overheating. If problem repeats, contact you installing technician to assist with troubleshooting.
Evaporator fan runs but compressor does not
Possible cause Solution
Running an Anti-Frost Cycle 1) If the system is maintaining the correct cellar temperature and there is a dripping snowflake symbol illuminated on the control, the system is going through an Anti-Frost Cycle. No action is required. 2) If the system is not maintaining the correct cellar temperature, this may be due to a dirty evaporator filter or coil. 3) Call installing technician to troubleshoot, as the system may be low on charge or require an adjustment to the TXV.
Compressor and/or starting components faulty Please contact the installing technician to troubleshoot
System may be performing the WHM function Allow cooling system to revert back to cooling mode
Compressor may have overheated	Shut system off for 1 hour to allow compressor to cool. Turn back on and check for cooler air flow out. If compressor runs, check for and clean condenser coil as possible cause of compressor overheating. If problem repeats, contact your installing technician to assist with troubleshooting.
Compressor runs but evaporator fan does not
Possible cause Solution
Faulty fan motor	Please contact the installing technician to troubleshoot
Faulty controller	Please contact the installing technician to troubleshoot
Compressor short cycles
Possible cause Solution
Evaporator unit blows on bottle probe	Move bottle probe to a more central location
System low on refrigerant charge	Please contact the installing technician to troubleshoot
Condensing fan motor/capacitor faulty	Please contact the installing technician to troubleshoot
Compressor and /or starting components faulty	Please contact the installing technician to troubleshoot
Humidity in cellar too low
Possible cause Solution
Not enough moisture	Purchase and place a humidifier (or a decorative fountain) in cellar

MAINTENANCE SCHEDULE

Monthly	1. Check coils2. Check for unusual noise or vibration3. Check the drain line to see if it is above the waterline (if draining into a vessel)
Quarterly	1. Use a vacuum with brush attachment to clean coils; be careful not to crush coil fins when cleaning2. Change duct filter if the system is ducted
Annually	1. Inspect for corrosion2. Check wiring connections and integrity of cords3. Pour a 50/50 bleach solution into the drain line every spring
EMERSON Climate Technologies
	Application Engineering	Copeland™ brand products
	B U L L E T I N

AE5-1340

October 2006

Care and Cleaning of Air Cooled Condensing Units

Introduction

Proper care is essential to assure good life of condensing units. Dirty or damaged condensers will reduce the efficiency and capacity of the system.

Care must be taken in choosing solutions to be used for cleaning condensers and condensate pans. Chlorinated cleaners and anti-bacterial cleaning agents can be damaging and should be avoided. Caustic and acidic cleaners should be avoided as well. Failure to do so may accelerate component corrosion and ultimately lead to component failure.

Condenser Coils

There are many commercially available condenser coil cleaners on the market. Coil cleaners should be designed to remove build-up on fins and coils. Coils should be thoroughly rinsed of the cleaners once cleaning has been completed. Follow the manufactures instruction for proper usage. Preventive maintenance and routine cleaning of coils is important to assure good life.

When cleaning the coil, an absorbent type material should be placed under the area to be cleaned in order to capture most of the cleaning compound, thus minimizing any type of chemical attack.

Condensate Pans

Condensing units with condensate pans and condensate tubes are designed to evaporate condensate water only. Other ingredients introduced into the condensate pan can accelerate pan and/or tube corrosion. As foreign agents are introduced into the condensate pan, condensate water will be evaporated leaving the foreign agent behind. This can lead to a high concentration of the agent and possible corrosion of the tubing and/or base.

Coil cleaning agents must not be allowed to drain into the condensate pan as this may cause damage. Upon completing the coil cleaning, be certain that all residue is removed from the condensate pan.

Only non corrosive cleaners should be used to assure good life of the condensing unit components. No hydrocarbon based cleaners should be used to clean the unit. Bleach solutions must be avoided due to its high corrosive nature.

Under no circumstances should cleaning agent ingredients contain any of the solutions listed below:

Unacceptable solutions are:

Chlorinated Solvents

Bleaches

Vinegar

Ammonia

Anti-Bacterials

Salts

Preventative Maintenance

Maintenance should be performed at regular intervals. Coils should be cleaned at least monthly, possibly more depending on the environment. Condensing units with condensate pans should also be checked and cleaned regularly to prevent damaging build up in the pan.

Safety

Please follow all safety recommendations listed by the manufacturer of the cleaning agent(s), these would include proper clothing, gloves and eye protection.

BYPASS TEST PROCEDURE

NOTE: If instructed by a WhisperKOOL representative, follow the directions below to test the cooling unit using the bypass plug provided in the accessory kit.

1. Disconnect power from the evaporator unit.
2. Loosen the two (2) screws on the front of the grille or duct plenum.
3. Pull the grille or duct plenum away from the evaporator unit.
4. Remove the screw securing the control panel in place.
5. Slide the control panel down, out of the evaporator housing. The control panel has two (2) hooks which allow it to attach to the evaporator unit for easy serviceability.
6. Disconnect the Molex connector labeled #4.
7. Locate the bypass plug included in the accessory kit.
8. Plug the bypass plug into the male Molex connector.
9. Connect power to the evaporator unit. The unit should immediately turn on. If all the components are not operational, disconnect power immediately and contact customer service. If all components seem to be operating correctly, allow the unit to run for four (4) hours. Monitor the temperature of the cellar to determine if the unit is cooling properly.
10. Once the test is complete, remove the bypass plug. Plug the Molex connector back in to the unit's wiring.
11. Replace the control and faceplate.

TECHNICAL ASSISTANCE

WhisperKOOL Customer Service is available Monday through Friday from 6:00 a.m. to 4:00 p.m. Pacific Standard Time.

The appointed customer service representative will be able to assist you with your questions and warranty information more effectively if you provide them with the following:

• The model and serial number of your WhisperKOOL system(s).
• Location of unit and installation details, such as ventilation, ducting, construction of your wine cellar, and room size.
• Photos of the cellar and installation location may be needed.

Contact WhisperKOOL Customer Service

1738 E. Alpine Ave

Stockton, CA, 95205

www.whisperkool.com

Email: [e-mail]

Phone: [phone]

US Toll Free: 1-800-343-9463

Fax: [phone]

Visit www.emersonclimate.com/electronicunitcontroller for online brochures, bulletins, instruction videos, and general product information.

Download the Copeland Mobile App on your mobile device for additional troubleshooting and technical information.

ACCESSORIES FOR COOLING UNITS

WhisperKOOL offers accessories to enhance and customize your wine cooling unit:

Condensate Pump Kit

The condensate pump kit automatically removes water that drips out of the evaporator unit's drain line. The pump is controlled by a float/switch mechanism that turns the pump on when approximately 2½" of water collects in the tank, and automatically switches off when the tank drains to approximately 1¼". The condensate pump kit allows the excess condensate to be pumped up to 20 feet away from the unit.

Exterior Housing

If the cooling unit is installed outside, it will need protection from sun, wind, and rain. The exterior housing protects the condensing unit portion of the split system from the elements when installed outdoors.

Accessories can be purchased at www.whisperkool.com

WhisperKOOL Product Terms and Conditions

Including Product Limited Warranty And Product Installation Requirements For WhisperKOOL Split System Series

ATTENTION: PLEASE READ THESE TERMS OF USE CAREFULLY BEFORE INSTALLING YOUR WHISPERKOOL COOLING SYSTEM. INSTALLING YOUR WHISPERKOOL COOLING SYSTEM INDICATES THAT YOU ACCEPT AND AGREE TO EACH OF THE TERMS AND CONDITIONS SET FORTH HEREIN ("TERMS OF USE"). IF YOU DO NOT ACCEPT THESE TERMS OF USE, YOU RISK VOIDING YOUR WARRANTY AND ASSUMING ADDITIONAL REPAIR AND REPLACEMENT COSTS.

1. Purchase of a WhisperKOOL Cooling System assumes that the Purchaser ("End User") fully accepts and agrees to the Terms and Conditions set forth in this document. The Terms and Conditions of Sale and Owner's Manual are shipped with each unit and, if another copy is needed, replacement copies can be downloaded from the company website (whisperkool.com) or by contacting WhisperKOOL directly for a new copy. WhisperKOOL reserves the right, in its sole discretion, to change its Terms and Conditions at any time, for any reason, without notice.

2. WhisperKOOL Product Installation and Limited Warranty

A. Purchaser of the product must arrange for the product to be installed by a certified HVAC/R technician in accordance with procedures set forth by WhisperKOOL and described in the WhisperKOOL Owner's Manual.
B. The HVAC/R technician installing the product must complete the designated portion of the Split Startup Checklist and provide licensing or certification identification number information to assist in the warranty registration process.
C. Purchaser must return the completed Split Startup Checklist to WhisperKOOL within thirty (30) days of installation of Product. The Split Startup Checklist must be approved by WhisperKOOL to activate the Limited Warranty. If the Split Startup Checklist is approved, Purchaser will be sent activation approval documents and will start receiving the benefits of the Limited Warranty throughout the warranty period. If the Split Startup Checklist is incomplete, Purchaser will be informed they have five days to complete the Split Startup Checklist and re-submit to WhisperKOOL. The Split Startup Checklist will be reviewed again, and if denied, Purchaser will be informed that they have 10 business days for corrective action. Failure to register the Product may result in loss of warranty.
D. Purchaser is responsible for the full costs of installation and any additional parts required for the proper and complete installation of the product.
E. For Split Systems returned to WhisperKOOL in accordance with the terms and conditions of the Limited Warranty, WhisperKOOL warrants against defects in material and workmanship as follows:

1. LABOR — For a period of two (2) years commencing on the date of purchase, WhisperKOOL will, at its option and discretion, reimburse up to \$250 to the End User for cost incurred for servicing, repairing, removing or installing warranty parts. Invoice for service must be forwarded to WhisperKOOL for assessment and processing. The Split System warranty is invalid if there is attempted repair by anyone other than an HVAC/R technician approved by WhisperKOOL to service the Product.
2. PARTS — For a period of two (2) years commencing on the date of purchase, WhisperKOOL will supply, at no charge, new or rebuilt replacement parts in exchange for defective parts. Replacement parts are warranted only for the remainder of the original warranty period.
3. FREIGHT — For a period of two (2) years commencing on the date of purchase, if after WhisperKOOL approved evaluation the original Product failure is determined to be the cause of a manufacturers defect, and not the cause of an installation error or other cause, WhisperKOOL will cover at its option, freight for the replacement parts or Product.

The following part or cause of failure is not the responsibility of WhisperKOOL:

• Improper voltage supply
  • Line set with screw connectors (high end and low end)
• Leaks found at the braze points when performing pressure check

• Unit that has been charged incorrectly

• Incorrect tubing diameter used on line set
  • A unit that has been wired incorrectly

• Valve stem on condenser side
• Improper installation of P-Trap
• Lack of P-Trap (if required)

- Condensers that are installed outdoors or in elements that would affect operation without proper cover or housing. (Housing is available from Manufacturer).

Product Warranty Limitations and Exclusions.

1. This limited warranty does not cover cosmetic damage caused during installation, damage due to acts of God, commercial use, accident, misuse, abuse, negligence, or modification to any part of the Product. Delivery and installation of the Product, any additional parts required, as well as removal of the Product if warranty work is required, are all at the sole cost, risk and obligation of the End User.
2. This limited warranty does not cover damage due to improper installation or operation or lack of proper maintenance of the Product, connection of the Product to improper voltage supply, or attempted repair of the Product by anyone other than a technician approved by WhisperKOOL to service the Product.
3. This limited warranty does not cover any Product sold "AS IS" or "WITH ALL FAULTS."
4. Product that has been replaced during warranty period does not extend the warranty period past the original date of purchase.
5. This limited warranty is valid only in the continental United States. Sales elsewhere are excluded from this warranty.
6. Proof of purchase of the Product in the form of a bill of sale, receipted invoice or serial number, which is evidence that the Product is within the Limited Warranty Period, must be presented by the End User to WhisperKOOL in order to obtain limited warranty service.
7. This limited warranty is void if the factory applied serial number has been altered or removed from the Product.
8. This limited warranty is voided if installed in an enclosure of insufficient design that does not follow the Product installation requirements stated herein and in the owner's manual.
9. Removing the rivets from the Product's unit housing without prior authorization from WhisperKOOL voids this limited warranty.
10. The End User must first contact WhisperKOOL Customer Service by telephone (at 1-800-343-9463) prior to attempting service on any Product still under the limited warranty; else the limited warranty is voided.
11. This limited warranty does not cover Product being concealed by, but not limited to, vegetation, fabric, shelving, mud, snow, or dirt. Product must not be painted or limited warranty will be void.
12. This limited warranty does not cover exposure to corroding environments such as, but not limited to, petroleum and gasoline products, cleaning solvents, caustic pool chemicals, and marine air.
13. This limited warranty does not cover any cause not relating to Product defect.
14. THE REPAIR OR REPLACEMENT OF THE PRODUCT AS PROVIDED UNDER THIS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF YOU, THE END USER, AS WELL AS ANYONE ELSE IN THE CHAIN OF TITLE OF THE PRODUCT, DOES NOT START A NEW LIMITED WARRANTY TIME PERIOD, AND IS IN LIEU OF ALL OTHER WARRANTIES (EXPRESS OR IMPLIED) WITH REGARD TO THE PRODUCT. IN NO EVENT SHALL WHISPERKOOL BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, SPECIAL OR CONTINGENT DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. THE IMPLIED WARRANTIES OF MERCHANTABILITY
15. AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY EXPRESSLY DISCLAIMED. Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This limited warranty gives you specific legal rights, and you may have other rights, which vary from state to state.
16. Failure of the End User to comply with all of the Product Installation Requirements, Maintenance Requirements and End User Requirements may, at WhisperKOOL's sole discretion, void this limited warranty.
17. No one has any authority to add to or vary the limited warranty on this Product.

3. Maintenance Requirements

The End User is responsible for checking the coils on the condenser unit and vacuuming them every three months to maintain them free of debris. It is the End User's responsibility to clean off any accumulated dust, lint, or other debris from the front and rear intake grills; failure to do this on a regular basis will restrict the airflow and may affect the Product's ability to function properly. Periodically cleaning the Product's vents will help assure maximum cooling efficiency. The drain tube must also be checked and kept clean and free of debris and mold to maintain proper performance.

Mold is a natural living organism in the environment. It exists in the air in the form of microscopic spores that move in and out of buildings through doors, windows, vents, HVAC systems and anywhere else that air enters. Once it is discovered, mold must be addressed quickly and appropriately. Delayed or improper treatment of mold issues can result in costly and reoccurring repairs. If the End User suspects a mold problem, it is always best to hire a qualified and experienced mold remediation specialist.

4. Additional End User Costs And Responsibilities

Terms and conditions for replacing the Product that is being evaluated for limited warranty.

1. After evaluation by a certified HVAC/R technician and the Product is found to be irreparable in the field, contact WhisperKOOL Customer Service to arrange for replacement under the warranty guidelines. When a claim for warranty is submitted for a condenser skid, the End User must purchase a new condenser skid from WhisperKOOL at retail price. Upon installation of the new condenser skid by a certified HVAC/R Technician, the HVAC/R Technician must complete the Installation Checklist and End User must submit the Installation Checklist to WhisperKOOL Customer Service for approval. The original condenser skid must be returned within 21 days to WhisperKOOL for failure analysis. If the Installation Checklist is approved and the failure is evaluated as defective and not installation error or other reason, the End User will be refunded for the cost of the replacement skid.
2. If the Product failure is evaluated and it is determined that it is an installation error or other reason, all costs, including shipping will be the responsibility of the End User.

The following items are not covered under any warranty and are the sole responsibility of the End User:

A. End Users should satisfy themselves that the Product they are purchasing is suitable for their particular needs and requirements, and thus no responsibility will be placed with WhisperKOOL for the End User's decisions in this regard.
B. End Users must assure that the product is installed by a certified HVAC/R technician. Failure to do so will result in Voiding the Limited Warranty.
C. It is the End User's responsibility to secure safe haven/storage for ANY AND ALL items that are being kept and stored in the End User's wine cellar, including any Product. WhisperKOOL takes no responsibility for the safety and preservation of the aforementioned items in the event that the environment becomes unsuitable to maintain a proper storage environment.
D. End User is responsible for initial installation costs, including, but not limited to, labor costs and the cost of any additional parts necessary to complete the installation.
E. End User is responsible for all costs incurred for the installation and/or removal of the Product, or any part thereof, unless such cost has been agreed by WhisperKOOL to be a warranty repair prior to the work being performed.

5. Sales and Use Tax

WhisperKOOL only collects California sales tax for orders shipped within the State of California; WhisperKOOL does not collect sales tax for orders shipped to other states. However, the Purchaser and the End User may be liable to the taxing authority in their state for sales tax and/or use tax on the Product. The Purchaser and the End User should each check with their state's taxing authority for sales and use tax regulations.

6. Customer Service and Troubleshooting

WhisperKOOL's customer service department is available to answer any questions or inquiries for End Users regarding a WhisperKOOL Product, as well as to assist in performing basic troubleshooting, Monday through Friday, from 6:00 a.m. to 4:00 p.m. PST, at telephone number 1-800-343-9463. WhisperKOOL reserves the right to have a certified, WhisperKOOL-approved, HVAC/R technician go on site and inspect the product if the initial trouble shooting warrants further investigation. WhisperKOOL Corporation is located at 1738 East Alpine Avenue, Stockton, California 95205.

7. Request for Product Evaluation and Repair Under Warranty

SPLIT SYSTEM FIELD SERVICE WARRANTY POLICY: This Policy is to clarify what falls under Warranty Service and what becomes the responsibility of the Owner. WhisperKOOL ("manufacturer") strives to provide our customers with a superior Product and we back our Product with a Two Year Limited Warranty. Please review the WhisperKOOL Product Terms and Conditions including Product Limited Warranty and Product Installation Requirements to ensure you have a complete understanding of our Policy and coverage of your Split System.

ARBITRATION: Any disputes arising out of or in connection with the installation and warranty of the Split System shall be referred to and finally resolved by a WhisperKOOL approved Independent Certified HVAC/R Technician. The evaluation of the Technician on all issues or matters of identifying the responsible party (WhisperKOOL or Installing Technician) shall be determined in a written report. This report will be made available to all concerned parties. If discovered under warranty, WhisperKOOL will assume the financial responsibility under their warranty guidelines. If the report finds the Owner's Installer as the responsible party, WhisperKOOL will provide all documentation to the customer to substantiate the findings. This will include the Invoice from the Independent Certified HVAC/R Technician and the written report of the findings. The Owner will become responsible for payment directly to WhisperKOOL for all charges incurred for repairs (labor, parts and shipping costs) on the Split System.

8. Miscellaneous Terms and Conditions

A. Return Policy. All return inquiries must be made within thirty (30) calendar days of the original purchase of a Product and are subject to a twenty five percent (25%) restocking fee. Shipping costs are not refundable and the Purchaser is responsible for all return shipping costs (including customs fees and duties, if applicable).
B. Security Interest. WhisperKOOL retains a security interest in each Product until payment in full.
C. Construction and Severability. Every provision of these Terms and Conditions shall be construed, to the extent possible, so as to be valid and enforceable. If any provision of these Terms and Conditions is held by a court of competent jurisdiction to be invalid, illegal or otherwise unenforceable, such provision will, to the extent so held, be deemed severed from the contract of sale between Purchaser and WhisperKOOL, and all of the other non-severed provisions will remain in full force and effect.
D. Governing Law/Choice of Forum. The laws of the State of California (without regard for conflicts of law) shall govern the construction and enforcement of the these Terms and Conditions of Sale (Sections 1 through 9 inclusive, including Product Limited Warranty And Product Installation Requirements), and further these Terms and Conditions of Sale shall be interpreted as through drafted jointly by WhisperKOOL and Purchaser. Any dispute will be resolved by the courts in and for the County of San Joaquin, State of California, and all parties, WhisperKOOL, Purchaser and End User, hereby irrevocably submit to the personal jurisdiction of such courts for that purpose. No waiver by WhisperKOOL of any breach or default of the contract of sale (including these Terms and Conditions of Sale) concerning a Product will be deemed to be a waiver of any preceding or subsequent breach or default.
E. Correction of Errors and Inaccuracies. These Terms and Conditions may contain typographical errors or other errors or inaccuracies. WhisperKOOL reserves the right to correct any errors, inaccuracies or omissions, and to change or update these Terms and Conditions, at any time without prior notice.

9. Questions, Additional Information And Technical Assistance

A. Questions. If you have any questions regarding these Terms and Conditions or wish to obtain additional information, contact us via phone at 1-800-343-9463 or please send a letter via U.S. Mail to:

Customer Service

WhisperKOOL Corporation

1738 E Alpine Ave

Stockton, CA 95205

E-mail: [e-mail]

Web: www.whisperkool.com

B. Technical Assistance. WhisperKOOL Customer Service is available Monday through Friday from 6:00 a.m. to 4:00 p.m. PST. The Customer Service representative will be able to assist you with your questions and warranty information more effectively if you provide them with the following:

1. The model and serial number of your WhisperKOOL UNIT.
2. The location of the system and installation details, such as ventilation, construction of your wine cellar, and room size.

Model Serial Number

Installed by ____ Date ____

WhisperKOOL™

WhisperKOOL

1738 E. Alpine Ave

Stockton, CA 95205

1-800-343-9463

www.whisperkool.com
