Dakar 5 - Lighting EGLO - Free user manual and instructions

Product Type	Ceiling Light
Model	Dakar 5
Brand	Eglo
Dimensions	Approximately 50 cm diameter, 15 cm height
Weight	Approximately 1.2 kg
Power Supply	220-240 V, 50/60 Hz
Bulb Type	E27 (max 60W) or LED equivalent
Number of Bulbs	5
Light Source Included	No, bulbs sold separately
Material	Metal frame, glass shades
Color	White/Chrome (typical)
Mounting Type	Ceiling mounted
Dimmable	Yes if compatible dimmable bulbs and switch
Protection Class	IP20 (indoor use only)
Energy Efficiency Class	Depends on bulb used (A++ to E)
Usage	Indoor general lighting
Care and Cleaning	Wipe with dry cloth; do not use abrasive cleaners
Safety	Installation by qualified electrician recommended; disconnect power before maintenance
Spare Parts & Repairability	Spare parts available through Eglo service; LED modules replaceable
Warranty	2 years (refer to local regulations)

Frequently Asked Questions - Dakar 5 EGLO

What type of bulb does the Eglo Dakar 5 use?

The Dakar 5 uses E27 screw base bulbs, with a maximum wattage of 60W per bulb. LED equivalents are highly recommended for energy efficiency.

Is the Dakar 5 dimmable?

Yes, the fixture is dimmable provided you use dimmable bulbs and a compatible dimmer switch. Check your bulb's specifications.

How do I install the Dakar 5 ceiling light?

Installation should be done by a qualified electrician. Ensure the power is off before connecting wires. The fixture mounts directly to a ceiling junction box.

What are the dimensions of the Dakar 5?

The Dakar 5 has a diameter of approximately 50 cm and a height of about 15 cm. Weight is around 1.2 kg.

Can I use the Dakar 5 in a bathroom or outdoors?

No, the Dakar 5 is IP20 rated, suitable only for indoor dry locations. It should not be used in bathrooms or outdoors.

How do I clean the Dakar 5?

Clean with a soft dry cloth. Do not use water, chemical cleaners, or abrasive materials. Always turn off the power before cleaning.

What should I do if a bulb doesn't work?

First, ensure the bulb is screwed in properly and the power is on. If it still doesn't work, try a new bulb. If the problem persists, check the wiring or consult an electrician.

Are extra glass shades available for the Dakar 5?

Yes, spare parts including glass shades can be ordered through Eglo customer service or authorized dealers. Check your model number (Dakar 5).

What is the warranty period for Eglo Dakar 5?

Eglo typically offers a 2-year warranty against manufacturing defects. Warranty conditions may vary by country; keep your purchase receipt.

Does the Dakar 5 come with bulbs included?

No, the fixture is sold without bulbs. You need to purchase 5 x E27 bulbs separately (screw base).

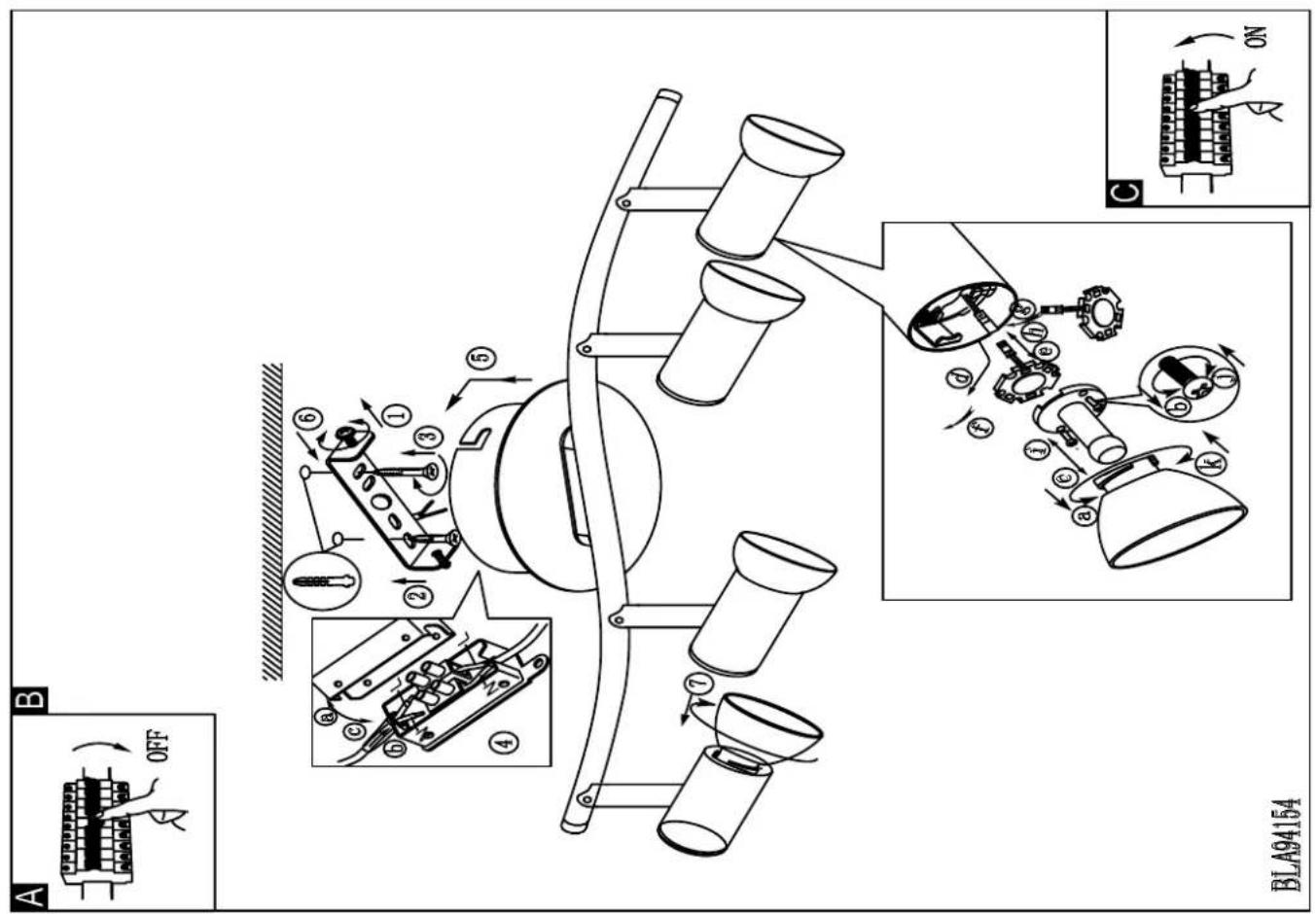

USER MANUAL Dakar 5 EGLO
