Product Type	Storage Cabinet
Brand	JYSK
Model	Halby (138x75x45)
Dimensions (W x D x H)	45 cm x 75 cm x 138 cm
Weight	30 kg
Material	Engineered Wood (Particleboard and MDF)
Color	White
Assembly Required	Yes
Number of Shelves	5
Load Capacity per Shelf	10 kg
Recommended Use	Indoor storage for books, decor, and household items
Warranty	2 years
Care Instructions	Wipe with a damp cloth; avoid harsh chemicals
Safety Warnings	Secure to wall to prevent tipping; do not overload shelves
Country of Origin	Poland
Included Components	Panels, screws, dowels, cam locks, and assembly instructions
Maximum Weight Capacity	50 kg (evenly distributed)

Frequently Asked Questions - Halby (138x75x45) JYSK

How do I assemble the Halby cabinet?

Follow the step-by-step instructions provided. Use a Phillips screwdriver and hammer (not included). Lay all parts flat and identify each piece before starting.

What tools are needed for assembly?

You will need a Phillips screwdriver and a rubber mallet or hammer. All screws and fittings are included.

Can I paint or stain the furniture?

Yes, but it is recommended to use a water-based primer and paint. Sand lightly before painting for better adhesion.

What is the weight limit per shelf?

Each shelf can hold up to 10 kg when weight is evenly distributed. Do not exceed this limit to avoid damage.

How should I clean the cabinet?

Wipe with a soft, damp cloth and dry immediately. Do not use abrasive cleaners or soak the surface.

Is the Halby suitable for outdoor use?

No, this furniture is designed for indoor use only. Exposure to moisture or sunlight may cause warping or fading.

Does it come with an instruction manual?

Yes, a detailed instruction manual is included in the box. You can also download a PDF from the JYSK website.

Can I mount the cabinet to the wall?

Yes, for safety, use the anti-tip bracket (included) to secure it to a wall stud. This is recommended for stability.

What if a part is missing or damaged?

Contact JYSK customer service with your purchase receipt and the part number from the manual. They will send a replacement free of charge.

Is the furniture easy to move once assembled?

It is heavy (~30 kg). We recommend disassembling for moving or use two people to lift carefully to avoid injury.

USER MANUAL Halby (138x75x45) JYSK

The mark of responsible forestry

GB: IMPORTANT INFORMATION!

Please read the entire manual carefully before starting to assemble and/or using this product. Follow the manual thoroughly and keep it for further reference.

DK: VIGTIG INFORMATION!

SE: VIKTIG INFORMATION!

GB: WARNING TO AVOID SCRATCHES!

In order to avoid scratching this furniture should be assembled on a soft layer - could be a rug.

DK: ADVARSEL FOR AT FORHINDRE RIDSER!

GB: ANTI-TOPPLE WARNING!

This product has to be permanently fixed to the wall with the bracket(s) included, to avoid fatal injury in case it topples over. The pack only contains screws for fastening the anti-topple bracket(s) itself to the product. Please contact your DIY or hardware store for advice on the correct type of screws/raw plugs for your type of wall.

DK: ADVARSEL VEDR∅RENDE VÆLTESIKRING!

GB: IMPORTANT!

It is important that any product which is assembled using any kind of screw is re-tightened 2 weeks after assembly, and once every 3 months - in order to assure stability through-out the lifespan of the product.

DK: VIGTIGT!

A x 36∅8x32 mm	B x 18∅7,5x45 mm	C x 18∅15x12 mm	D x 12∅20x0,5 mm	E x 44∅3,5x16 mm
F x 24∅3,5x16 mm	G x 36∅5,0x13 mm	H x 30∅7x50 mm	I x 1hex 4 mm	J x 277x32x16 mm
K x 224x12x1 mm	L x 1614x15x10 mm	M x 4∅20xH150 mm	N x 1∅20xH150 mm	O x 20∅4,0x30 mm
PL x 6L350xH48 mm	PR x 6L350xH48 mm	Q x 6∅11x472 mm	R x 12∅14x20 mm	S x 1236x25x16 mm
T x 24∅2,5x5 mm	U x 680x55x13 mm	V x 680x55x13 mm

Box 1/2

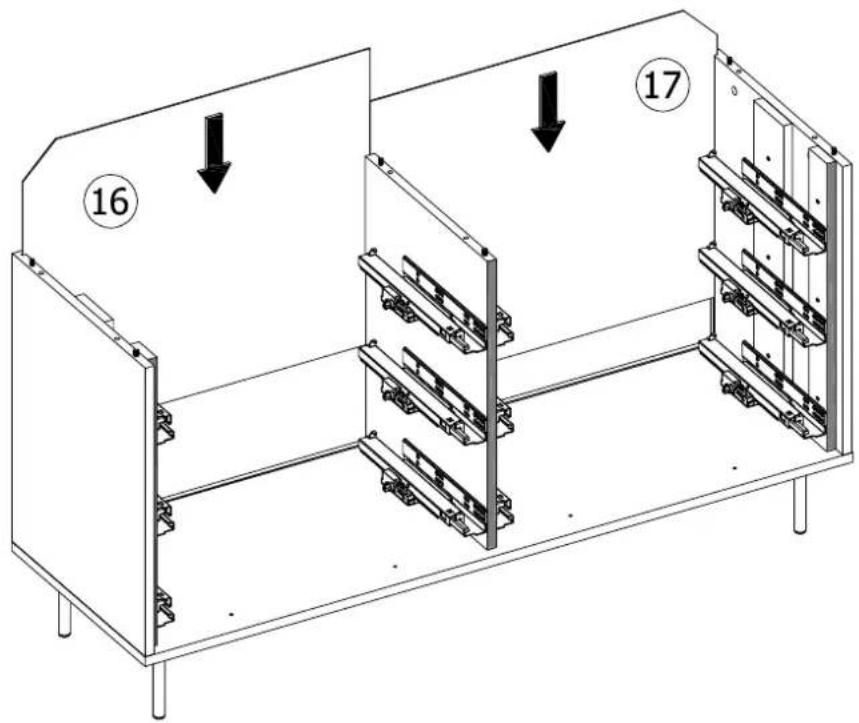

16

575x677x2,5 mm

17

575x677x2.5 mm

9

561x100x18 mm

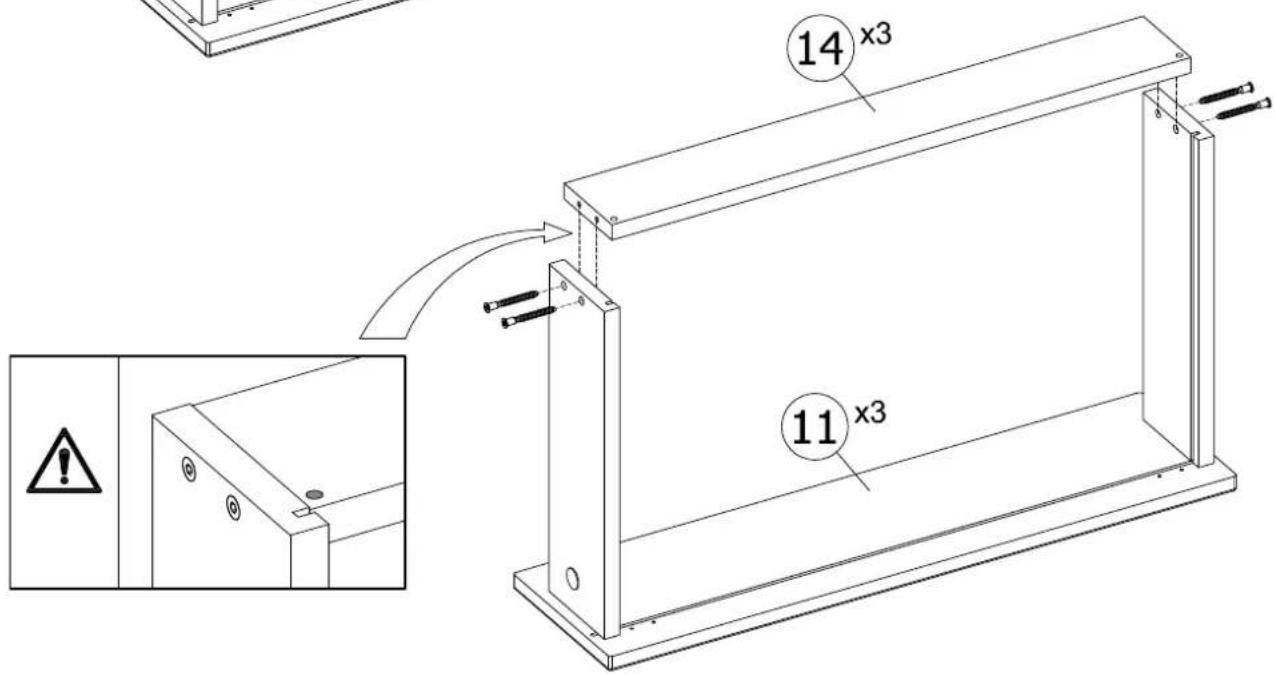

14

x2

602x86x16 mm

15

x6

614x344x2,5 mm

5

562x411x18 mm

3

562x448x18 mm

4

562x448x18 mm

12

x6

340x100x16 mm

13

x6

340x100x16 mm

Box 2/2

643x60x18 mm

561x100x18 mm

561x60x18 mm

602×86×16 mm

561x60x18 mm

653x174x16 mm

653x174x16 mm

12/27

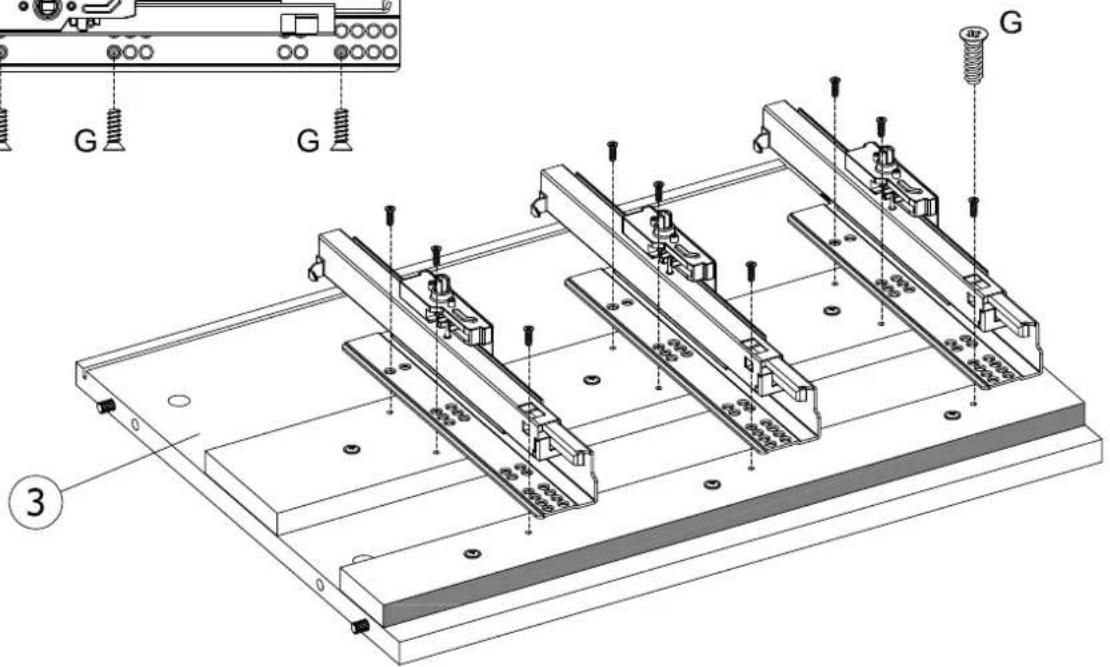

G x 9∅5,0x13 mm

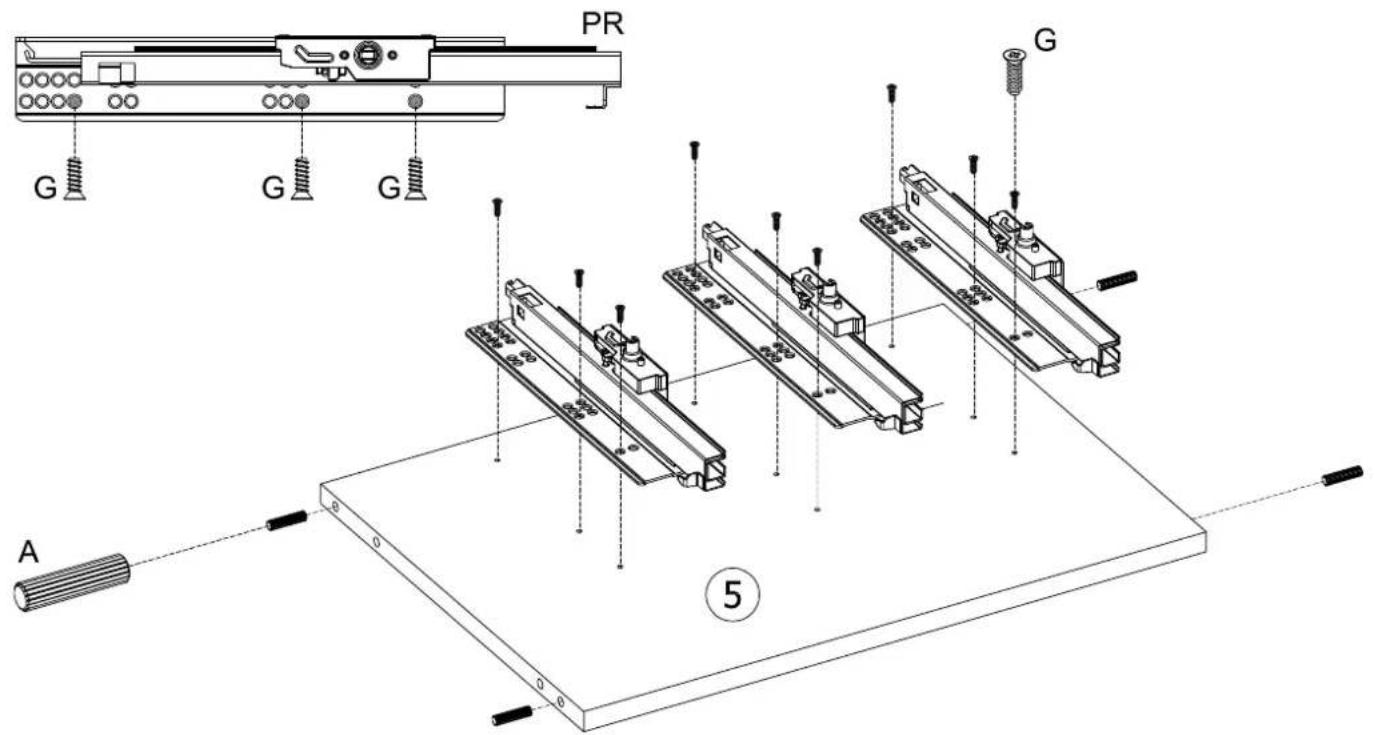

PL x 3L350xH48 mm

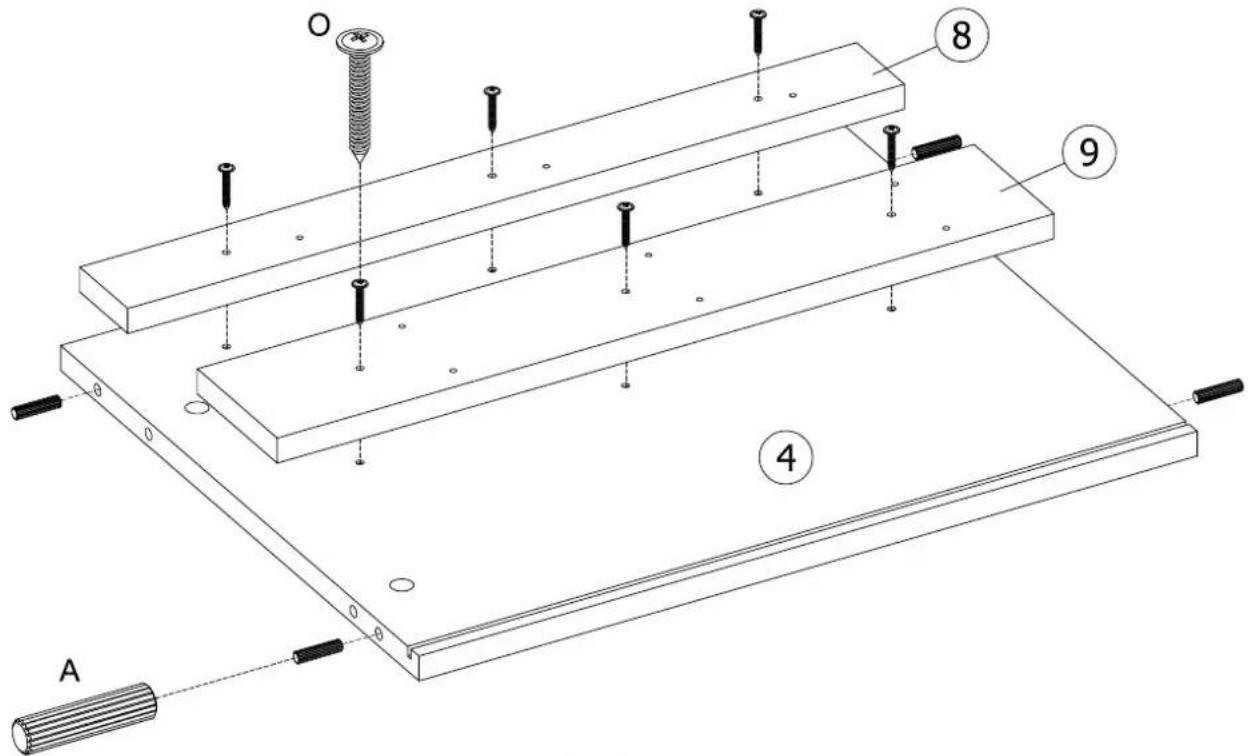

A x 4∅8x32 mm

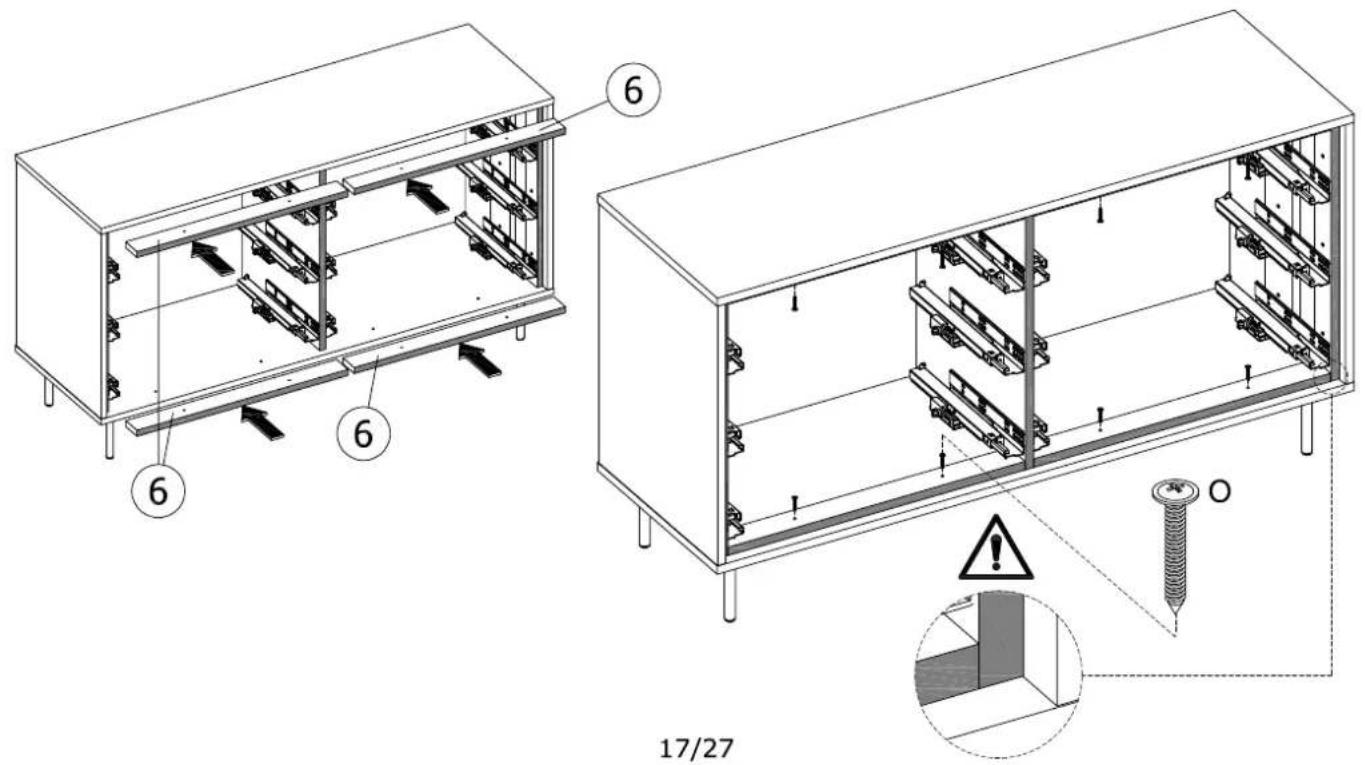

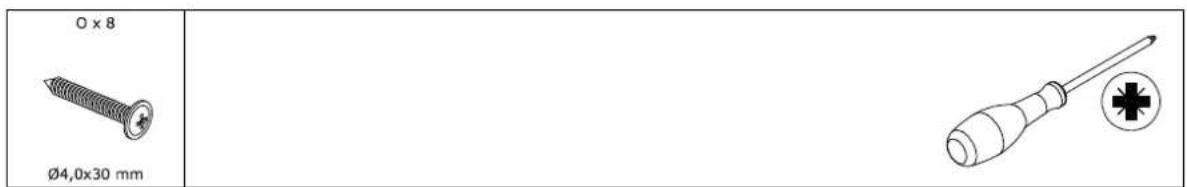

O x 6∅4,0x30 mm

G x 9∅5,0x13 mm

PR x 3L350xH48 mm

A x 4∅8x32 mm

G x 9∅5,0x13 mm

PR x 3L350xH48 mm

PL

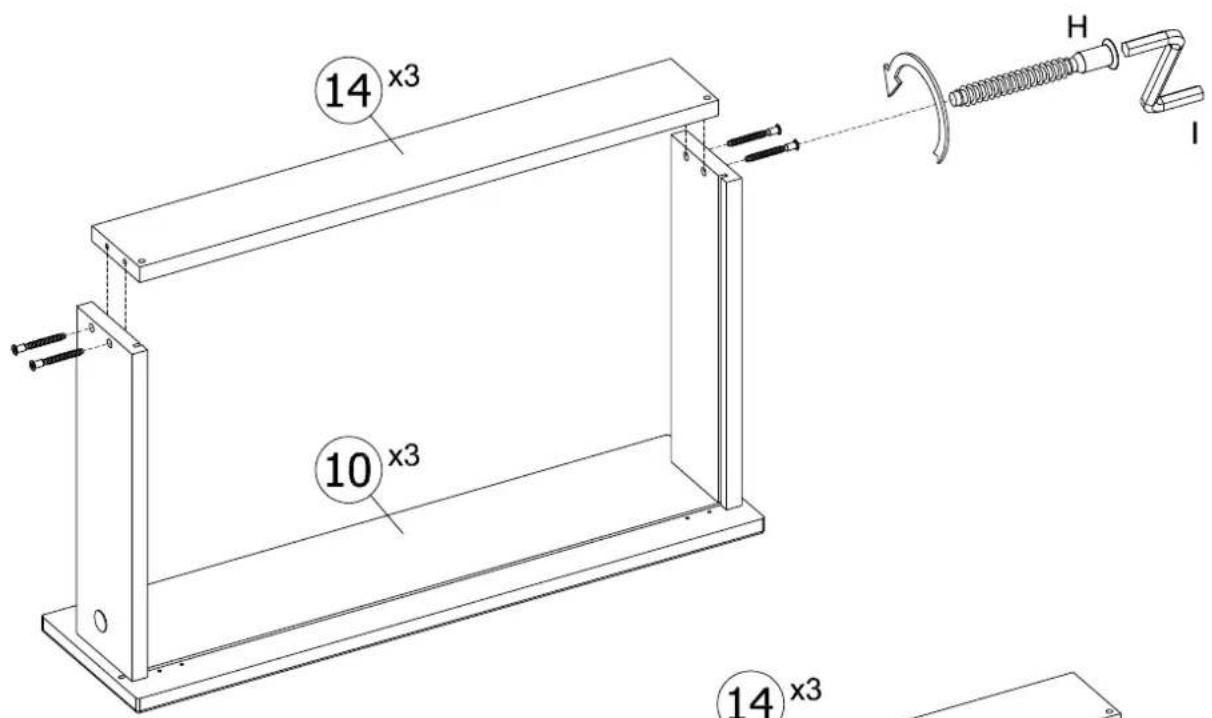

H x 6 Ø7x50 mm

I x 1 hex 4 mm

9

10

B x 6∅7,5x45 mm

E x 4∅3,5x16 mm

J x 277x32x16 mm

15

Q x 6∅11x472 mm

R x 12∅14x20 mm

S x 1236x25x16 mm

T x 24∅2,5x5 mm

A x 24	B x 12
∅8x32 mm	∅7,5x45 mm

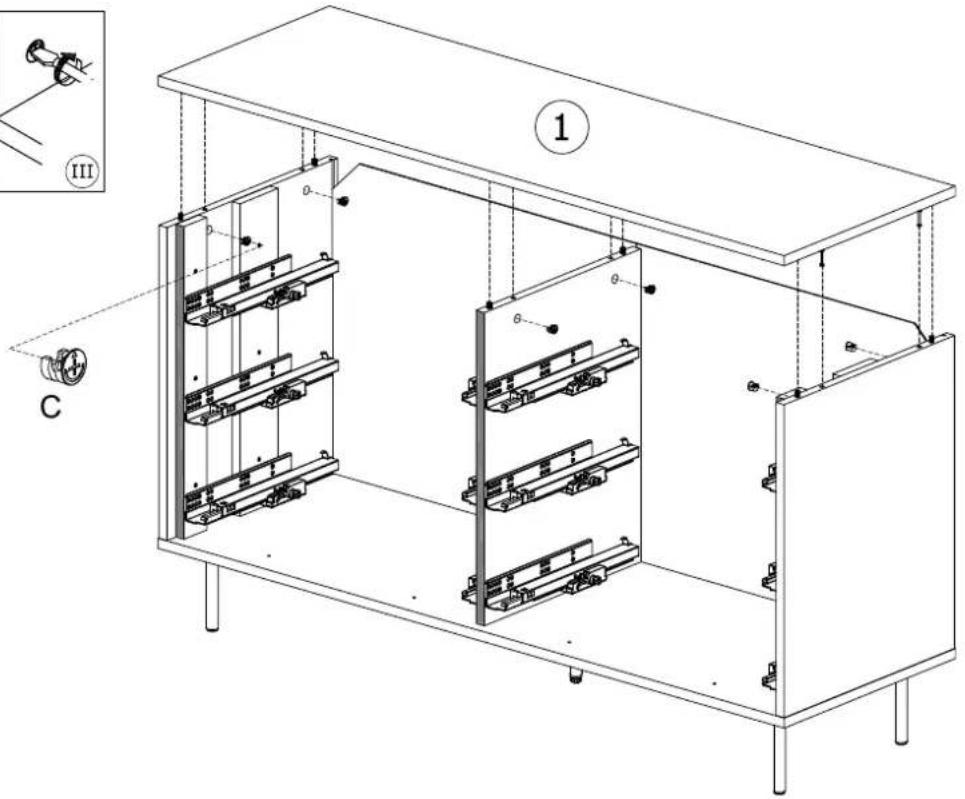

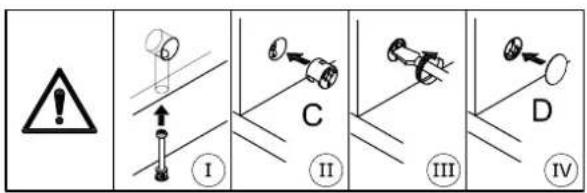

C x 12	D x 12
∅15x12 mm	∅20x0,5 mm

H x 24∅7x50 mm

I x 1hex 4 mm

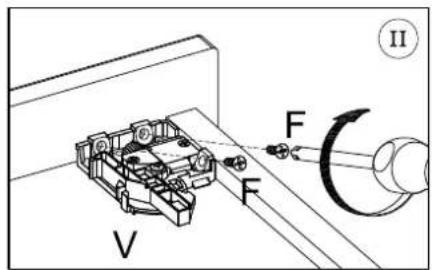

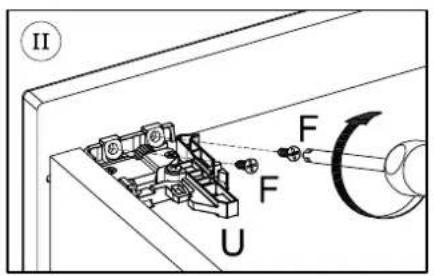

F x 24∅3,5x16 mm

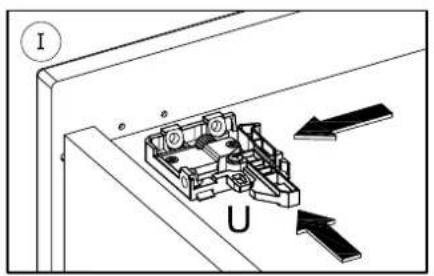

U x 680x55x13 mm

V x 680x55x13 mm

24

25
