Product Type	RJ45 Keystone Jack
Brand	Panduit
Model	CJK5E88TGOR
Color	Orange
Connector Type	8-position 8-conductor (RJ45)
Category	Cat5e
Wiring Schemas	T568A / T568B
Performance	Up to 100 MHz, 1 Gbps Ethernet
Operating Temperature	-10°C to 60°C
Storage Temperature	-40°C to 70°C
Humidity Range	10% to 90% (non-condensing)
Material	High-impact plastic, gold-plated contacts
Compliance	ANSI/TIA-568-C.2, ISO/IEC 11801
Application	Structured cabling, network outlets
Installation Type	Keystone punch-down or modular
Dimensions (L x W x H)	14.7 mm x 14.5 mm x 20.6 mm
Weight	Approx. 5 g
Maintenance	Clean with dry cloth; no chemical cleaners
Safety	UL listed, RoHS compliant
Spare Parts	Dust covers, mounting clips (sold separately)

Frequently Asked Questions - CJK5E88TGOR Panduit

What is the Panduit CJK5E88TGOR?

The Panduit CJK5E88TGOR is a Cat5e RJ45 keystone jack, ideal for structured cabling networks.

What color is the CJK5E88TGOR?

This model has an orange housing for easy identification.

Is this jack compatible with Cat6 cables?

No, it is designed for Cat5e (up to 1 Gbps). For Cat6, use a Panduit CJ688TG series.

What wiring schemes does it support?

It supports both T568A and T568B wiring standards.

How do I install the CJK5E88TGOR?

Punch down wires using a 110-style tool. Ensure solid conductor wire (22-26 AWG).

Can this jack be used in a faceplate?

Yes, it fits standard keystone openings (0.6 in x 0.5 in). Use Panduit CFPEX2 faceplates.

What tools are needed for installation?

A punch-down tool with 110 blade and a wire stripper/cutter.

Is the CJK5E88TGOR shielded?

No, this is an unshielded (UTP) keystone jack. For shielded, use model CJK5E88TGIY.

What is the operating temperature range?

It operates from -10°C to 60°C (14°F to 140°F).

Does it come with a warranty?

Panduit offers a limited lifetime warranty for manufacturing defects.

USER MANUAL CJK5E88TGOR Panduit

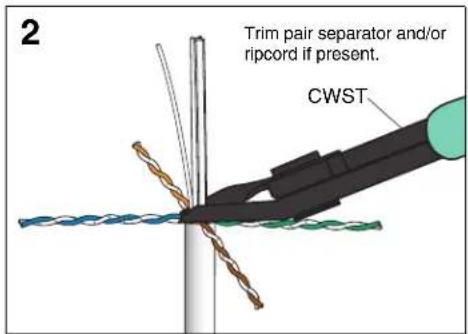

Cross-section diagram of a cable with twisted insulation and colored wires (no text or symbols)

** Denotes color.
Note: For bulk packaged TG style jack modules, add -24 to end of part number.

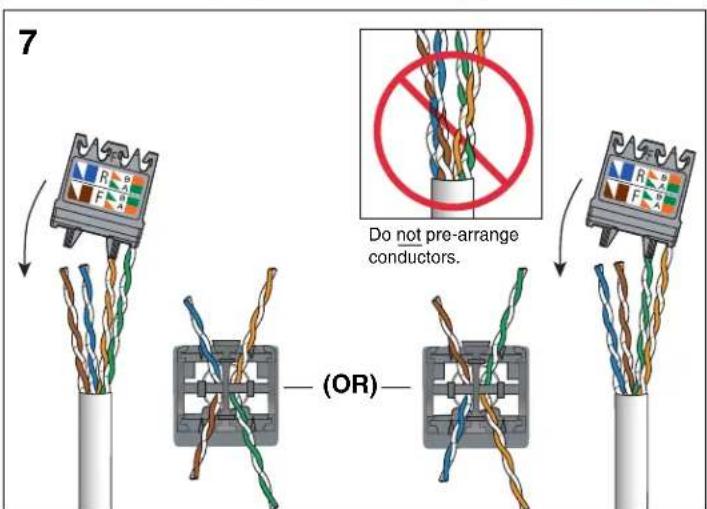

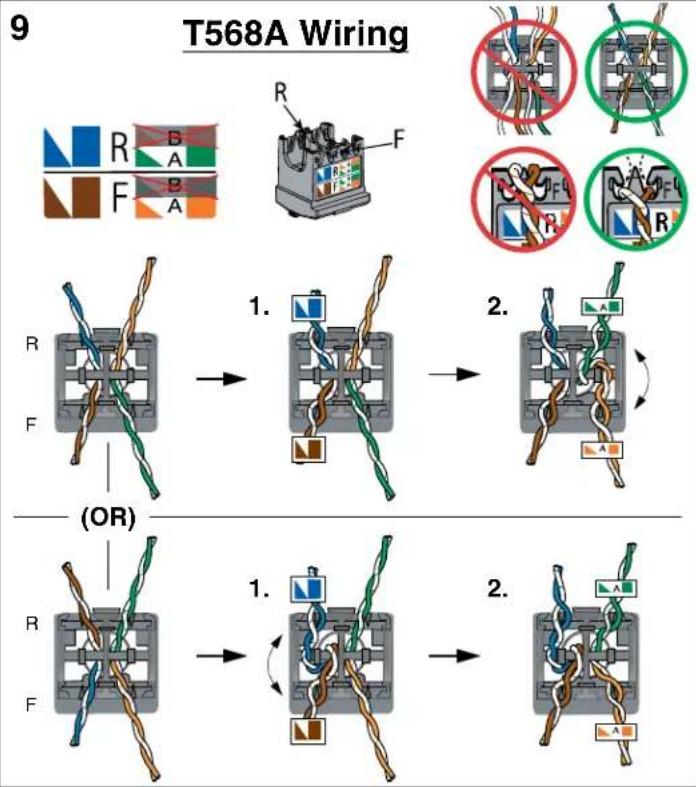

9

10

Diagram showing cable installation process with wire routing and connector (no text or symbols)

11

REMOVAL STEPS

1

Diagram of a mechanical tool interacting with a component, showing a dropper tip and lever mechanism (no text or symbols)

2

Mechanical assembly diagram showing a connector being inserted into a housing (no text or symbols visible)

3

Notes:

1. For specified performance, follow TIA/EIA 568-C installation guidelines.
2. Jack modules can terminate 22-26 AWG solid or stranded IWC data cable with 0.062" (1.57mm) maximum insulated conductor outside diameter.
3. Jack modules may be re-terminated a minimum of 20 times.
4. For technical and performance information, consult Panduit technical support.
   As with all Communication Components, the following statements apply:
5. Never install communications wiring during a lightning storm.
6. Never install communications wiring in wet locations unless the jack is specifically designed for use in wet locations.
7. Never touch uninsulated communications wiring or terminals unless the communication line has been disconnected at the network interface.
8. Use caution when installing or modifying communication wiring.
