Product Type	Built-in Dishwasher
Model	BM5223
Brand	Profilo
Width	60 cm
Depth	60 cm
Height	85 cm
Weight	45 kg
Power Supply	220-240 V, 50 Hz, 10 A
Place Settings	12
Energy Efficiency Class	A++
Noise Level	44 dB
Wash Programs	Intensive, Eco, Quick, Glass, Pre-rinse
Adjustable Racks	Yes, upper basket height adjustable
Cutlery Basket	Removable cutlery tray
Water Consumption	10 L per cycle
Annual Energy Consumption	230 kWh
Delay Start	1-24 hours
Child Lock	Yes
Anti-flood System	Yes, aquastop
Self-cleaning Filter	Yes, easy-to-clean
Spare Parts Availability	Filter, spray arms, salt cap, detergent dispenser

Frequently Asked Questions - BM5223 Profilo

How do I start a wash cycle?

Load the dishwasher, add detergent, select a program using the control panel, and press the start button. Ensure the door is closed securely.

Why is my dishwasher not draining?

Check the filter and drain pump for blockages. Clean the filter regularly. Also ensure the drain hose is not kinked or clogged.

How do I clean the filters?

Remove the lower basket and twist the filter assembly to unlock. Rinse under running water, scrub if needed, then reassemble.

What does the 'Eco' program do?

The Eco program uses lower temperatures and less water to save energy, but the cycle is longer. It is suitable for normally soiled dishes.

Can I use regular salt?

No, use only dishwasher-specific salt to prevent damage to the water softener. Fill the salt reservoir before first use.

Why are dishes not drying properly?

Ensure rinse aid is filled and that the program includes a drying phase. Open the door slightly after cycle for steam escape.

How do I reset the dishwasher?

Press and hold the start/reset button for 3 seconds. The machine will drain and reset. Refer to manual for exact sequence.

What does the 'Child Lock' do?

Child lock disables the control panel buttons to prevent accidental changes during operation. Activate by pressing and holding a specific button combination.

How often should I clean the spray arms?

Check and clean the spray arm nozzles every few months to remove food particles. Remove arms and rinse under water, use a toothpick if needed.

Where can I find spare parts?

Spare parts like filters, spray arms, and detergent dispensers can be ordered through the manufacturer's service center or authorized dealers.

USER MANUAL BM5223 Profilo

Technical line drawing of a multi-tiered appliance or cleaning unit with internal compartments and mounting base (no text or symbols)

tr içindekiler

Illustration of a hand using a tool to adjust a mechanical component (no text or symbols present)

Simple geometric diagram showing a circle with a dashed diameter and an arrow indicating rotation (no text or labels)

3D rendering of a funnel pouring granular material into a gear mechanism (no text or symbols visible)

Illustration of a coffee maker using a stand mixer with a water drop, no text or symbols present

3D cutaway view of a kitchen appliance showing various kitchen utensils and dish units (no text or labels visible)

*bazimodellerde

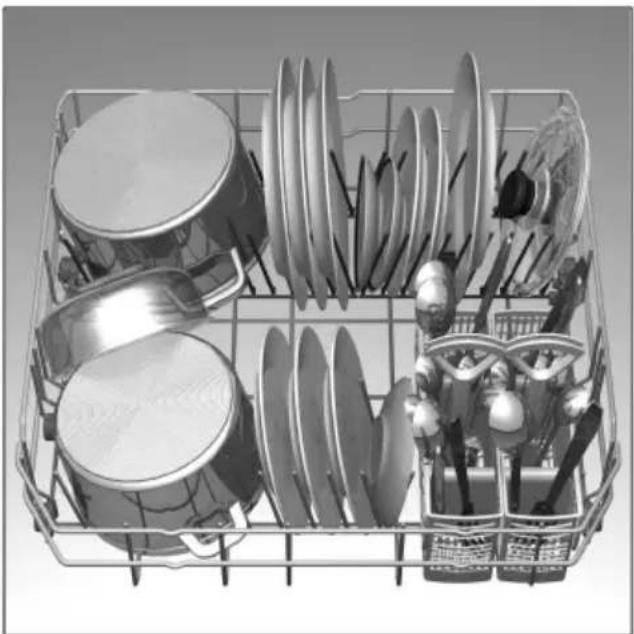

Tencereler

Altbulaşiksepeti 26

Black-and-white photo of a kitchen appliance grid with cutlery, spoons, and utensils (no text or symbols visible)

Sofratakımı

Illustration of a hand using a tool to adjust or install a grid-like structure, with no visible text or symbols.

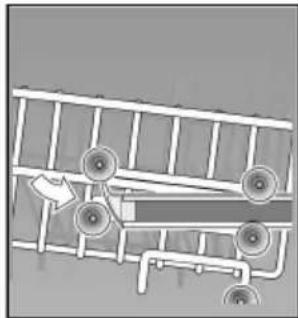

Raf/Sepet\*

*bazimodellerde

Diagram showing a grid pattern with an arrow pointing to a curved structure (no text or symbols)

Illustration of a glass mug with three metallic clips, set against a grid-patterned background (no text or symbols)

Diagram of a parking lot with lanes and wheels, no text or symbols present

Diagram of a vehicle suspension system with pulleys and a moving arrow (no text or labels)

Mechanical assembly diagram showing conveyor belts and rollers (no text or symbols)

Simple geometric diagram showing a circle with a dashed diameter and an arrow indicating rotation (no text or labels)

Illustration of a hand pressing down on a mechanical component with an upward arrow indicating motion (no text or symbols)

Two-step diagram showing a hand pressing a mechanical component into a housing, with no text or symbols present.

PüskürtmeKolları

Mechanical assembly diagram showing a rotating propeller and a mechanical component with a bolted base (no text or symbols)

Supüskürtmekolları

tr

Pissupompasi\*

*bazimodellerde

Technical illustration of a mechanical component with two views showing internal structure (no text or symbols)

tr

Cihazdaki...

Simple line drawing of a trash bin with crossed lines and a black rectangle below (no text or symbols)

Diagram of a kitchen appliance showing a bed, mouse, and tray with directional arrows indicating flow or movement (no text or symbols)

Interior view of a kitchen appliance showing a cup, tray, and rack (no text or symbols visible)
