GPS Car Tracker BB8299 - Browser THOMSON - Free user manual and instructions

Product Type	OBDII GPS Tracker
Brand	Thomson
Model	GPS Car Tracker BB8299
Dimensions	78 x 42 x 25 mm
Weight	58 g
Power Source	OBDII port (12V car power)
Communication	GPS + GPRS
SIM Card Required	Full-size SIM with data and text plan
Positioning Service	2 years included
App Compatibility	iOS and Android (Thomson GPS car tracker)
Real-time Tracking	Yes, via Google Maps
Anti-theft Alarm	Yes, with SMS/email alerts
Geofence Alerts	Yes
Journey History	Animated replay and reports
Fuel Consumption Estimation	Based on MPG/KPL input
Augmented Reality	Yes, for vehicle location
Speed Limit Alerts	Configurable
Multi-Vehicle Support	Up to multiple vehicles per account
Warranty	1 year
Cleaning	Soft, damp cloth only; no detergents
Usage Environment	In-car use only; avoid moisture and direct sunlight

Frequently Asked Questions - GPS Car Tracker BB8299 THOMSON

What SIM card is required for the Thomson GPS Car Tracker BB8299?

A full-size SIM card with a data and text plan is required. Approximately 20 MB and 200 texts per month are sufficient. Ensure the SIM has no PIN code.

How do I install the GPS tracker in my car?

Insert the SIM card into the tracker, then plug the tracker into your car's OBDII port (usually under the dashboard). Optionally, use the OBDII extension cable. Call the SIM number to verify LED flashing.

How do I set up the mobile app?

Download the 'Thomson GPS car tracker' app from the App Store or Google Play. Register an account, enter the IMEI number (scan QR or manual), input APN details from your SIM operator, and follow the on-screen steps.

What APN settings should I use?

APN settings vary by operator. Common ones include: Orange (orange.fr), SFR (websfr), Bouygues Telecom (mmsbouygtel.com), Free (Free). Check your operator's settings or the manual's table.

Why is my tracker not connecting or responding?

Ensure the tracker is fully plugged into the OBDII port, the SIM is correctly inserted and registered, and you have entered the correct IMEI, APN, email, and phone number. Check credit and data/text plan.

How do I arm the anti-theft alarm?

In the app's 'My Vehicle' page, press the 'Arm' button. If the vehicle is moved without authorization, you will receive an alert via SMS or email.

How can I view my vehicle's location in real-time?

On the home page, press the Map icon. You will see the vehicle's position on Google Maps, along with speed and address. Use the proximity icon to find distance to your vehicle.

Can I review past journeys?

Yes, from the home page select 'Review'. Choose a start and end date, then press play to see an animated route. You can adjust playback speed from 1X to 4X.

How do I adjust fuel consumption calculations?

Go to Settings > Edit Vehicle, input the correct fuel cost per litre, MPG/KPL values (urban and extra urban), and select measurement units (miles/km, gallons/litres). The calculation is an estimate.

What should I do if the augmented reality feature doesn't work?

Ensure both your phone and tracker are in open outdoor space. The tracker and app need to locate GPS satellites first; wait a short time. Augmented reality may not work in covered car parks.

USER MANUAL GPS Car Tracker BB8299 THOMSON

Thank you for purchasing this THOMSON product. In case of a malfunction please refer to the support information at the end of this manual. We highly appreciate any feedback which helps us to improve our products. Please keep this instruction manual for future reference.

WARRANTY

This product bearing the Thomson trademark, is guaranteed by the manufacturer for a period of 1 year from the date of purchase, and will, during this period be replaced with the same or a similar model, at our option, free of charge, if there is a defect due to faulty material, or workmanship. This guarantee does not cover defects arising from accidental damage, misuse or wear and tear, and is available only to the original purchaser of the product. This does not affect your statutory rights.

PRODUCT SPECIFICATIONS

• OBDII GPS tracker
• Operates on GPS and GPRS
  • Product dimensions 78x42x25 mm
• Weight 58g

CONTENTS OF THE PACKAGE

• GPS Tracker Unit
• ODBII ext cable (optional)

DEVICE DESCRIPTION

1.1 INSTALLATION

1. Ensure you have purchased a full size sim card with a data and text plan included. 20MB and 200 texts per month should be sufficient for normal use. Make sure that the card is already registered with your operator and take careful note of the sim card phone number. Also ensure that there is no PIN code on your sim card. If so, this needs to be removed. Check with your operator for more details.

NOTE: the product comes with 2 years of positioning service.

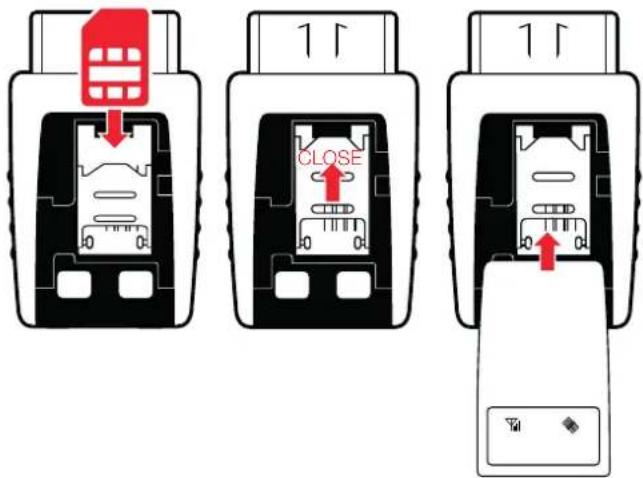

1. Open the tracker by sliding open the cover on the underside of the tracker.

Diagram of a device's internal structure showing a connector with a red arrow pointing to it, no text or symbols present.

1. Slide the sim card holder down and fold up so you can fit the sim card.

1. Insert the sim card, fold the holder down and slide the holder up so it locks into position.

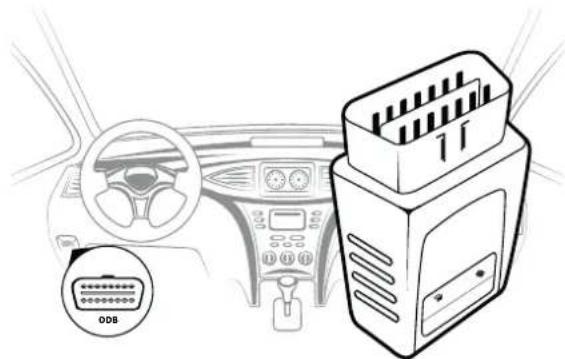

1. Connect the Tracker to the ODBII port on your car. This is normally under your dashboard or behind a closed panel. Please refer to your car manual or check online for your make and model of vehicle. If you are using an OBDII extension cable, insert this first and then attach the tracker. Please visit our website for more information.

Interior view of a car dashboard with a connector box and a small inset showing a 108-pin connector (no text or symbols on the diagram itself)

1. To check that the sim card and tracker is installed correctly, call the phone number of the sim card. The LED's on the product will flash to confirm it is functioning.

1.2 APP SET UP

Now that the product is fitted to your car, you need to set up the app on your Apple or Android smartphone. Download the app from the Apple Store or Google Play. The app name is Thomson GPS car tracker.

Icon of a car with a red location pin, labeled 'THOMSON' below (no other text or symbols)

Once your app is installed you can begin the set up process.

1. Launch the app and select the register option at the bottom left of the login page.

1. Fill in all of the details requested. Once completed, press the tick icon in the top right corner of the page. During the process you will need to scan the QR code or manually input the IMEI number.

NOTE: that the APN details are very important. You will need to get this information from your sim card operator or you can find it online.

You can also check our table at the end of the instruction book which lists the most common APN setting* for the main operators.

When you submit the details you will receive an email to confirm the registration. Click the link in the email to complete the registration. You will get a message back to login, but you do not need to do this at this stage. Exit your email and go back to the app to login.

You will also send and receive an SMS message back from the tracker to confirm that the sim card number is correct. The message will show the IMEI number of your tracker and the APN details you input.

If you do not receive any email or SMS, you may have input your email address or sim card number details incorrectly. Please check again and retry.

1. Once complete, login with your chosen user name and password, press sign in and you will be taken to the home page.

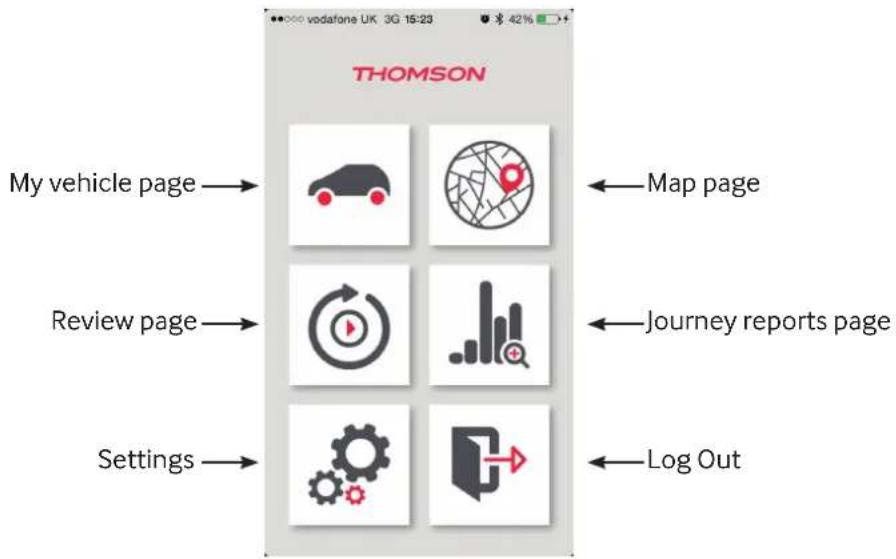

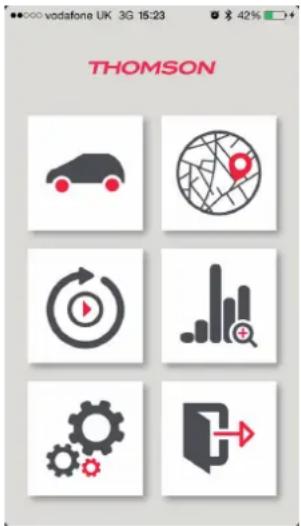

1. Once on the home page you can select your options and start tracking your vehicle. The available options are as follows.

1. For first use, we recommend going to the settings option in the bottom left of the home page to insert more information about your Vehicle.

SETTINGS PAGE

1. Press the settings button in the bottom left of the home page to enter the settings. Here you can enter a range of information.

- About and Help should be listed here.

- About gives information about Thomson.

- Help directs you to the support page and online full instructions.

- Notification Centre. – This lists all of the notifications sent.

- Change password – This allows you to change the password for the app.

- Receive alerted cell phones – This allows you to input up to 4 phone numbers to receive alert SMS messages.

- Map Loading on Wi-Fi – Activate this if you only want to download map data while on a Wi-Fi network to save your mobile data usage.

- Receive Alerted email – This allows you to input an email address to receive alerts

- Mile \ KM – Use this to set your unit measurement as miles of kilometres

- Gallon \ Litre – Use this to set your fuel unit measurement as gallons or litres.

- Summertime – use this if you are using summertime settings for your time zone.

- The final option provides a sub page to enter details about your account and vehicle. This is the Edit Vehicle screen. You can also add a photo of your vehicle by pressing the camera icon. You can use an existing photo or create a new one with your camera.

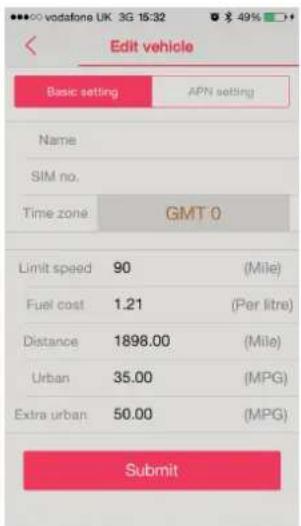

1. To enter the Edit Vehicle page, touch the area where your user name and serial number are shown.

On the Edit Vehicle page you can do the following:

- Change the user account name

- Change the sim number of the tracker

- Change your local time zone

- Input a speed limit alert

- Input your fuel cost per litre

- Input your vehicle mileage

- Input your Vehicle MPG \ KPL

Note: It is important to input the correct Urban and Extra Urban MPG \ KPL in order for the app to calculate your fuel consumption as accurately as possible. You should find this information in your vehicle handbook or online. This calculation is only an estimate as fuel consumption will differ depending on driving style and vehicle age. When you make any changes to this page, ensure you press the submit button.

1. If for any reason you change the sim card operator for your tracker, you will also need to change the APN details. To do this, select the APN Setting option at the top right of the Edit Vehicle page and enter the new APN settings. Then select modify. Your new APN details will then be set.

1.3. APP USAGE

My Vehicle.

1. Now that your tracker is installed and the app is fully configured, you can start to use it. Press on car icon in the top left of the home page. This will take you the 'My Vehicle' page

← Shows your device name
← Shows the current status of your vehicle and the last tracked time it was seen online
← Shows the GPS signal status. Green = good / Grey = lost / Red = Alert triggered
←Shows any current alerts
←Shows the current speed of your vehicle
←Shows the total distance your vehicle has taken
← Shows the last time the tracker was updated.
← Shows the current address of your vehicle

1. If you wish to add any additional vehicles to the same account, simply press the + logo in the top right of the My vehicle page and the enter the required information, similar to when you first registered. Once complete, press the tick icon in the top right corner.

1. If you do not wish to add any other vehicles, you can skip step 2 and simply read the data from your tracker on the My Vehicle page.
2. At the bottom of the my vehicles page you will see 4 options.

Arm – This allows you to arm the Anti – theft alarm. If your car is moved without authorization, you will receive a message on your phone or email.

Tracking – This allows you to view your car in real time on Google Maps and track its route.

Review – This allows you to watch any previous recorded journey from any date, fully animated on a map.

Clear Alerts – This clears any existing alert status.

Press the house logo in the top left of the page to return to the home page.

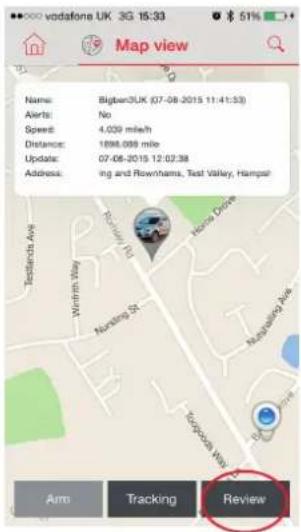

Map View

1. On the home page, press Map icon in the top right of the page.
2. On this page you can view the position of your vehicle. It will also display other information such as the Alert status, current speed (if it is moving) and the full address.
3. At the bottom of this page you can also arm or disarm the tracker, switch tracking on or off so you can see a trace line of its journey or shortcut to the review page. Press the house logo in the top left of the page to return to the home page.

1. This page also allows you to view the proximity of you to your vehicle. Press the proximity icon in the lower right corner of the map screen.

1. The proximity view allows you to view your current position on the map and the position of your vehicle. If you have more than one vehicle on your account you can limit the range of this mode by using the slider tool on the left side of the map. Slide it up to increase the distance and down to decrease the distance.

Use 2 fingers to spread or pinch the view to zoom in and out of the map.

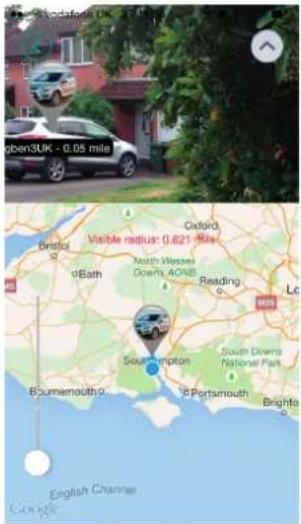

1. You can also use your camera to help find your vehicle if you have parked it somewhere and are finding it difficult to locate. To do this, press the down chevron in the top right of the map view. This is known as the Augmented Reality mode.

You can now hold up your phone so that the camera can view your location. As you circle from that spot a pointer should appear on your screen. This will then give you the rough direction and distance to your vehicle. Keep walking in that direction and it should lead you back to your parked vehicle position.

Note: that this will only work in an outdoor environment and not in covered car parks like multi-story or underground. The tracker will only know the last known position when it entered the car park.

Touch the back button in the top left corner to go back to the Map view page and then the house logo to go back to the home screen.

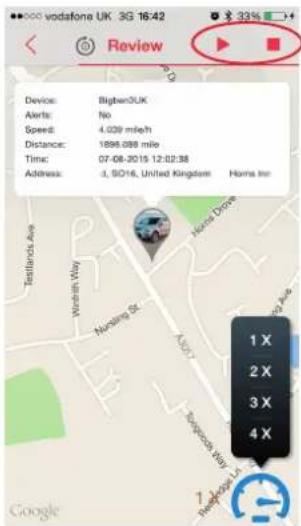

Review

1. Touch the middle left button on the home page to enter the review options.

On this page you can enter a start date and end date to review a full animated route taken by your vehicle.

1. Simply touch the start date or end date, rotate the selection to your preferred dates and times and then press OK. Then press the Tick icon in.

1. You can now view the journey taken on your chosen dates. Press the play button at the top of the review page to start the animation and press the stop button to stop it.

You can change the speed of the playback by pressing the speedometer icon in the bottom right of the page. Select from 1X to 4X speeds.

Press the back button in the top left corner and then the house icon to return to the home page.

Journey reports

1. Touch the middle right button on the home page to enter the journey reports.

On this page you can input a start and end date to get full reports on your journeys and any alerts.

1. Simply touch start date and end date sections and select the dates you wish to check from the calendar view.

1. Then select either the trip report or alert report button to view the report data. Note that you can only view a section of 30 days at any one time.

If you select trip report, you can now view the report details including that start and end address of each journey, the duration, distance average speed and fuel usage.

If you select Alert report it will show you all the types of alerts that have happened, including anti theft, power loss, geofence and engine on alerts, all of which would have sent you notifications via notification, SMS or email.

11:12:15	ams, Test Valley, Hampshire, South East, E
11:34:53	South East, England, SO14 3TY, United Ki
Duration:	00:22:38	Idle:	00:03:09
Avg speed:	18.604 mile/h	Distance:	6.645 mile
Fuel used:	0.190 gal	Trip cost:	1.044
15:50:03	South East, England, SO14 3TY, United Ki
16:39:17	nds Hill, Southampton, South East, Englan
Duration:	00:49:14	Idle:	00:17:28
Avg speed:	14.640 mile/h	Distance:	6.952 mile
Fuel used:	0.199 gal	Trip cost:	1.093

16:46:18	rds Hill, Southampton, South East, England
16:52:38	ams, Test Valley, Hampshire, South East, E
Duration:	00:06:20	Idle:	00:00:51
Avg speed:	17.478 mile/h	Distance:	1.307 mile
Fuel used:	0.037 gal	Trip cost:	0.205
19:59:12	ams, Test Valley, Hampshire, South East, E
20:05:05	hampton, South East, England, SO16, Unit
Duration:	00:05:53	Idle:	00:01:36
Avg speed:	12.123 mile/h	Distance:	1.242 mile
Fuel used:	0.035 gal	Trip cost:	0.195
21:14:05	hampton, South East, England, SO16, Unit
21:20:15	ams, Test Valley, Hampshire, South East, E
Duration:	00:06:10	Idle:	00:01:46

Press the back button in the top left corner and then the house icon to return to the home page.

Logout

The app will stay logged in and running in background unless you close the app or logout. To log out, select the log out option in the bottom right of the home page.

Common APN details

If you are using any of the following operators you can use these APN details during installation.

OPERATOR APN USER NAME PASSWORD
SFR websfr blank blank
Orange Orange.fr orange orange
Bouygues Telecom mmsbouygtel.com blank blank
Free Free blank blank

Please ensure that you input the details correctly. Any errors may result in the product not functioning.

As well as the app, you can also track your vehicle online using our web platform.

Visit www.thomson-cartracker.eu and login in your user name and password. Note that any changes made on here will also affect you app settings as the details are stored on the same server.

TROUBLESHOOTING

Product does not appear to work or reply when I register

1. Ensure that it is fully plugged in to your ODBII port. Check that the LED lights come on when you call the sim card number.
2. Make sure the sim card is fitted correctly.
3. Ensure you have used the correct sim card number IMEI number, APN details, email address and mobile phone number.
4. Make sure that your sim card is fully registered with your operator. You will need to check with your operator on this point if you are unsure.
5. Check that you have sufficient credit on your account.
6. Check that you have the correct plan. You need to have both text and data in your plan.

Tracker does not always connect properly.

1. The tracker is reliant on 2 factors. It needs to be in open space for the GPS to work. It also needs good mobile phone signal. If it is an area where these signals are blocked or poor, it can cause issues.
2. Check that you have sufficient credit on your account.

I am not receiving any SMS or email alerts.

1. Make sure that you have armed the tracker when you have parked your vehicle.
2. Ensure you have input the correct mobile phone number or email address.
3. Make sure you have activated cell phone and email alerts in the settings.

The fuel calculations are wrong.

1. Make sure you have input the correct fuel cost per litre.
2. Ensure you have input the correct values for MPG or KPL.
3. Check that you have selected the correct measurement system. Imperial or metric.

The Distance shown for my vehicle is wrong.

1. This cannot be 100% accurate as the odometer in your car will create a more reliable result. The app will only calculate based on GPS information, so you will need to manually adjust this occasionally. It is only for reference.

The Augmented reality does not always work.

1. Both your phone and tracker need to be in open space for this to function correctly. You may also need the tracker and app to locate the GPS satellites first so, please wait a short time while it does this when using this mode.

RECYCLING

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it should be taken to an applicable collection point for the recycling of electrical and electronic equipment. By ensuring that this equipment is disposed of correctly you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste

handling of this product. The recycling of materials will help to conserve natural resources.

For more information please contact your local council or waste disposal service.

IMPORTANT SAFEGUARDS & PRECAUTIONS

1. This Unit is for incar use only. Never expose to direct sunlight or wet weather conditions.
2. Do not expose the unit, to splashing, dripping, rain or moisture. Do not immerse in liquid.
3. Do not expose to dust, high humidity, high temperatures or mechanical shock.
4. Do not use if the equipment is damaged.
5. Do not disassemble. There are no serviceable parts inside.
6. For external cleaning, use a soft, clean, damp cloth only. Use of detergents may damage the finish and leak inside.

TECHNICAL HELPLINE INFORMATION

iOS® and iPhone® are trademarks of Apple Inc., registered in the U.S. and other countries. Android™ and Google Play™ are trademarks of Google Inc. All other trademarks are the property of their respective owners.

Country MCC	MNC Network APN User Name Password bands
Albania 7/6	02 Vodafone Twa NULL NULL 900/1800
Argentina CTI internet.ctimovil.				com.ar	guest guest
Argentina	722	10	Movistar	internet.gprs.unifon.com.ar
Internet.unifon wap	web 850/1900
Argentina	722	34	Personal	gprs.personal.com	[mobile number]	adgj	850/1900
Australia	505	02	Optus	internet	NULL	NULL	900/1800
Australia	505	01	Telstra	telstra.internet	NULL	NULL	900/1800
Australia			Telstra
(data bundles)	telstra.detapeck		[blank]	Telstra	Telstra
Australia			Telstra
(pay by time)	telstra.pcpack		[blank]	Telstra	Telstra
Australia			Three	3netaccess	a	a	a
Australia	505	03	Vodafone	vfinternetau	NULL	NULL	900/1800
Austria			Droi	droi.at	guest	guest	guest
Austria			Max Online	gprsinternet	GPRS	[blank]	[blank]
Austria			Max Online
(Business)	business.gprsinternet		GPRS	[blank]	[blank]
Austria			Max Online
(Metro)	gprsmetro		GPRS	[blank]	[blank]
Austria	232	01	Mobilkom A1	a1.net	[e-mail]	ppp	900/1800
Austria			OneNet	web.one.at	web	web	web
Austria	232	07	telering 07	web	[e-mail]	web	1800
Azerbaijan	400	01	Azercell 01	internet	NULL	NULL	900/1800
Bangladesh	470	01	Grameen Phone	gpinternet	NULL	NULL	900
Belarus	257	01	VELCOM 01	web.vol.com.by
unlim.velcom.by	web
unlim web
unlim web
unlim
Belgium	206	10	Mobistar
(personal)	internet.be		mobistar	mobistar	900/1800
Belgium			Mobistar
(business)	web.pro.be		mobistar	mobistar	mobistar
Belgium			Orange oranger	internet.guest.guest.guest
Belgium	206	01 Proximus
(Internet)	internet.proximus.be		NULL	NULL	900/1800
Belgium			Proximus
(Intranet)	intraprox.be		guest.guest.guest
Botswana	652	01	Mascom Wireless	internet.mascom	NULL	NULL	900
Brazil	724	05	Claro	claro.com.br	claro	claro	claro
Brazil	724	16/24	Oi	gprs.ci.com.br	NULL	NULL	900/1800
Brazil			Oi (WAP)	wapgprs.ci.com.br	ciwap	icioi	icioi
Brazil	724	02/03/04	TIM	lim.br	lim	lim	900/1800
Brazil			Velox	wap.telcel.com	iesgprs	iesgprs2002	iesgprs2002
Bulgaria	284	05	GoBul	internet.globul.bg	globul	NULL	900/1800
Bulgaria	284	01	M-Tel	mms-gprs.mtel.bg	mtel	mtel	900/1800
Cameroon	624	01	MTN Cameroon	INTERNET	NULL	NULL	900
Canada	302 KORE Wireless apn.			zerogravitywireless.com	NULL NULL	[blank]
Canada	302	370	Microcell
(Fido)	internet.fido.ca		fido	fido	850/1800
Canada	302	720	Rogers AT&T	internet.com	wapuser1	wap	850/1800
Chile	730	01	Entel PCS	imovilentelpcs.cl	antelpcs	antelpcs	1900
Chile	730	02	Telefonica
Movil	web.tmovil.cl		web	web	850/1800

China 460 00/02/07 China Mobile		00/02/07	cmnet NULL NULL 900/1800
China 460 01/06 China Unicom [none]		NULL NULL 900/1800
Croatia 219 01 T-Mobile web.htgpr 38591 38591 900/1800
Croatia	219 10	VIPNET START	gprs0vionet.hr	38591	38591	900/1800
Croatia		VIPNET PRO	gprs5vionet.hr	38591	38591	38591
Croatia		VIPNET 3G	3gvip.hr	38591	38591	38591
Colombia	732 102/123	Movistar	internetImovstar.com.co	movstar movstar	850/1800
Congo		Vodecom	vodane	vcdalve	[blank]	1800
Costa Rica	712 01	IceCelular	icecelular	NULL	NULL	1800
Czech
Republic	230
	Cesky Vool
(contract) internet NULL NULL guest
Czech
Republic
	Cesky Vool
(CM Prepay)	cinternet	guest	guest	guest
Czech
Republic	230 02 Telefonica
(contract) internet NULL NULL 900/1800
Czech
Republic
	Telefonica
(Go)	gointernel	guest	guest	guest
Czech
Republic	230 03 Vodafone
(contract) internet NULL NULL 900/1800
Czech
Republic
	Vodafone
(pre-pay)	cinternet	guest	guest	guest
Czech
Republic	230 01	T-Mobile	internett-mobile.cz	NULL	NULL	1800/1900
Denmark		3	[none]	guest	guest	guest
Denmark		Orange	wcb.orange.dk	guest	guest	guest
Denmark		Sonofon	[none]	guest	guest	guest
Denmark	238 01	TDC	internet	NULL	NULL	900/1800
Dominican
Republic
	Orange	orangenet.com.co	guest	guest	guest
Egypt	602 02	Click Vodafone	internetvodafone.net	internet	internet	900/1800
Egypt	602 01	MobNII	mobilinkweb	NULL	NULL	900/1800
Estonia	248 01	EMT	internetemtee	NULL	NULL	900/1800
Estonia		RLE	internet	guest	guest	guest
Finland	244 03	Dna	internet	NULL	NULL	1800
Finland	244 05	Elise
(Radiolinja)	internet	rlnet	internet	900/1800
Finland		Seunalahli	internet.saunalahli	guest	guest
Finland	244 91		internet	NULL	NULL	900/1800
Finland		Song	internet.song.fi	song@internet	songnet
France 208	208 20/21		dbouygtel.com	NULL	NULL	900/1800
France		Bouygues
(B2Bouygtel)	b2bouygtel.com	guest	guest	guest
France	208 00/01/02	Orange
(contract)	orange.fr	orange	orange	900/1800
France		Orange MIB	orange.mib	mportail	mib	mib
France		Orange
Mobicarte orange	-acte orange orange orange
France France SFR 10 web:SH NULL NULL 900/1800
Germany 262	02 D2 Vodafone web:vodafone.de NULL NULL 900/1800
Germany 262	03 E-Plus internetLeplus de eplus	gprs 900/1800
Germany		02 (3G)	surfo2	guest	guest	guest
Germany	262 07/08/11	02 (GPRS)	internet	NULL	NULL	900/1800
Germany		Quam	quam.de	quam	quam	quam
Germany	262 01/06	T-Mobile D1	internetLt-mobile	internetLt-d1.de	L-mobile	900/1800
Ghana		Aroeba
(formerly Spacefon)	internet.spacefon.com	guest	guest	guest
Greece	202 01	Cosmote	internet	NULL	NULL	900/1800
Greece		Tolestat	gnetb-online.gr	MSISDN, a.g.
3093XXXXXXX	24680	24680
Greece		TIM	ginLt-online.gr	web	web	web
Greece	202 05	Vodafone	internetvodafone.gr	NULL	NULL	900/1800
Guatemala	704 02	Comcel 02	Wap.tgo.gt	Wap	Wap	850/1800
Guatemala		PCS Digital	ideasalo	guest	guest	guest
Guyana	738 02	GT&T Cellink Plus	wep.cellinkgy.com	test	test	900
Hong Kong	454 10	New World	internet	NULL	NULL	1800
Hong Kong	454 15	Orange	web.orangehk.com	NULL	NULL
Hong Kong	454 12	Pecio	Internet /peoples.net	NULL	NULL	850/1800
Hong Kong	454 06/17	SmarTore	Internet/smartone	NULL	NULL	850/1800
Hong Kong	454 19	Sunday	internet	NULL	NULL	900/1800
Hong Kong	454 03/04	Three	web-g.three.com.hk	NULL	NULL	900/1800
Hungary	216 01 Pannon
(normal)	net	NULL NULL 900/1800
Hungary		Pannon
(flat rate)	netx	guest	guest	guest
Hungary		Pannon
(compressed)	snet	guest	guest	guest
Hungary	216 30 T-Mobile
(subscription)	internet NULL NULL 900/1800
Hungary		T-Mobile
(non-sub.)	internet	wap	Wap	Wap
Hungary		T-Mobile
(MMS)	mms-wosol	mms	[supplied]	[supplied]
Hungary
	216 70	Vodafone
(contract)
(compr.)	internetvodafone.net	NULL	NULL	900/1800
Hungary		Vodafone
(contract)
(un-comp.)	standardnet.vodafone.net	guest	guest	guest
Hungary		Vodafone
(pre-pay)
(comp.)	vitamaxinternet.vodafone.net	guest	guest	guest
Hungary		Vodafone
(pre-pay)
(un-comp.)	vitamaxsnet.vodafone.net	guest	guest	guest
India	404 02/03/31/49	AirTel	airtelgrs.com	NULL	NULL	900
India	404 21/27/43/44	BPL	bplgrs.com	bplmobile	NULL	900/1800
India	404 51-66	BSNL	celloneportal	NULL	NULL	900/1800
India 404 13	Hutch
(normal)	www	NULL	NULL	900
India		Hutch
(Gujarat)	web	guest	guest	guest
India 404 04 pea Cellular Internet NULL NULL 850/1800
India MTNL Mumbai mmsmtnlmum mtn mtn123 mtn123
India 404 68/69 MTNL Mumbai
(Plan 2) gorsmlmum mtn mtn123 900/1900
Indonesia	510 11	Excelcomindo	www.xgprs.net	xgprs	proxl	900
Indonesia	510 21	IM3	www.indosat-m3.net
wap.indosat-m3.net	gprs	im3	900/1800
Indonesia 510 01 Indosat 01
(Matrix)	setolindogprs.com
indosatgprs NULL	NULL 900/1800
Indonesia 510 10 Telkomsel 10		internet
telkomsel	wap	wap123	900/1800
Ireland	272 03	Meteor 03	isp.mymeteorie	my	meteor	900/1800
Ireland	272 02	Digilone 02
(contract)	openinternet	gprs	gprs	900/1800
Ireland		02
(pre-pay)	ppinternet	gprs	gprs	gprs
Ireland	272 01	Vodafone
(contract)	ispvocafone.ie	vodafone	vodafone	900/1800
Ireland		Vodafone
(pre-pay)	livevodafone.com	vodafone	vodafone	vodafone
Israel	425 02	Celcom	internetg	NULL	NULL	850/1800
Israel		MTC-Vodafone	apn01	guest	guest	guest
Israel	425 01	Orange	orangeinternet	NULL	NULL	900/1800
Italy	222 98	Blu	INTERNET	NULL	NULL	1800
Italy		H3G	tra.it	guest	guest	guest
Italy	222 01	TM	box.im.it	NULL	NULL	900/1800
Italy	222 10 Vodafone
(Omnitel)	web.omnitellit NULL	NULL 900/1800
Italy	222 88	Wind	internet.wind
internet.wind.biz	Wind	Wind	1800
Jamaica	338 180	Cable & Wireless	wap	NULL	NULL	850/1900
Jamaica	338 50	Digicel	web.digicejamaica.com	wapuser.wap03jam	900/1800
Japan 440	Vodafone
(J-Phone)	vodafone	airyodafone	vodafone	900/1800
Jersey		(See UK)
Kazakhstan	401 01	Beeline	internet.beeine.kz	internet.beeline	NULL	900/1800
Kenya	639 02	Safericom	web.safer.com.com	web	web	900/1800
Laos	457 02	ETL	ethet	NULL	NULL	900/1800
Latvia	247 01	LMT	internet.lmt.lv	NULL	NULL	900/1800
Latvia	247 02	Tele2	internet.tele2.lv	gprs	internet	900/1800
Lebannon	415 32/33/34/35	Colis HTML	internet.html.com.lb	plugged	plugged	900
Lebannon	415 03	MTC Touch	gprs.mtctouch.com.lb	NULL	NULL	900
Lithuania	246 02	Bire GSM	banga	NULL	NULL	900/1800
Lithuania 246 0	Omnitel
(contract)	gprs.omnitelnet	NULL	NULL	900/1800
Lithuania		Omnitel
(no contract)	gorsstartasll	omni	omni	omni
Luxembourg
	270 01	LUXCSM	web.pt.u	NULL	NULL	900/1800
Luxembourg	270 77	Tango	internet	tango	tango	900/1800
Luxembourg		VOXmobile	voxlu	guest	guest	guest
Macau	455 01	CTM	ctm-mobile	NULL	NULL	900/1800
Macau		Macau Hutchison
Telecom (Internet)	web.hutchisonmeceu.com	hutchison	1234	1234
Macau		Macau Hutchison
Telecom (MMS) mms.hutchisonmacau.com	hutchison 1234 1234
Malaysia 502 10 DIGI diginet NULL NULL
Malaysia 502 13 Celcom celcom.net.my NULL NULL 900/1800
Malaysia 502 12 Maxis 2G
(contract) intemLgprs.maxis NULL NULL 900/1800
Malaysia		Maxis 3G
(contract)	unet	maxis	wap	wap
Malaysia		Maxis
(pre-pay)	net	maxis	net	net
Malaysia 502 17 Timecel timenett.com.my
(timenet.com.my?)	NULL NULL 900/1800
Malaysia	502 13	TM Touch	internet	NULL	NULL
Malta 278 278 21 Go Mobile
(contract)	gosurfing	NULL	NULL
Malta		Go Mobile
(pre-pay)	rtgsurfing	guest	guest	guest
Mexico	334 20	Telcel	internettelcel.com	webgrs	webgrs2002	900/1800
Moldavia	259 02	Moldcell	internet	gprs	gprs	900
Morocco 604	604 01	Marcc Telecom	lam	wac	1987	900
Morocco	604 00	Medi Telecom	wap.meditelma	MEDIWAP	MEDIWAP	900/1800
Netherlands	204 08/10	KPN Mobile	internet	KPN	gprs	900/1800
Netherlands		O2	internet	guest	guest	guest
Netherlands	204 16/20	T-Mobile (Ben)
active	internet	NULL NULL
Netherlands	204 12	Telfort	internet	telforInl	password	900/1800
Netherlands	204 04 Vodafone
(normal)	webvodafone.nl	vodafone	vodafone	900/1800
Netherlands		Vodafone
(business)	officevodafone.nl	vodafone	vodafone	vodafone
New Zealand	530 01	Vodafone
(unrestricted)	internet	NULL NULL
New Zealand		Vodafone
(restricted)	www.vodafone.net.nz	guest	guest	guest
Nicaragua	710	Aio Pcs	internetLideasaloni	internet	internet
Nigeria	621 50	Globacom	glosacure	wap	wap	900/1800
Nigeria	621 30	MTN Nigeria	web.gprs.mtnnigeria.net	web	web	900/1800
Nigeria	621 60	ETISALAT	etislat	NULL	NULL	900/1800
Nigeria		Vmobile	wapvmobile	wap	wap	wap
Nigeria		Zein	internetlng.zain.com	internet	internet	internet
Nigeria 621 20 Airtel internetng.airtel.com
wap	wcp
Norway	621 02	Netcom	internetnetcomnuo	netcom	netcom	900/1800
Norway		TalkMore	(same as Netcom)
Norway 621 01 Telenor Mobil
(Vodafone) Internet
internet.vodafone.net	NULL NULL
Pakistan	410 03	UFone	ufoneinternet	ufone	ufone	900/1800
Panama	714 01	Cabe & Wireless	apn01.cwpanama.com.pe	xxx	xxx	850
Paraguay	744	CTI	internet.stimovil.com.py	ctigprs	ctigprs999
Peru	716 10	Claro (TIM)	tim.pe	tim	tulibertad
Philippines	515 02	Globe Telecoms
(Web)	internet.goba.com.ph	globe globe
Philippines		Globe Telecoms
(WAP)	www.globe.com.ph	globe	globe	gobe
Philippines	515 03	Smart	internet	witscutoor	banonoy

Philippines 515	05 Sun Cellular minternet NULL NULL
Poland 260 02 ERA erainternet erainternet erainternet
Poland Heyah heyah.pl heyah heyah
Poland 260 03 Orange internet internet internet
Poland	260 01 Polkomtel	www.plusgsm.pl	NULL	NULL
Portugal	268 03 Optimus	internet	NULL	NULL	900
Portugal	268 06 TMN	internet	NULL	NULL	900/1800
Portugal	268 01 Vodafone
(Telecel)	internetvodafone.pt	NULL	NULL	850
Russia	250 28 BeeLine	internet.beeline.ru	beeline	beeline
Romania	226 01 Connex
(Vodafone)	internetconnexro	internetconnex.ro	connex
Romania	226 10 Orange	internet	NULL	NULL
Russia	250 02 Megafon
	internet	NULL NULL
Russia		Megafon
(kvk)	internet.kvk	guest	guest	guest
Russia		Megafon
(Itmsk) internet	guest	guest	guest
Russia		Megafon
(Moscow)	internet.msk	gdata	gdata	gdata
Russia		Megafon
(mc)	internet.mc	guest	guest	guest
Russia		Megafon
(NWGSM)	internet.nw	guest	guest	guest
Russia		Megafon
(Siberia)	internetsib	guest	guest	guest
Russia		Megafon
(UGSM) internes	ugsm guest	guest	guest
Russia		Megafon
(usi)	internetusiru	guest	guest	guest
Russia		Megafon
(Volga)	internetvolga	guest	guest	guest
Russia 250 35 Motiv
(uses BeeLine)	internetbeeline.ru	beeline	beeline	900
Russia	250 01	MTS internetnts.ru
internet.kuban mts	mb	900/1800
Russia	250 03	NCC	internet	ncc	NULL
Russia	250 16	NTC	internet.ntc	NULL	NULL
Russia	250 92	PrimTel	internet.printel.ru	NULL	NULL
Saint Lucia	358 110	Cable & Wireless	internet	NULL	NULL
Saint Vincent & the Grenadines	360 070
	Digicel	wap.digiceloecs.com	wapoecs	wap03eecs
Saudi Arabia	420 01	STC	jewelnet.com.sa	NULL	NULL
Senegal
608 02	Tigo	wap.santelgsm.com	NULL	NULL	900/1800
Serbia-
Montenegro	220 01	Mobiel Srbija	internet	mobiel	gprs
Serbia-
Montenegro	220 03
	Telekom Srbija	gprsinternet mts	064
Serbia-
Montenegro		Tokkom Srbija
(WAP service)	gprswap	mts	064	064
Singapore 525 03 M1		mobilenet NULL NULL
Singapore	525 02 SingTel	internet	NULL	NULL
Singapore	525 05 Starhub	shwapnt	NULL	NULL	900/1800
Slovakia	231 02 Eurotei	internet	NULL	NULL	900

Slovakia Gobtel	Internet guest guest guest
Slovakia 231 01 Orange internet jusermajm pasvord 900/1800
Slovenia 293 41 Mobitel
(Internet) internet mobile internet 900/1800
Slovenia Mobitel
(Internet Pro) internet pro mobile internet internet
Slovenia	293 40	Simobil	[none]	NULL	NULL	900
South Africa	655 07	Cell-C	internet	NULL	NULL	850
South Africa	655 10	MTN	internet	NULL	NULL	900/1800
South Africa	655 01	Vocacom	internet	NULL	NULL	850
South Africa		Virgin Mobile vdata guest guest
Spain	214 03	Amena	internet	CLIENTE	AMENA	900/1800
Spain	214 07	Telefonica
(Movistar)	movistar.es	movistar	movstar	900
Sri Lanka	413 02	Dialog GSM
(contract)	www.dialogsl.com	NULL	NULL	900/1800
Sri Lanka		Dialog GSM
(pre-pay)	powep	guest guest guest
Sri Lanka	634 01	Mootel	sp	NULL	NULL
Spain 214 01	Vodafone
(Airtel)	artelnetes	vodafone	vodafone	900/1800
Sweden	240 07	Tele2, Comviq	ispink1.swip.net	gprs	internet	900
Sweden		Tele2 (3C)	internet.tele2.se	wap	wap	wap
Sweden	240 08 Telenor
(GPRS)	internetvodafone.net	NULL	NULL	900/1800
Sweden		Telenor
(3G)	servicesvodafone.net	guest	guest	guest
Sweden	240 01	Tele	online.tele.se	NULL	NULL	850
Sweden		Tre (3G)	data&race	void	void	void
Switzerland	228 03	Orange	internet	NULL	NULL
Switzerland	228 02	Sunrise	internet	internet	internet	900/1800
Switzerland	228 01	Swisscom	gprs.swisscom.ch	NULL	NULL
Taiwan	466 11 Chunghwa
Telecom emome or
internet	NULL	NULL	900/1800
Taiwan	466 01	Far Eastone	fernet01	NULL	NULL
Taiwan	466 88	KG Telecom	internet	NULL	NULL
Taiwan		Taiwan Cellular	internet	guest	guest	guest
Thailand	520 01	AIS	internet	ais	ais
Thailand	520 18	DTAC	www.diac.co.uk	NULL	NULL
Turkey	786 04	Aycel	aycel	NULL	NULL
Turkey	286 02	Telsm	telsim	telsim	telsim	900/1800
Turkey	286 01	Turkcell	internet	gprs	gprs
UAE	424 02	Elisalot	mnet	mnet	mnet
UK		3	three.co.uk	guest	guest	guest
UK	234 50Jersey
Telecom	pepper	abc	abc
UK 234 02	02
(contract)	mobile.o2.co.uk	web	password	900/1800
UK	UK	02
(contract)
-faster-	mobile.o2.co.uk	faster	password
UK		02
(pre-pay)	payandigo.o2.co.uk	payendgo	payendgo	payandgo
UK	234 33/34	Orange (Pay Monthly)	orangeinternet	user	pass
UK		Orange
(Pay and Go)	orangewap	Multimedia	Orange	Orange
UK	234 30	T-Mobile	general-mobile.uk	user	pass	900/1800
UKUK 234 15 Vodafone	234 31/32	Virgin Mobile	goto.virginmobile.com	user	NULL	900/1800
(contract) internet web webs
UK Vodafone
(pre-pay) powodafone.co.uk wep wep wep
Ukraine Djuice www.djuice.com.ua igprs igprs igprs
Ukraine jeans www.joans.ua guest guest guest
Ukraine	255 03	Kyivstar	www.kyivstar.net	igprs	internet
Ukraine		Mobi-GSM	interneturs	guest	guest	guest
Ukraine	255 01	UMC 01	www.umc.ua	NULL	NULL
Uruguay	748 01/03	ANCEL	gprsancel	NULL	NULL
Uruguay	748 10	CTI	internet.ctimovil.com.uy	ctiweb	ctiweb999
Uruguay	748 07	Movistar	webapn.movistar.com.uy	movistar	movistar
USA Cingular
(ex AT&T)	proxy	guest	guest	guest
USA Cingular
(With acceleration)	ISP CINGULAR	ISPDAq
CINGULARGPRS
.COM	CINGULAR1	CINGULAR1
USA Cingular
(NO acceleration)	ISP CINGULAR ISPQ
CINGULARGPRS
.COM	CINGULAR1	CINGULAR1
USA	310 41	Cingular
(non-contract)	WAP CINGULAR	WAPI
CINGULARGPRS
.COM	CINGULAR1 900/	800
USA		T-Mobile (Internet)	internet2 voicestream.com	guest	guest guest
USA		T-Mobile (VPN)	internet3 voicestream.com	guest	guest guest
USA	310 26	T-Mobile
(non-contract)	wep voicestream.com	NULL	NULL	900/1800
Uzbekistan	434 07	Uzdunrobita	neturduz	user	pass
Venezuela	734 02	Digital TIM	gprsweb.digitelve	NULL	NULL

bigben® interactive
